冲积(r包)实例给出了误差

Question

我是不是遗漏了什么？冲积层包中的示例给出了以下错误：

> library(ggalluvial)
> ggplot(as.data.frame(Titanic),
+        aes(weight = Freq,
+            axis1 = Class, axis2 = Sex, axis3 = Age,
+            fill = Survived)) +
+   geom_alluvium() +
+   scale_x_continuous(breaks = 1:3, labels = c("Class", "Sex", "Age"))
Error: Invalid column specification

更新2:按照DanHall的要求：

sessionInfo()
R version 3.4.3 (2017-11-30)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows >= 8 x64 (build 9200)

Matrix products: default

locale:
[1] LC_COLLATE=English_Canada.1252  LC_CTYPE=English_Canada.1252    LC_MONETARY=English_Canada.1252 LC_NUMERIC=C
[5] LC_TIME=English_Canada.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] ggalluvial_0.6.0 ggthemes_3.4.0   alluvial_0.1-2   dplyr_0.5.0      purrr_0.2.2      readr_0.2.2      tidyr_0.6.1
 [8] tibble_1.3.4     ggplot2_2.2.1    tidyverse_1.1.1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.14     compiler_3.4.3   plyr_1.8.4       base64enc_0.1-3  forcats_0.2.0    tools_3.4.3      digest_0.6.12
 [8] evaluate_0.10.1  jsonlite_1.5     lubridate_1.5.6  gtable_0.2.0     nlme_3.1-128     lattice_0.20-33  rlang_0.1.4
[15] psych_1.6.4      DBI_0.6          yaml_2.1.14      parallel_3.4.3   haven_1.0.0      stringr_1.2.0    httr_1.3.1
[22] knitr_1.19       xml2_1.1.1       hms_0.3          rprojroot_1.2    grid_3.4.3       R6_2.2.2         readxl_0.1.1
[29] rmarkdown_1.8    reshape2_1.4.2   modelr_0.1.0     magrittr_1.5     backports_1.1.1  htmltools_0.3.6  scales_0.5.0
[36] rsconnect_0.8.5  assertthat_0.1   mnormt_1.5-4     rvest_0.3.2      colorspace_1.3-2 labeling_0.3     stringi_1.1.6
[43] lazyeval_0.2.1   munsell_0.4.3    broom_0.4.1

Answer 1

如下所示，此代码在另一台计算机上工作。当对其他人起作用的东西不适合您时，运行update.packages()并按照说明更新您可能已经安装的过时的包可能是有用的。这才是解决问题的办法。

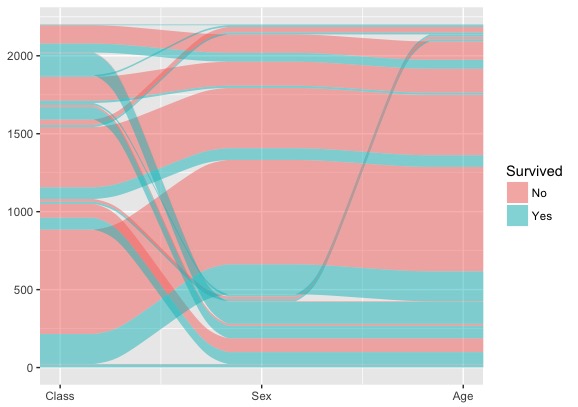

它在我的机器上工作如下：

ggplot(as.data.frame(Titanic),
      aes(weight = Freq,
          axis1 = Class, axis2 = Sex, axis3 = Age,
          fill = Survived)) +
  geom_alluvium() +
    scale_x_continuous(breaks = 1:3, labels = c("Class", "Sex", "Age"))

​

​

它在调用example(geom_alluvium, package = "ggalluvial")时也能工作。

下面是另一个用法示例(摘自vignette)。

ggplot(as.data.frame(Titanic),
       aes(weight = Freq,
           axis1 = Survived, axis2 = Sex, axis3 = Class)) +
  geom_alluvium(aes(fill = Class),
                width = 0, knot.pos = 0, reverse = FALSE) +
  guides(fill = FALSE) +
  geom_stratum(width = 1/8, reverse = FALSE) +
  geom_text(stat = "stratum", label.strata = TRUE, reverse = FALSE) +
  scale_x_continuous(breaks = 1:3, labels = c("Survived", "Sex", "Class")) +
  coord_flip() +
  ggtitle("Titanic survival by class and sex")
