如何将ASTM帧写入和发送到医疗设备
如何将ASTM帧写入和发送到医疗设备
提问于 2018-03-12 15:00:45
我目前正在ASTM协议上工作，向医疗仪器发送订单测试请求。但我不能正确地向设备发送信息。更明确的是，例如，我希望发送这些帧：
String h1, s2, s3, s4, s5, s6 = "";
h1 = "H|@^\\|ODM-IdfDGIWA-36|||GeneXpert PC^GeneXpert^4.8|||||LIS||P|1394-97|20070521100245";
s2 = "P|1";
s3 = "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q";
s4 = "O|2|SID-818||^^^TestId-14|S|20070812140600|||||A||||ORH||||||||||Q";
s5 = "O|3|SID-818||^^^TestId-16|S|20070812140700|||||A||||ORH||||||||||Q";
s6 = "L|1|F";我现在是这样做的：
writeMeBytes(outToServer, h1.getBytes());
writeMeBytes(outToServer, s2.getBytes());
writeMeBytes(outToServer, s3.getBytes());
writeMeBytes(outToServer, s4.getBytes());
writeMeBytes(outToServer, s5.getBytes());
writeMeBytes(outToServer, s6.getBytes());
public static void writeMeBytes(DataOutputStream dos, byte [] b){
if (b.length >0){
int j = 0;
while (j <= b.length-1) {
try {
dos.write(b[j++]);
} catch (IOException ex) {
Logger.getLogger(SimpleServer.class.getName()).log(Level.SEVERE, null, ex);
}
}
}
}我将其转换为字节，然后逐字节发送。
但我在接收方没有看到任何变化。
根据@Muhammad Answer更新
这就是我向GeneXpert DX系统发送订单时所做的事情。
public class SimpleServer {
private static ServerSocket server;
private static Socket connection;
public static void main(String args[]) throws IOException, InterruptedException {
server = new ServerSocket(12221);
boolean stopped = false;
System.out.println(" start... ");
connection = server.accept();
System.out.println("wait for connection");
BufferedReader inFromClient = new BufferedReader(new InputStreamReader(connection.getInputStream()));
DataOutputStream outToClient = new DataOutputStream(connection.getOutputStream());
String currentMsg = "";
int clientIntMessage;
String h1, s2, s3, s4, s5, s6 = "";
h1 = "1H|@^\\|ODM-IdfDGIWA-36|||GeneXpert PC^GeneXpert^4.8|||||LIS||P|1394-97|20070521100245" + ProtocolASCII.LF
+ "P|1" + ProtocolASCII.LF
+ "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q" + ProtocolASCII.LF
+ "L|1|F" + ProtocolASCII.LF;
s2 = "P|1";
s3 = "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q";
//s4 = "O|2|SID-818||^^^TestId-14|S|20070812140600|||||A||||ORH||||||||||Q";
//s5 = "O|3|SID-818||^^^TestId-16|S|20070812140700|||||A||||ORH||||||||||Q";
s6 = "L|1|F";
String retmsg = h1;
//logException("OrderMessae :" + retmsg);
retmsg = ProtocolASCII.STX + retmsg + ProtocolASCII.CR + ProtocolASCII.ETX + ProtocolMessage.getCheckSum(retmsg) + ProtocolASCII.CR + ProtocolASCII.LF;
clientIntMessage = inFromClient.read();
//while (clientIntMessage != ProtocolASCII.EOT) {
while (true) {
currentMsg += String.valueOf(Character.toChars(clientIntMessage));
if (clientIntMessage == ProtocolASCII.ENQ) {
outToClient.writeBytes("" + ProtocolASCII.ACK);
System.out.println(" <--- LIS [ACK] on DX [ENQ]");
} else if (clientIntMessage == ProtocolASCII.ACK) {
System.out.println(" ---> DX [ACK]");
// Send your order message here
outToClient.writeBytes(retmsg);
} else if (clientIntMessage == ProtocolASCII.CR) {
System.out.println(currentMsg);
outToClient.writeBytes("" + ProtocolASCII.ACK);
} else if (clientIntMessage == ProtocolASCII.NAK) {
System.out.println(" ---> DX sent [NAK] ");
System.out.println(" --- LIS now wait 10 sec... ");
Thread.sleep(10000);
outToClient.writeBytes("" + ProtocolASCII.ENQ);
System.out.println(" <--- LIS [ENQ] ");
} else if (clientIntMessage == ProtocolASCII.EOT) {
System.out.println(" ---> DX END OF TRANSMISSION");
outToClient.writeBytes("" + ProtocolASCII.ENQ);
System.out.println(" <--- LIS [ENQ] ");
}
if (stopped) {
break;
}
clientIntMessage = inFromClient.read();
}
connection.close();
stopped = true;
}}这就是我从控制台得到的结果：
start...
wait for connection
<--- LIS [ACK] on DX [ENQ]
1H|@^\|ODM-rQTcjIWA-66||GeneXpert PC^GeneXpert^4.8|||||LIS||P|1394-97|20180314003724
Q|1|ALL||||||||||O@N
L|1|N
B5
---> DX [EOT]
<--- LIS [ENQ]
---> DX [ACK]
---> DX sent [NAK]
--- LIS now wait 10 sec... DX是机器软件，LIS是主机。每当我试图发送ENQ时，机器都会用NAK回答我。
更新2

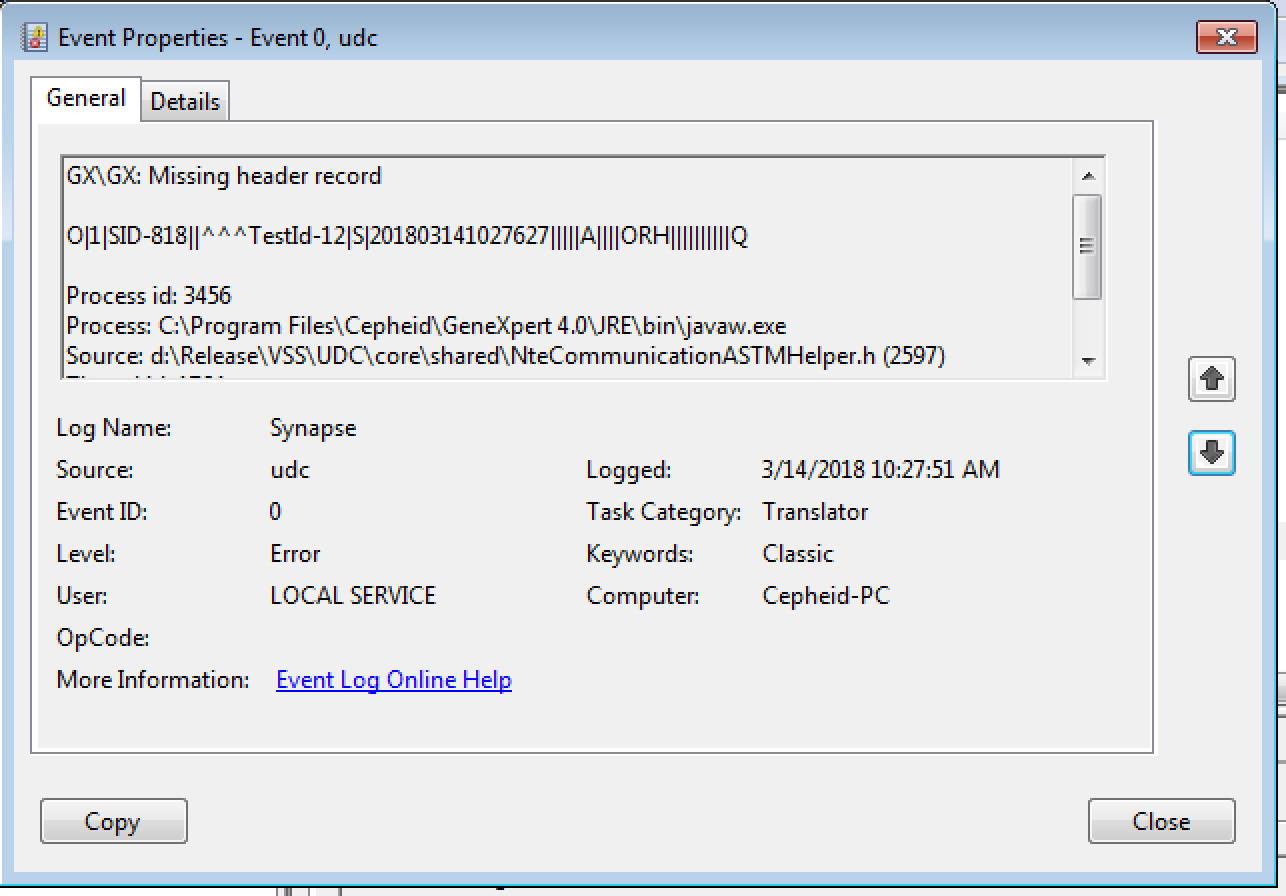

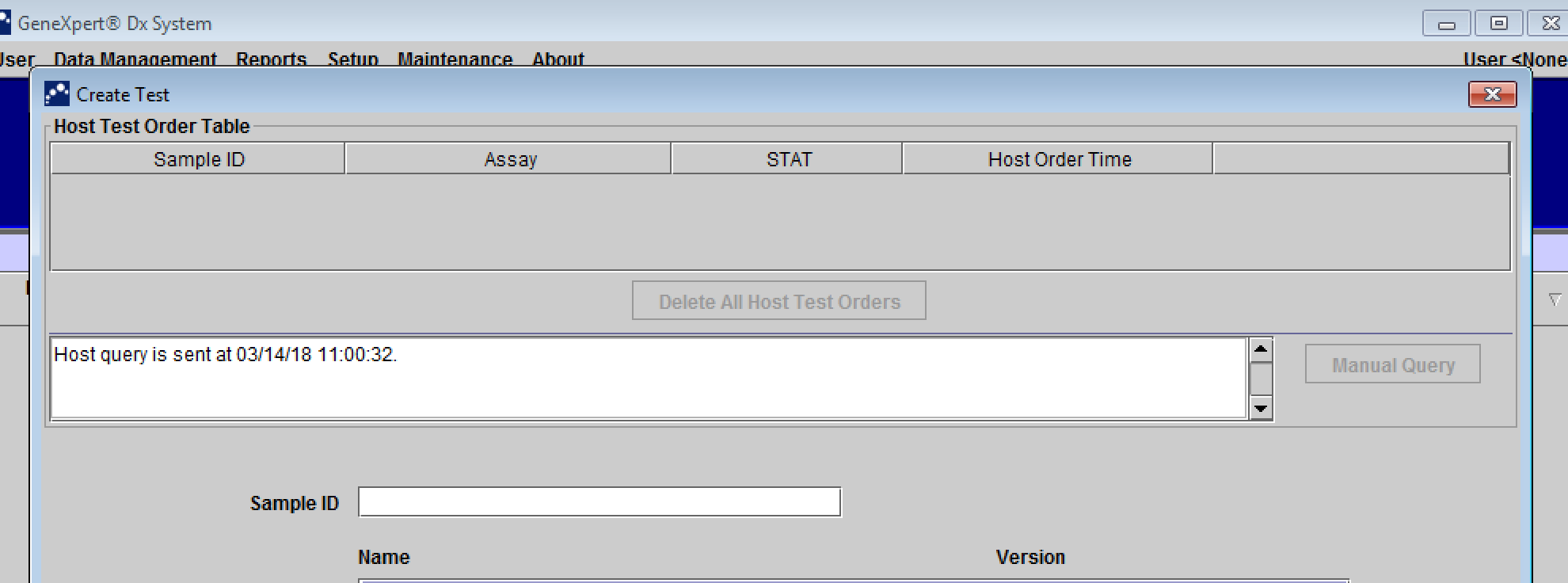

好像起作用了。但是现在windows事件显示了为什么我的记录订单没有出现在GeneXpert DX主机记录列表中的错误。头记录已首先发送。
回答 2
Stack Overflow用户
回答已采纳
发布于 2018-03-13 13:20:51
在回答之前，让我们讨论一下双向的机器机制。
String h1, s2, s3, s4, s5, s6 = "";
h1 = "H|@^\\|ODM-IdfDGIWA-36|||GeneXpert PC^GeneXpert^4.8|||||LIS||P|1394-97|20070521100245";
s2 = "P|1";
s3 = "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q";
s4 = "O|2|SID-818||^^^TestId-14|S|20070812140600|||||A||||ORH||||||||||Q";
s5 = "O|3|SID-818||^^^TestId-16|S|20070812140700|||||A||||ORH||||||||||Q";
s6 = "L|1|F";First，查看上面的字符串消息，没有任何标记编号，因为到目前为止，我所做的每台机器都需要标记号。例如：
1H|\^&|||CS-2500^00-08^22029^^^CP^BV981798||||||||E1394-97
2P|1|||00000152556|^JOHN^ABC||19440601|M|||||^Dr.Shaukat Khanum Hospital|||||||||^^^EAST
3O|1|000038^01^0012586236^B||^^^051^^100.00¥^^^044^^100.00|R|201803081225236|||||N
4L|1|N因此，必须为每个标记设置编号。
第二次，机器第一次发送以下查询：
1H|\^&|||CS-2500^^22029^^^CP^BV981798||||||||E1394-9711
2Q|1|000038^01^ 0012365845B||^^^040^PT-INN\^^^050^APTT-FS|0|201803081227007F
3L|1|NF9在，查询(2Q)标签，000038机架id，01机架序列号，001H18074618样本id (从条码读取)，进一步的信息可以从主机或LIS手册提供的机器供应商。
第三次，当我们收到此消息时，我们将为我前面描述的机器创建消息(在下面再写一次)，并提供附加的校验和信息。同样，此校验和可以在主机或机器的LIS手册中找到。
1H|\^&|||CS-2500^00-08^22029^^^CP^BV981798||||||||E1394-97
2P|1|||00000152556|^JOHN^ABC||19440601|M|||||^Dr.Shaukat Khanum Hospital|||||||||^^^EAST
3O|1|000038^01^12345678^B||^^^051^^100.00¥^^^044^^100.00|R|201803081225236|||||N
4L|1|N校验和计算示例。请注意，它可能因机器而异。
public static String getCheckSum(String msg) {
int sum = 0;
for (int i = 0; i < msg.length(); i++) {
sum += msg.charAt(i);
}
sum += 16; //adding CR and ETX AND ETB
sum = sum % 256;
String checksum = Integer.toHexString(sum).toUpperCase();
if (checksum.length() == 1) {
checksum = "0" + checksum;
}
//System.out.println("\n Check Sum is ="+checksum);
return checksum;
}以下是我们将发送给机器的完整信息：
String retmsg = "3O|1|" + rackId + "^" + positionNumber + "^" + sampleId + "^B||" + testIds + "|" + priority + "|" + sysDate + "|||||" + orderType + "";
logException("OrderMessae :" + retmsg);
retmsg = ProtocolASCII.STX + retmsg + ProtocolASCII.CR + ProtocolASCII.ETX + ProtocolMessage.getCheckSum(retmsg) + ProtocolASCII.CR + ProtocolASCII.LF;最后但并非最不重要的，我不知道这台机器是什么，因为我没有手动，但我感觉到你不需要一个一个地发送每一条信息。你可以立刻把所有的东西都寄出去。
下面是向机器发送和接收消息的代码片段。
while (clientIntMessage != ProtocolASCII.EOT) {
clientIntMessage = inFromClient.read();
currentMsg += String.valueOf(Character.toChars(clientIntMessage));
// System.out.println(currentMsg);
if (clientIntMessage == ProtocolASCII.ENQ) {
outToClient.writeBytes("" + ProtocolASCII.ACK);
System.out.println("[ACK] on Analyzer [ENQ]");
} else if (clientIntMessage == ProtocolASCII.ACK) {
System.out.println("Analyzer [ACK]");
// Send your order message here
outToClient.writeBytes(retmsg);
}
} else if (clientIntMessage == ProtocolASCII.LF) {
outToClient.writeBytes("" + ProtocolASCII.ACK);
} else if (clientIntMessage == ProtocolASCII.NAK) {
System.out.println(" Analyzer sent [NAK] ");
}
}ProtocolASCII.ACK是'\006'，ProtocolASCII.ENQ是'\005'，ProtocolASCII.EOT是'\004'。
代码几乎是不言自明的，我正在生产中使用它。
你能告诉我们你连接的是哪台机器吗？如果我已经整合了它可能会对你有帮助。
谢谢。如果需要进一步的援助，请告诉我。
供你参考：
public class ProtocolASCII {
public static char STX = '\002';
public static char ETX = '\003';
public static char ETB = '\027';
public static char EOT = '\004';
public static char ENQ = '\005';
public static char ACK = '\006';
public static char NAK = '\025';
public static char CR = '\r';
public static char LF = '\n';
public static char MOR = '>';
public static char FS = '\034';
public static char GS = '\035';
public static char RS = '\036';
public static char SFS = '\027';
public static char VT = 0x0B; //END OF BLOCK 011
}更新：
根据你的评论：
String retmsg = "3O|1|" + rackId + "^" + positionNumber + "^" + sampleId + "^B||" + testIds + "|" + priority + "|" + sysDate + "|||||" + orderType + "";，其中testIds是要执行的测试列表。
示例多测试命令发送4O|1||4^1^ 12345678^B|^^^^WBC\^^^^RBC\^^^^HGB\^^^^HCT\^^^^MCV\^^^^MCH\^^^^MCHC\^^^^PLT\^^^^RDW-SD\^^^^RDW-CV\^^^^PDW\^^^^MPV\^^^^P-LCR\^^^^PCT\^^^^NEUT#\^^^^LYMPH#\^^^^MONO#\^^^^EO#\^^^^BASO#\^^^^NEUT%\^^^^LYMPH%\^^^^MONO%\^^^^EO%\^^^^BASO%\^^^^NRBC#\^^^^NRBC%\^^^^IG#\^^^^IG%|||||||N||||||||||||||F
从LIS手册或公司工程师那里获取测试代码，并相应地制作模式。
更新2
Socket clientSocket = null;
public static char STX = '\002';
public static char ETX = '\003';
public static char ETB = '\027';
public static char EOT = '\004';
public static char ENQ = '\005';
public static char ACK = '\006';
public static char NAK = '\025';
public static char CR = '\r';
public static char LF = '\n';
public static char MOR = '>';
public static char FS = '\034';
public static char GS = '\035';
public static char RS = '\036';
public static char SFS = '\027';
public static char VT = 0x0B; //END OF BLOCK 011
public static Vector<String> vecMessages = new Vector<String>();
private static int currentMsgCount = 0;
private static ServerSocket server;
private static Socket connection;
Message mes = new Message();
public static void main(String args[]) throws IOException, InterruptedException {
server = new ServerSocket(12221);
boolean stopped = false;
System.out.println(" start... ");
connection = server.accept();
System.out.println("wait for connection");
BufferedReader inFromClient = new BufferedReader(new InputStreamReader(connection.getInputStream()));
DataOutputStream outToClient = new DataOutputStream(connection.getOutputStream());
String currentMsg = "";
int clientIntMessage;
// String h1, s2, s3, s4, s5, s6 = "";
// h1 = "1H|@^\\|ODM-IdfDGIWA-36|||GeneXpert PC^GeneXpert^4.8|||||LIS||P|1394-97|20070521100245" + ProtocolASCII.LF
// + "P|1" + ProtocolASCII.LF
// + "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q" + ProtocolASCII.LF
// + "L|1|F" + ProtocolASCII.LF;
// s2 = "P|1";
// s3 = "O|1|SID-818||^^^TestId-12|S|20070812140500|||||A||||ORH||||||||||Q";
// //s4 = "O|2|SID-818||^^^TestId-14|S|20070812140600|||||A||||ORH||||||||||Q";
// //s5 = "O|3|SID-818||^^^TestId-16|S|20070812140700|||||A||||ORH||||||||||Q";
// s6 = "L|1|F";
//
// String retmsg = h1;
// //logException("OrderMessae :" + retmsg);
// retmsg = ProtocolASCII.STX + retmsg + ProtocolASCII.CR + ProtocolASCII.ETX + ProtocolMessage.getCheckSum(retmsg) + ProtocolASCII.CR + ProtocolASCII.LF;
clientIntMessage = inFromClient.read();
//while (clientIntMessage != ProtocolASCII.EOT) {
while (true) {
while (clientIntMessage != EOT) {
clientIntMessage = inFromClient.read();
currentMsg += String.valueOf(Character.toChars(clientIntMessage));
// System.out.println(currentMsg);
if (clientIntMessage == ENQ) {
outToClient.writeBytes("" + ACK);
System.out.println("[ACK] on Analyzer [ENQ]");
} else if (clientIntMessage == ACK) {
System.out.println("Analyzer [ACK]");
if (vecMessages.size() == currentMsgCount) {
vecMessages.clear();
currentMsgCount = 0;
outToClient.writeBytes("" + EOT);
System.out.println("Host [EOT]");
} else {
String msg = (String) vecMessages.get(currentMsgCount++);
outToClient.writeBytes(msg);
// System.out.println("Msg " + msg.substring(0, msg.length() - 4));
}
} else if (clientIntMessage == LF) {
outToClient.writeBytes("" + ACK);
} else if (clientIntMessage == NAK) {
System.out.println(" Analyzer sent [NAK] ");
}
}
System.out.println(currentMsg);
mes.parser(currentMsg);
clientIntMessage = 0;
currentMsg = "";
}
// connection.close();
// stopped = true;
}
public static class Message {
// machine Send This Query ==>6.3.2.1.5 Example of Upload Message – Instrument System Sends Host Query
// H|@^\|b4a88d9adab947a7b3dca2b534119c25||ICU^GeneXpert^1.0|||||LIS||P|1394-97|20070521100245
// Q|1|PatientID-556^SpecimenID-888||||||||||O@N
// L|1|N
public static Vector<String> vecMessages = new Vector<String>();
// make message for machine
public String HeaderMessage() {
String retmsg = "H|@^\\|ccc6ade20d3623314sffa3e287f2314ad||LIS|||||ICU^GeneXpert^1.0||P|1394-97|20070521100245";
// System.out.println("HeaderMessage :" + retmsg);
retmsg = STX + retmsg + CR + ETX + getCheckSum(retmsg) + CR + LF;
return retmsg;
}
// P|1
// 6.3.1.3.3 Patient Information Record Find in Document and make it as per document
public String PatientMessage(Patient pat) { //(Patient pat)
String retmsg = "P|1|||" + pat.getMRNO() + "|^" + pat.getPatientName() + "||" + pat.getDOB() + "|" + pat.getGender() + "|||||^Dr.SKM-LAS||||||||||||^^^EAST";
retmsg = STX + retmsg + CR + ETX + getCheckSum(retmsg) + CR + LF;
return retmsg;
}
// 6.3.1.3.4 Test Order Record Find in Document
public String orderMessage(String sampleId, String testIds, String orderType, String rackId, String positionNumber, String priority) {
DateFormat dateFormat = new SimpleDateFormat("yyyyMMddHHmmSS");
String sysDate = dateFormat.format(new Date());
String retmsg = "3O|1|" + rackId + "^" + positionNumber + "^" + sampleId + "^B||" + testIds + "|" + priority + "|" + sysDate + "|||||" + orderType + "";
retmsg = STX + retmsg + CR + ETX + getCheckSum(retmsg) + CR + LF;
return retmsg;
}
// 6.3.1.3.5 Message Terminator Record Find in Document
public String terminatorMessage(String type) {
String retmsg = "L|1|" + type;
retmsg = STX + retmsg + CR + ETX + getCheckSum(retmsg) + CR + LF;
return retmsg;
}
public String getCheckSum(String msg) {
int sum = 0;
for (int i = 0; i < msg.length(); i++) {
sum += msg.charAt(i);
}
sum += 16; //adding CR and ETX AND ETB
sum = sum % 256;
String checksum = Integer.toHexString(sum).toUpperCase();
if (checksum.length() == 1) {
checksum = "0" + checksum;
}
//System.out.println("\n Check Sum is ="+checksum);
return checksum;
}
public void parser(String input) {
// Use StringTokenizer for split or split
if (input.charAt(1) == 'Q' || input.charAt(2) == 'Q') {
//Q|1|PatientID-556^SpecimenID-888||||||||||O@N
// Split it and get information which machine send in Query SampleId and other
String rackId = "get from Query to check document";
String positionNumber = "get from Query to check document";
String sampleId = "get from Query to check document";
// this.FetchOrders1(machineId, sampleId); // for dummy Sample Run
this.FetchOrders1("abc", sampleId);
this.setMesType("Q");
}
}
public void FetchOrders1(String machineId, String sampleId) {
try {
this.vecMessages.add(HeaderMessage());
this.vecMessages.add(PatientMessage()); //Define patient information
this.vecMessages.add(orderMessage(sampleId, "test", "N", "rackId", "positionNumber", "R"));
this.vecMessages.add(terminatorMessage("N"));
} catch (Exception e) {
e.printStackTrace();
}
}
}`Stack Overflow用户
发布于 2022-09-20 07:52:42
您的消息应该在每个字符串的末尾包含一个回车(CR)。它可以在Java中以"\r“的方式作为字符串添加。
此外，写入输出流的字节数组应该按照以下顺序包括: STX、帧号、消息字符串(包括前面提到的CR字符) ETX、两个大写校验和字符CR、LF。
特殊的ASCII字符(STX，ETX等)在这里提到：https://www.cs.cmu.edu/~pattis/15-1XX/common/handouts/ascii.html
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/49238341
复制相关文章
相似问题
腾讯云开发者
Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有
深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059
粤公网安备44030502008569号
腾讯云计算（北京）有限责任公司 京ICP证150476号 | 京ICP备11018762号
