如何使d3并发转换工作？

Question

作为学习D3的附带项目，我已经开始这样做了。所以请你对我放轻松点；

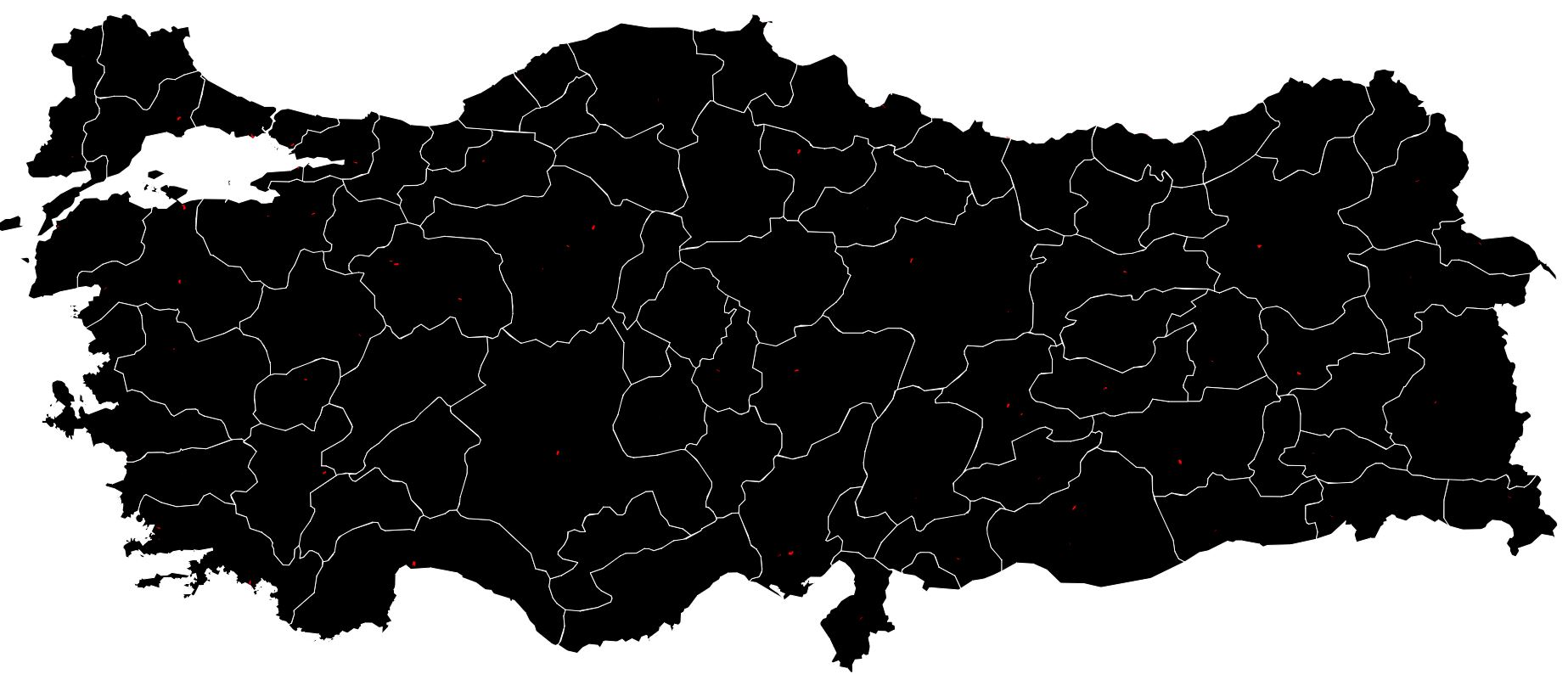

目标：制作交互式机场地图。当鼠标在城市上空时，飞机就会从那个城市的机场起飞，降落到目的地。

我遵循的步骤；

1. 我以geojson的方式下载了国家和机场的数据，并在D3上定义了基本地图。

​

​

1. 我编写了必要的函数来导出在转换中使用的空间信息。如果有时间，可以从这里查看代码。
2. 我在飞机上增加了过渡。

​

​

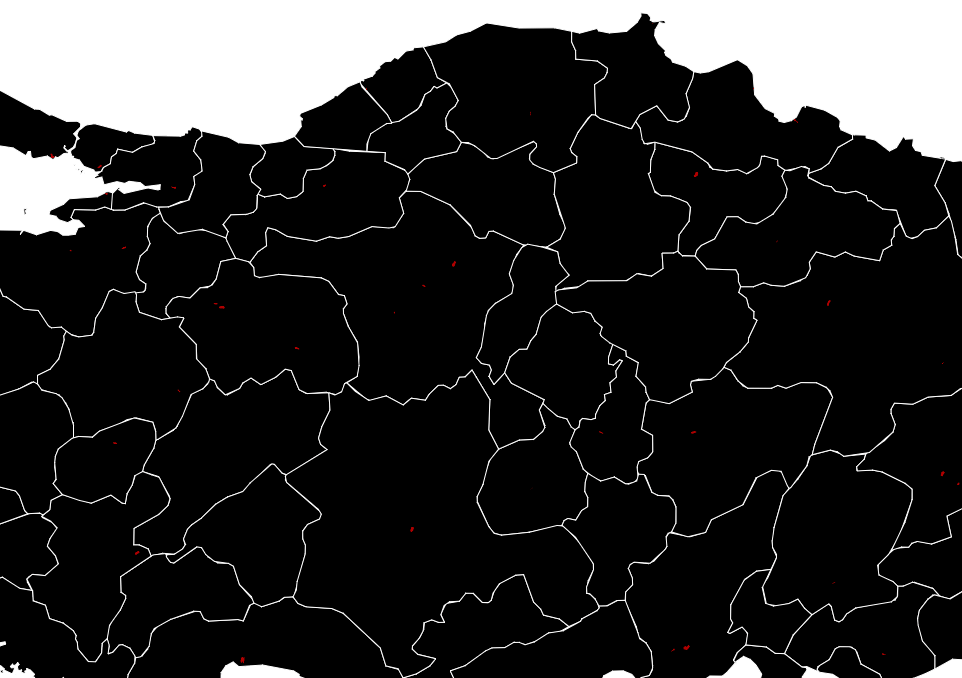

问题：，当我要从一个城市搭乘多架飞机时，它就是不动了。相反，它保持在相同的位置，直到过渡结束。我不能向对象添加并发转换。

​

​

我的过渡功能是这样的；

function myTransition(destPoi, originPoi) {
var tr_bl = true;
pathData = []; t_dest_poi = [];
if (tr_bl) {
//Origin destination coordinates taken from the Origin Poi
originPoint[0] = originPoi[1];
originPoint[1] = originPoi[2];
originPoint = geoMercator(originPoint);//Need transformation before using on screen.
var lineGenerator = d3.line().curve(d3.curveCatmullRom);
// Destination coordinate pairs transformed to screen coordinates
// and assigned to an array
for (i = 0; i < destPoi.length; i++) {
  t_dest_poi[i] = geoMercator(destPoi[i]);
}
//appending new group g2 with id fp
var g2 = map_svg.append("g").attr("id", "fp");

// Creating the planes and flight paths programmatically.*************************************
for (i = 0; i < destPoi.length; i++) {
  var plane = map_svg.append("path")
    .attr("class", "plane")
    .attr("d", "m25.21488,3.93375c-0.44355,0 -0.84275,0.18332 -1.17933,0.51592c-0.33397,0.33267 -0.61055,0.80884 -0.84275,1.40377c-0.45922,1.18911 -0.74362,2.85964 -0.89755,4.86085c-0.15655,1.99729 -0.18263,4.32223 -0.11741,6.81118c-5.51835,2.26427 -16.7116,6.93857 -17.60916,7.98223c-1.19759,1.38937 -0.81143,2.98095 -0.32874,4.03902l18.39971,-3.74549c0.38616,4.88048 0.94192,9.7138 1.42461,13.50099c-1.80032,0.52703 -5.1609,1.56679 -5.85232,2.21255c-0.95496,0.88711 -0.95496,3.75718 -0.95496,3.75718l7.53,-0.61316c0.17743,1.23545 0.28701,1.95767 0.28701,1.95767l0.01304,0.06557l0.06002,0l0.13829,0l0.0574,0l0.01043,-0.06557c0,0 0.11218,-0.72222 0.28961,-1.95767l7.53164,0.61316c0,0 0,-2.87006 -0.95496,-3.75718c-0.69044,-0.64577 -4.05363,-1.68813 -5.85133,-2.21516c0.48009,-3.77545 1.03061,-8.58921 1.42198,-13.45404l18.18207,3.70115c0.48009,-1.05806 0.86881,-2.64965 -0.32617,-4.03902c-0.88969,-1.03062 -11.81147,-5.60054 -17.39409,-7.89352c0.06524,-2.52287 0.04175,-4.88024 -0.1148,-6.89989l0,-0.00476c-0.15655,-1.99844 -0.44094,-3.6683 -0.90277,-4.8561c-0.22699,-0.59493 -0.50356,-1.07111 -0.83754,-1.40377c-0.33658,-0.3326 -0.73578,-0.51592 -1.18194,-0.51592l0,0l-0.00001,0l0,0z")
    .style("opacity", 1)
    .style("fill", "transparent");
  //creating flight path data with line generator
  pathData[i] = lineGenerator([originPoint, t_dest_poi[i]]);
  //appending created flight path to variable
  var path = g2.append("path").data([
    [originPoint],
    [t_dest_poi[i]]
  ]).attr("d", d3.line());
//flight path
  g2.selectAll('path')
    .data([
      [originPoint],
      [t_dest_poi[i]]
    ])
    .attr('d', pathData)
    .attr("stroke", "blue")
    .attr("fill", "transparent");

  plane.style("fill", "grey");

  var route = g2.append("path")
    .datum({
      type: "LineString", coordinates: [
        [originPoint],
        [t_dest_poi[i]]]
    })
    .attr("class", "route")
    .attr("d", geoPath)
    .attr("stroke", "blue")
    .attr("fill", "transparent");

  // adding transition to plane
  plane.transition()
    .duration(5000)
    .attrTween("transform", translateAlong([originPoint, t_dest_poi[i]], path.node()))
    .remove();
    }
}
else {
}}

function translateAlong(co, path) {
var l = path.getTotalLength();
return function (d, i, a) {
return function (t) {
  var p = path.getPointAtLength(t * l);
  [a1, b1] = co[0];
  [a2, b2] = co[1];
  aci = Math.atan((b2 - b1) / (a2 - a1));
  aci = aci * 180 / Math.PI;
  if (a2 > a1) {
    aci = aci + 90;
  } else {
    aci = aci - 90;
  }
  return "translate(" + (p.x) + "," + (p.y) + ") scale(" + Math.sin(Math.PI * t) + ") rotate(" + aci + ")";
};
};
}

Answer 1

这似乎是在转换期间更新#fp元素路径的一个问题。在这种情况下，相对容易的解决方法是分别处理转换。

在代码中，在basemap.js大约58-63行中，在for循环中填充数组之后，对多个元素的数组调用myTransition()。

for (i = 0; i <= n - 1; i++) {
  fp[i] = [destAirportObjects[i][1], destAirportObjects[i][2]];
}
myTransition(fp, OriginAirport);

相反，从for循环中调用函数，您的转换就可以正常工作：

for (i = 0; i <= n - 1; i++) {
  fp[i] = [destAirportObjects[i][1], destAirportObjects[i][2]];
    myTransition([fp[i]], OriginAirport);
}

如果选择此解决方案，则应更新myTransition()以获取单个坐标集，以使代码更易于理解。

或者，不要对basemap.js文件进行任何更改，而是更新myTransition，以便在目标for循环中完成组的创建(var g2)。下面是从第21行开始的move.js中的内容：

var g2 = map_svg.append("g").attr("id", "fp");

// Creating the planes and flight paths programmatically.*************************************
for (i = 0; i < destPoi.length; i++) {
  //creating flight path data with line generator
  pathData[i] = lineGenerator([originPoint, t_dest_poi[i]]);
  //continue with loop

这将导致每次我们在循环中移动时都会覆盖g2变量。需要为每个转换/路径创建一个不同的组。

// Creating the planes and flight paths programmatically.*************************************
for (i = 0; i < destPoi.length; i++) {
  var g2 = map_svg.append("g").attr("class", "fp");
  //creating flight path data with line generator
  pathData[i] = lineGenerator([originPoint, t_dest_poi[i]]);
  //continue with loop

最后，由于这里有多个元素，所以"fp“应该是var g2的类，而不是ID。

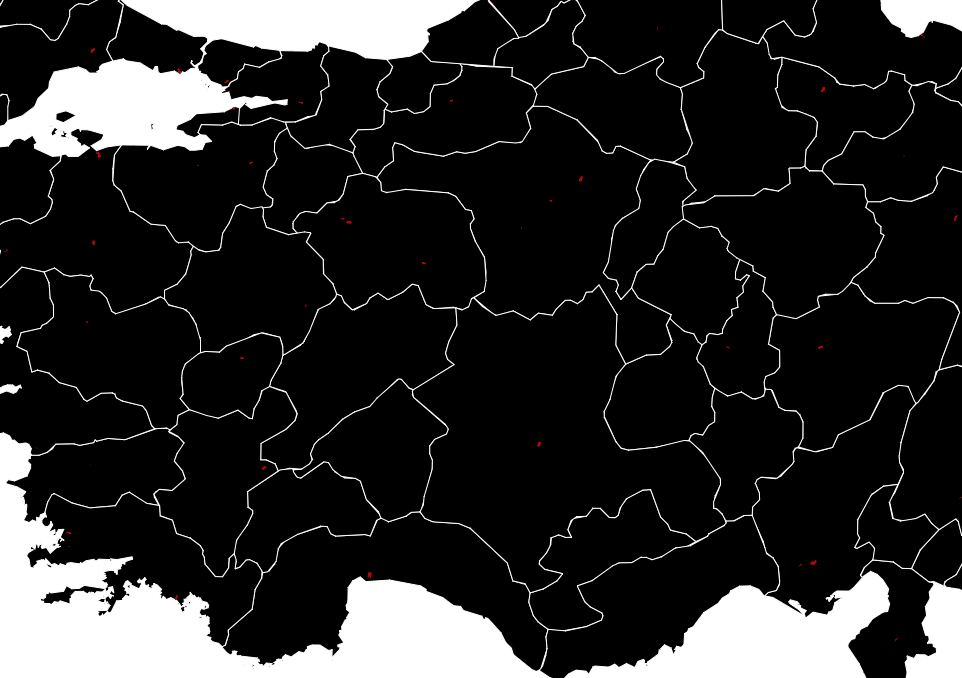

编辑:这是方法1和方法2的示例
