Kubernetes Azure磁盘动态持久卷声明:安装失败，超时过期。豆荚永远处于“ContainerCreating”状态

Question

问题陈述：

Azure磁盘动态持久卷声明:安装失败，超时过期。豆荚永远处于“ContainerCreating”状态。

kubectl describe pod myPod提供了以下信息：

Warning  FailedMount  1m (x5 over 12m)   kubelet, k8-node-2  Unable to mount volumes for pod "mongodb-76bd56459f-hxjdc_kubeapps(8189f2e4-0017-11e8-82ac-000d3aa33484)": timeout expired waiting for volumes to attach/mount for pod "kubeapps"/"mongodb-76bd56459f-hxjdc". list of unattached/unmounted volumes=[data]
Warning  FailedMount  21s (x8 over 12m)  kubelet, k8-node-2  (combined from similar events): MountVolume.SetUp failed for volume "pvc-516aeece-ff9d-11e7-82ac-000d3aa33484" : mount failed: exit status 32
Mounting command: systemd-run
Mounting arguments: --description=Kubernetes transient mount for /var/lib/kubelet/pods/8189f2e4-0017-11e8-82ac-000d3aa33484/volumes/kubernetes.io~azure-disk/pvc-516aeece-ff9d-11e7-82ac-000d3aa33484 --scope -- mount -t ext4 -o bind /var/lib/kubelet/plugins/kubernetes.io/azure-disk/mounts/m3083936425 /var/lib/kubelet/pods/8189f2e4-0017-11e8-82ac-000d3aa33484/volumes/kubernetes.io~azure-disk/pvc-516aeece-ff9d-11e7-82ac-000d3aa33484<br> Output: Running scope as unit run-rf9126bab6fba44d9a499370260ed5fe8.scope. mount: special device /var/lib/kubelet/plugins/kubernetes.io/azure-disk/mounts/m3083936425 does not exist

Kubernetes集群信息：

这是一个裸金属装置，有一个主人和两个奴才.所有三个Ubuntu16.04 LTS VMs都在Azure上。使用“kubeadm”创建集群。

Client Version: version.Info{Major:"1", Minor:"9", GitVersion:"v1.9.1", GitCommit:"3a1c9449a956b6026f075fa3134ff92f7d55f812", GitTreeState:"clean", BuildDate:"2018-01-04T11:52:23Z", GoVersion:"go1.9.2", Compiler:"gc", Platform:"linux/amd64"}
Server Version: version.Info{Major:"1", Minor:"9", GitVersion:"v1.9.2", GitCommit:"5fa2db2bd46ac79e5e00a4e6ed24191080aa463b", GitTreeState:"clean", BuildDate:"2018-01-18T09:42:01Z", GoVersion:"go1.9.2", Compiler:"gc", Platform:"linux/amd64"}

从我自己的调查中获得更多有用的信息：

1. PVC和PV被创建和绑定。见下文：

~$ kubectl -n kubeapps get pvc
NAME|STATUS|VOLUME|CAPACITY|ACCESS|MODES|STORAGECLASS|AGE
mongodb-data|Bound|pvc-516aeece-ff9d-11e7-82ac-000d3aa33484|8Gi||RWO|k8storage   |14h

~$ kubectl -n kubeapps get pv
NAME|CAPACITY|ACCESS|MODES|RECLAIM POLICY|STATUS|CLAIM|STORAGECLASS|REASON|AGE
pvc-516aeece-ff9d-11e7-82ac-000d3aa33484|8Gi|RWO|Retain|Bound|kubeapps/mongodb-data|k8storage| |14h

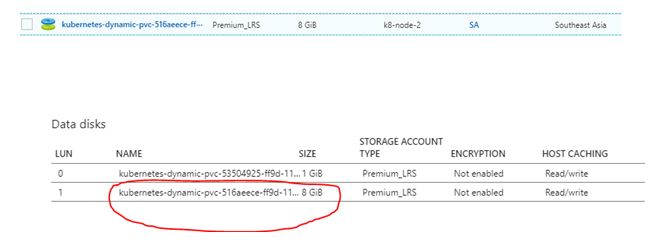

2.自动创建 Azure托管磁盘并将其附加到相应的节点。请参阅Azure门户网站的截图：

​

提前谢谢！

Answer 1

根据那里的信息，您可以继续从kubelet的角度来看问题("kubectl events“、"journalctl -u kubelet")以及可能的操作系统问题，包括与Azure "-p 3”的交互--“-p 3”只对主要问题进行筛选(-p可以从0到7)。

Answer 2

您必须允许此帐户提供存储。

您可以在这里这样做：资源提供者状态
