如何配置安装在kubernetes上的警报管理器？

Question

在kubernetes集群中使用安装了Helm的Prometheus和Grafana：

helm install stable/prometheus
helm install stable/grafana

它有一个alertmanage服务。

​

​

但是，我看到一个博客介绍了如何使用yaml文件设置警报管理器配置：

http://blog.wercker.com/how-to-setup-alerts-on-prometheus

是否可以使用当前方式(由helm安装)为CPU、memory和发送电子邮件设置一些CPU和配置，而无需创建其他yaml文件？

我看了k8s configmap对alertmanager的介绍

https://github.com/kubernetes/charts/tree/master/stable/prometheus#configmap-files

但不清楚该如何使用和如何做。

编辑

我下载了stable/prometheus的源代码来查看它的功能。在我发现的values.yaml文件中：

serverFiles:
  alerts: ""
  rules: ""

  prometheus.yml: |-
    rule_files:
      - /etc/config/rules
      - /etc/config/alerts
    scrape_configs:
      - job_name: prometheus
        static_configs:
          - targets:
            - localhost:9090

https://github.com/kubernetes/charts/blob/master/stable/prometheus/values.yaml#L600

因此，我认为应该自己写到这个配置文件中，在这里定义警报rules和alertmanager。但不要弄清楚这个街区：

    rule_files:
      - /etc/config/rules
      - /etc/config/alerts

也许是指容器里的路径。但现在没有任何文件了。应在此加上：

serverFiles:
  alert: ""
  rules: ""

编辑2

设置alert rules和alertmanager配置后的values.yaml

## Prometheus server ConfigMap entries
##
serverFiles:
  alerts: ""
  rules: |-
    #
    # CPU Alerts
    #
    ALERT HighCPU
      IF ((sum(node_cpu{mode=~"user|nice|system|irq|softirq|steal|idle|iowait"}) by (instance, job)) - ( sum(node_cpu{mode=~"idle|iowait"}) by (instance,job) )   )   /  (sum(node_cpu{mode=~"user|nice|system|irq|softirq|steal|idle|iowait"}) by (instance, job)) * 100 > 95
      FOR 10m
      LABELS { service = "backend" }
      ANNOTATIONS {
        summary = "High CPU Usage",
        description = "This machine  has really high CPU usage for over 10m",
      }

    # TEST
    ALERT APIHighRequestLatency
      IF api_http_request_latencies_second{quantile="0.5"} >1
      FOR 1m
      ANNOTATIONS {
        summary = "High request latency on {{$labels.instance }}",
        description = "{{ $labels.instance }} has amedian request latency above 1s (current value: {{ $value }}s)",
    }

运行helm install prometheus/来安装它。

启动port-forward用于alertmanager组件：

export POD_NAME=$(kubectl get pods --namespace default -l "app=prometheus,component=alertmanager" -o jsonpath="{.items[0].metadata.name}")
kubectl --namespace default port-forward $POD_NAME 9093

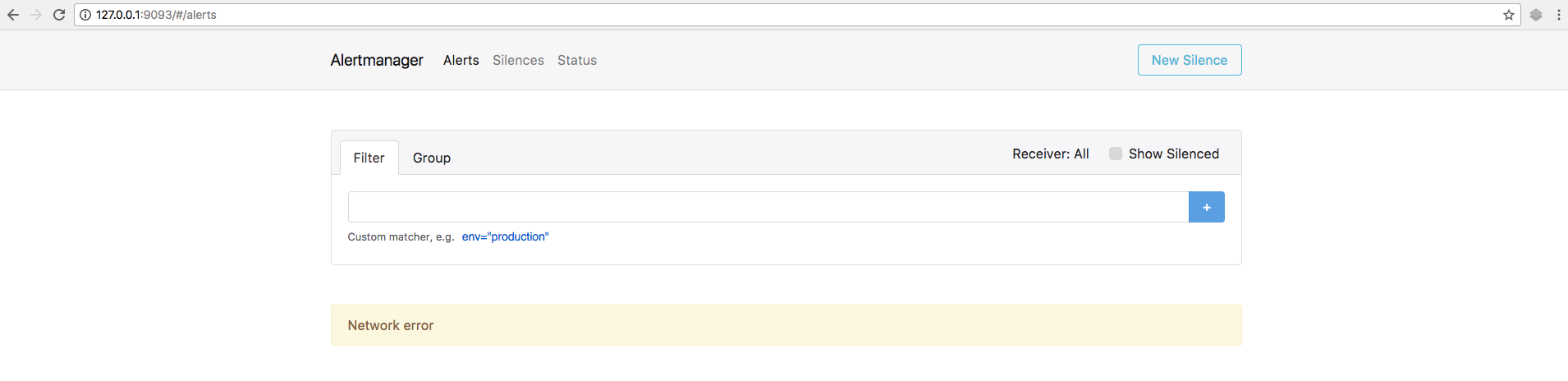

然后访问http://127.0.0.1:9003浏览器，得到以下消息：

Forwarding from 127.0.0.1:9093 -> 9093
Handling connection for 9093
Handling connection for 9093
E0122 17:41:53.229084    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:54 socat[31237.140275133073152] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused
Handling connection for 9093
E0122 17:41:53.243511    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:54 socat[31238.140565602109184] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused
E0122 17:41:53.246011    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:54 socat[31239.140184300869376] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused
Handling connection for 9093
Handling connection for 9093
E0122 17:41:53.846399    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:55 socat[31250.140004515874560] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused
E0122 17:41:53.847821    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:55 socat[31251.140355466835712] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused
Handling connection for 9093
E0122 17:41:53.858521    7159 portforward.go:331] an error occurred forwarding 9093 -> 9093: error forwarding port 9093 to pod 6614ee96df545c266e5fff18023f8f7c87981f3340ee8913acf3d8da0e39e906, uid : exit status 1: 2018/01/22 08:37:55 socat[31252.140268300003072] E connect(5, AF=2 127.0.0.1:9093, 16): Connection refused

为什么？

当我检查kubectl describe po illocutionary-heron-prometheus-alertmanager-587d747b9c-qwmm6时，得到：

Name:           illocutionary-heron-prometheus-alertmanager-587d747b9c-qwmm6
Namespace:      default
Node:           minikube/192.168.99.100
Start Time:     Mon, 22 Jan 2018 17:33:54 +0900
Labels:         app=prometheus
                component=alertmanager
                pod-template-hash=1438303657
                release=illocutionary-heron
Annotations:    kubernetes.io/created-by={"kind":"SerializedReference","apiVersion":"v1","reference":{"kind":"ReplicaSet","namespace":"default","name":"illocutionary-heron-prometheus-alertmanager-587d747b9c","uid":"f...
Status:         Running
IP:             172.17.0.10
Created By:     ReplicaSet/illocutionary-heron-prometheus-alertmanager-587d747b9c
Controlled By:  ReplicaSet/illocutionary-heron-prometheus-alertmanager-587d747b9c
Containers:
  prometheus-alertmanager:
    Container ID:  docker://0808a3ecdf1fa94b36a1bf4b8f0d9d2933bc38afa8b25e09d0d86f036ac3165b
    Image:         prom/alertmanager:v0.9.1
    Image ID:      docker-pullable://prom/alertmanager@sha256:ed926b227327eecfa61a9703702c9b16fc7fe95b69e22baa656d93cfbe098320
    Port:          9093/TCP
    Args:
      --config.file=/etc/config/alertmanager.yml
      --storage.path=/data
    State:          Waiting
      Reason:       CrashLoopBackOff
    Last State:     Terminated
      Reason:       Error
      Exit Code:    1
      Started:      Mon, 22 Jan 2018 17:55:24 +0900
      Finished:     Mon, 22 Jan 2018 17:55:24 +0900
    Ready:          False
    Restart Count:  9
    Readiness:      http-get http://:9093/%23/status delay=30s timeout=30s period=10s #success=1 #failure=3
    Environment:    <none>
    Mounts:
      /data from storage-volume (rw)
      /etc/config from config-volume (rw)
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-h5b8l (ro)
  prometheus-alertmanager-configmap-reload:
    Container ID:  docker://b4a349bf7be4ea78abe6899ad0173147f0d3f6ff1005bc513b2c0ac726385f0b
    Image:         jimmidyson/configmap-reload:v0.1
    Image ID:      docker-pullable://jimmidyson/configmap-reload@sha256:2d40c2eaa6f435b2511d0cfc5f6c0a681eeb2eaa455a5d5ac25f88ce5139986e
    Port:          <none>
    Args:
      --volume-dir=/etc/config
      --webhook-url=http://localhost:9093/-/reload
    State:          Running
      Started:      Mon, 22 Jan 2018 17:33:56 +0900
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /etc/config from config-volume (ro)
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-h5b8l (ro)
Conditions:
  Type           Status
  Initialized    True
  Ready          False
  PodScheduled   True
Volumes:
  config-volume:
    Type:      ConfigMap (a volume populated by a ConfigMap)
    Name:      illocutionary-heron-prometheus-alertmanager
    Optional:  false
  storage-volume:
    Type:       PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)
    ClaimName:  illocutionary-heron-prometheus-alertmanager
    ReadOnly:   false
  default-token-h5b8l:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-h5b8l
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     <none>
Events:
  Type     Reason                 Age                 From               Message
  ----     ------                 ----                ----               -------
  Warning  FailedScheduling       29m (x2 over 29m)   default-scheduler  PersistentVolumeClaim is not bound: "illocutionary-heron-prometheus-alertmanager"
  Normal   Scheduled              29m                 default-scheduler  Successfully assigned illocutionary-heron-prometheus-alertmanager-587d747b9c-qwmm6 to minikube
  Normal   SuccessfulMountVolume  29m                 kubelet, minikube  MountVolume.SetUp succeeded for volume "config-volume"
  Normal   SuccessfulMountVolume  29m                 kubelet, minikube  MountVolume.SetUp succeeded for volume "pvc-fa84b197-ff4e-11e7-a584-0800270fb7fc"
  Normal   SuccessfulMountVolume  29m                 kubelet, minikube  MountVolume.SetUp succeeded for volume "default-token-h5b8l"
  Normal   Started                29m                 kubelet, minikube  Started container
  Normal   Created                29m                 kubelet, minikube  Created container
  Normal   Pulled                 29m                 kubelet, minikube  Container image "jimmidyson/configmap-reload:v0.1" already present on machine
  Normal   Started                29m (x3 over 29m)   kubelet, minikube  Started container
  Normal   Created                29m (x4 over 29m)   kubelet, minikube  Created container
  Normal   Pulled                 29m (x4 over 29m)   kubelet, minikube  Container image "prom/alertmanager:v0.9.1" already present on machine
  Warning  BackOff                9m (x91 over 29m)   kubelet, minikube  Back-off restarting failed container
  Warning  FailedSync             4m (x113 over 29m)  kubelet, minikube  Error syncing pod

编辑3

alertmanager文件中的values.yaml配置：

## alertmanager ConfigMap entries
##
alertmanagerFiles:
  alertmanager.yml: |-
    global:
      resolve_timeout: 5m
      smtp_smarthost: smtp.gmail.com:587
      smtp_from: sender@gmail.com
      smtp_auth_username: sender@gmail.com
      smtp_auth_password: sender_password

    receivers:
      - name: default-receiver
      email_configs:
      - to: target_email@gmail.com

    route:
      group_wait: 10s
      group_interval: 5m
      receiver: default-receiver
      repeat_interval: 3h

不是工作。上面有错误。

alertmanagerFiles:
  alertmanager.yml: |-
    global:
      # slack_api_url: ''

    receivers:
      - name: default-receiver
        # slack_configs:
        #  - channel: '@you'
        #    send_resolved: true

    route:
      group_wait: 10s
      group_interval: 5m
      receiver: default-receiver
      repeat_interval

工作没有任何错误。

因此，问题在于email_configs配置方法。

Answer 1

alerts和rules键在values.yaml文件的serverFiles组中挂载在/etc/config文件夹中的Prometheus容器中。您可以将您想要的配置放在那里(例如，通过您链接的博客文章获取灵感)，Prometheus将使用它来处理警报。

例如，可以这样设置一个简单的规则：

serverFiles:
  alerts: |
    ALERT cpu_threshold_exceeded
    IF (100 * (1 - avg by(job)(irate(node_cpu{mode='idle'}[5m])))) > 80
    FOR 300s
    LABELS {
      severity = "warning",
    }
    ANNOTATIONS {
      summary = "CPU usage > 80% for {{ $labels.job }}",
      description = "CPU usage avg for last 5m: {{ $value }}",
    }
