胶乳/TikZ-盒对齐

Question

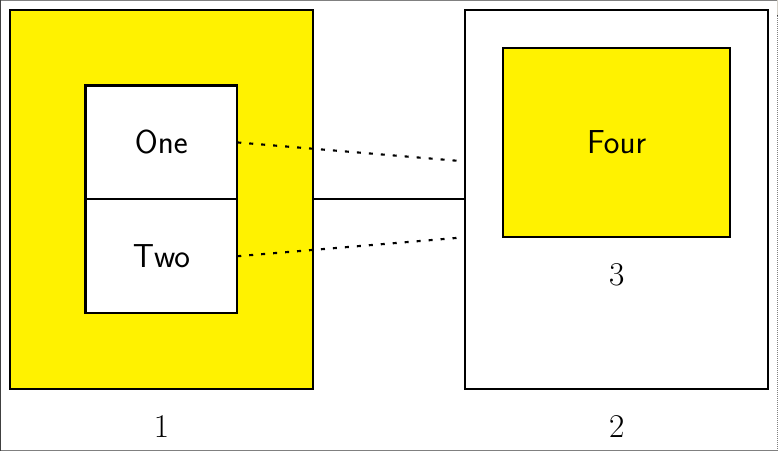

我创建了下面的LaTeX/TikZ脚本来绘制一个图形：

\documentclass[tikz,border=2mm]{standalone}
\usetikzlibrary{arrows, chains}
\usetikzlibrary{positioning,shapes.multipart}

\usepackage{tikz}

\begin{document}

\begin{tikzpicture}
    \node[draw, fill=yellow!96!black, rectangle,
      align=center, inner sep=3ex, font=\sffamily, label=below: Label1] (Box1) {
      \begin{tikzpicture}
        \node[draw, shape=rectangle split, rectangle split parts=2,
          inner sep=1ex, rounded corners=0pt,
          fill=white, font=\vphantom{Q}\sffamily] (Innerbox) {One \nodepart{two} Two};
    \end{tikzpicture}};
    \node[draw, inner sep=1ex, right=of Box1, label=below: Label2] (Box2) {
    \begin{tikzpicture}
\end{tikzpicture}

{\begin{tikzpicture}
    \node[draw, fill=yellow!96!black, rectangle,
      align=center, inner sep=3ex, font=\sffamily, label=below: Label3] (Box3) {Four};
\end{tikzpicture}}};

    \draw (Box1) -- (Box2) -- (Box3);
    \draw[dashed] (Innerbox.one east) -- (Box2);
    \draw[dashed] (Innerbox.two east) -- (Box2);

\end{tikzpicture}
\end{document}

​

​

我想解决以下问题：

1. 为什么方框是相等的，所以下面的标签总是在相同的水平上？
2. 如何将框“4”添加到Box2的右侧(不是在框内，而是作为像Box2这样的框)，最好是用虚线从Box2添加到Box3？ 理想结构： Box1 -- Box2 -- Box3

Answer 1

我对这幅画的基本看法：

\documentclass[tikz,border=2mm]{standalone}

\begin{document}

\begin{tikzpicture}
% left box
\filldraw [fill=yellow, draw=black, ultra thick] (0,0) rectangle (8,-10);
\filldraw [fill=white, draw=black, ultra thick] (2,-2) rectangle (6,-5);
\filldraw [fill=white, draw=black, ultra thick] (2,-5) rectangle (6,-8);
\node at (4,-3.5) [font=\sffamily] {\Huge One};
\node at (4,-6.5) [font=\sffamily] {\Huge Two};
% right box
\filldraw [fill=white, draw=black, ultra thick] (12,0) rectangle (20,-10);
\filldraw [fill=yellow, draw=black, ultra thick] (13,-1) rectangle (19,-6);
\node at (16,-3.5) [font=\sffamily] {\Huge Four};
% labels
\node at (4,-11) {\Huge 1};
\node at (16,-11) {\Huge 2};
\node at (16,-7) {\Huge 3};
% lines
\draw [ultra thick] (8,-5) -- (12,-5);
\draw [loosely dashed, ultra thick] (6,-3.5) -- (12,-4);
\draw [loosely dashed, ultra thick] (6,-6.5) -- (12,-6);
\end{tikzpicture}

\end{document}

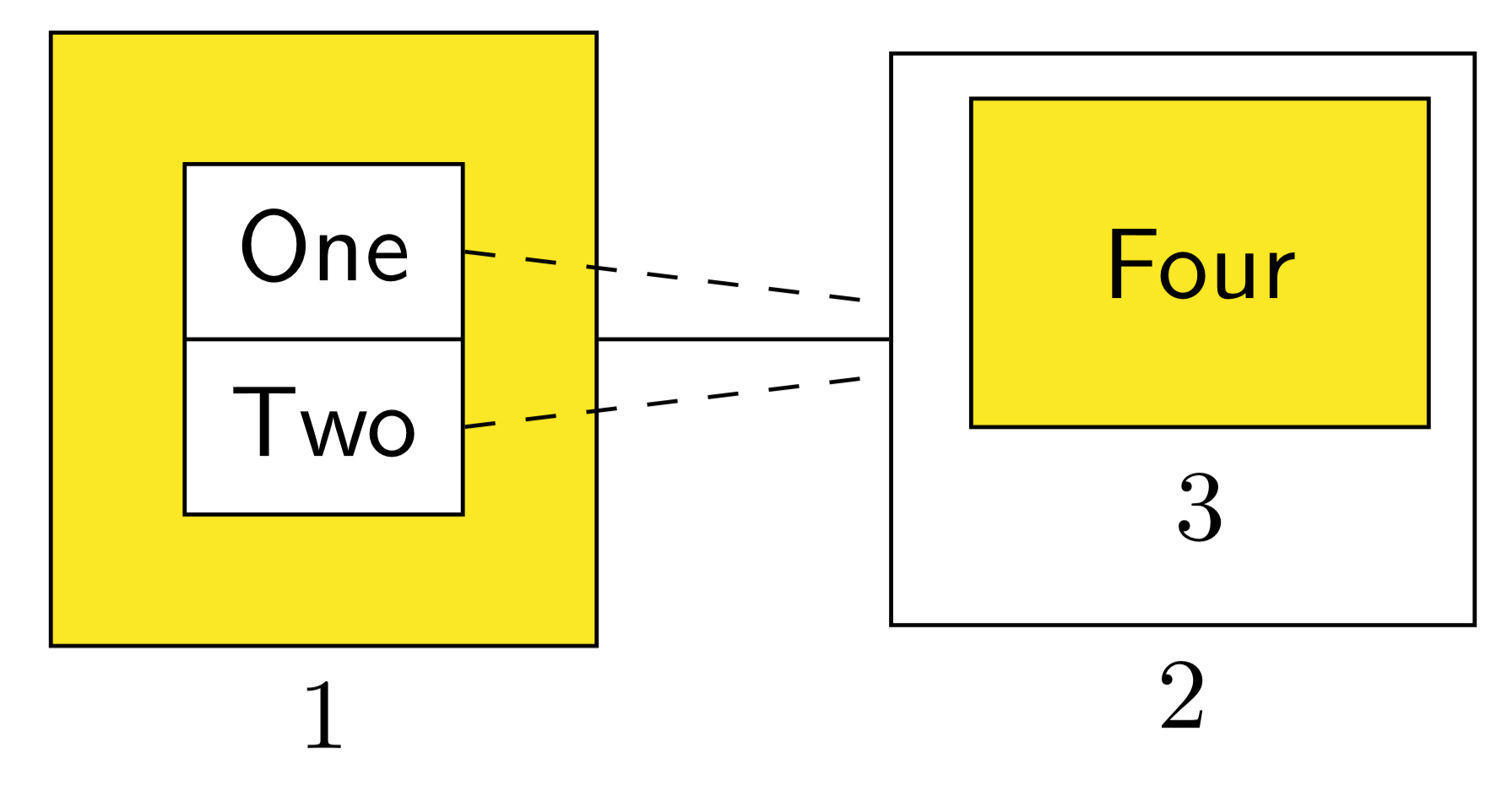

及其产出：

​

​

在这里，你可以玩坐标，以对齐框，你喜欢。

这试图回答你问题的第一部分，而第二部分对我来说并不十分清楚。无论如何，如果您喜欢这段代码，只需使用上面的\filldraw、\draw和\node，就可以开发它并编辑框\node。
