多接收机火花流并行处理

Question

在我的应用程序中，我正在为多个定制接收器(为不同的UDP数据套接字使用2个接收器，为HTTP数据使用1个接收器)使用Spark流。接收器的转换没有任何共同的资源。

当输入数据的数量增加时，我发现这三个接收器不是并行工作，而是一个接一个地工作。

例如，如果设置批处理间隔20秒，则每个接收方处理数据的时间约为5秒，但如果所有3个接收器一起启用，则它们的汇总处理时间=3*5秒(约合5秒)，而不是5秒。

所以我创建了这个测试，并看到了同样的情况。

Environment: Core i5, 4 cores, 16 GB of memory. 2 UDP接收器为4个核心(因此，这是足够的接收和处理)。对于dstreams的转换是奇怪的，不是缓存(持久化)，而是只用于测试目的。

问题：，出了什么问题，我如何启用并行处理？

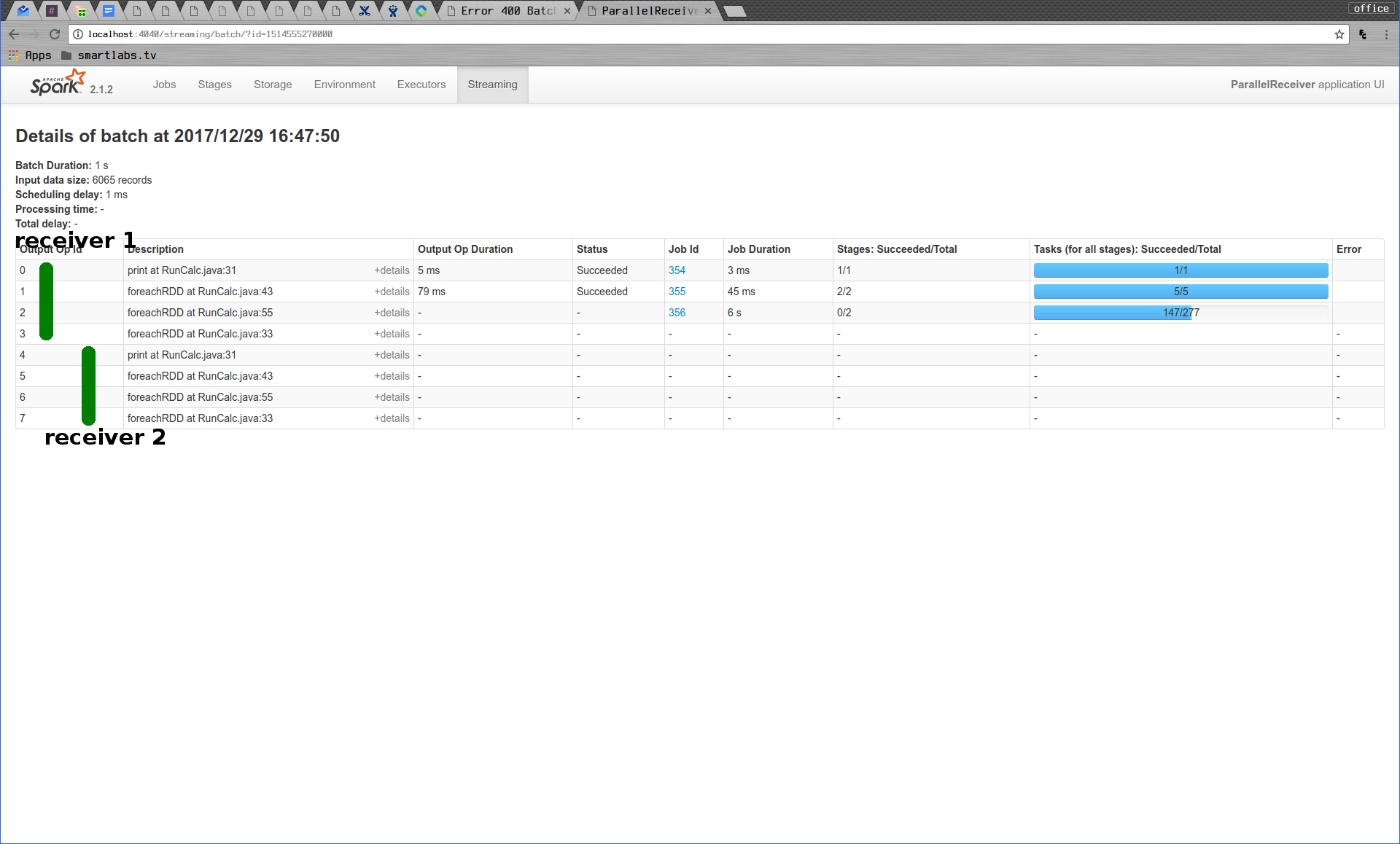

星火网络用户界面图片显示，接收者的信息处理一个一个。

​

​

@Slf4j
public class SparkApp {

public static void main(String[] args) throws InterruptedException {

    SparkConf conf = new SparkConf().setMaster("local[*]")
            .setAppName("ParallelReceiver");

    // no changes in processing
    conf.set("spark.cores.max", "4");

    // undocumented, has some effect for parallel processing (spark web ui),
    // but not for the whole processing time
    conf.set("spark.streaming.concurrentJobs", "10");

    JavaStreamingContext jssc = new JavaStreamingContext(conf, Durations.seconds(1));

    RunCalc runCalc1 = new RunCalc(jssc, 5216, 2000, "1");
    runCalc1.service();

    RunCalc runCalc2 = new RunCalc(jssc, 5217, 2000, "2");
    runCalc2.service();

    jssc.start();
    jssc.awaitTermination();

  }

}

@Data
@Slf4j
public class RunCalc {

private final JavaStreamingContext jssc;
private final int port;
private final Integer defaultBitrate;
private final String suff;

public void service() {

    // get stream nginx log data from UDP
    JavaReceiverInputDStream<NginxRaw> records = jssc.receiverStream(new UdpReceiver(port, defaultBitrate));

    records.print();
    calc(records, suff);
    records.foreachRDD(rdd -> DebugUtil.saveTestDataToDisk(rdd, suff));
}

private void calc(JavaReceiverInputDStream<NginxRaw> records, String suff) {

    // first operation
    JavaDStream<Integer> reduce = records.filter(r -> r.getChannelName() != null)
            .map(NginxRaw::getBytesSent)
            .reduce((r1, r2) -> r1 + r2);

    reduce.foreachRDD(rdd -> DebugUtil.saveTestDataToDisk(rdd, "reduce" + "-" + suff));

    // second operation
    JavaPairDStream<String, NginxRaw> uidRawPairs = records.mapToPair(r -> new Tuple2<>(r.getMac()
            .toUpperCase(), r))
            .window(Durations.minutes(1), Durations.minutes(1));

    JavaPairDStream<String, Iterable<NginxRaw>> groups = uidRawPairs.groupByKey();

    JavaPairDStream<String, Long> uidSizePairs = groups.mapValues(v -> v.spliterator()
            .getExactSizeIfKnown());

    uidSizePairs.foreachRDD(rdd -> DebugUtil.saveTestDataToDisk(rdd, "uidSizeWindowCalc" + "-" + suff));

}

}

@Slf4j
public class UdpReceiver extends Receiver<NginxRaw> {

private final int port;

private final int defaultBitrate;

private DatagramSocket socket;

public UdpReceiver(int port, int defaultBitrate) {
    super(StorageLevel.MEMORY_AND_DISK());
    this.port = port;
    this.defaultBitrate = defaultBitrate;
}


@Override
public void onStart() {
    new Thread(this::receive).start();
}

@Override
public void onStop() {

}

private void receive() {

    try {

        log.debug("receive");
        log.debug("thread: {}", Thread.currentThread());

        String row;
        initSocket();
        byte[] receiveData = new byte[5000];

        // Until stopped or connection broken continue reading
        while (!isStopped()) {

            DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length);

            socket.receive(receivePacket);

            byte[] data = receivePacket.getData();

            row = new String(data, 0, receivePacket.getLength());

            NginxRaw rawLine = new NginxRaw(row, defaultBitrate);

            filterAndSave(rawLine);

        }

        socket.close();

        // Restart in an attempt to connect again when server is active again
        log.debug("Trying to connect again");
        restart("Trying to connect again");

    } catch (ConnectException e) {

        // restart if could not connect to server
        log.error("Could not connect", e);
        reportError("Could not connect: ", e);
        restart("Could not connect", e);

    } catch (Throwable e) {

        // restart if there is any other error
        log.error("Error receiving data", e);
        reportError("Error receiving data: ", e);
        restart("Error receiving data", e);

    }

}

/**
 * connect to the server
 */
private void initSocket() {

    if (socket == null) {

        try {

            socket = new DatagramSocket(null);
            socket.setReuseAddress(true);
            socket.setBroadcast(true);
            socket.bind(new InetSocketAddress(port));

        } catch (SocketException e) {

            log.debug("Error = {}", e);
            e.printStackTrace();

        }
    }

}

private void filterAndSave(NginxRaw rawLine) {

    if (!rawLine.getMac()
            .equals(SyslogRaw.SYSLOG_NOT_FILLED_STRING)
            &&
            !rawLine.getChannelName()
                    .equals(SyslogRaw.SYSLOG_NOT_FILLED_STRING)
            && !rawLine.getChannelName()
            .equals("vod")
            && !rawLine.getIp()
            .equals("127.0.0.1")) {

        store(rawLine);

    }

}
}

Answer 1

我有一个类似的问题:同一个队列的多个接收者，但数据是串行处理的。修复非常简单:我统一并将所有流连接到一个单一的流中！

在我得到这个之前：

  sizeStream.foreachRDD(rdd -> {
    ...
  });
  for (JavaPairDStream<String, Long> dstream : streams) {
    dstream.foreachRDD(rdd -> {
      ...
    });
  }

现在我有了这个：

  JavaPairDStream<String, Long> countStream = streamingContext.union(streams.get(0), streams.subList(1,streams.size()));
  JavaPairDStream<String, Tuple2<Long, Long>> joinStream = sizeStream.join(countStream);
  joinStream.foreachRDD(rdd -> {
    ...
  });
