Java GroupLayout定位

Question

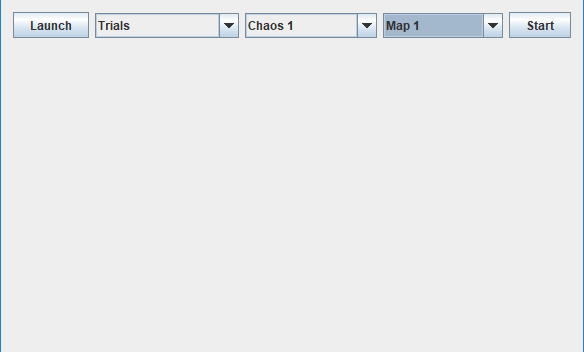

我有复杂的尝试设置我的GroupLayout。我试图离开甲骨文的网站，但我的生活无法弄清楚它的教程。下面是我当前的布局设计，后面跟着代码，不知道我做错了什么。

​

​

GroupLayout layout = new GroupLayout(mainPanel);
        mainPanel.setLayout(layout);

        layout.setAutoCreateGaps(true);
        layout.setAutoCreateContainerGaps(true);

        layout.setHorizontalGroup(
                layout.createSequentialGroup()
                .addComponent(launchButton)
                .addComponent(modeComboBox)
                .addComponent(difficultyComboBox)
                .addComponent(mapComboBox)
                .addComponent(startButton)
                .addGroup(layout.createParallelGroup(GroupLayout.Alignment.LEADING))
        );

        layout.setVerticalGroup(
                layout.createSequentialGroup()
                .addGroup(layout.createParallelGroup(GroupLayout.Alignment.BASELINE)
                        .addComponent(launchButton)
                        .addGroup(layout.createParallelGroup(GroupLayout.Alignment.LEADING))
                            .addComponent(modeComboBox)
                            .addComponent(difficultyComboBox)
                            .addComponent(mapComboBox)
                            .addGroup(layout.createParallelGroup(GroupLayout.Alignment.LEADING))
                            .addComponent(startButton))
        );

我的目标是让它看起来像下面的图片.

​

​

Answer 1

我启动了NetBeans，并列出了一些像你的照片显示的东西。试试这个，看看这是不是你要找的。

package quicktest;

public class ChaosLayout extends javax.swing.JPanel {

   /**
    * Creates new form ChaosLayout
    */
   public ChaosLayout() {
      initComponents();
   }

   /**
    * This method is called from within the constructor to initialize the form.
    * WARNING: Do NOT modify this code. The content of this method is always
    * regenerated by the Form Editor.
    */
   @SuppressWarnings( "unchecked" )
   // <editor-fold defaultstate="collapsed" desc="Generated Code">
   private void initComponents() {

      jButton1 = new javax.swing.JButton();
      jButton2 = new javax.swing.JButton();
      jButton3 = new javax.swing.JButton();
      jButton4 = new javax.swing.JButton();
      jButton5 = new javax.swing.JButton();

      jButton1.setText("jButton1");

      jButton2.setText("jButton2");

      jButton3.setText("jButton3");

      jButton4.setText("jButton4");

      jButton5.setText("jButton5");

      javax.swing.GroupLayout layout = new javax.swing.GroupLayout(this);
      this.setLayout(layout);
      layout.setHorizontalGroup(
         layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
         .addGroup(layout.createSequentialGroup()
            .addGap(55, 55, 55)
            .addComponent(jButton3)
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.UNRELATED)
            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.CENTER)
               .addComponent(jButton1)
               .addComponent(jButton2)
               .addComponent(jButton5))
            .addGap(18, 18, 18)
            .addComponent(jButton4)
            .addContainerGap(84, Short.MAX_VALUE))
      );
      layout.setVerticalGroup(
         layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
         .addGroup(layout.createSequentialGroup()
            .addContainerGap()
            .addComponent(jButton1)
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.UNRELATED)
            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
               .addComponent(jButton2)
               .addComponent(jButton3)
               .addComponent(jButton4))
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.RELATED, 180, Short.MAX_VALUE)
            .addComponent(jButton5)
            .addContainerGap())
      );
   }// </editor-fold>


   // Variables declaration - do not modify
   private javax.swing.JButton jButton1;
   private javax.swing.JButton jButton2;
   private javax.swing.JButton jButton3;
   private javax.swing.JButton jButton4;
   private javax.swing.JButton jButton5;
   // End of variables declaration
}

相同的布局，带有合理的变量名，我添加了一个约束，使按钮的宽度保持不变，我认为这看起来更好一些。

package quicktest;

public class ChaosLayout extends javax.swing.JPanel {

   /**
    * Creates new form ChaosLayout
    */
   public ChaosLayout() {
      initComponents();
   }

   /**
    * This method is called from within the constructor to initialize the form.
    * WARNING: Do NOT modify this code. The content of this method is always
    * regenerated by the Form Editor.
    */
   @SuppressWarnings( "unchecked" )
   // <editor-fold defaultstate="collapsed" desc="Generated Code">
   private void initComponents() {

      launch = new javax.swing.JButton();
      chaos = new javax.swing.JButton();
      trials = new javax.swing.JButton();
      map = new javax.swing.JButton();
      start = new javax.swing.JButton();

      launch.setText("Launch");

      chaos.setText("Chaos");

      trials.setText("Trials");

      map.setText("Map");

      start.setText("Start");

      javax.swing.GroupLayout layout = new javax.swing.GroupLayout(this);
      this.setLayout(layout);
      layout.setHorizontalGroup(
         layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
         .addGroup(layout.createSequentialGroup()
            .addGap(55, 55, 55)
            .addComponent(trials)
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.UNRELATED)
            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.CENTER)
               .addComponent(launch)
               .addComponent(chaos)
               .addComponent(start))
            .addGap(18, 18, 18)
            .addComponent(map)
            .addContainerGap(99, Short.MAX_VALUE))
      );

      layout.linkSize(javax.swing.SwingConstants.HORIZONTAL, new java.awt.Component[] {chaos, launch, map, start, trials});

      layout.setVerticalGroup(
         layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
         .addGroup(layout.createSequentialGroup()
            .addContainerGap()
            .addComponent(launch)
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.UNRELATED)
            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
               .addComponent(chaos)
               .addComponent(trials)
               .addComponent(map))
            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.RELATED, 180, Short.MAX_VALUE)
            .addComponent(start)
            .addContainerGap())
      );
   }// </editor-fold>


   // Variables declaration - do not modify
   private javax.swing.JButton chaos;
   private javax.swing.JButton launch;
   private javax.swing.JButton map;
   private javax.swing.JButton start;
   private javax.swing.JButton trials;
   // End of variables declaration
}
