VirtualJoystick与unity5的问题

Question

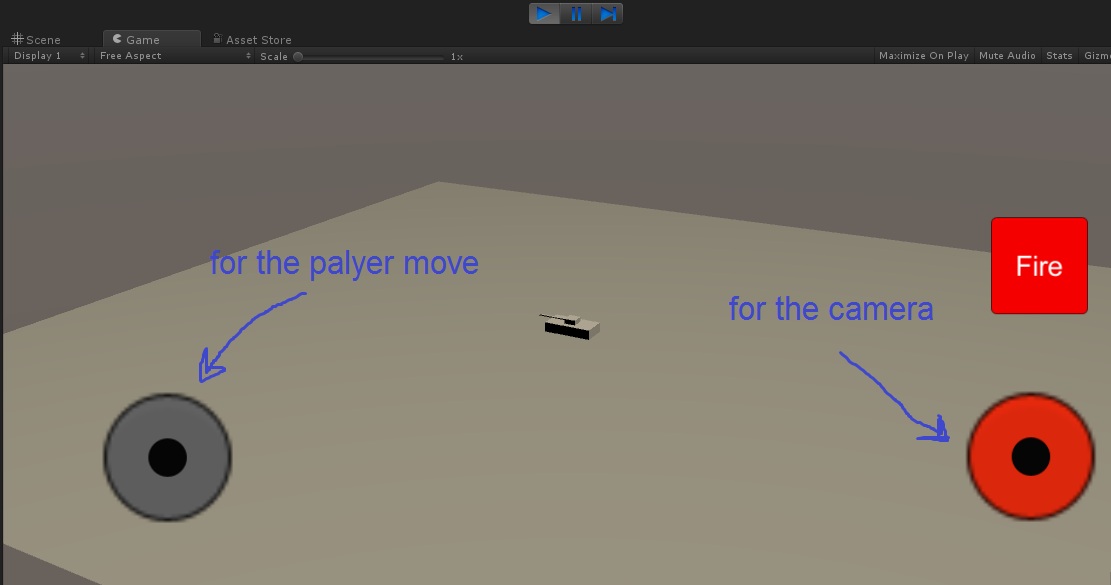

在统一5中实现两个虚拟游戏有两个问题:一个用于玩家的移动(灰色)，另一个用于照相机(橙色)，请参见下面的屏幕截图：

​

​

我的问题：

1. 对于负责玩家移动的虚拟游戏棒，播放机对象不按同一方向旋转-- player被按下，它向所有方向移动，但面对的方向与按下player的方向不同。
2. 照相机能透过地形/地面看清楚。我怎么才能防止这种情况？

我从Virtual中使用的脚本：

using UnityEngine; using System.Collections; using UnityEngine.UI; using UnityEngine.EventSystems;

public class VirtualJoystick : MonoBehaviour,IDragHandler,IPointerUpHandler,IPointerDownHandler {

    private Image bgImg;
    private Image joystickImg;
    public Vector3 InputDirection{ set; get;}
    // Use this for initialization
    void Start () {
        bgImg = GetComponent<Image> ();
        joystickImg = transform.GetChild (0).GetComponent<Image> ();
        InputDirection = Vector3.zero;

    }

    // Update is called once per frame
    //void Update () {

    //}
    public virtual void OnDrag(PointerEventData ped)
    {
        Vector2 pos = Vector2.zero;
        if (RectTransformUtility.ScreenPointToLocalPointInRectangle
            (bgImg.rectTransform,
                ped.position,
                ped.pressEventCamera,
                out pos)) {
            pos.x=(pos.x/bgImg.rectTransform.sizeDelta.x);
            pos.y=(pos.y/bgImg.rectTransform.sizeDelta.y);
            float x=(bgImg.rectTransform.pivot.x==1) ? pos.x*2+1 : pos.x*2-1;
            float y=(bgImg.rectTransform.pivot.y==1) ? pos.y*2+1 : pos.y*2-1;
            InputDirection=new Vector3(x,0,y);
            InputDirection=(InputDirection.magnitude>1) ? InputDirection.normalized : InputDirection;

            joystickImg.rectTransform.anchoredPosition=
                new Vector3(InputDirection.x*(bgImg.rectTransform.sizeDelta.x/3),InputDirection.z*(bgImg.rectTransform.sizeDelta.y/3));
            Debug.Log(InputDirection);
        }

    }
    public virtual void OnPointerDown(PointerEventData ped)
    {
        OnDrag (ped);

    }
    public virtual void OnPointerUp(PointerEventData ped)
    {


        //Here is the problem it just goes to zero so fast so my character also moves so fast...how can i make it so motth
        InputDirection =Vector3.zero;
        joystickImg.rectTransform.anchoredPosition =Vector3.zero;
    }
}

移动播放器的脚本：

using UnityEngine; using System.Collections;

public class Motor : MonoBehaviour {

    public float moveSpeed = 5.0f;
    public float drag = 0.5f;
    public float terminalRotationSpeed = 25.0f;
    private Rigidbody controller;
    private Transform camtransform;
    public VirtualJoystick movejoystick;
    private void Start()
    {
        controller =GetComponent<Rigidbody>();
        controller.maxAngularVelocity = terminalRotationSpeed;
        controller.drag = drag;
        camtransform = Camera.main.transform;
    }
    private void Update ()
    {
        Vector3 dir = Vector3.zero;
        dir.x = Input.GetAxis ("Horizontal");
        dir.z = Input.GetAxis ("Vertical");
        if (dir.magnitude > 1)
            dir.Normalize ();
        if (movejoystick.InputDirection != Vector3.zero) {
            dir = movejoystick.InputDirection;
        }

        Vector3 rotatedDir = camtransform.TransformDirection (dir);
        rotatedDir = new Vector3 (rotatedDir.x, 0, rotatedDir.z);
        rotatedDir = rotatedDir.normalized * dir.magnitude;
        controller.AddForce (dir * moveSpeed);
        Quaternion eulerRot = Quaternion.Euler(0.0f, 0.0f, rotatedDir.x);
        transform.rotation  = Quaternion.Slerp(transform.rotation, eulerRot, Time.deltaTime * 10);
    }
}

我用来拍相机的剧本：

using UnityEngine;
using System.Collections;

public class FreeCamera :
 MonoBehaviour {
    public Transform lookAt;
    public VirtualJoystick camerajs;
    private float distance = 200.0f;
    private float currentx = 0.0f;
    private float currenty = 0.0f;
    private float sensitivityx = 1.0f;
    private float sensitivityy = 1.0f;
    private void Update()
    {
        currentx += camerajs.InputDirection.x * sensitivityx;
        currenty += camerajs.InputDirection.z * sensitivityy;
    }
    private void LateUpdate()
    {
        Vector3 dir = new Vector3(0, 0, -distance);
        Quaternion rotation = Quaternion.Euler(currenty, currentx, 0);
        transform.position = lookAt.position + rotation * dir;
        transform.LookAt(lookAt);
    }
}

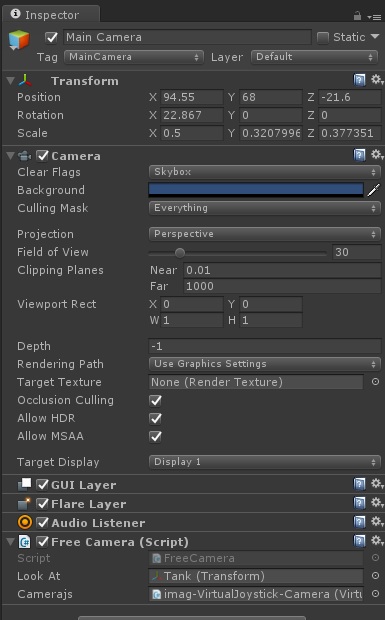

更多截图：

​

​

Answer 1

对于问题1:下面的代码首先根据操纵杆-x方向旋转，然后根据操纵杆-y向前/向后移动。在Motor.Update中：

private void Update ()
{
    Vector3 dir = Vector3.zero;
    dir.x = Input.GetAxis ("Horizontal");
    dir.z = Input.GetAxis ("Vertical");
    if (dir.magnitude > 1)
        dir.Normalize ();
    if (movejoystick.InputDirection != Vector3.zero) {
        dir = movejoystick.InputDirection;
    }

    Vector3 rotatedDir = transform.TransformDirection (dir); // world direction of joystick direction
    Vector3 newDir = Vector3.RotateTowards(transform.forward, rotatedDir, Time.deltaTime * 10f, 0.0F); // turn towards joystick direction
    transform.rotation = Quaternion.LookRotation(newDir); // set the new direction
    controller.AddForce (transform.forward * moveSpeed * dir.z); // scale force by joystick up/down
}
