QGraphicsItem边框样式

Question

如何绘制矩形形状和椭圆形形状，像这个image.In，这个代码，创建矩形形状和椭圆形形状与单行border.But，我需要改变那里的边框样式，像这个给定的图像。

Widget::Widget(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Widget)
{
    ui->setupUi(this);
    scene = new QGraphicsScene(this);
    ui->graphicsView->setScene(scene);

    QBrush redBrush(Qt::red);
    QBrush blueBrush(Qt::blue);
    QPen blackPen(Qt::black);
    blackPen.setWidth(6);

    //rect = scene->addRect(25,25,Qt::RelativeSize);
    elipse = scene->addEllipse(20,20,100,100,blackPen,redBrush);
    elipse->setFlag(QGraphicsItem::ItemIsMovable, true);
    rect = scene->addRect(-20,-10,200,100,blackPen,blueBrush);
    rect->setFlag(QGraphicsItem::ItemIsMovable, true);
    rect->setFlag(QGraphicsItem::ItemIsSelectable,true);
}

​

​

Answer 1

这些属性没有Qt提供的QGraphicsItem，我们必须做的是创建自定义QGraphicsItem。一个选项是从标准类继承：

dgraphicsitem.h

#ifndef DGRAPHICSITEM_H
#define DGRAPHICSITEM_H

#include <QGraphicsRectItem>
#include <QPainter>

class DGraphicsEllipseItem : public QGraphicsEllipseItem
{
public:
    DGraphicsEllipseItem(const QRectF &rect, qreal radius, QGraphicsItem *parent = nullptr):
        QGraphicsEllipseItem(rect, parent){
        mRadius = radius;
    }
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget){
        QGraphicsEllipseItem::paint(painter, option, widget);
        painter->setBrush(brush());
        QRectF r = rect();
        r.setSize(r.size()-mRadius*QSizeF(1, 1));
        r.translate(mRadius*QPointF(1, 1)/2);
        painter->drawEllipse(r);
    }
private:
    qreal mRadius;
};

class DGraphicsRectItem : public QGraphicsRectItem
{
public:
    DGraphicsRectItem(const QRectF &rect, qreal radius, QGraphicsItem *parent = nullptr):
        QGraphicsRectItem(rect, parent){
        mRadius = radius;
    }
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget){
        QGraphicsRectItem::paint(painter, option, widget);
        painter->setBrush(brush());
        QRectF r = rect();
        r.setSize(r.size()-mRadius*QSizeF(1, 1));
        r.translate(mRadius*QPointF(1, 1)/2);
        painter->drawRect(r);
    }
private:
    qreal mRadius;
};
#endif // DGRAPHICSITEM_H

然后添加到场景中：

scene = new QGraphicsScene(this);
ui->graphicsView->setScene(scene);

QBrush brush(Qt::white);
QPen pen(Qt::green);
pen.setWidth(1);

DGraphicsEllipseItem* ellipse = new DGraphicsEllipseItem(QRectF(20,20, 200,100), 10);
scene->addItem(ellipse);
ellipse->setPen(pen);
ellipse->setBrush(brush);
ellipse->setFlag(QGraphicsItem::ItemIsMovable, true);

DGraphicsRectItem* rect = new DGraphicsRectItem(QRectF(-20,-10,200,100), 10);
scene->addItem(rect);
rect->setPen(pen);
rect->setBrush(brush);
rect->setFlag(QGraphicsItem::ItemIsMovable, true);

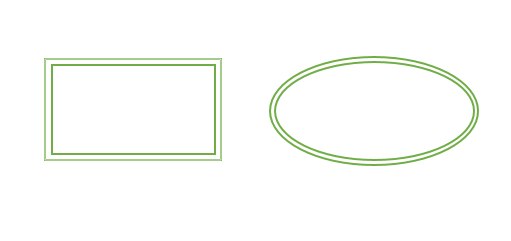

输出：

​

​

完整的示例可以在下面的链接中找到。
