QFileDialog预览

Question

我正在尝试获得一个Qt5 QFileDialog，在选择图片打开时显示它们的预览。

方法1:扩展QFileDialog

我使用了这个对话框的实现，它与QT5.6.1一起工作。

现在我使用的是QT5.9.2，它不再工作了，给出了以下错误：

Traceback (most recent call last):
  File "main.py", line 74, in mouseDoubleClickEvent
    self.openFileDialog()
  File "main.py", line 123, in openFileDialog
    openDialog = QFileDialogPreview(self, 'Open file', './', self.getDialogFilter())
  File "QFileDialogPreview.py", line 22, in __init__
    self.layout().addLayout(box, 1, 3, 1, 1)
TypeError: addLayout(self, QLayout, stretch: int = 0): too many arguments

这是翻译课。我正在使用Python 3.5.2：

from PyQt5.QtWidgets import QFileDialog, QLabel, QVBoxLayout
from PyQt5.QtGui import QPixmap
from PyQt5.QtCore import Qt

class QFileDialogPreview(QFileDialog):
    def __init__(self, parent, caption, direcotry, filter):
        super().__init__(parent, caption, direcotry, filter)

        self.setObjectName("FileDialogPreview")
        box = QVBoxLayout(self)

        self.setFixedSize(self.width() + 250, self.height())

        self.mpPreview = QLabel("Preview", self)
        self.mpPreview.setFixedSize(250, 250)
        self.mpPreview.setAlignment(Qt.AlignCenter)
        self.mpPreview.setObjectName("labelPreview")
        box.addWidget(self.mpPreview)

        box.addStretch()

        self.layout().addLayout(box, 1, 3, 1, 1)

        self.currentChanged.connect(self.onChange)
        self.fileSelected.connect(self.onFileSelected)
        self.filesSelected.connect(self.onFilesSelected)

        self._fileSelected = None
        self._filesSelected = None

    def onChange(self, path):
        pixmap = QPixmap(path)

        if(pixmap.isNull()):
            self.mpPreview.setText("Preview")
        else:
            self.mpPreview.setPixmap(pixmap.scaled(self.mpPreview.width(), self.mpPreview.height(), Qt.KeepAspectRatio, Qt.SmoothTransformation))

    def onFileSelected(self, file):
        self._fileSelected = file

    def onFilesSelected(self, files):
        self._filesSelected = files

    def getFileSelected(self):
        return self._fileSelected

    def getFilesSelected(self):
        return self._filesSelected

方法2:预览的单独窗口

我还尝试为预览添加一个单独的窗口。当它在QFileDialog中被选中时，它会显示图像，但我没有将它附加到对话框本身的一侧。

我无法使用mapToGlobal方法在dialog.gemoetry()上获得映射到全局屏幕坐标的对话框位置。我得到的只是一个包含0,0位置的QRect，在本例中，这个位置的大小与100x30不匹配，而对话框大约是800x600，大约在2000,500。

Answer 1

当您放置box = QVBoxLayout(self)时，您要放置一个新的布局，您必须做的是使用QFileDialog自己的Qt，为此，我们启用了DontUseNativeDialog标志，此外还从box语句中删除了self：

class QFileDialogPreview(QFileDialog):
    def __init__(self, *args, **kwargs):
        QFileDialog.__init__(self, *args, **kwargs)
        self.setOption(QFileDialog.DontUseNativeDialog, True)

        box = QVBoxLayout()

        self.setFixedSize(self.width() + 250, self.height())

        self.mpPreview = QLabel("Preview", self)
        self.mpPreview.setFixedSize(250, 250)
        self.mpPreview.setAlignment(Qt.AlignCenter)
        self.mpPreview.setObjectName("labelPreview")
        box.addWidget(self.mpPreview)

        box.addStretch()

        self.layout().addLayout(box, 1, 3, 1, 1)

        self.currentChanged.connect(self.onChange)
        self.fileSelected.connect(self.onFileSelected)
        self.filesSelected.connect(self.onFilesSelected)

        self._fileSelected = None
        self._filesSelected = None

    def onChange(self, path):
        pixmap = QPixmap(path)

        if(pixmap.isNull()):
            self.mpPreview.setText("Preview")
        else:
            self.mpPreview.setPixmap(pixmap.scaled(self.mpPreview.width(), self.mpPreview.height(), Qt.KeepAspectRatio, Qt.SmoothTransformation))

    def onFileSelected(self, file):
        self._fileSelected = file

    def onFilesSelected(self, files):
        self._filesSelected = files

    def getFileSelected(self):
        return self._fileSelected

    def getFilesSelected(self):
        return self._filesSelected

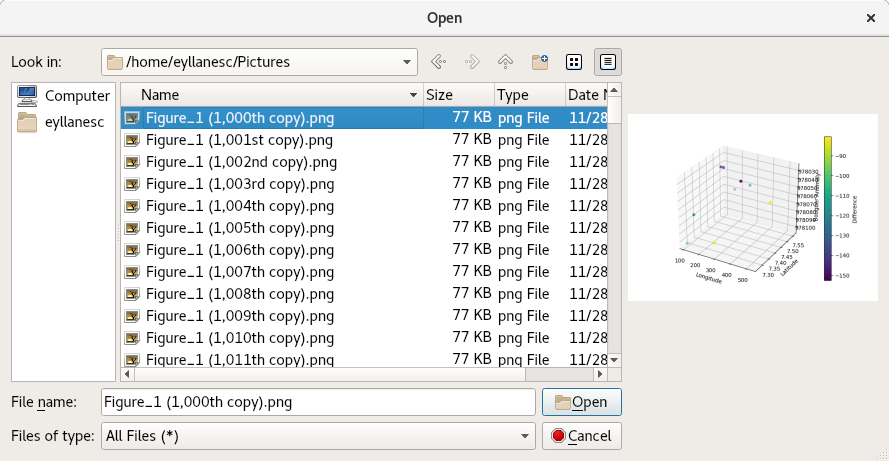

输出：

​

​

Answer 2

除了关于这个主题的@eyllanesc答案之外，我一开始还不知道如何专门调用类来打开多个文件(当然，只有选择一个文件时，预览才能正常工作)。下面的行显示了如何做到这一点。(将此作为单独的答复发布，而不是注释，因为代码包含多行代码)

## For selecting a single file
def openBtn_single_clicked(self):

    filedialog = QFileDialogPreview(self,"Open File",
        "","Image Files (*.png *.jpg *.jpeg)")
    filedialog.setFileMode(QFileDialog.ExistingFile)
    if filedialog.exec_() == QFileDialogPreview.Accepted:
        print(filedialog.getFileSelected())

    return


## For selecting multiple files
def openBtn_multiple_clicked(self):
    filedialog = QFileDialogPreview(self,"Open File",
        "","PDF Files (*.pdf)")
    filedialog.setFileMode(QFileDialog.ExistingFiles)
    if filedialog.exec_() == QFileDialogPreview.Accepted:
        print(filedialog.getFilesSelected())

    return

这两个函数都需要通过命令连接到按钮上。

openBtnSingleFile.clicked.connect(self.openBtn_single_clicked)
openBtnMultipleFiles.clicked.connect(self.openBtn_multiple_clicked)
