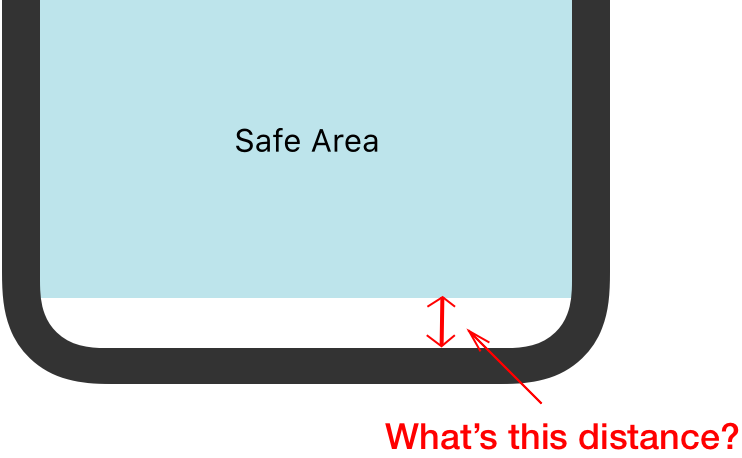

如何找出从底部安全区边缘到屏幕底部的距离？

Question

我需要计算安全区域底部锚与屏幕底部之间的距离。在给定视图的代码中，有办法做到这一点吗？

​

​

Answer 1

试试这个

if #available(iOS 11.0, *) {
    let window = UIApplication.shared.keyWindow
    let bottomPadding = window?.safeAreaInsets.bottom
}

Answer 2

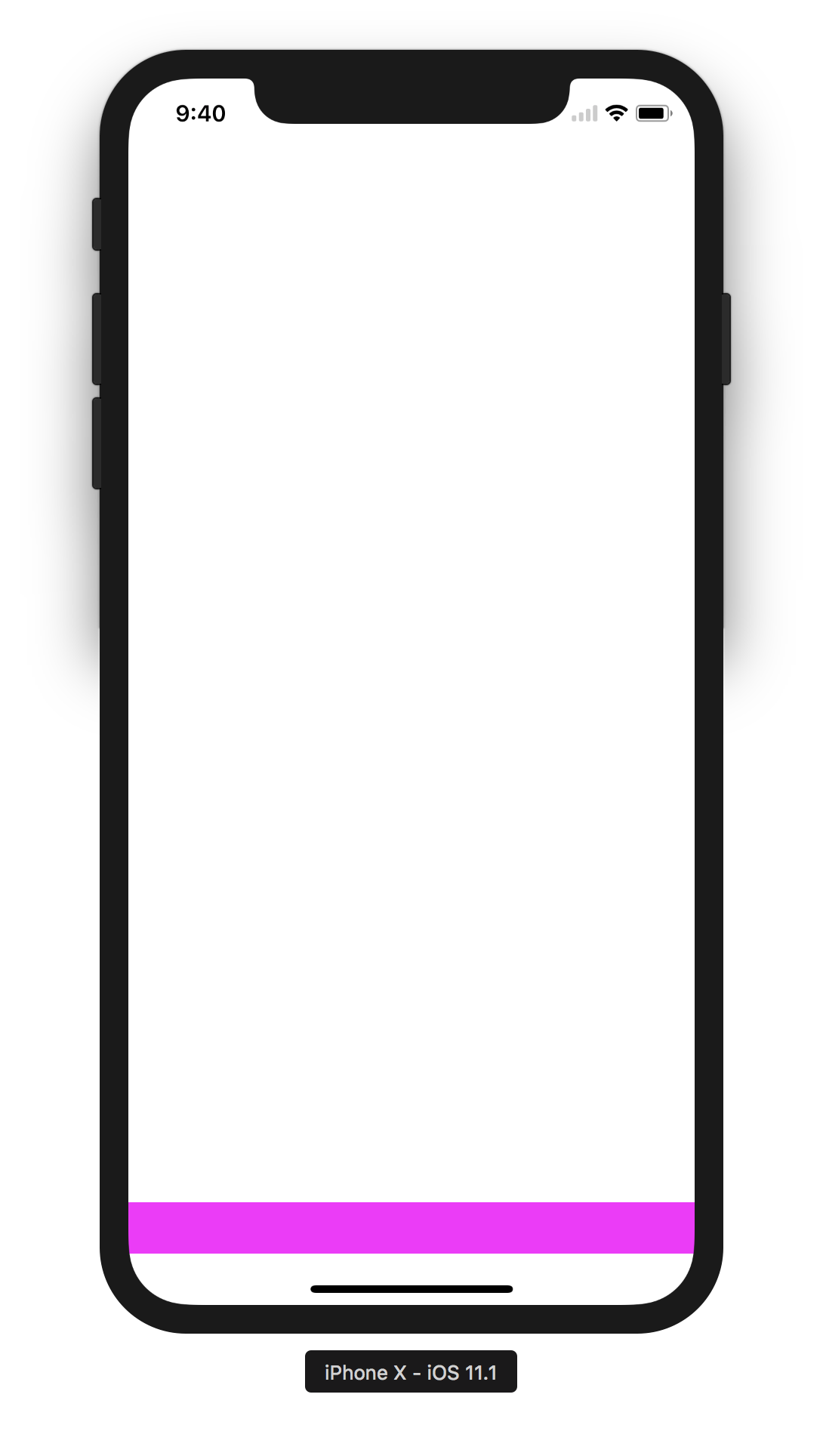

您可以尝试将子视图(清除、隐藏或其他)固定在safeAreaLayoutGuide的底部，并计算此视图的底部与viewDidLayoutSubviews中视图控制器的视图之间的差异。

class ViewController: UIViewController {
    let measuringView = UIView()
    override func viewDidLoad() {
        super.viewDidLoad()
        measuringView.backgroundColor = .magenta
        measuringView.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(measuringView)
        let vConstraint = measuringView.bottomAnchor.constraint(equalTo: view.safeAreaLayoutGuide.bottomAnchor)
        let heightConstraint = measuringView.heightAnchor.constraint(equalToConstant: 34)
        var constraints = NSLayoutConstraint.constraints(withVisualFormat: "|[measuring]|", options: [], metrics: nil, views: ["measuring": measuringView])
        constraints.append(vConstraint)
        constraints.append(heightConstraint)
        NSLayoutConstraint.activate(constraints)
    }

    override func viewDidLayoutSubviews() {
        super.viewDidLayoutSubviews()
        let measuringBottom = measuringView.frame.origin.y + measuringView.frame.height
        let viewBottom = view.bounds.height
        let distance = abs(measuringBottom - viewBottom)
        print("distance is \(distance) points")
    }
}

​

​

Answer 3

重新迭代以前的答案。将子视图引脚到UIViewController视图的底部。然后将第二个锚钉到视图的view.safeAreaLayoutGuide.bottomAnchor锚点上。将两个子视图固定在父视图的top、leading和trailing锚点上。然后，我假设在viewDidAppear中，您可以打印出两个子视图的frame.maxY值之间的差异。这应该会给你区别。

let viewA = UIView()

let viewB = UIView()

override func viewDidLoad() {

    view.addSubview(viewA)
    view.addSubview(viewB)
    viewA.translateAutoResizingMasksIntoConstraints = false
    viewB.translateAutoResizingMasksIntoConstraints = false


        if #available(iOS 11.0, *) {
            NSLayoutConstraint.activate([viewA.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor, constant: 0),
                                         viewA.leadingAnchor.constraint(equalTo: view.safeAreaLayoutGuide.leadingAnchor, constant: 0),
                                         viewA.trailingAnchor.constraint(equalTo: view.safeAreaLayoutGuide.trailingAnchor, constant: 0),
                                         viewA.bottomAnchor.constraint(equalTo: view.safeAreaLayoutGuide.bottomAnchor, constant: 0),
                                         viewB.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor, constant: 0),
                                         viewB.leadingAnchor.constraint(equalTo: view.safeAreaLayoutGuide.leadingAnchor, constant: 0),
                                         viewB.trailingAnchor.constraint(equalTo: view.safeAreaLayoutGuide.trailingAnchor, constant: 0),
                                         viewB.bottomAnchor.constraint(equalTo: view.bottomAnchor, constant: 0)])
        } else {
            // Fallback on earlier versions
        }

}

override func viewDidAppear() {

    super.viewDidAppear()
    print("Safe Distance Value is:\(viewA.frame.maxY - viewB.frame.maxY)")

}

作为其他人的参考，这个值似乎是34在iPhone X模拟器上
