STM32F3发现板ADC传输不工作

Question

我正在使用STM32F303 (探索板)，并试图从外部触发一个从定时器信号TRGO2到缓冲区的ADC转换，并通过DMA将其存储到缓冲区中。但是，似乎没有向该缓冲区写入任何内容。请有人看看我的初始化代码，如果我在初始化的时候搞砸了，可以告诉我吗？我知道定时器触发工作，因为当我启用ADC中断时，我能够读取ADC值。

void InitADC(void)
{
     int i;
     ADC_InitTypeDef       ADC_InitStructure;
     ADC_CommonInitTypeDef ADC_CommonInitStructure;
     GPIO_InitTypeDef    GPIO_InitStructure;
     NVIC_InitTypeDef    NVIC_InitStructure;
     DMA_InitTypeDef         DMA_InitStructure;


     RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);

     DMA_DeInit(DMA1_Channel1);

     DMA_InitStructure.DMA_BufferSize = 2;
     DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;
     DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;
     DMA_InitStructure.DMA_MemoryBaseAddr = (uint32_t)adcBuffer;
     DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;
     DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable;
     DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;
     DMA_InitStructure.DMA_PeripheralBaseAddr = (uint32_t)&ADC2->DR;
     DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;
     DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
     DMA_InitStructure.DMA_Priority = DMA_Priority_High;
     DMA_Init(DMA1_Channel1, &DMA_InitStructure);

     DMA_Cmd(DMA1_Channel1, ENABLE);

     /* Configure the ADC clock */
     RCC_ADCCLKConfig(RCC_ADC12PLLCLK_Div2);

     /* Enable ADC12 clock */
     RCC_AHBPeriphClockCmd(RCC_AHBPeriph_ADC12, ENABLE);

     ADC_CommonInitStructure.ADC_Mode = ADC_Mode_Independent;
     ADC_CommonInitStructure.ADC_Clock = ADC_Clock_SynClkModeDiv1;
     ADC_CommonInitStructure.ADC_DMAAccessMode = ADC_DMAAccessMode_1;
     ADC_CommonInitStructure.ADC_DMAMode = ADC_DMAMode_OneShot;
     ADC_CommonInitStructure.ADC_TwoSamplingDelay = 0;

     ADC_CommonInit(ADC2, &ADC_CommonInitStructure);

     /* GPIOA Periph clock enable */
     RCC_AHBPeriphClockCmd(RCC_AHBPeriph_GPIOA, ENABLE);

     /* Configure ADC2 Channel1 as analog input */
     GPIO_InitStructure.GPIO_Pin = GPIO_Pin_4 | GPIO_Pin_5;
     GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AN;
     GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL ;
     GPIO_Init(GPIOA, &GPIO_InitStructure);

     ADC_StructInit(&ADC_InitStructure);

     /* Calibration procedure */
     ADC_VoltageRegulatorCmd(ADC2, ENABLE);
     for(i = 0; i < 1000; i++) {}

     ADC_SelectCalibrationMode(ADC2, ADC_CalibrationMode_Single);
     ADC_StartCalibration(ADC2);

     while(ADC_GetCalibrationStatus(ADC2) != RESET );

     ADC_InitStructure.ADC_ContinuousConvMode = ADC_ContinuousConvMode_Disable;
     ADC_InitStructure.ADC_Resolution = ADC_Resolution_12b;
     ADC_InitStructure.ADC_ExternalTrigConvEvent = ADC_ExternalTrigConvEvent_10;
     ADC_InitStructure.ADC_ExternalTrigEventEdge = ADC_ExternalTrigEventEdge_RisingEdge;
     ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;
     ADC_InitStructure.ADC_OverrunMode = ADC_OverrunMode_Disable;
     ADC_InitStructure.ADC_AutoInjMode = ADC_AutoInjec_Disable;
     ADC_InitStructure.ADC_NbrOfRegChannel = 2;
     ADC_Init(ADC2, &ADC_InitStructure);

     /* ADC2 regular channel1 configuration */
     ADC_RegularChannelConfig(ADC2, ADC_Channel_1, 1, ADC_SampleTime_7Cycles5);
     ADC_RegularChannelConfig(ADC2, ADC_Channel_2, 2, ADC_SampleTime_7Cycles5);

     /* Configure and enable DMA interrupt */
     NVIC_InitStructure.NVIC_IRQChannel = DMA1_Channel1_IRQn;
     NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
     NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;
     NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
     NVIC_Init(&NVIC_InitStructure);

     /* Enable interrupt */
     7DMA_ITConfig(DMA1_Channel1, DMA1_IT_TC1, ENABLE);

     /* Configures the ADC DMA */
     ADC_DMAConfig(ADC2, ADC_DMAMode_Circular);
     /* Enable the ADC DMA */
     ADC_DMACmd(ADC2, ENABLE);

     /* Enable ADC2 */
     ADC_Cmd(ADC2, ENABLE);
     ADC_DMACmd(ADC2, ENABLE);

     /* wait for ADRDY */
     while(!ADC_GetFlagStatus(ADC2, ADC_FLAG_RDY));

     /* Start ADC2 Software Conversion */
     ADC_StartConversion(ADC2);
}

void DMA1_Channel1_IRQHandler(void)
{
     if (DMA_GetFlagStatus(DMA1_FLAG_TC1) != RESET)
     {
         DMA_ClearITPendingBit(DMA1_FLAG_TC1);
         adcBuffer[0] = (adcBuffer[0] * ADC_VREF) >> 12;
         adcBuffer[1] = (adcBuffer[1] * ADC_VREF) >> 12;
     }
}

以下是相关的ADC和DMA寄存器内容：

ADC2 CR: 0x10000005

ADC2 CFGR: 0x00000683

DMA1_CH1 CCR: 0x000025A3

DMA1_CH1 CNDTR: 0x00000002

DMA1_CH1 CPAR: 0x50000140

DMA1_CH1 CMAR: 0x2000001C

Answer 1

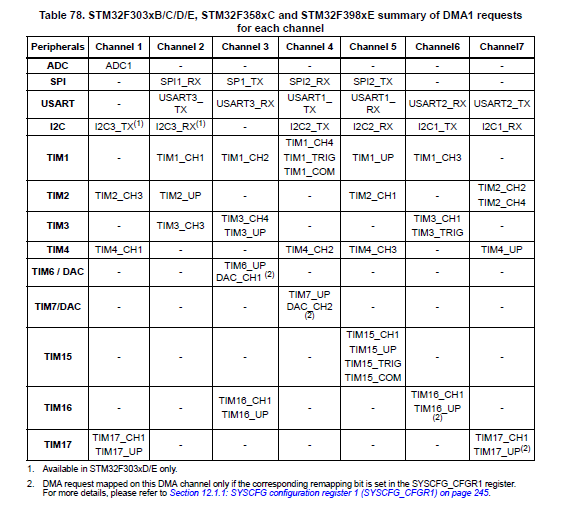

我似乎已经解决了这个问题。进一步查看数据表，我意识到ADC2没有连接到DMA1通道1：

​

​

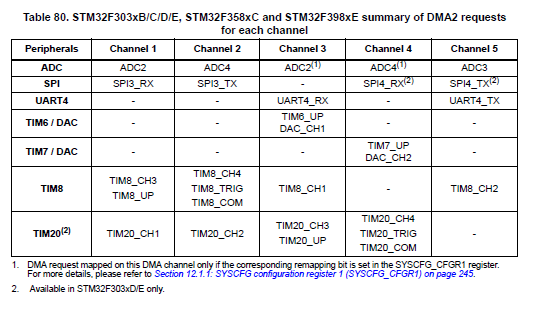

到ADC2的正确DMA连接是DMA2通道1：

​

​
