为什么我的河岸看起来这么奇怪？

Question

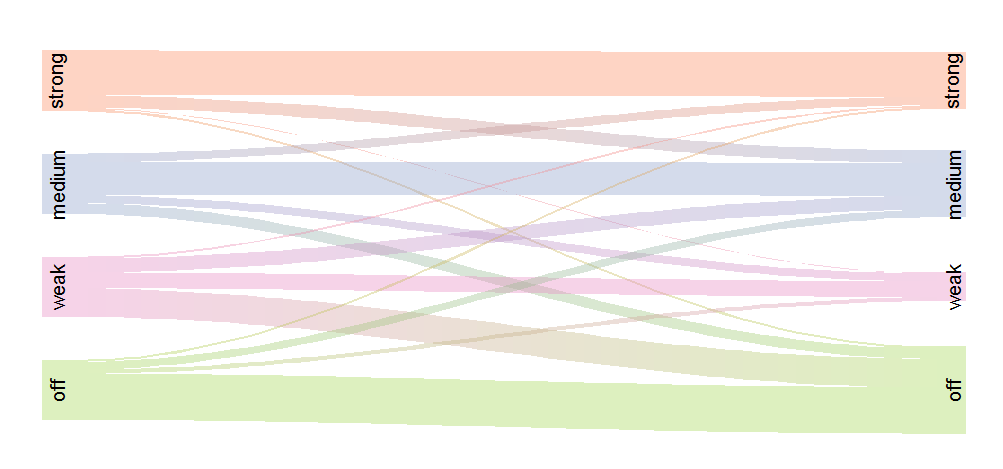

我试图生成一个河图，但是我的输出看起来好像是从每个条形图的错误的侧面来的，这使得它很难解释。

​

我使用的数据是：

边缘：

       N1       N2      Value
1     off    off.1 0.77149877
2    weak    off.1 0.47474747
3  medium    off.1 0.17537313
4  strong    off.1 0.03603604
5     off    low.1 0.06879607
6    weak    low.1 0.26262626
7  medium    low.1 0.13432836
8  strong    low.1 0.01351351
9     off medium.1 0.12530713
10   weak medium.1 0.23232323
11 medium medium.1 0.54850746
12 strong medium.1 0.20720721
13    off strong.1 0.03439803
14   weak strong.1 0.03030303
15 medium strong.1 0.14179104
16 strong strong.1 0.74324324

节点：

        ID x y
1      off 1 4
2     weak 1 3
3   medium 1 2
4   strong 1 1
5    off.1 2 4
6    low.1 2 3
7 medium.1 2 2
8 strong.1 2 1

情节的代码是：

library(RColorBrewer)
library(riverplot)
palette = paste0(brewer.pal(5, "Set2"), "60")
styles = lapply(nodes$y, function(n) {
  list(col = palette[n+1], lty = 0, textcol = "black")
})
names(styles) = nodes$ID
nlabels <- c(off = 'off', weak = 'weak', medium = 'medium',strong = 'strong',
             off.1 = 'off', weak.1 = 'weak', medium.1 = 'medium', strong.1 = 'strong')
x <- makeRiver(nodes, edges, node_styles = styles, node_labels = nlabels)
plot(x)

Answer 1

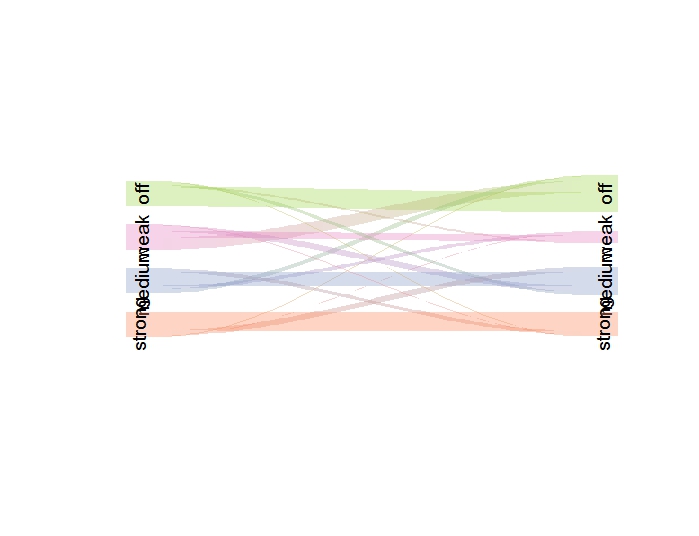

可以解决这个问题，指定地块上节点的垂直位置(nodes_ypos选项)：

x <- makeRiver(nodes, edges, node_styles = styles, node_labels = nlabels,
               node_ypos=1:4)
plot(x)

​

​

使用sankeyNetwork函数的networkD3，您可以得到一个类似的(交互式)图：

edges <- read.table(text="
n       N1       N2      Value
1     off    off.1 0.77149877
2    weak    off.1 0.47474747
3  medium    off.1 0.17537313
4  strong    off.1 0.03603604
5     off    low.1 0.06879607
6    weak    low.1 0.26262626
7  medium    low.1 0.13432836
8  strong    low.1 0.01351351
9     off medium.1 0.12530713
10   weak medium.1 0.23232323
11 medium medium.1 0.54850746
12 strong medium.1 0.20720721
13    off strong.1 0.03439803
14   weak strong.1 0.03030303
15 medium strong.1 0.14179104
16 strong strong.1 0.74324324
", header=T)

nodes <- read.table(text="
n        ID x y
1      off 1 4
2     weak 1 3
3   medium 1 2
4   strong 1 1
5    off.1 2 4
6    low.1 2 3
7 medium.1 2 2
8 strong.1 2 1
", header=T)

nodes$ID <- as.character(nodes$ID)
edges$N1 <- as.numeric(factor(edges$N1, levels=c("off","weak","medium","strong")))-1
edges$N2 <- as.numeric(factor(edges$N2, levels=c("off.1","low.1","medium.1","strong.1")))+3

library(networkD3)
sankeyNetwork(Links = edges, Nodes = nodes, Source = "N1",
             Target = "N2", Value = "Value", NodeID = "ID",
             iterations=0,
             units = "", fontSize = 12, nodeWidth = 30)

​

​
