如何从父子层次结构表创建查询

Question

如何编写查询，将具有父/子层次结构的表转换为具有独立列的层次结构级别的表？

我在SQL Server中有一个表(来自SAP，我相信没有做任何更改)，它给了我包含我的利润中心的组的结构。表的结构是典型的父级子层次结构，如下所示。

Parent  |  Child
--------+--------
S-1     |  S-11
S-1     |  S-12
S-1     |  S-13
S-1     |  S-14
S-1     |  S-15
S-11    |  S-111
S-11    |  S-112
..      |  ..
S-152   |  S-1521
S-152   |  S-1522
S-1522  |  S-15221

我想要写一个查询，给我一个表，在这个表中，每个组都可以找到级别1、2、3等。组。第1级是顶层(并且将一直存在)，第2级是下一层。可以有无限的级别，但在这个时候，级别8是最高的使用。

Group   | Level 1   | Level 2   | Level 3   | Level 4   | Level 5
--------+-----------+-----------+-----------+-----------+---------
S-111   | S-1       | S-11      | S-111     |           |
S-11211 | S-1       | S-11      | S-112     | S-1121    | S-11211
S-1211  | S-1       | S-12      | S-121     | S-1211    |
S-1212  | S-1       | S-12      | S-121     | S-1212    |
S-122   | S-1       | S-12      | S-122     |           |
S-123   | S-1       | S-12      | S-123     |           |
S-1311  | S-1       | S-13      | S-131     | S-1311    |
S-1312  | S-1       | S-13      | S-131     | S-1312    |
S-1321  | S-1       | S-13      | S-132     | S-1321    |
S-141   | S-1       | S-14      | S-141     |           |
S-151   | S-1       | S-15      | S-151     |           |
S-1521  | S-1       | S-15      | S-152     | S-1521    |
S-15221 | S-1       | S-15      | S-152     | S-1522    | S-15221

我已经用谷歌和这个网页找到了最终的解决方案，但还没有找到。但我设法做到了这一点：

WITH MyTest as
(
    SELECT
        P.PRCTR_CHILD, P.PRCTR_PARENT,
        CAST(P.PRCTR_CHILD AS VARCHAR(MAX)) AS Level
    FROM
        [IBM_PA_Integration].[dbo].[PRCTRHIER] AS P
    WHERE
        P.PRCTR_PARENT = 'S-1000' –- S-1000 is a division

    UNION ALL

    SELECT
        P1.PRCTR_CHILD, P1.PRCTR_PARENT,
        CAST(P1.PRCTR_CHILD AS VARCHAR(MAX)) + ', ' + M.Level
    FROM
        [IBM_PA_Integration].[dbo].[PRCTRHIER] AS P1
    INNER JOIN
        MyTest M ON M.PRCTR_CHILD = P1.PRCTR_PARENT
)
SELECT *
FROM MyTest
WHERE PRCTR_PARENT  = 'FS2004' –- FS2004 is the level top level / level above S-1000

Answer 1

如果有固定或有限数量的级别，则可能不需要动态SQL。“解析”路径可以用一些XML来完成。

请考虑以下几点：

示例：

Declare @YourTable Table ([Parent] varchar(50),[Child] varchar(50))
Insert Into @YourTable Values
 (null ,'S-1')
,('S-1','S-11')
,('S-1','S-12')
,('S-1','S-13')
,('S-1','S-14')
,('S-1','S-15')
,('S-11','S-111')
,('S-11','S-112')

;with cteP as (
      Select Child
            ,Parent
            ,PathID = cast(Child as varchar(500))
      From   @YourTable
      Where  Parent is Null
      Union  All
      Select Child  = r.Child
            ,Parent = r.Parent
            ,PathID = cast(p.PathID+','+cast(r.Child as varchar(25)) as varchar(500))
      From   @YourTable r
      Join   cteP p on r.Parent  = p.Child)
Select [Group] = Child
      ,B.*
 From  cteP A
 Cross Apply (
                Select Level1 = xDim.value('/x[1]','varchar(max)')
                      ,Level2 = xDim.value('/x[2]','varchar(max)')
                      ,Level3 = xDim.value('/x[3]','varchar(max)')
                      ,Level4 = xDim.value('/x[4]','varchar(max)')
                      ,Level5 = xDim.value('/x[5]','varchar(max)')
                From  (Select Cast('<x>' + replace(PathID,',','</x><x>')+'</x>' as xml) as xDim) as X
             ) B
  Order By PathID

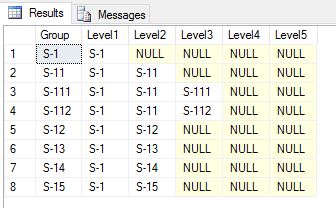

返回

​

​
