D3栈线图

Question

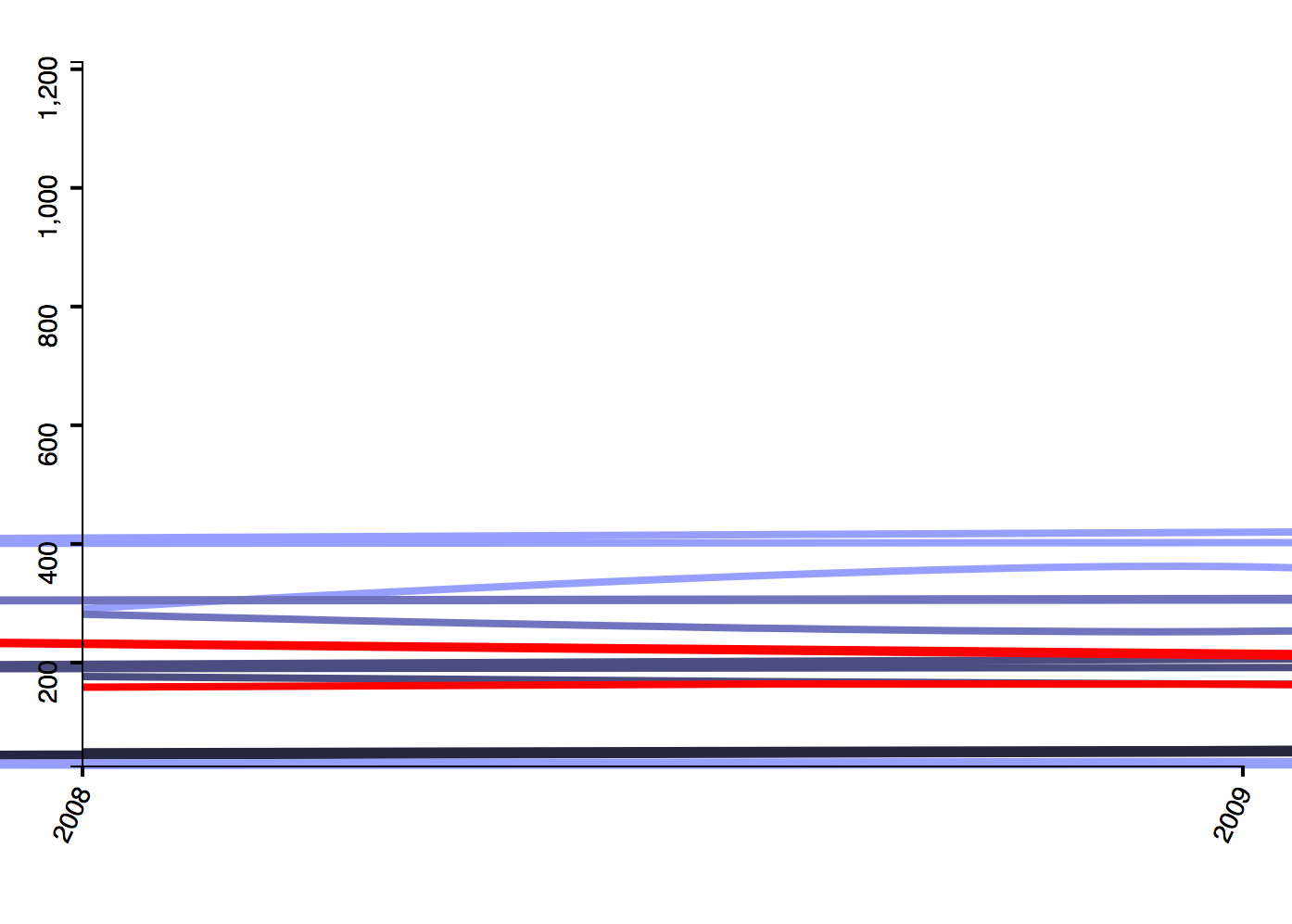

我现在正在D3 (第4版)中绘制一个多行图表，并且遇到了一些麻烦。下面是我当前代码所得到的信息：

​

​

我想这和我的x标度有关，但我不知道出了什么问题。我一直在学习教程这里，并做了一些修改，因为我正在使用V4。任何帮助都将不胜感激。

 var parseDate = d3.timeParse("%Y");

var color = d3.scaleOrdinal(["#969FFD","#7173BF","#4B4C7F","#262640", "red"]);

var mySvg = d3.select("#chart8").append('svg')
   .attr('width', width + margin.right + margin.left)
   .attr('height', height + margin.bottom + margin.top)

var chartGroup = mySvg.append("g")
   .attr("class","fullGroup")
   .attr("transform", "translate("+margin.left+","+margin.top+")");

var parseDate = d3.timeParse("%Y");

d3.csv("../Assets/datasets/allDrugs3.csv", function(error, data){
if (error) throw error;

// FORMAT THE DATA //
var labelVar = "year";
var varNames = d3.keys(data[0]).slice(1);
    // Alternatively --> .filter(function(key){ return key !== labelVar;})
console.log(varNames); // <-- Names of drugs, used for color array

// Add color domain of names
color.domain(varNames);

var seriesData = varNames.map(function(name){
   return {
       name: name,
       values: data.map(function(d) {
            return { name: name, label: parseDate(d[labelVar]), value: +d[name]};
       })
   };
});

console.log(seriesData);

// Y-SCALE //

var yScale = d3.scaleLinear()
    .domain([
        d3.min(seriesData, function(c){
        return d3.min(c.values, function(d){ return d.value; });
        }),
        d3.max(seriesData, function(c){
            return d3.max(c.values, function(d){ return d.value;});
        })
    ])
    .range([height, 0]);

console.log(
    "The y domain is",
    d3.min(seriesData, function(c){
        return d3.min(c.values, function(d){ return d.value; })}),
    "to",
    d3.max(seriesData, function(c){
            return d3.max(c.values, function(d){ return d.value;});
        }));

// X-SCALE //

var xYears = data.map(function(d){return parseDate(d.year);});
var xScale = d3.scaleTime()
    .domain(xYears)
    .range([0, width]);

console.log(
    "The x domain is",
    xYears
)

var series = chartGroup.selectAll(".series")
    .data(seriesData)
    .enter().append("g")
        .attr("class","series");

var line = d3.line()
    .x(function(d){return xScale(d.label)})
    .y(function(d){return yScale(d.value); })
    .curve(d3.curveCardinal);

series.append("path")
    .attr("d", function(d){ return line(d.values); })
    .style("stroke", function (d) { return color(d.name); })
    .style("stroke-width", "4px")
    .style("fill", "none");

// Axes

var yAxis = d3.axisLeft(yScale).ticks(5).tickPadding(5);
var xAxis = d3.axisBottom(xScale).ticks(10);

chartGroup.append("g")
   .attr("class","Xaxis")
   .call(xAxis)
   .attr("transform","translate(0,"+height+")")
.selectAll("text")
    .style("text-anchor", "end")
    .attr("dx", "-.8em")
    .attr("dy", ".15em")
    .attr("transform", "rotate(-65)");

chartGroup.append("g")
    .attr("class","Yaxis")
    .call(yAxis)
    .selectAll("text")
    .style("text-anchor", "middle")
    .attr("dy", "-1em")
    .attr("transform", "rotate(-90)");
});

以下是数据：

key,deaths,year
heroin,289,2007
heroin,360,2008
heroin,238,2009
heroin,247,2010
heroin,392,2011
heroin,399,2012
heroin,464,2013
heroin,578,2014
heroin,748,2015
heroin,1212,2016
opiods,280,2007
opiods,251,2008
opiods,311,2009
opiods,342,2010
opiods,311,2011
opiods,302,2012
opiods,316,2013
opiods,330,2014
opiods,351,2015
opiods,418,2016
alchohol,175,2007
alchohol,162,2008
alchohol,160,2009
alchohol,161,2010
alchohol,195,2011
alchohol,187,2012
alchohol,238,2013
alchohol,270,2014
alchohol,310,2015
alchohol,582,2016
benzodiazepine,48,2007
benzodiazepine,52,2008
benzodiazepine,58,2009
benzodiazepine,68,2010
benzodiazepine,73,2011
benzodiazepine,37,2012
benzodiazepine,69,2013
benzodiazepine,103,2014
benzodiazepine,91,2015
benzodiazepine,126,2016
cocaine,157,2007
cocaine,162,2008
cocaine,135,2009
cocaine,148,2010
cocaine,153,2011
cocaine,248,2012
cocaine,154,2013
cocaine,198,2014
cocaine,221,2015
cocaine,463,2016

Answer 1

这里有很多东西，只需发布一些工作代码就更容易了。你的想法是好的，但有几个地方它正在崩溃：

var varNames = d3.keys(data[0]).slice(1);
// Alternatively --> .filter(function(key){ return key !== labelVar;})
console.log(varNames); // <-- Names of drugs, used for color array

如果你看一下控制台，你会发现这不是给你药物的名字，而是给你第一行数据的一部分，这并不是很有用。

对于您所拥有的格式的数据，一个选项是使用d3.nest()。这将使用您的数组，并根据您选择的键分组一个新的数组。在这种情况下，我们可以像这样按药物分组：

 var nested = d3.nest()
    .key(d => d.key)
    .map(data)

现在，nested将是一个对象数组，如：

[{alchohol: [{key: "alchohol", deaths: "175", year: "2007"},...},
 {benzodiazepine: [{key: "benzodiazepine", deaths: "48", year: "2007"}...
]

这使得剩下的非常自然。您可以使用nested.keys()获取键，用.entries()获取数组。

需要记住的一点是，d3.max()按自然顺序返回最大值--您需要用.domain([0 , d3.max(data, d => +d.deaths) ])强制按比例表示数值顺序。

一旦解决了这些问题，您就可以将nested传递到data()函数中，并将.entries()传递到您的行生成器中，一切都进行得很好。

下面是一个有用的示例：

<html>
<head>
    <script src="d3/d3.min.js"></script>
    <script src="d3-selection-multi/d3-selection-multi.min.js"></script>
    <style>
    #chart div {
            background-color: steelblue;
            color: white;
            padding: 8px;
            text-align: right;
            margin:1px;
            font: 10px sans-serf
        }
        div#graphic {
            display: inline-block;
        /* border: 1px solid #333;*/
        }
        .title {
            fill: #666;
            font-family: Arial, Helvetica, sans-serif;
            text-anchor: middle;
            font-size: 24px;
        }
        .axis .domain, .axis .tick{
            stroke: #000;
            fill: none;
        }
        .bar {
            fill:steelblue;
            stroke: #444;
        }
    </style>
</head>
<body>
<div id ="chart"></div>
<div id="chart8"></div>
<button onclick="refresh()">refresh</button>
<script>
data = [{"key":"heroin","deaths":"289","year":"2007"},{"key":"heroin","deaths":"360","year":"2008"},{"key":"heroin","deaths":"238","year":"2009"},{"key":"heroin","deaths":"247","year":"2010"},{"key":"heroin","deaths":"392","year":"2011"},{"key":"heroin","deaths":"399","year":"2012"},{"key":"heroin","deaths":"464","year":"2013"},{"key":"heroin","deaths":"578","year":"2014"},{"key":"heroin","deaths":"748","year":"2015"},{"key":"heroin","deaths":"1212","year":"2016"},{"key":"opiods","deaths":"280","year":"2007"},{"key":"opiods","deaths":"251","year":"2008"},{"key":"opiods","deaths":"311","year":"2009"},{"key":"opiods","deaths":"342","year":"2010"},{"key":"opiods","deaths":"311","year":"2011"},{"key":"opiods","deaths":"302","year":"2012"},{"key":"opiods","deaths":"316","year":"2013"},{"key":"opiods","deaths":"330","year":"2014"},{"key":"opiods","deaths":"351","year":"2015"},{"key":"opiods","deaths":"418","year":"2016"},{"key":"alchohol","deaths":"175","year":"2007"},{"key":"alchohol","deaths":"162","year":"2008"},{"key":"alchohol","deaths":"160","year":"2009"},{"key":"alchohol","deaths":"161","year":"2010"},{"key":"alchohol","deaths":"195","year":"2011"},{"key":"alchohol","deaths":"187","year":"2012"},{"key":"alchohol","deaths":"238","year":"2013"},{"key":"alchohol","deaths":"270","year":"2014"},{"key":"alchohol","deaths":"310","year":"2015"},{"key":"alchohol","deaths":"582","year":"2016"},{"key":"benzodiazepine","deaths":"48","year":"2007"},{"key":"benzodiazepine","deaths":"52","year":"2008"},{"key":"benzodiazepine","deaths":"58","year":"2009"},{"key":"benzodiazepine","deaths":"68","year":"2010"},{"key":"benzodiazepine","deaths":"73","year":"2011"},{"key":"benzodiazepine","deaths":"37","year":"2012"},{"key":"benzodiazepine","deaths":"69","year":"2013"},{"key":"benzodiazepine","deaths":"103","year":"2014"},{"key":"benzodiazepine","deaths":"91","year":"2015"},{"key":"benzodiazepine","deaths":"126","year":"2016"},{"key":"cocaine","deaths":"157","year":"2007"},{"key":"cocaine","deaths":"162","year":"2008"},{"key":"cocaine","deaths":"135","year":"2009"},{"key":"cocaine","deaths":"148","year":"2010"},{"key":"cocaine","deaths":"153","year":"2011"},{"key":"cocaine","deaths":"248","year":"2012"},{"key":"cocaine","deaths":"154","year":"2013"},{"key":"cocaine","deaths":"198","year":"2014"},{"key":"cocaine","deaths":"221","year":"2015"},{"key":"cocaine","deaths":"463","year":"2016"}]

var margin = {
    top: 20,
    bottom: 20,
    left: 20,
    right: 20
}
var width = 800 - margin.left - margin.right,
    height = 600  - margin.top - margin.bottom

var parseDate = d3.timeParse("%Y");

var color = d3.scaleOrdinal(["#969FFD","#7173BF","#4B4C7F","#262640", "red"]);

var mySvg = d3.select("#chart8").append('svg')
.attr('width', width + margin.right + margin.left)
.attr('height', height + margin.bottom + margin.top)

var chartGroup = mySvg.append("g")
.attr("class","fullGroup")
.attr("transform", "translate("+margin.left+","+margin.top+")");

var parseDate = d3.timeParse("%Y");

d3.csv("./allDrugs3.csv", function(error, data){
    console.log(JSON.stringify(data))
    if (error) throw error;

    // FORMAT THE DATA //
    var nested = d3.nest()
        .key(d => d.key)
        .map(data)
    console.log("nest", nested.keys()) // <-- Names of drugs, used for color array
    console.log(nested) // <-- the actual data

    color.domain(nested);

    // Y-SCALE //
    var yScale = d3.scaleLinear()
        .domain([0 , d3.max(data, d => +d.deaths) ])
        .range([height, 0]);

    // X-SCALE //
    var xScale = d3.scaleTime()
        .domain(d3.extent(data, d => d.year))
        .range([0, width])

    var line = d3.line()
        .x(d => xScale(d.year))
        .y(d => yScale(d.deaths))
        .curve(d3.curveCardinal);


    var series = chartGroup.selectAll(".series")
        .data(nested.entries())
        .enter().append("g")
            .attr("class","series")
        .append("path")
        .attr("d", d => {console.log(d); return line(d.value)})
        .style("stroke", function (d) { return color(d.key); })
        .style("stroke-width", "4px")
        .style("fill", "none");

    // Axes

    var yAxis = d3.axisLeft(yScale).ticks(5).tickPadding(5);
    var xAxis = d3.axisBottom(xScale).ticks(10);

    chartGroup.append("g")
    .attr("class","Xaxis")
    .call(xAxis)
    .attr("transform","translate(0,"+height+")")
    .selectAll("text")
        .style("text-anchor", "end")
        .attr("dx", "-.8em")
        .attr("dy", ".15em")
        .attr("transform", "rotate(-65)");

    chartGroup.append("g")
        .attr("class","Yaxis")
        .call(yAxis)
        .selectAll("text")
        .style("text-anchor", "middle")
        .attr("dy", "-1em")
        .attr("transform", "rotate(-90)");
});

</script>
</body>
</html>
