使重叠d3.js雷达海图元素透明

Question

如何使重叠部件在d3.js雷达图中透明。

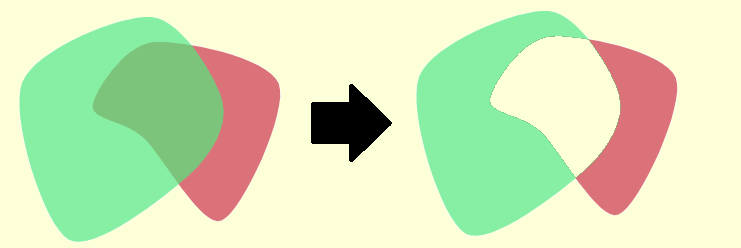

下面的雷达图表是用d3.js创建的。红色和绿色相交的空间应该是透明的(这将用于<->后比较)。图表下面的片段包含用于创建雷达图表的代码。为了简单起见，我没有包括这5个轴：

​

​

​

/* Original radar chart design created by Nadieh Bremer - VisualCinnamon.com */

	////////////////////////// Data //////////////////////////////

	var data = [
				[//Before - red
				{axis:"First",value:0.49},
				{axis:"Banana",value:0.79},
				{axis:"Scratch",value:0.70},
				{axis:"Wheelie",value:0.09},
				{axis:"Pantalon",value:0.37},
				],[//After - green
				{axis:"First",value:0.64},
				{axis:"Banana",value:0.44},
				{axis:"Scratch",value:0.37},
				{axis:"Wheelie",value:0.84},
				{axis:"Pantalon",value:0.81},
				]
			];

	//////////////////////// Setup ////////////////////////////////

	var margin = {top: 50, right: 50, bottom: 50, left: 50},
      width = 300,
		  height = 300;
	var color = d3.scale.ordinal().range(["#CC333F","#53e87d"]);
	var radarChartOptions = {
		w: width,				//Width of the circle
		h: height,				//Height of the circle
		margin: margin, 		//The margins of the SVG
		opacityArea: 0.7, 	//The opacity of the area of the blob
		color: color	//Color function
	};

	//////////////////////// RadarChart ///////////////////////////

	RadarChart("#radarChart1", data, radarChartOptions);

/////////////////////////////////////////////////////////
/////////////// The Radar Chart Function ////////////////
/////////////// Written by Nadieh Bremer ////////////////
////////////////// VisualCinnamon.com ///////////////////
/////////// Inspired by the code of alangrafu ///////////
/////////////////////////////////////////////////////////

function RadarChart(id, data, options) {

	/////////////////////////////////////////////////////////
	///////////////     Prep                 ////////////////
  /////////////////////////////////////////////////////////

	var cfg = radarChartOptions;
	var allAxis = (data[0].map(function(i, j){return i.axis})),	//Names of each axis
		  total = allAxis.length,					            //The number of different axes
		  radius = Math.min(cfg.w/2, cfg.h/2), 	      //Radius of the outermost circle
		  Format = d3.format('%'),			              //Percentage formatting
		  angleSlice = Math.PI * 2 / total;	          //The width in radians of each "slice"
	var rScale = d3.scale.linear()                  //Scale for the radius
		           .range([0, radius]);


	//////////// Create the container SVG and g /////////////

	var svg = d3.select(id).append("svg") 	//Initiate the radar chart SVG
			.attr("width",  cfg.w + cfg.margin.left + cfg.margin.right)
			.attr("height", cfg.h + cfg.margin.top + cfg.margin.bottom)
			.attr("class", "radar"+id);
	var g = svg.append("g") 	//Append a g element
			.attr("transform", "translate(" + (cfg.w/2 + cfg.margin.left) + "," + (cfg.h/2 + cfg.margin.top) + ")");



	/////////////////////////////////////////////////////////
	///////////// Draw the radar chart blobs ////////////////
	/////////////////////////////////////////////////////////

	//The radial line function
	var radarLine = d3.svg.line.radial()
		.interpolate("cardinal-closed")
		.radius(function(d) { return rScale(d.value); })
		.angle(function(d,i) {	return i*angleSlice; });


	//Create a wrapper for the blobs
	var blobWrapper = g.selectAll(".radarWrapper")
		.data(data)
		.enter().append("g")
		.attr("class", "radarWrapper");

	//Append the backgrounds
	blobWrapper
		.append("path")
		.attr("class", "radarArea")
		.attr("d", function(d,i) { return radarLine(d); })
		.style("fill", function(d,i) { return cfg.color(i);})
		.style("fill-opacity", cfg.opacityArea);


}//RadarChart function

<script src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
<!-- Radar Chart -->
<div class="radar-chart" id="radarChart1"></div>

​

我发现在HTML5 5-画布中，重叠元素可以变得透明(1)。它还可以用于将d3节点绑定到它(2)，并且它们可以以这种方式使其透明。然而，这似乎非常复杂的对象，如上述雷达图表斑点。在d3中有一个简单的解决方案吗？( chart.js (3)中似乎有一个)

增编-我已经发现：

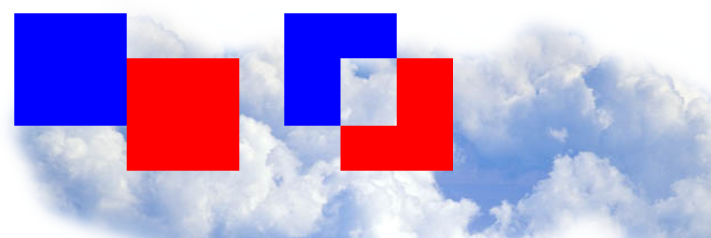

1. 通过将globalCompositeOperation模式设置为'xor'，可以使用HTML5 5-画布使重叠(非d3)元素变得透明。

​

​

​

var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');

ctx.globalCompositeOperation = 'xor';

// WITHOUT overlap:
ctx.fillStyle = 'blue';
ctx.fillRect(10, 10, 100, 100);

ctx.fillStyle = 'red';
ctx.fillRect(110, 50, 100, 100);

// WITH (transparent) overlap:
ctx.fillStyle = 'blue';
ctx.fillRect(250, 10, 100, 100);

ctx.fillStyle = 'red';
ctx.fillRect(300, 50, 100, 100);

<!-- Original from https://developer.mozilla.org/en-US/docs/Web/API/CanvasRenderingContext2D/globalCompositeOperation -->

<style>
  body {
    background-image: url("http://www.scri8e.com/stars/PNG_Clouds/zc06.png?filename=./zc06.png");
}
</style>

<canvas id="canvas" width="400" height="200" ></canvas>

​

1. d3.js节点也可以使用getContext("2d")在HTML5 5-画布上可视化。重叠可以以与上面(1)相同的方式实现。然而，据我理解，这需要重新创建Javascript中的每个元素，然后在其上绑定d3数据。例如，对于圆，必须在HTML5 5-画布上下文中重新创建弧形元素，就像在这个例子是中那样： context = canvas.getContext("2d")；context.arc(element.getAttribute("x")，element.getAttribute("y")，element.getAttribute(“半径”)，0，2* Math.PI)；

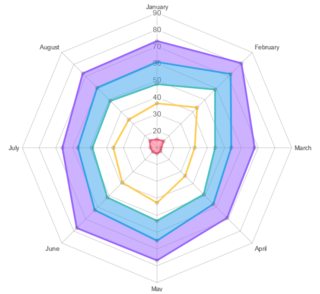

2. 以下是图表中可能的实现(见下图)

​

​

Answer 1

您的描述意味着您将始终有两个图表(“在->之后”)。

此解决方案使用SVG掩码。虽然它可以用更多的图表，但它变得更加复杂。您必须动态地构造<mask>元素。

​

/* Original radar chart design created by Nadieh Bremer - VisualCinnamon.com */

////////////////////////// Data //////////////////////////////

var data = [
    [//Before - red
    {axis:"First",value:0.49},
    {axis:"Banana",value:0.79},
    {axis:"Scratch",value:0.70},
    {axis:"Wheelie",value:0.09},
    {axis:"Pantalon",value:0.37},
    ],[//After - green
    {axis:"First",value:0.64},
    {axis:"Banana",value:0.44},
    {axis:"Scratch",value:0.37},
    {axis:"Wheelie",value:0.84},
    {axis:"Pantalon",value:0.81},
    ]
];

//////////////////////// Setup ////////////////////////////////

var margin = {top: 50, right: 50, bottom: 50, left: 50},
    width = 300,
    height = 300;
var color = d3.scale.ordinal().range(["#CC333F","#53e87d"]);
var radarChartOptions = {
    w: width,                //Width of the circle
    h: height,                //Height of the circle
    margin: margin,         //The margins of the SVG
    opacityArea: 0.7,     //The opacity of the area of the blob
    color: color    //Color function
};

//////////////////////// RadarChart ///////////////////////////

RadarChart("radarChart", data, radarChartOptions);

function RadarChart(id, data, options) {

    var cfg = radarChartOptions;
    var allAxis = (data[0].map(function(i, j){return i.axis})),    //Names of each axis
        total = allAxis.length,                                //The number of different axes
        radius = Math.min(cfg.w/2, cfg.h/2),           //Radius of the outermost circle
        Format = d3.format('%'),                          //Percentage formatting
        angleSlice = Math.PI * 2 / total;              //The width in radians of each "slice"
    var rScale = d3.scale.linear()                  //Scale for the radius
       .range([0, radius]);

    var svg = d3.select('#' + id)     //Initiate the radar chart SVG
        .attr("width",  cfg.w + cfg.margin.left + cfg.margin.right)
        .attr("height", cfg.h + cfg.margin.top + cfg.margin.bottom)
        .attr("class", "radar"+id);

    svg.select('#bg').attr('r', radius);

    var dx = cfg.w/2 + cfg.margin.left,
        dy = cfg.h/2 + cfg.margin.top;

    svg.selectAll('mask')
        .attr('x', -dx)
        .attr('y', -dy);

    var source = svg.select('#radarSource')
    var wrapper = svg.select('#radarWrapper')
        .attr("transform", "translate(" + dx + "," + dy + ")");

    //The radial line function
    var radarLine = d3.svg.line.radial()
        .interpolate("cardinal-closed")
        .radius(function(d) { return rScale(d.value); })
        .angle(function(d,i) {    return i*angleSlice; });


    //Draw the blobs
    source.selectAll("path")
        .data(data)
        .enter().append("path")
        .attr("id", function(d,i) {return 'area' + i;})
        .attr("d", function(d,i) { return radarLine(d); });

    //render and apply masks
    wrapper.selectAll("use")
        .data(data)
        .enter().append("use")
        .attr("xlink:href", function(d,i) {return '#area' + i;})
        .attr("mask", function(d,i) {return 'url(#mask' + i + ')';})
        .style("fill", function(d,i) { return cfg.color(i);})
        .style("fill-opacity", cfg.opacityArea);


}//RadarChart function

<script src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
<!-- Radar Chart -->
<svg id="radarChart" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink">
  <defs>
    <circle id="bg" />
    <g id="radarSource" />
    <mask id="mask0" maskUnits="userSpaceOnUse">
      <use xlink:href="#bg" fill="white" />
      <use xlink:href="#area1" fill="black" />
    </mask>
    <mask id="mask1" maskUnits="userSpaceOnUse">
      <use xlink:href="#bg" fill="white" />
      <use xlink:href="#area0" fill="black" />
    </mask>
  </defs>
  <g id="radarWrapper" />
</svg>

​
