问屏幕大小对齐图像和div
EN

Stack Overflow用户
提问于 2017-07-27 08:00:15
回答 3查看 54关注 0票数 0

我试图设计我的第一个网站，我有困难对齐我的顶部条css与我的标志，我有一种感觉，我这样做是不正确的，因为根据用户的屏幕大小，它也将看起来不同的固定高度css值。

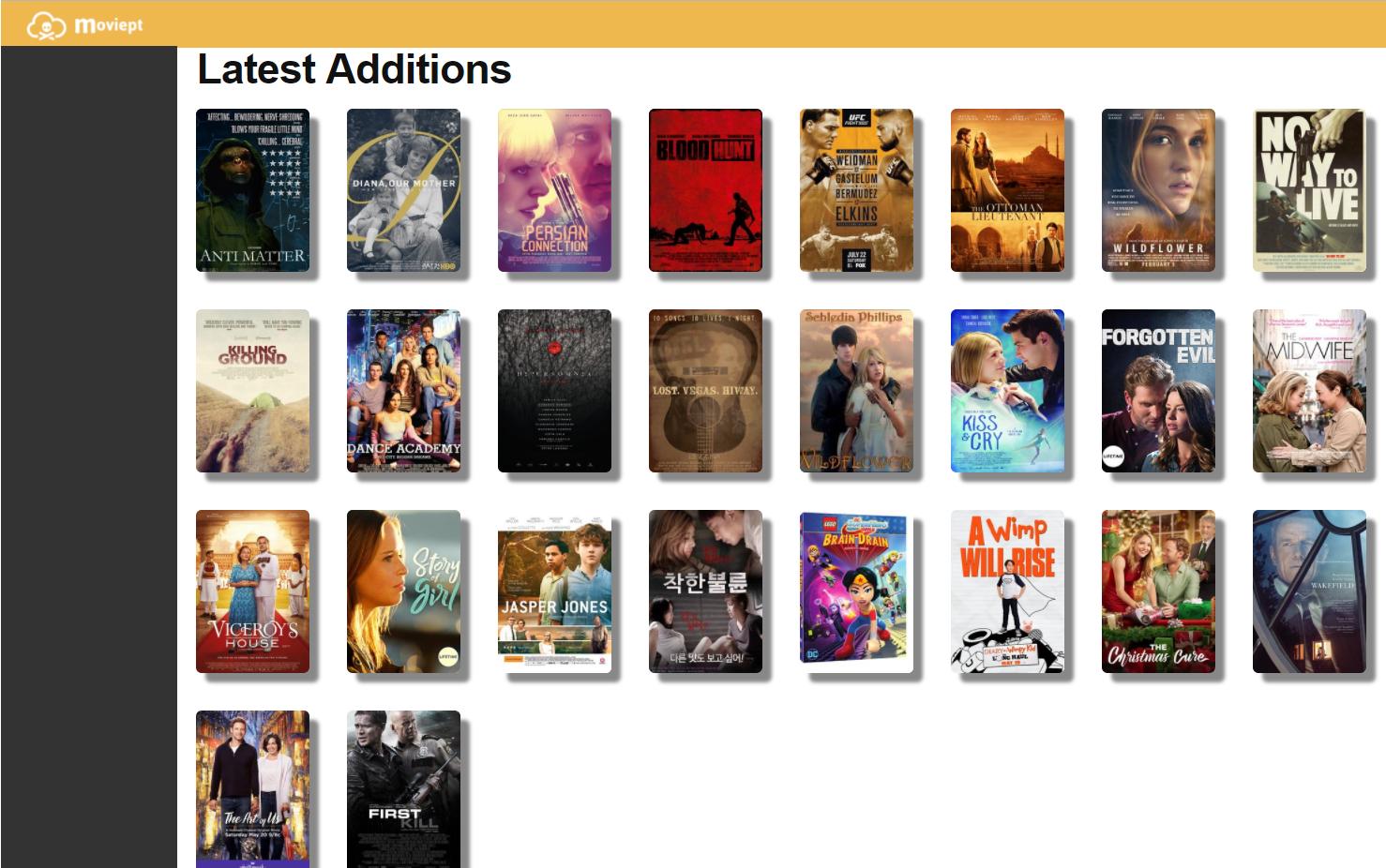

这就是我希望它在所有屏幕解析中看起来的样子：

​

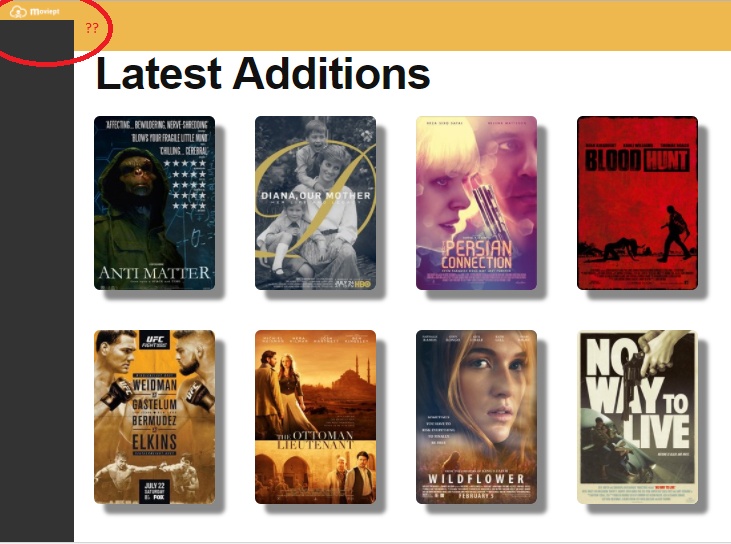

这就是它在较低屏幕上的样子：

​

​

下面是我的标记：

​

代码语言：javascript
复制
h1 {
  color: #111;
  font-family: 'Helvetica Neue', sans-serif;
  font-size: 45px;
  font-weight: bold;
  letter-spacing: -1px;
  line-height: 1;
  padding: 20px;
}

h2 {
  color: #111;
  font-family: 'Open Sans', sans-serif;
  font-size: 30px;
  font-weight: 300;
  line-height: 32px;
  margin: 0 0 72px;
  text-align: center;
}

p {
  color: #685206;
  font-family: 'Helvetica Neue', sans-serif;
  font-size: 14px;
  line-height: 24px;
  margin: 0 0 24px;
  text-align: justify;
  text-justify: inter-word;
}

html,
body {
  height: 100%;
  margin: 0;
  font-size: 20px;
}

.topbar {
  background-color: #EEB84F;
  width: 100%;
  height: 40px;
  padding: 5px;
  position: fixed;
}

.logo {
  min-width: 100%;
  width: auto;
}

.wrapper {
  display: flex;
  flex-flow: row wrap;
  justify-content: space-around;
  margin-top: -50px;
}

.thumbwrapper {
  width: auto;
}

.thumb {
  background: white;
  float: left;
  margin: 20px;
}

.thumb {
  width: 121px;
  height: 174px;
}

.img {
  box-shadow: 10px 10px 5px #888888;
  max-width: 100%;
  width: 121px;
  height: 174px;
  border-radius: 6px;
}

.img:hover {
  box-shadow: 10px 10px 5px #666688;
  cursor: pointer;
}

.left {
  width: 10%;
  height: 100%;
  position: fixed;
  outline: 1px solid;
  background: #333;
}

.right {
  width: 90%;
  height: auto;
  outline: 0px solid;
  position: absolute;
  right: 0;
  background: #FFF;
}
代码语言：javascript
复制
<div class="left">
  <div class="logo"><img src="http://d2tsz823kvlf97.cloudfront.net/static/logo2.png" width="100%" /></div>
</div>

<div class="right">
  <div class="topbar"></div>
  <h1>Latest Additions</h1>
  <div class="wrapper">
    <div class="thumbwrapper">
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AntiMatter_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DianaOurMotherHerLifeandLegacy_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ThePersianConnection_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/BloodHunt_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/UFConFoxWeidmanvsGastelum_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheOttomanLieutenant_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wildflower_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/NoWaytoLive_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/CopandaHalfNewRecruit_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheHorseDancer_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/KillingGround_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DanceAcademyTheMovie_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Hypersomnia_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/LostVegasHiway_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wildflower_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/KissandCry_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ForgottenEvil_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheMidwife_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AwakentheShadowman_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ShotCaller_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ViceroysHouse_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/StoryOfAGirl_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/JasperJones_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AKindAffair_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/LegoDCSuperHeroGirlsBrainDrain_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DiaryofaWimpyKidTheLongHaul_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheChristmasCure_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wakefield_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ADeadlyAffair_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/FatalDefense_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheArtofUs_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/FirstKill_2017.png" class="img"></div>
    </div>
  </div>
</div>

​

或者你可以在这个在线位置现场观看

css
html
EN

回答 3

Stack Overflow用户

回答已采纳

发布于 2017-07-27 08:10:52

问题是，当你在较小的屏幕上时，你的logo图像会缩小。因为图像必须适合您在10% div上设置的.left宽度。

现在，我不会改变您的整个结构，但是我建议您将50px的高度设置为.logo (图像周围的div )和一个background-color: #EEB84F。这是因为topbar设置了这些样式。

然后，您可以使用display:flex在logo上对logo img进行中心设置。

见下面的片段或小提琴> jsFiddle

​

代码语言：javascript
复制
.logo  {
  min-height:50px;
  background:#EEB84F;
  display:flex;
  align-items:center;
}

h1 {
  color: #111;
  font-family: 'Helvetica Neue', sans-serif;
  font-size: 45px;
  font-weight: bold;
  letter-spacing: -1px;
  line-height: 1;
  padding: 20px;
}

h2 {
  color: #111;
  font-family: 'Open Sans', sans-serif;
  font-size: 30px;
  font-weight: 300;
  line-height: 32px;
  margin: 0 0 72px;
  text-align: center;
}

p {
  color: #685206;
  font-family: 'Helvetica Neue', sans-serif;
  font-size: 14px;
  line-height: 24px;
  margin: 0 0 24px;
  text-align: justify;
  text-justify: inter-word;
}

html,
body {
  height: 100%;
  margin: 0;
  font-size: 20px;
}

.topbar {
  background-color: #EEB84F;
  width: 100%;
  height: 40px;
  padding: 5px;
  position: fixed;
}

.logo {
  min-width: 100%;
  width: auto;
}

.wrapper {
  display: flex;
  flex-flow: row wrap;
  justify-content: space-around;
  margin-top: -50px;
}

.thumbwrapper {
  width: auto;
}

.thumb {
  background: white;
  float: left;
  margin: 20px;
}

.thumb {
  width: 121px;
  height: 174px;
}

.img {
  box-shadow: 10px 10px 5px #888888;
  max-width: 100%;
  width: 121px;
  height: 174px;
  border-radius: 6px;
}

.img:hover {
  box-shadow: 10px 10px 5px #666688;
  cursor: pointer;
}

.left {
  width: 10%;
  height: 100%;
  position: fixed;
  outline: 1px solid;
  background: #333;
}

.right {
  width: 90%;
  height: auto;
  outline: 0px solid;
  position: absolute;
  right: 0;
  background: #FFF;
}
代码语言：javascript
复制
<div class="left">
  <div class="logo"><img src="http://d2tsz823kvlf97.cloudfront.net/static/logo2.png" width="100%" /></div>
</div>

<div class="right">
  <div class="topbar"></div>
  <h1>Latest Additions</h1>
  <div class="wrapper">
    <div class="thumbwrapper">
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AntiMatter_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DianaOurMotherHerLifeandLegacy_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ThePersianConnection_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/BloodHunt_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/UFConFoxWeidmanvsGastelum_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheOttomanLieutenant_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wildflower_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/NoWaytoLive_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/CopandaHalfNewRecruit_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheHorseDancer_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/KillingGround_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DanceAcademyTheMovie_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Hypersomnia_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/LostVegasHiway_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wildflower_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/KissandCry_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ForgottenEvil_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheMidwife_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AwakentheShadowman_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ShotCaller_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ViceroysHouse_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/StoryOfAGirl_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/JasperJones_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/AKindAffair_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/LegoDCSuperHeroGirlsBrainDrain_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/DiaryofaWimpyKidTheLongHaul_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheChristmasCure_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/Wakefield_2016.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/ADeadlyAffair_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/FatalDefense_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/TheArtofUs_2017.png" class="img"></div>
      <div class="thumb"><img src="http://d2tsz823kvlf97.cloudfront.net/FirstKill_2017.png" class="img"></div>
    </div>
  </div>
</div>

​

作为建议，您应该将.topbar放在left和right div之外。然后把徽标放进去。

你的结构应该是

代码语言：javascript
复制
<div class="topbar">
    <div class="logo">
            <img src="http://d2tsz823kvlf97.cloudfront.net/static/logo2.png" width="100%" />
    </div>
</div>
<div class="content">
    <div class="left">
    </div>
    <div class="right">
    </div>
</div>

也不知道为什么需要这个left div，您可以很容易地使gray部分没有新的div (边框或伪元素等等)。

票数 1
EN

Stack Overflow用户

发布于 2017-07-27 08:13:30

如果您希望徽标始终处于顶部而不重叠，则可以将该徽标图像的特定高度设置为“关于height: 50px”。否则，使用媒体查询为较低的分辨率专门设置其高度。

票数 0
EN

Stack Overflow用户

发布于 2017-07-27 08:21:54

您只需增加.logo的高度，与.topbar + padding的高度相同。然后使用transform在.logo中心对齐图像，如果需要的话，您可能需要使用特定屏幕分辨率的媒体查询。

​
