用圆UIBezierPath和CABasicAnimation动画化UIBezierPath

Question

我想在15秒内画一个从0到360度的圆圈。

动画很奇怪。我知道这可能是一个开始/结束的角度问题，我已经面临这样的问题与圆形动画，但我不知道如何解决这个问题。

var circle_layer=CAShapeLayer()
var circle_anim=CABasicAnimation(keyPath: "path")

func init_circle_layer(){
    let w=circle_view.bounds.width
    let center=CGPoint(x: w/2, y: w/2)

    //initial path
    let start_angle:CGFloat = -0.25*360*CGFloat.pi/180
    let initial_path=UIBezierPath(arcCenter: center, radius: w/2, startAngle: start_angle, endAngle: start_angle, clockwise: true)
    initial_path.addLine(to: center)

    //final path
    let end_angle:CGFloat=start_angle+360*CGFloat(CGFloat.pi/180)
    let final_path=UIBezierPath(arcCenter: center, radius: w/2, startAngle: start_angle, endAngle: end_angle, clockwise: true)
    final_path.addLine(to: center)

    //init layer
    circle_layer.path=initial_path.cgPath
    circle_layer.fillColor=UIColor(hex_code: "EA535D").cgColor
    circle_view.layer.addSublayer(circle_layer)

    //init anim
    circle_anim.duration=15
    circle_anim.fromValue=initial_path.cgPath
    circle_anim.toValue=final_path.cgPath
    circle_anim.isRemovedOnCompletion=false
    circle_anim.fillMode=kCAFillModeForwards
    circle_anim.delegate=self
}

func start_circle_animation(){
    circle_layer.add(circle_anim, forKey: "circle_anim")
}

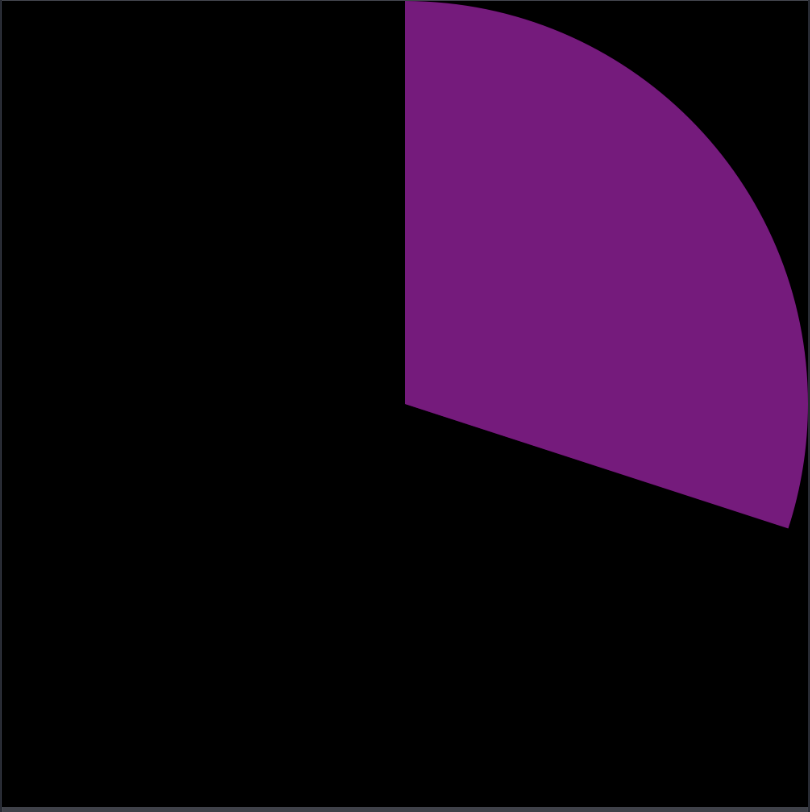

我想从0华氏度开始，在一次完整的巡回赛后结束：

​

​

Answer 1

您不可能轻松地动画填充一个UIBezierPath (或者至少不引入奇怪的工件，除非在控制得很好的情况下)。但你可以动画的strokeEnd的一个path的CAShapeLayer。如果你使被撞击的路径的线宽非常宽(也就是最后一个圆的半径)，并将路径的半径设置为圆形半径的一半，你就会得到你想要的东西。

private var circleLayer = CAShapeLayer()

private func configureCircleLayer() {
    let radius = min(circleView.bounds.width, circleView.bounds.height) / 2

    circleLayer.strokeColor = UIColor(hexCode: "EA535D").cgColor
    circleLayer.fillColor = UIColor.clear.cgColor
    circleLayer.lineWidth = radius
    circleView.layer.addSublayer(circleLayer)

    let center = CGPoint(x: circleView.bounds.width/2, y: circleView.bounds.height/2)
    let startAngle: CGFloat = -0.25 * 2 * .pi
    let endAngle: CGFloat = startAngle + 2 * .pi
    circleLayer.path = UIBezierPath(arcCenter: center, radius: radius / 2, startAngle: startAngle, endAngle: endAngle, clockwise: true).cgPath

    circleLayer.strokeEnd = 0
}

private func startCircleAnimation() {
    circleLayer.strokeEnd = 1
    let animation = CABasicAnimation(keyPath: "strokeEnd")
    animation.fromValue = 0
    animation.toValue = 1
    animation.duration = 15
    circleLayer.add(animation, forKey: nil)
}

对于最终控制，在执行复杂的UIBezierPath动画时，可以使用CADisplayLink，避免在使用path的CABasicAnimation时有时会产生的工件。

private var circleLayer = CAShapeLayer()
private weak var displayLink: CADisplayLink?
private var startTime: CFTimeInterval!

private func configureCircleLayer() {
    circleLayer.fillColor = UIColor(hexCode: "EA535D").cgColor
    circleView.layer.addSublayer(circleLayer)
    updatePath(percent: 0)
}

private func startCircleAnimation() {
    startTime = CACurrentMediaTime()
    displayLink = {
        let _displayLink = CADisplayLink(target: self, selector: #selector(handleDisplayLink(_:)))
        _displayLink.add(to: .current, forMode: .commonModes)
        return _displayLink
    }()
}

@objc func handleDisplayLink(_ displayLink: CADisplayLink) {   // the @objc qualifier needed for Swift 4 @objc inference
    let percent = CGFloat(CACurrentMediaTime() - startTime) / 15.0
    updatePath(percent: min(percent, 1.0))
    if percent > 1.0 {
        displayLink.invalidate()
    }
}

private func updatePath(percent: CGFloat) {
    let w = circleView.bounds.width
    let center = CGPoint(x: w/2, y: w/2)
    let startAngle: CGFloat = -0.25 * 2 * .pi
    let endAngle: CGFloat = startAngle + percent * 2 * .pi
    let path = UIBezierPath()
    path.move(to: center)
    path.addArc(withCenter: center, radius: w/2, startAngle: startAngle, endAngle: endAngle, clockwise: true)
    path.close()

    circleLayer.path = path.cgPath
}

然后你就可以：

override func viewDidAppear(_ animated: Bool) {
    super.viewDidAppear(animated)

    configureCircleLayer()
    startCircleAnimation()
}

override func viewDidDisappear(_ animated: Bool) {
    super.viewDidDisappear(animated)

    displayLink?.invalidate()   // to avoid displaylink keeping a reference to dismissed view during animation
}

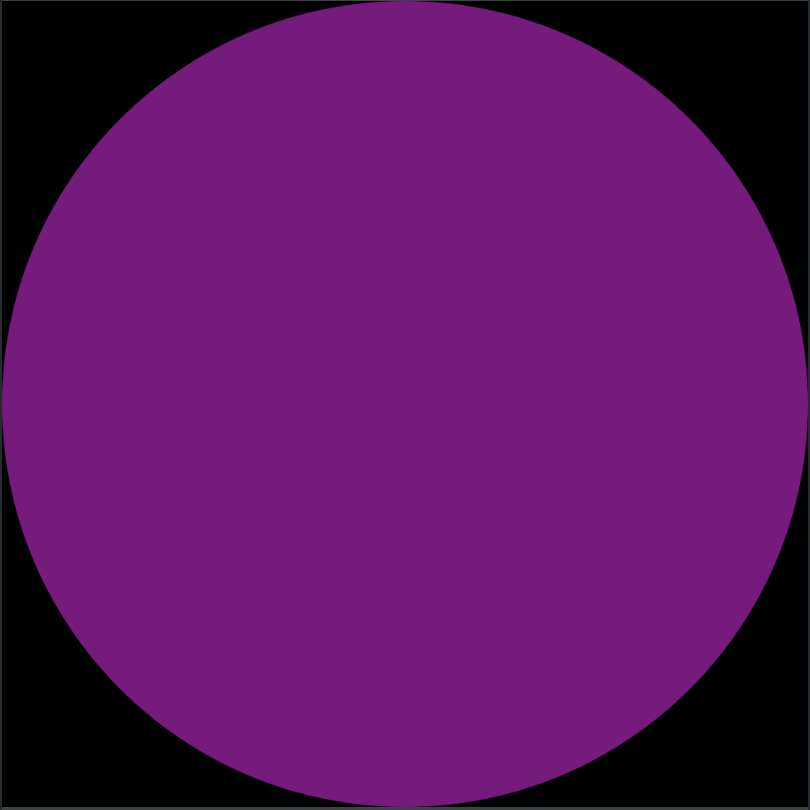

这会产生：

​

​
