R中PerformanceAnalytics的并排图

Question

以下脚本并排绘制了2个图表：

require(xts)
par(mfrow=c(1,2))
XTS1 <- structure(c(12, 7, 7, 22, 24, 30, 26, 23, 27, 30), .indexCLASS = c("POSIXct", "POSIXt"), .indexTZ = "", tclass = c("POSIXct", "POSIXt"), tzone = "", class = c("xts", "zoo"), .CLASS = structure("double", class = "CLASS"), formattable = structure(list(formatter = "formatC", format = structure(list(format = "f", digits = 2), .Names = c("format", "digits")), preproc = "percent_preproc", postproc = "percent_postproc"), .Names = c("formatter", "format", "preproc", "postproc")), index = structure(c(1413981900, 1413982800, 1413983700, 1413984600, 1413985500, 1413986400, 1413987300, 1413988200, 1413989100, 1413990000), tzone = "", tclass = c("POSIXct", "POSIXt")), .Dim = c(10L, 1L))
XTS2 <- XTS1 ^ 0.2
plot(XTS1)
plot(XTS2)

以下脚本无法并排绘制2张图表：

require(PerformanceAnalytics)
require(xts)
par(mfrow=c(1,2))
XTS1 <- structure(c(12, 7, 7, 22, 24, 30, 26, 23, 27, 30), .indexCLASS = c("POSIXct", "POSIXt"), .indexTZ = "", tclass = c("POSIXct", "POSIXt"), tzone = "", class = c("xts", "zoo"), .CLASS = structure("double", class = "CLASS"), formattable = structure(list(formatter = "formatC", format = structure(list(format = "f", digits = 2), .Names = c("format", "digits")), preproc = "percent_preproc", postproc = "percent_postproc"), .Names = c("formatter", "format", "preproc", "postproc")), index = structure(c(1413981900, 1413982800, 1413983700, 1413984600, 1413985500, 1413986400, 1413987300, 1413988200, 1413989100, 1413990000), tzone = "", tclass = c("POSIXct", "POSIXt")), .Dim = c(10L, 1L))
XTS2 <- XTS1 ^ 0.2
charts.PerformanceSummary(XTS1)
charts.PerformanceSummary(XTS2)

有人知道如何让后一个脚本并排绘制2张图表吗？

如果可能的话，我想避免使用另一个软件包。谢谢。

Answer 1

chart.PerformanceSummary实际上只是几个图表的包装器。

您可以这样做，如果您愿意，可以将其扩展到任意数量的符号(如果需要的话，可以扩展到2个以上的符号)。

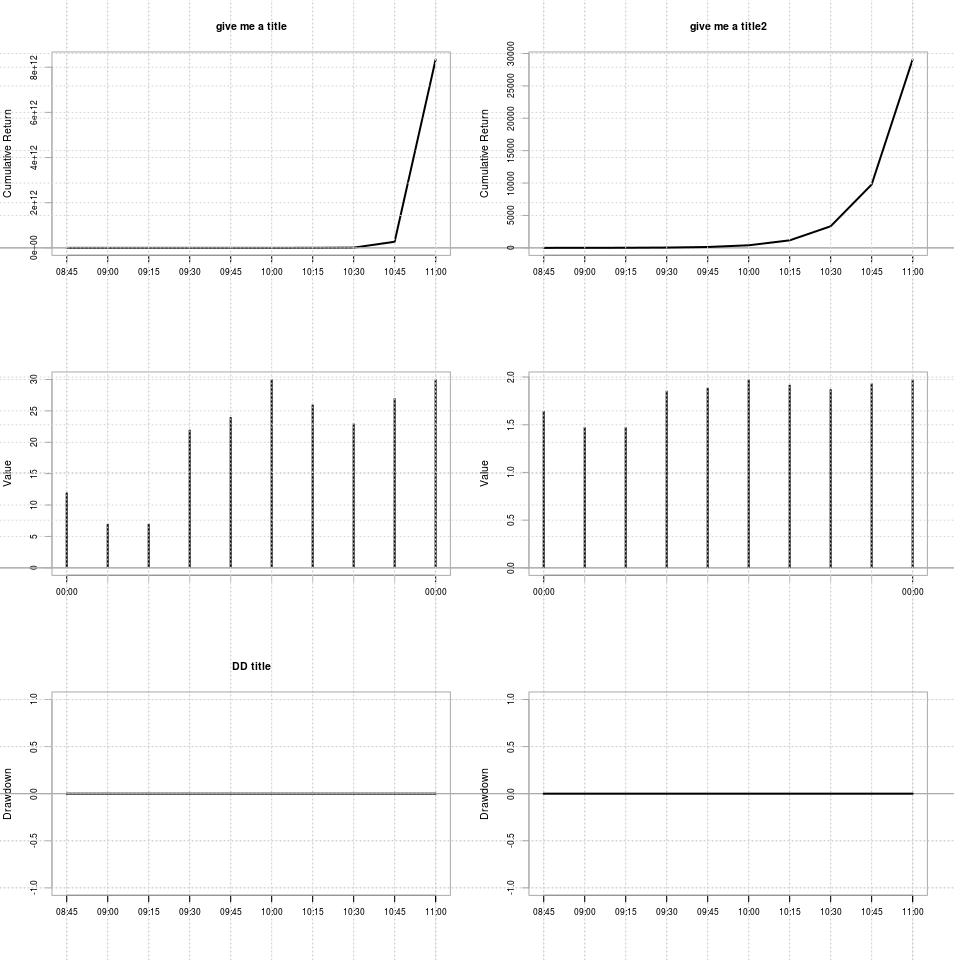

par(mfrow=c(3,2))
# First row
chart.CumReturns(XTS1, ylab = "Cumulative Return", main = "give me a title")
chart.CumReturns(XTS2, ylab = "Cumulative Return", main = "give me a title2")
# second row
chart.BarVaR(XTS1)
chart.BarVaR(XTS2)

# third row
chart.Drawdown(XTS1, main = "DD title", ylab = "Drawdown",
)
chart.Drawdown(XTS2, main = "", ylab = "Drawdown",
)

您需要为颜色和标题这样的内容添加适当的参数，但是您可以灵活地添加来自奇妙的xts、quantmod、performanceAnalytics包(和其他)的任何图表。
