在VPN Azure上将节点VM与SQL VM连接

Question

我在Azure上有两个VM :机器A:是运行Nodejs应用程序机器的服务器吗B:是运行mysql实例的VM

机器A和B在同一个VPN中，或者有一个本地地址。我用ping测试了从机器A到B的连接，它起作用了。

我的问题是来自nodejs应用程序和mysql实例的数据库连接。

app.js

var express = require('express'),
  config = require('./config/config'),
  db = require('./app/models');

var app = express();

module.exports = require('./config/express')(app, config);

db.sequelize
  .sync()
  .then(function () {
    if (!module.parent) {
      app.listen(config.port, function () {
        console.log('Express server listening on port ' + config.port);
      });
    }
  }).catch(function (e) {
    throw new Error(e);
  });

config.js

var path = require('path'),
    rootPath = path.normalize(__dirname + '/..'),
    env = process.env.NODE_ENV || 'production';

var config = {
  development: {
    root: rootPath,
    app: {
      name: 'api-http-revo'
    },
    port: process.env.PORT || 3000,
    db: 'mysql://localhost/api-http-revo-development'
  },

  test: {
    root: rootPath,
    app: {
      name: 'api-http-revo'
    },
    port: process.env.PORT || 3000,
    db: 'mysql://localhost/api-http-revo-test'
  },

  production: {
    root: rootPath,
    app: {
      name: 'api-http-revo'
    },
    port: process.env.PORT || 3000,
    db: {
      host: '10.0.0.4', //Local Ip address on VPN
      user: 'myusername',
      password: 'mypassword',
      database: 'db-revo',
      port: 3306
    }
  }
};

module.exports = config[env];

“npm启动”错误：

未处理的拒绝错误: SequelizeConnectionRefusedError: connect 10.0.0.4:3306 at tryCatcher at tryCatcher (/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/util.js:16:23) at Promise._settlePromiseFromHandler (/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/promise.js:512:31) at Promise._(/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/promise.js:569:18) at Promise._settlePromise0 (/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/promise.js:614:10) at Promise._settlePromises (/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/promise.js:689:18) at Async._drainQueue (/home/giovannimarino )/api-http-revo/node_modules/bluebird/js/release/async.js:133:16) at Async._drainQueues (/home/giovannimarino/api-http-revo/node_modules/bluebird/js/release/async.js:143:10) at Immediate.Async.drainQueues onImmediate at processImmediate immediateCallback

以下屏幕截图是防火墙配置：

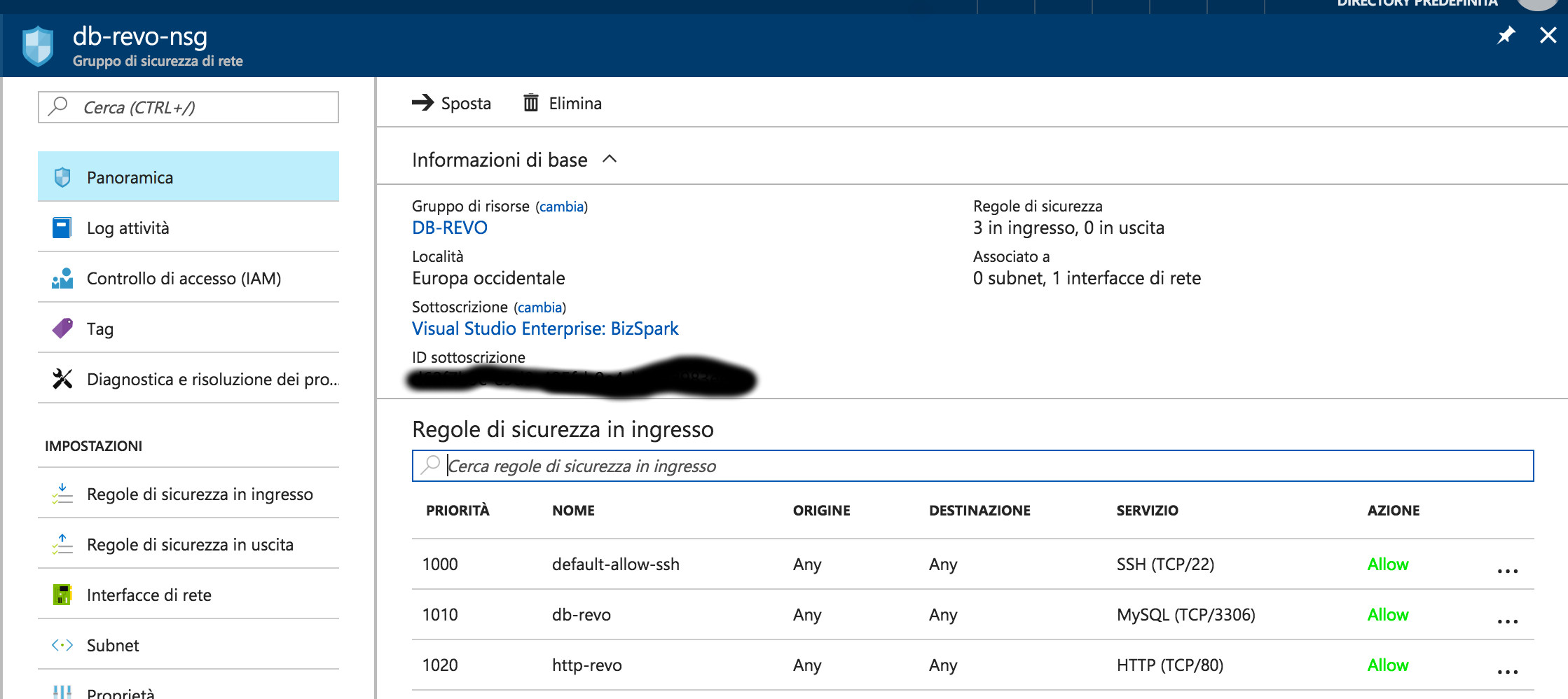

机器B:

​

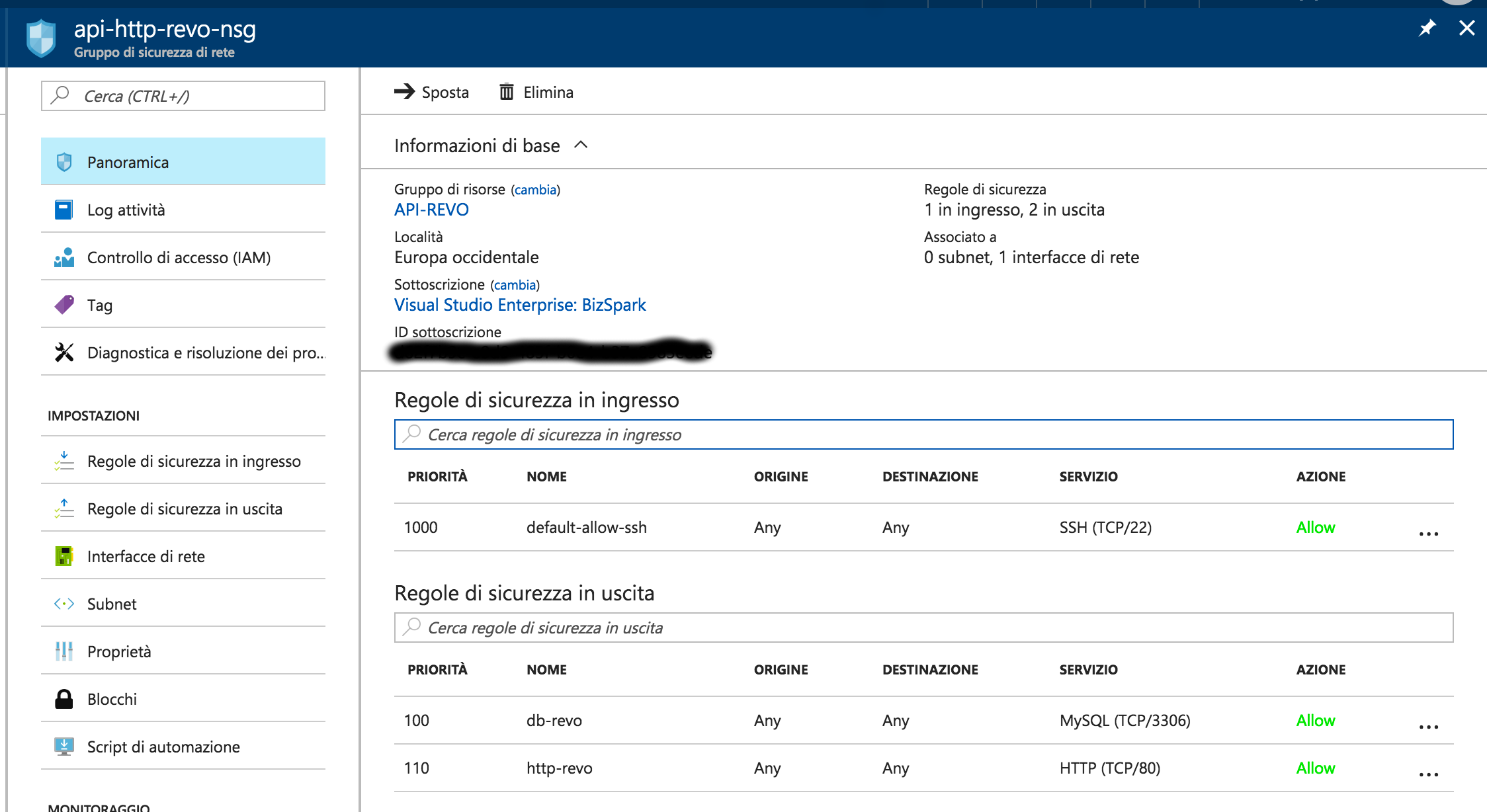

机A

​

Answer 1

这可能是由于防火墙阻塞了您的DB连接。若要确认在端口3306上执行telnet，如果发现端口被阻塞，则设置一个入站规则，允许在两个系统上端口3306上进行网络通信。

这里有关于如何建立网络流量规则的更多信息。
