NSSplitviewController以编程方式

Question

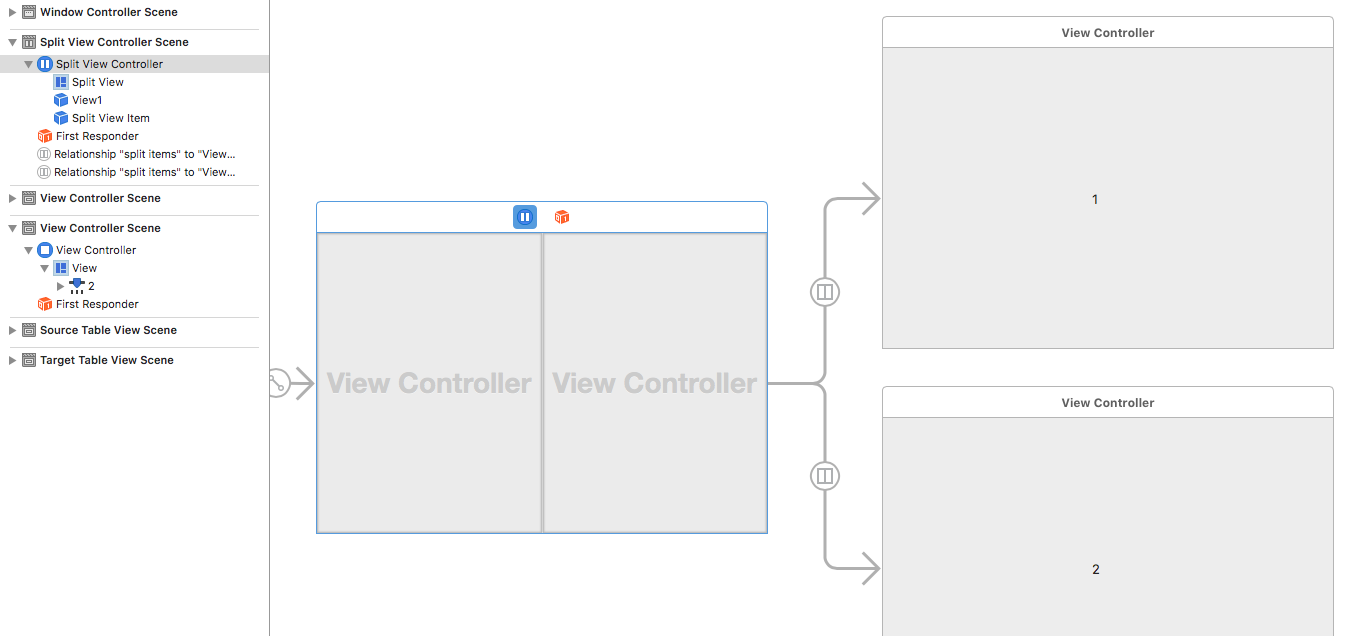

我有一个NSSplitViewController，它有两个视图控制器作为splitViewItems。这个很好用。

现在，我想在故事板中为我的SplitViewController设置一个自己的Splitviewcontroller类。我给它我自己的课，开始应用程序。但现在我只看到一扇空窗户。

如果我设置了自己的splitviewcontroller类，那么我现在是否以编程的方式设置了我的splitviewcontroller？

如果是，我必须使用哪些代码再次显示我的splitview控制器中的两个视图控制器？

更新

import Cocoa

class SplitViewController: NSSplitViewController {
    override func viewDidLoad() {
       print("Test")
    }
}

​

​

Answer 1

这里有一个Xcode 9游乐场(Swift 4)，它展示了如何从代码中设置NSSplitViewController。

import Cocoa
import PlaygroundSupport

class ViewController: NSViewController {

   private let backgroundColor: NSColor

   init(backgroundColor: NSColor) {
      self.backgroundColor = backgroundColor
      super.init(nibName: nil, bundle: nil)
   }

   required init?(coder: NSCoder) {
      fatalError("init(coder:) has not been implemented")
   }

   override func loadView() {
      view = NSView()
      view.wantsLayer = true
      view.layer?.backgroundColor = backgroundColor.cgColor
   }
}


class MainSplitViewController: NSSplitViewController {

   private let splitViewResorationIdentifier = "com.company.restorationId:mainSplitViewController"

   lazy var vcA = ViewController(backgroundColor: .red)
   lazy var vcB = ViewController(backgroundColor: .green)
   lazy var vcC = ViewController(backgroundColor: .blue)

   override init(nibName nibNameOrNil: NSNib.Name?, bundle nibBundleOrNil: Bundle?) {
      super.init(nibName: nibNameOrNil, bundle: nibBundleOrNil)
      setupUI()
      setupLayout()
   }

   required init?(coder: NSCoder) {
      super.init(coder: coder)
   }

}


extension MainSplitViewController {

   private func setupUI() {

      view.wantsLayer = true

      splitView.dividerStyle = .paneSplitter
      splitView.autosaveName = NSSplitView.AutosaveName(rawValue: splitViewResorationIdentifier)
      splitView.identifier = NSUserInterfaceItemIdentifier(rawValue: splitViewResorationIdentifier)
   }

   private func setupLayout() {

      minimumThicknessForInlineSidebars = 180

      let itemA = NSSplitViewItem(sidebarWithViewController: vcA)
      itemA.minimumThickness = 80
      addSplitViewItem(itemA)

      let itemB = NSSplitViewItem(contentListWithViewController: vcB)
      itemB.minimumThickness = 100
      addSplitViewItem(itemB)

      let itemC = NSSplitViewItem(viewController: vcC)
      itemC.minimumThickness = 80
      addSplitViewItem(itemC)
   }

}

let vc = MainSplitViewController()
vc.view.frame = CGRect(x: 0, y: 0, width: 400, height: 300)

PlaygroundPage.current.liveView = vc

更新

版本类似于上面的版本，但目标是macOS 10.10。

import Cocoa
import PlaygroundSupport

class ViewController: NSViewController {

   private let backgroundColor: NSColor

   init(backgroundColor: NSColor) {
      self.backgroundColor = backgroundColor
      super.init(nibName: nil, bundle: nil)
   }

   required init?(coder: NSCoder) {
      fatalError("init(coder:) has not been implemented")
   }

   override func loadView() {
      view = NSView()
      view.wantsLayer = true
      view.layer?.backgroundColor = backgroundColor.cgColor
   }
}


class MainSplitViewController: NSSplitViewController {

   private let splitViewResorationIdentifier = "com.company.restorationId:mainSplitViewController"

   lazy var vcA = ViewController(backgroundColor: .red)
   lazy var vcB = ViewController(backgroundColor: .green)
   lazy var vcC = ViewController(backgroundColor: .blue)

   override init(nibName nibNameOrNil: NSNib.Name?, bundle nibBundleOrNil: Bundle?) {
      super.init(nibName: nibNameOrNil, bundle: nibBundleOrNil)
      setupUI()
      setupLayout()
   }

   required init?(coder: NSCoder) {
      super.init(coder: coder)
   }

}


extension MainSplitViewController {

   private func setupUI() {

      view.wantsLayer = true

      splitView.dividerStyle = .paneSplitter
      splitView.autosaveName = NSSplitView.AutosaveName(rawValue: splitViewResorationIdentifier)
      splitView.identifier = NSUserInterfaceItemIdentifier(rawValue: splitViewResorationIdentifier)

      vcA.view.widthAnchor.constraint(greaterThanOrEqualToConstant: 80).isActive = true
      vcB.view.widthAnchor.constraint(greaterThanOrEqualToConstant: 100).isActive = true
      vcC.view.widthAnchor.constraint(greaterThanOrEqualToConstant: 80).isActive = true
   }

   private func setupLayout() {

      let sidebarItem = NSSplitViewItem(viewController: vcA)
      sidebarItem.canCollapse = true
      sidebarItem.holdingPriority = NSLayoutConstraint.Priority(NSLayoutConstraint.Priority.defaultLow.rawValue + 1)
      addSplitViewItem(sidebarItem)

      let xibItem = NSSplitViewItem(viewController: vcB)
      addSplitViewItem(xibItem)

      let codeItem = NSSplitViewItem(viewController: vcC)
      addSplitViewItem(codeItem)
   }

}

let vc = MainSplitViewController()
vc.view.frame = CGRect(x: 0, y: 0, width: 400, height: 300)

PlaygroundPage.current.liveView = vc
