如何可能形成Xamarin垂直条形图？

Question

在我的xamarin表单应用程序中，我使用的是Oxyplot条形图。这是代码，这是我在水平条形图的条件下所做的工作，它是如何为垂直图创建的？还有其他的柱状图插件吗？

Answer 1

关键是将ColumnSeries与ColumnItem对象一起使用。这应该呈现为具有垂直方向的条形图。如果您创建了一个新的ContentPage并将下面的代码粘贴到它中，您就可以看到它在运行。我在代码示例下面附加了一个图像，详细说明了它在iOS上的外观。

public partial class DemoPage : ContentPage
{
    public DemoPage()
    {
        InitializeComponent();

        var model = new PlotModel { Title = "Cake Type Popularity" };

        // generate a random percentage distribution between the 5
        //cake-types (see axis below)
        var rand = new Random();
        double[] cakePopularity = new double[5];
        for (int i = 0; i < 5; ++i)
        {
            cakePopularity[i] = rand.NextDouble();
        }
        var sum = cakePopularity.Sum();

        var barSeries = new ColumnSeries
        {

            ItemsSource = new List<ColumnItem>(new[]
            {
                new ColumnItem{ Value = (cakePopularity[0] / sum * 100) },
                new ColumnItem{ Value = (cakePopularity[1] / sum * 100) },
                new ColumnItem{ Value = (cakePopularity[2] / sum * 100) },
                new ColumnItem{ Value = (cakePopularity[3] / sum * 100) },
                new ColumnItem{ Value = (cakePopularity[4] / sum * 100) }
            }),
            LabelPlacement = LabelPlacement.Inside,
            LabelFormatString = "{0:.00}%"
        };

        model.Series.Add(barSeries);

        model.Axes.Add(new CategoryAxis
        {
            Position = AxisPosition.Bottom,

            Key = "CakeAxis",
            ItemsSource = new[]
            {
                "A",
                "B",
                "C",
                "D",
                "E"
            }
        });

        var grid = new Grid();

        grid.Children.Add(new PlotView
        {
            Model = model,
            VerticalOptions = LayoutOptions.Center,
            HeightRequest = 200,
            HorizontalOptions = LayoutOptions.Fill,
        });

        Content = grid;
    }
}

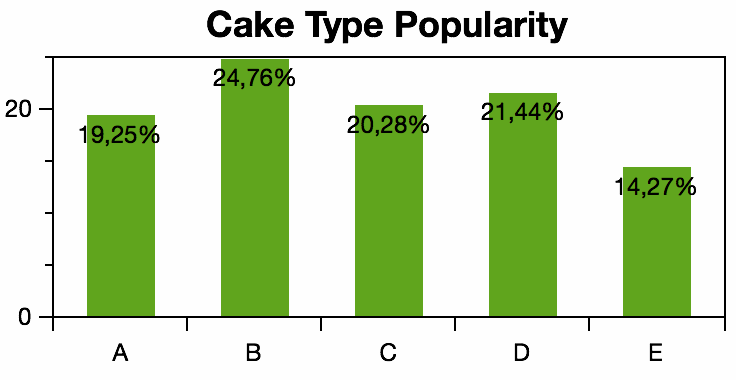

这应该呈现如下图形：

​

​
