Manageiq在Centos 7 VMWare中无法访问Hawkular

Question

我的开发环境是CentOS 7在vmware工作站11和manageiq对接容器(manageiq/manageiq:euwe-2)的eclipse透视图。manageiq量表(https://127.0.0.1:8443)执行得很好。但是连接鹰派是失败的。下面是我的鹰式执行命令

<HAWKULAR_HOME>./standalone.sh -Dhawkular.rest.user=jhwang –Dhawkular.rest.password=password -Dhawkular.agent.enabled=true -b 192.168.200.51

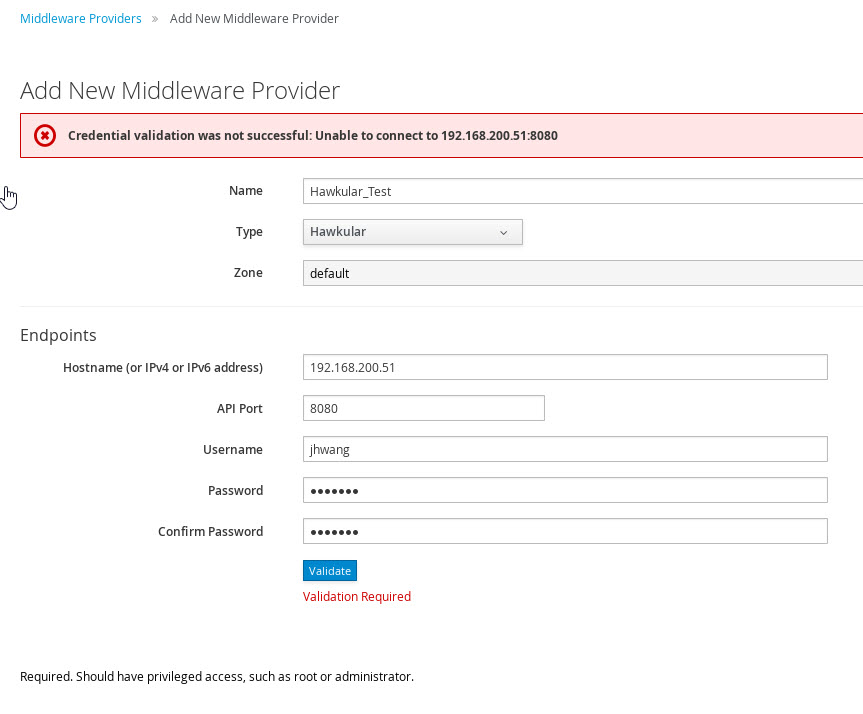

在manageiq网络控制台中，我在hawkular主机名上输入IP地址，但连接失败。以下是manageiq的图片：

​

​

在VMWare工作站外，上述过程运行良好。ManageIQ正在使用Hawkular绑定IP地址与Hawkular连接。但在vmware，无法进入。恐怕我使用了错误的Hawkular绑定地址。我附加了ifconfig命令的输出。

$ ifconfig
docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 0.0.0.0
        inet6 fe80::42:8fff:fe28:6f2d  prefixlen 64  scopeid 0x20<link>
        ether 02:42:8f:28:6f:2d  txqueuelen 0  (Ethernet)
        RX packets 1283  bytes 342465 (334.4 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1344  bytes 157135 (153.4 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.200.51  netmask 255.255.255.0  broadcast 192.168.200.255
        inet6 fe80::c494:6514:b641:e046  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:57:00:09  txqueuelen 1000  (Ethernet)
        RX packets 10875  bytes 7648436 (7.2 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 7465  bytes 1019458 (995.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1  (Local Loopback)
        RX packets 48647  bytes 14786880 (14.1 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 48647  bytes 14786880 (14.1 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

vethcf88378: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet6 fe80::c000:d9ff:fe82:e915  prefixlen 64  scopeid 0x20<link>
        ether c2:00:d9:82:e9:15  txqueuelen 0  (Ethernet)
        RX packets 1283  bytes 360427 (351.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1352  bytes 157783 (154.0 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:ce:2f:27  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

这些是原木

[Sun Apr 23 01:08:01.546217 2017] [proxy_http:error] [pid 862] [client 172.17.0.1:58384] AH01114: HTTP: failed to make connection to backend: 0.0.0.0, referer: https://127.0.0.1:8443/
[Sun Apr 23 01:08:01.546274 2017] [proxy:error] [pid 862] (111)Connection refused: AH00957: HTTP: attempt to connect to 0.0.0.0:3008 (0.0.0.0) failed
[Sun Apr 23 01:08:01.546280 2017] [proxy:error] [pid 862] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:01.546281 2017] [proxy_http:error] [pid 862] [client 172.17.0.1:58384] AH01114: HTTP: failed to make connection to backend: 0.0.0.0, referer: https://127.0.0.1:8443/
[Sun Apr 23 01:08:01.546346 2017] [proxy:error] [pid 862] (111)Connection refused: AH00957: HTTP: attempt to connect to 0.0.0.0:3009 (0.0.0.0) failed
[Sun Apr 23 01:08:01.546352 2017] [proxy:error] [pid 862] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:01.546353 2017] [proxy_http:error] [pid 862] [client 172.17.0.1:58384] AH01114: HTTP: failed to make connection to backend: 0.0.0.0, referer: https://127.0.0.1:8443/
[Sun Apr 23 01:08:17.874238 2017] [proxy:error] [pid 864] (111)Connection refused: AH00957: WS: attempt to connect to 0.0.0.0:5001 (0.0.0.0) failed
[Sun Apr 23 01:08:17.875769 2017] [proxy:error] [pid 864] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:17.876936 2017] [proxy_wstunnel:error] [pid 864] [client 172.17.0.1:58492] AH02452: failed to make connection to backend: 0.0.0.0
[Sun Apr 23 01:08:17.877157 2017] [proxy:error] [pid 864] (111)Connection refused: AH00957: WS: attempt to connect to 0.0.0.0:5002 (0.0.0.0) failed
[Sun Apr 23 01:08:17.877170 2017] [proxy:error] [pid 864] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:17.877173 2017] [proxy_wstunnel:error] [pid 864] [client 172.17.0.1:58492] AH02452: failed to make connection to backend: 0.0.0.0
[Sun Apr 23 01:08:17.877542 2017] [proxy:error] [pid 864] (111)Connection refused: AH00957: WS: attempt to connect to 0.0.0.0:5003 (0.0.0.0) failed
[Sun Apr 23 01:08:17.877552 2017] [proxy:error] [pid 864] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:17.877554 2017] [proxy_wstunnel:error] [pid 864] [client 172.17.0.1:58492] AH02452: failed to make connection to backend: 0.0.0.0
[Sun Apr 23 01:08:17.877717 2017] [proxy:error] [pid 864] (111)Connection refused: AH00957: WS: attempt to connect to 0.0.0.0:5004 (0.0.0.0) failed
[Sun Apr 23 01:08:17.877724 2017] [proxy:error] [pid 864] AH00959: ap_proxy_connect_backend disabling worker for (0.0.0.0) for 60s
[Sun Apr 23 01:08:17.877726 2017] [proxy_wstunnel:error] [pid 864] [client 172.17.0.1:58492] AH02452: failed to make connection to backend: 0.0.0.0
[Sun Apr 23 01:08:17.877799 2017] [proxy:error] [pid 864] (111)Connection refused: AH00957: WS: attempt to connect to 0.0.0.0:5005 (0.0.0.0) failed

Answer 1

这种断开是由于"iptables that was blocking the loopback port"造成的。所以只有一个命令行解决了我的问题。

iptables -I INPUT 1 -i docker0 -j ACCEPT
