Python/NetworkX:动态计算边缘权重

Question

我有一个未加权图，它是用networkx创建的，为此，我希望根据边缘出现的计数/频率来计算节点之间的边的权重。我的图形中的边缘可以发生多次，但边缘出现的频率是事先不知道的。其目的是根据连接节点之间移动的权重(例如计数/频率)来可视化边缘。本质上，我想创建一个网络流量图，在连接的节点之间移动，并基于颜色或边缘宽度可视化。例如，从节点0到1的边缘在它们之间有10个移动，而节点1到2有5个，因此边缘0-1将使用不同的边缘颜色/大小来可视化。

如何计算两个节点之间的边的权重(在用g.add_edges_from()将它们添加到图中之后)，然后再应用于我的图形进行可视化？下面是我最初用来创建图形的图形、数据和代码的示例，我尝试了一个失败的解决方案。

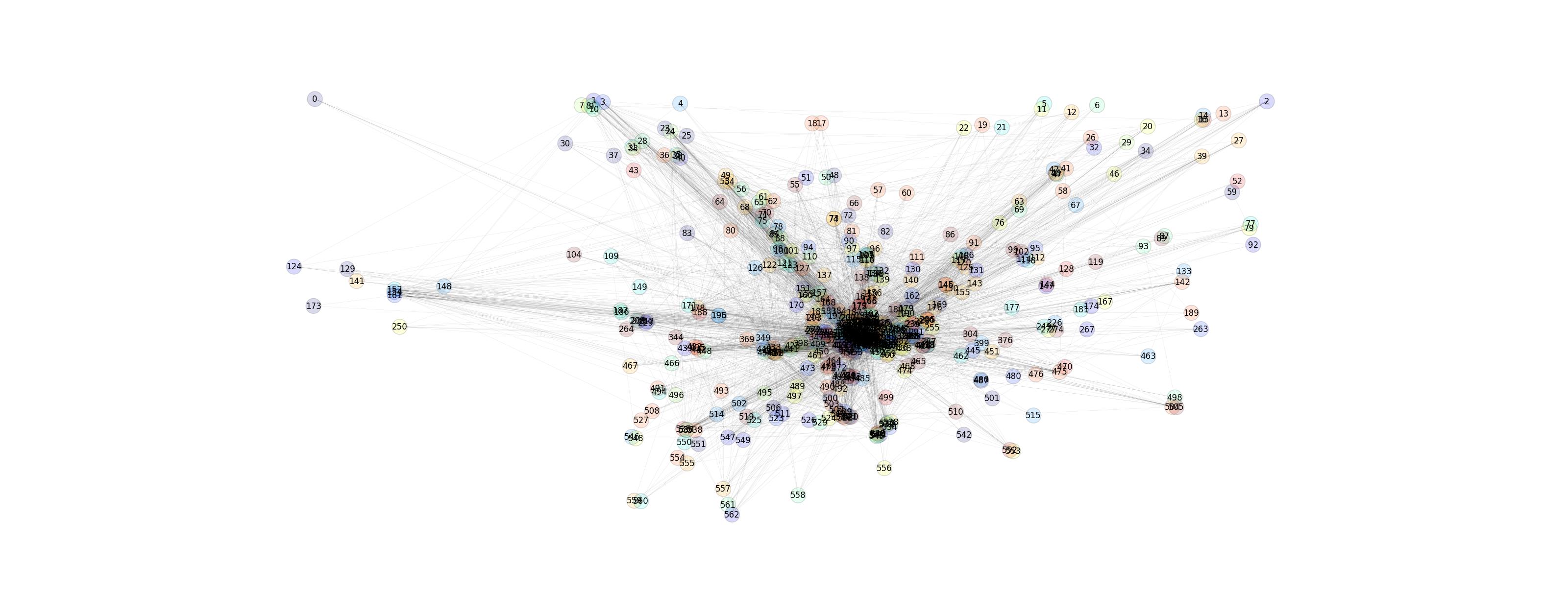

图

​

​

样本数据

簇质心(节点)

cluster_label,latitude,longitude
0,39.18193382,-77.51885109
1,39.18,-77.27
2,39.17917928,-76.6688633
3,39.1782,-77.2617
4,39.1765,-77.1927
5,39.1762375,-76.8675441
6,39.17468,-76.8204499
7,39.17457332,-77.2807235
8,39.17406072,-77.274685
9,39.1731621,-77.2716502
10,39.17,-77.27

轨迹(边)

user_id,trajectory
11011.0,"[[340, 269], [269, 340]]"
80973.0,"[[398, 279]]"
608473.0,"[[69, 28]]"
2139671.0,"[[382, 27], [27, 285]]"
3945641.0,"[[120, 422], [422, 217], [217, 340], [340, 340]]"
5820642.0,"[[458, 442]]"
6060732.0,"[[291, 431]]"
6912362.0,"[[68, 27]]"
7362602.0,"[[112, 269]]"
8488782.0,"[[133, 340], [340, 340]]"

码

import csv
import networkx as nx
import pandas as pd
import community
import matplotlib.pyplot as plt
import time
import mplleaflet

g = nx.MultiGraph()

df = pd.read_csv('cluster_centroids.csv', delimiter=',')
df['pos'] = list(zip(df.longitude,df.latitude))
dict_pos = dict(zip(df.cluster_label,df.pos))
#print dict_pos

for row in csv.reader(open('edges.csv', 'r')):
    if '[' in row[1]:       #
        g.add_edges_from(eval(row[1]))

# Plotting with mplleaflet
fig, ax = plt.subplots()
nx.draw_networkx_nodes(g,pos=dict_pos,node_size=50,node_color='b')
nx.draw_networkx_edges(g,pos=dict_pos,linewidths=0.01,edge_color='k', alpha=.05)
nx.draw_networkx_labels(g,dict_pos)
mplleaflet.show(fig=ax.figure)

我尝试过使用g.add_weighted_edges_from()和添加weight=1作为属性，但没有取得任何成功。我还试着用这个也没用的方法：

for u,v,d in g.edges():
    d['weight'] = 1
g.edges(data=True)
edges = g.edges()
weights = [g[u][v]['weight'] for u,v in edges]

Answer 1

由于这个问题没有得到回答，关于这个话题的第二个问题(这里是：Python/NetworkX: Add Weights to Edges by Frequency of Edge Occurance)开始了，并收到了答复。若要根据边缘出现次数的计数向边缘添加权重：

g = nx.MultiDiGraph()

df = pd.read_csv('G:\cluster_centroids.csv', delimiter=',')
df['pos'] = list(zip(df.longitude,df.latitude))
dict_pos = dict(zip(df.cluster_label,df.pos))
#print dict_pos


for row in csv.reader(open('G:\edges.csv', 'r')):
    if '[' in row[1]:       #
        g.add_edges_from(eval(row[1]))

for u, v, d in g.edges(data=True):
    d['weight'] = 1
for u,v,d in g.edges(data=True):
    print u,v,d

若要根据上述计数缩放颜色和边缘宽度：

minLineWidth = 0.25

for u, v, d in g.edges(data=True):
    d['weight'] = c[u, v]*minLineWidth
edges,weights = zip(*nx.get_edge_attributes(g,'weight').items())

values = range(len(g.edges())
jet = cm = plt.get_cmap('YlOrRd')
cNorm  = colors.Normalize(vmin=0, vmax=values[-1])
scalarMap = cmx.ScalarMappable(norm=cNorm, cmap=jet)
colorList = []

for i in range(len(g.edges()):
    colorVal = scalarMap.to_rgba(values[i])
    colorList.append(colorVal)

并将width=[d['weight'] for u,v, d in g.edges(data=True)]、edge_color=colorList作为参数在nx.draw_networkx_edges()中传递
