在不同阵列长度的三维条形图中用大型稀疏numpy.ndarray绘制数据

Question

我的问题类似于这个问题，我想把我的光谱数据绘制成三维绘图，但是

1)我的数据是np.ndarray中的矩阵

2)硬件代码标注尺寸大，为1201*5001 (result.shape = (1201,5001))，不适合人工标注。

3)数据不连续、稀疏。最后的情节可能类似于mplot3d bar3d。

在这种情况下，我可以使用Matplotlib中的3D条形图吗？如果可能的话，如何定义每个轴的不同长度？

这是我正在进行的代码(第三次更新)

if __name__ == '__main__':
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt
import matplotlib
%matplotlib inline

# from array, x is time, y is mz, z is intensity
# in graph x is mz, y is time, z is intensity

fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

zs = np.arange(0, 50.01, 0.01)

    for z in zs:
        xs = np.arange(300, 1500.01, 1)
        ys = result

        ax.bar(xs,ys,zs=z,zdir='y')

plt.show()

误差(3)

Traceback (most recent call last):
  File "prelimnmf_importcsv3.py", line 70, in <module>
    ax.bar(xs,ys,zs=z,zdir='y')
  File "/Users/pp/anaconda/lib/python2.7/site-packages/mpl_toolkits/mplot3d/axes3d.py", line 2394, in bar
    patches = Axes.bar(self, left, height, *args, **kwargs)
  File "/Users/pp/anaconda/lib/python2.7/site-packages/matplotlib/__init__.py", line 1892, in inner
    return func(ax, *args, **kwargs)
  File "/Users/pp/anaconda/lib/python2.7/site-packages/matplotlib/axes/_axes.py", line 2115, in bar
    if h < 0:
ValueError: The truth value of an array with more than one element is ambiguous. Use a.any() or a.all()

Answer 1

虽然我怀疑1200*5000的条形图是否能提供对数据的视觉洞察力，但仍然可以使用它。

下面是一个例子

from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt
import numpy as np; np.random.seed(1)

#Assume you have arrays like this
x = np.arange(300,1500,100)
y = np.arange(4)*10
Z = np.random.rand(len(y), len(x))*33

fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

for i in range(len(y))[::-1]:
    c = plt.cm.jet(i/float(len(y)))

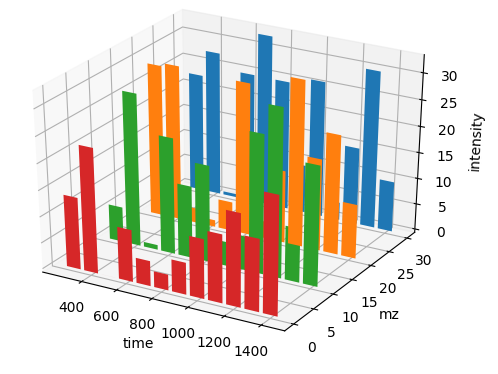

    ax.bar(x, Z[i,:], zs=y[i], zdir='y',  width=80,alpha=1 )

ax.set_xlabel('time')
ax.set_ylabel('mz')
ax.set_zlabel('intensity')

plt.show()

​

​
