DKIM hmailserver和NameCheap设置

Question

我一直在尝试用DKIM设置我的hmailserver。

我遵循了-> https://www.hmailserver.com/forum/viewtopic.php?t=29402的指南

我用这个网站-> https://www.port25.com/dkim-wizard/创建了我的密钥

域名: linnabary.us

DomainKey选择: dkim

密钥大小: 1024

我创建了一个pem文件；

-----BEGIN RSA PRIVATE KEY-----
<key>
-----END RSA PRIVATE KEY-----

保存并加载到hmailserver中。

当我在NameCheap上设置它时，我选择了TXT记录，将我的主机设置为@，并放入这一行，当然，减去键；

v=DKIM1; k=rsa; p=<KEY>

现在当我用-> http://www.isnotspam.com进行测试时

它说我的DKIM密钥如下；

----------------------------------------------------------
DKIM check details:
----------------------------------------------------------

Result: invalid
ID(s) verified: header.From=admin@linnabary.us
Selector=
domain=
DomainKeys DNS Record=._domainkey.

我想知道我的记录中是否有明显的错误。

编辑；

电子邮件包含以下一行；

dkim-signature: v=1; a=rsa-sha256; d=linnabary.us; s=dkim;

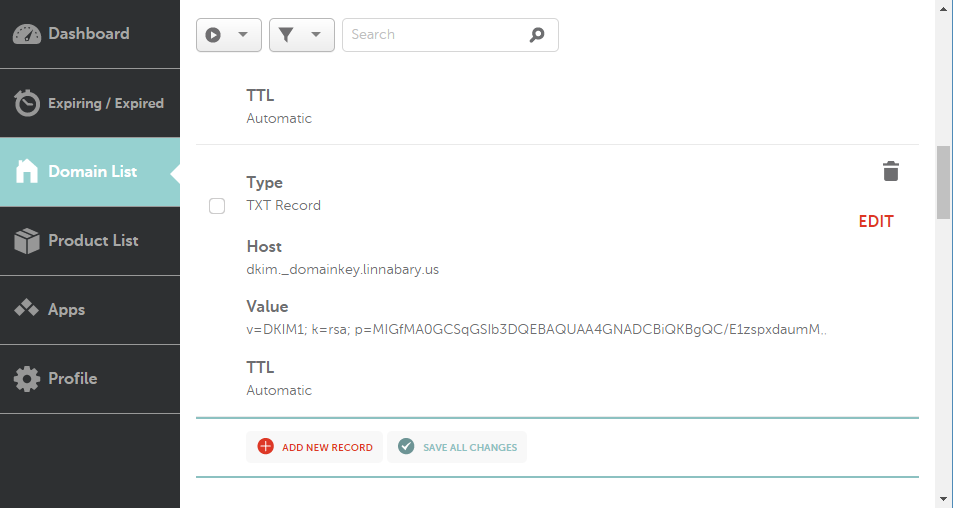

这就是在NameCheap上设置的样子；

​

​

下面是下一封测试邮件；

This message is an automatic response from isNOTspam's authentication verifier service. The service allows email senders to perform a simple check of various sender authentication mechanisms. It is provided free of charge, in the hope that it is useful to the email community. While it is not officially supported, we welcome any feedback you may have at .

Thank you for using isNOTspam.

The isNOTspam team

==========================================================
Summary of Results
==========================================================

SPF Check : pass
Sender-ID Check : pass
DKIM Check : invalid
SpamAssassin Check : ham (non-spam)
==========================================================
Details:
==========================================================

HELO hostname: [69.61.241.46]
Source IP: 69.61.241.46
mail-from: admin@linnabary.us
Anonymous To: ins-a64wsfm3@isnotspam.com
---------------------------------------------------------
SPF check details:
----------------------------------------------------------

Result: pass
ID(s) verified: smtp.mail=admin@linnabary.us
DNS record(s):
linnabary.us.   1799    IN  TXT "v=spf1 a mx ip4:69.61.241.46 ~all"


----------------------------------------------------------
Sender-ID check details:
----------------------------------------------------------

Result: pass

ID(s) verified: smtp.mail=admin@linnabary.us
DNS record(s):
linnabary.us.   1799    IN  TXT "v=spf1 a mx ip4:69.61.241.46 ~all"


----------------------------------------------------------
DKIM check details:
----------------------------------------------------------

Result: invalid
ID(s) verified: header.From=admin@linnabary.us
Selector=
domain=
DomainKeys DNS Record=._domainkey.

----------------------------------------------------------
SpamAssassin check details:
----------------------------------------------------------
SpamAssassin 3.4.1 (2015-04-28)

Result: ham (non-spam) (04.6points, 10.0 required)

pts rule name description
---- ---------------------- -------------------------------


* 3.5 BAYES_99 BODY: Bayes spam probability is 99 to 100%
* [score: 1.0000]
* -0.0 SPF_HELO_PASS SPF: HELO matches SPF record
* -0.0 SPF_PASS SPF: sender matches SPF record
* 0.2 BAYES_999 BODY: Bayes spam probability is 99.9 to 100%
* [score: 1.0000]
* 0.1 DKIM_SIGNED Message has a DKIM or DK signature, not necessarily
* valid
* 0.8 RDNS_NONE Delivered to internal network by a host with no rDNS
* 0.0 T_DKIM_INVALID DKIM-Signature header exists but is not valid
X-Spam-Status: Yes, hits=4.6 required=-20.0 tests=BAYES_99,BAYES_999,
DKIM_SIGNED,RDNS_NONE,SPF_HELO_PASS,SPF_PASS,T_DKIM_INVALID autolearn=no
autolearn_force=no version=3.4.0
X-Spam-Score: 4.6

To learn more about the terms used in the SpamAssassin report, please search
here: http://wiki.apache.org/spamassassin/

==========================================================
Explanation of the possible results (adapted from
draft-kucherawy-sender-auth-header-04.txt):
==========================================================

"pass"
the message passed the authentication test.

"fail"
the message failed the authentication test.

"softfail"
the message failed the authentication test, and the authentication
method has either an explicit or implicit policy which doesn't require
successful authentication of all messages from that domain.

"neutral"
the authentication method completed without errors, but was unable
to reach either a positive or a negative result about the message.

"temperror"
a temporary (recoverable) error occurred attempting to authenticate
the sender; either the process couldn't be completed locally, or
there was a temporary failure retrieving data required for the
authentication. A later retry may produce a more final result.

"permerror"
a permanent (unrecoverable) error occurred attempting to
authenticate the sender; either the process couldn't be completed
locally, or there was a permanent failure retrieving data required
for the authentication.


==========================================================
Original Email
==========================================================

From admin@linnabary.us Wed Apr 12 17:41:22 2017
Return-path: <admin@linnabary.us>
X-Spam-Checker-Version: SpamAssassin 3.4.0 (2014-02-07) on isnotspam.com
X-Spam-Flag: YES
X-Spam-Level: ****
X-Spam-Report:
* 3.5 BAYES_99 BODY: Bayes spam probability is 99 to 100%
* [score: 1.0000]
* -0.0 SPF_HELO_PASS SPF: HELO matches SPF record
* -0.0 SPF_PASS SPF: sender matches SPF record
* 0.2 BAYES_999 BODY: Bayes spam probability is 99.9 to 100%
* [score: 1.0000]
* 0.1 DKIM_SIGNED Message has a DKIM or DK signature, not necessarily
* valid
* 0.8 RDNS_NONE Delivered to internal network by a host with no rDNS
* 0.0 T_DKIM_INVALID DKIM-Signature header exists but is not valid
X-Spam-Status: Yes, hits=4.6 required=-20.0 tests=BAYES_99,BAYES_999,
DKIM_SIGNED,RDNS_NONE,SPF_HELO_PASS,SPF_PASS,T_DKIM_INVALID autolearn=no
autolearn_force=no version=3.4.0
Envelope-to: ins-a64wsfm3@isnotspam.com
Delivery-date: Wed, 12 Apr 2017 17:41:22 +0000
Received: from [69.61.241.46] (helo=linnabary.us)
by localhost.localdomain with esmtp (Exim 4.84_2)
(envelope-from <admin@linnabary.us>)
id 1cyMGg-0007x2-1Q
for ins-a64wsfm3@isnotspam.com; Wed, 12 Apr 2017 17:41:22 +0000
dkim-signature: v=1; a=rsa-sha256; d=linnabary.us; s=dkim;
c=relaxed/relaxed; q=dns/txt; h=From:Subject:Date:Message-ID:To:MIME-Version:Content-Type:Content-Transfer-Encoding;
bh=Ns4aRUgWUtil4fiVnvitgeV+q1K/smEYtRGN497S5Ew=;
b=Nc2Kzrzas0QqMpWM4fnF5o5wLWlWYFxlGlAipe+85H9cwGgc4hvEKUj1UvgB6I2VHUbJ0OGN/sJO9tjWgwlGypaUuW7Q8x/iI0UtC6cn7X6ZLHT+K6A2A6MdoyR1NF4xxvqPadcmcQwnrY0Tth4ycydpQMlBCZS30sc1qUjUrN0=
Received: from [192.168.1.12] (Aurora [192.168.1.12])
by linnabary.us with ESMTPA
; Wed, 12 Apr 2017 13:41:28 -0400
To: ins-a64wsfm3@isnotspam.com
From: Admin <admin@linnabary.us>
Subject: Welcome to Linnabary
Message-ID: <8e8be6cd-6354-aeb9-b577-2b0efc25a1a1@linnabary.us>
Date: Wed, 12 Apr 2017 13:41:28 -0400
User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64; rv:45.0) Gecko/20100101
Thunderbird/45.8.0
MIME-Version: 1.0
Content-Type: text/plain; charset=utf-8; format=flowed
Content-Transfer-Encoding: 7bit
X-DKIM-Status: invalid (pubkey_unavailable)
I honestly have no idea what I should put in here in order to protect
myself from filters, so I'm just making it up as I go.

- Tad

Answer 1

TXT条目的主机值应该是dkim._domainkey。当前，您的域密钥位于：dkim._domainkey.linnabary.us.linnabary.us，所以您不应该在这里添加域。

这就是为什么对测试邮件的回复中写着X-DKIM-Status: invalid (pubkey_unavailable) --公钥在它应该在的地方找不到。
