C#：在SKCanvas绘图时的AccessViolationException

Question

引言

我正在创建我的第一个Xamarin应用程序(它将首先针对UWP，然后是安卓，最后可能是iOS)。

基本上，应用程序应该检测到多个手指和圆圈会弹出每一个手指并跟随它们。

问题所在

当我试图从System.AccessViolationException的onPanning方法上画一个平淡无奇的SKCanvas时，我有一个MR.gestures。

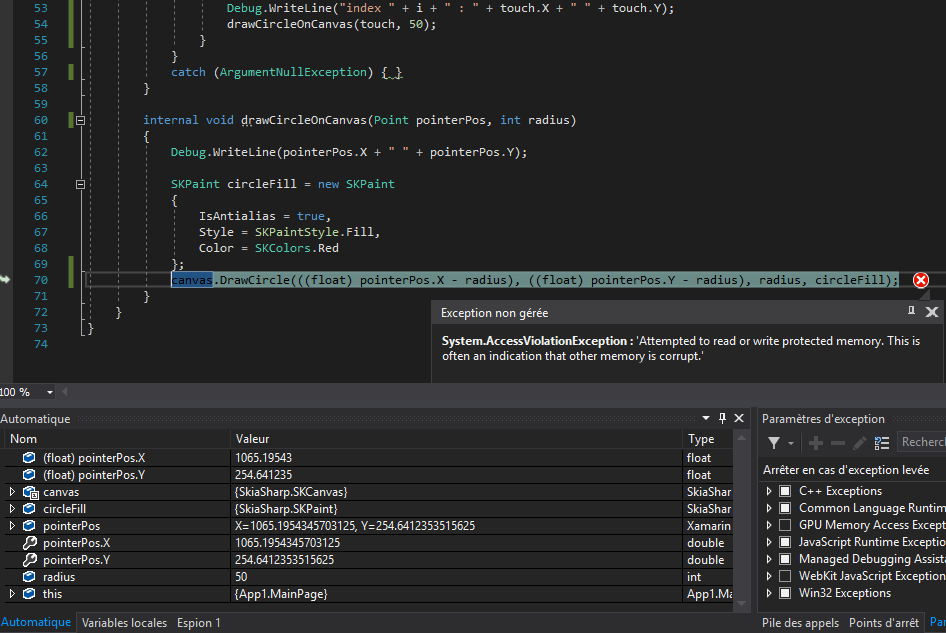

屏幕截图

​

​

详细信息

我是例外，System.AccessViolationException是最好的产品 HResult=0x80004003 Message=Attempted来读取或写入受保护的内存。这通常表明其他内存已损坏。 SkiaSharp.SkiaApi.sk_canvas_draw_circle(IntPtr t，单cx，单cy，单半径，IntPtr涂料)àSkiaSharp.SKCanvas.DrawCircle(单cx，单cy，单半径，SKPaint涂料) App1.MainPage.drawCircleOnCanvas(Point pointerPos，Int32 radius) dans d:\Profiles\qpollet\Documents\Visual 2017\Projects\App1\MainPage.xaml.cs:Lenge70àApp1.MainPage.onPanning(对象发送者，( dans e) dans d：\Profiles\qpollet\ PanEventArgs \Visual 2017\Projects\App1\MainPage.xaml.cs :ligne 54àPanEventArgsàXamarin.Forms.Platform.UWP.WindowsBasePlatformServices.<>c__DisplayClass2_0.b__0()

密码

MainPage.xaml.cs

using SkiaSharp;
using SkiaSharp.Views.Forms;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;
using MR.Gestures;

namespace App1
{
    public partial class MainPage : Xamarin.Forms.ContentPage
    {
        private static SKCanvas canvas;

        public MainPage()
        {
            InitializeComponent();
        }

        private void OnPainting(object sender, SKPaintSurfaceEventArgs e)
        {
            canvas = e.Surface.Canvas;

            Point pointerPos = new Point
            {
                X = 200,
                Y = 400
            };
            drawCircleOnCanvas(pointerPos, 50);

            Point pointerPos1 = new Point
            {
                X = 1000,
                Y = 600
            };
            drawCircleOnCanvas(pointerPos1, 50);
        }

        private void onPanning(object sender, PanEventArgs e)
        {
            Debug.WriteLine("MR Panning !!!!!");

            try
            {
                List<Point> touches = e.Touches.ToList();
                //foreach (Point touch in touches)
                for(int i = 0; i <= touches.Count; i++)
                {
                    Point touch = touches[i];
                    Debug.WriteLine("index " + i + " : " + touch.X + " " + touch.Y);
                    drawCircleOnCanvas(touch, 50);
                }
            }
            catch (ArgumentNullException) { }
        }

        internal void drawCircleOnCanvas(Point pointerPos, int radius)
        {
            Debug.WriteLine(pointerPos.X + " " + pointerPos.Y);

            SKPaint circleFill = new SKPaint
            {
                IsAntialias = true,
                Style = SKPaintStyle.Fill,
                Color = SKColors.Red
            };
            canvas.DrawCircle(((float) pointerPos.X - radius), ((float) pointerPos.Y - radius), radius, circleFill);
        }
    }
}

MainPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:App1"
             xmlns:views="clr-namespace:SkiaSharp.Views.Forms;assembly=SkiaSharp.Views.Forms"
             xmlns:mr="clr-namespace:MR.Gestures;assembly=MR.Gestures"
             x:Class="App1.MainPage">

    <Label Text="Ooooh, you touch my tralala"
           VerticalOptions="Center"
           HorizontalOptions="Center" />

    <RelativeLayout>

        <mr:AbsoluteLayout
            RelativeLayout.XConstraint="{ConstraintExpression Type=Constant, Constant=0}"
            RelativeLayout.YConstraint="{ConstraintExpression Type=Constant, Constant=0}"
            RelativeLayout.WidthConstraint="{ConstraintExpression Type=RelativeToParent, Property=Width}"
            RelativeLayout.HeightConstraint="{ConstraintExpression Type=RelativeToParent, Property=Height}"

            BackgroundColor="Blue"

            x:Name="touchLayout"
            Panning="onPanning">

        </mr:AbsoluteLayout>

        <views:SKCanvasView
            RelativeLayout.XConstraint="{ConstraintExpression Type=Constant, Constant=0}"
            RelativeLayout.YConstraint="{ConstraintExpression Type=Constant, Constant=0}"
            RelativeLayout.WidthConstraint="{ConstraintExpression Type=RelativeToParent, Property=Width}"
            RelativeLayout.HeightConstraint="{ConstraintExpression Type=RelativeToParent, Property=Height}"

            PaintSurface="OnPainting"/>

    </RelativeLayout>
</ContentPage>

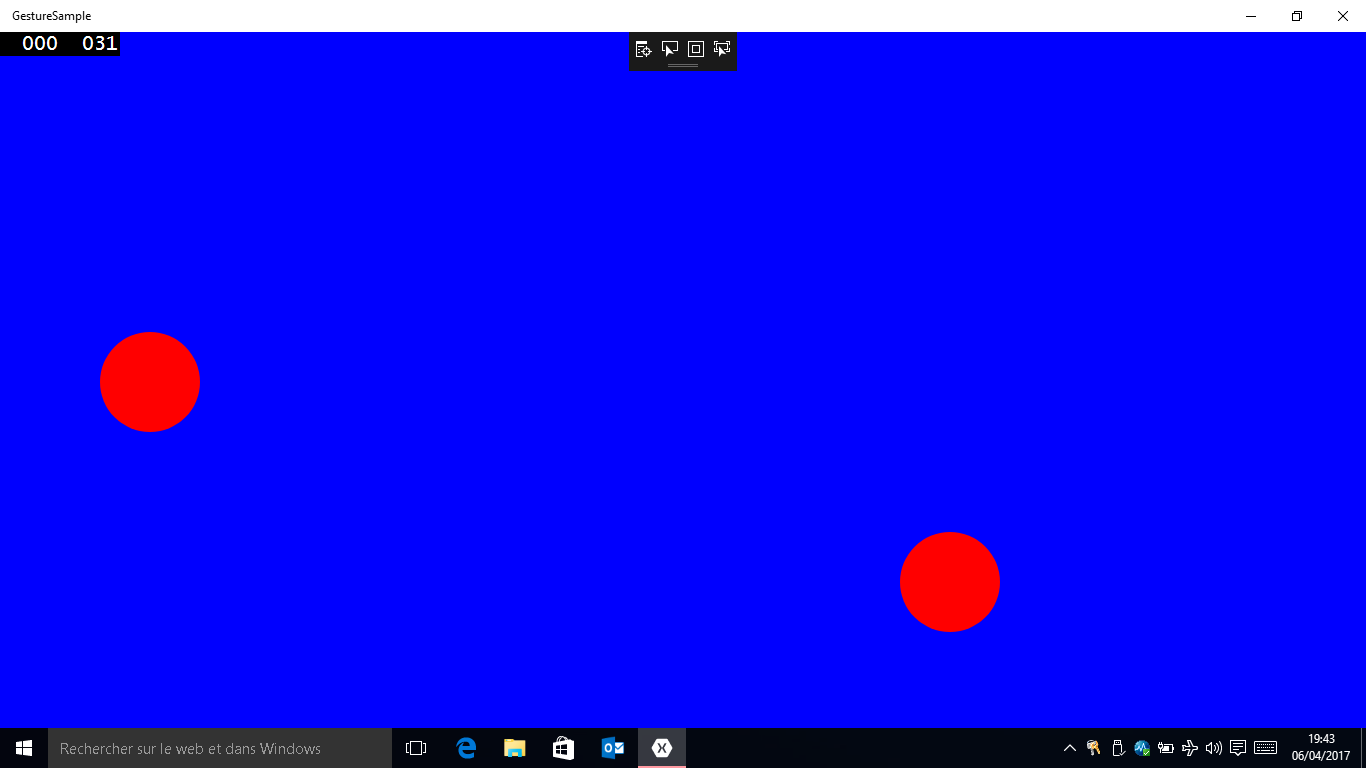

结果

​

知道吗？

Answer 1

您将得到该错误，因为您正在保存画布。画布是在每个框架渲染上重新创建的，因此您不能保留它的句柄。

正确的方法是只在画布方法中引用画布。然后，在填充方法中，使用InvalidateSurface使曲面失效。

这将触发重绘，然后可以在新位置绘制项目。

class MainPage {
    List<Point> touches;
    void onPan() {
        touches = GetTouchPoints();
        view.InvalidateSurface();
    }
    void onPaint() {
        var canvas = ...;
        canvas.Draw(...);
    }
}
