操纵ListView中显示的视图

Question

我试图在Android上实现一个ListView子类，该子类允许手动重新排序其内容。作为该过程的第一步，我将向ListView绘制的每个子视图附加一个“长击”侦听器，例如：

@Override
protected boolean drawChild(Canvas canvas, View child, long drawingTime) {

    //listen for long-click events as the trigger for reordering the list
    child.setOnLongClickListener(new OnLongClickListener() {
        @Override
        public boolean onLongClick(View view) {
            if (! SortableListView.this.isSortEnabled()) {
                return false;
            }

            //capture some state about the initial position of the list
            //[...]

            //note the view that we're moving around
            dragView = view;
            dragView.setBackgroundColor(Color.argb(128, 200, 200, 255));
            dragView.setElevation(2.0f);

            //disable the list's default scrolling behavior
            SortableListView.this.requestDisallowInterceptTouchEvent(true);

            return true;
        }
    });

    //also add a general touch listener for when we're actually sorting things
    child.setOnTouchListener(this);

    return super.drawChild(canvas, child, drawingTime);
}

然后还有一个通用的“触摸”事件侦听器，一旦我们实际拖动一些东西，就可以处理对ListView的更新：

@Override
public boolean onTouch(final View view, MotionEvent motionEvent) {
    //XXX:  (0,0) is at the top-left of the screen
    if (dragView == null) {
        //not dragging anything yet, just note the touch location for if/when we start
        dragStartX = motionEvent.getRawX();
        dragStartY = motionEvent.getRawY();

        return false;
    }
    if (view != dragView) {
        //not interested in this event
        return false;
    }

    if (motionEvent.getAction() == MotionEvent.ACTION_MOVE) {
        dragCurrentX = motionEvent.getRawX();
        dragCurrentY = motionEvent.getRawY();

        //make the cell the user tapped follow their touch
        dragView.animate().xBy(dragCurrentX - dragStartX).yBy(dragCurrentY - dragStartY).setDuration(0).start();

        //now look at how far the view has moved, and reposition the displayed views if necessary (this is the broken part)
        //[...]

        return true;
    }
    if (motionEvent.getAction() == MotionEvent.ACTION_UP) {
        //done, put the view back
        dragView.setTranslationX(0);
        dragView.setTranslationY(0);
        dragView.setElevation(0.0f);
        dragView = null;

        //enable scrolling
        this.requestDisallowInterceptTouchEvent(false);
        return true;
    }

    return false;
}

问题是，虽然拖曳视图通常有效，但我也想在它移动时将它的“占位符”位置上下移动。也许最好用一些照片来说明这一点：

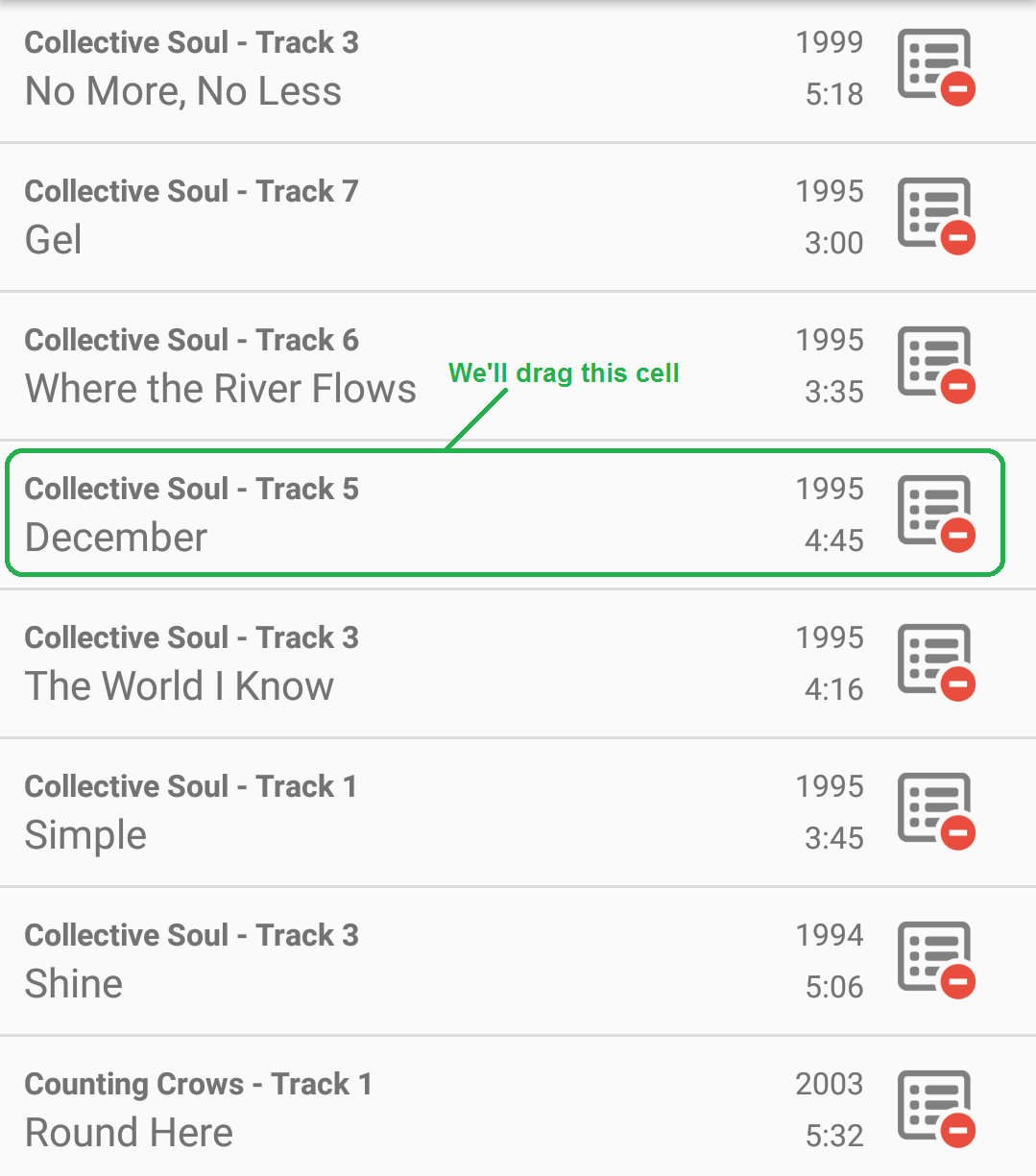

初始状态

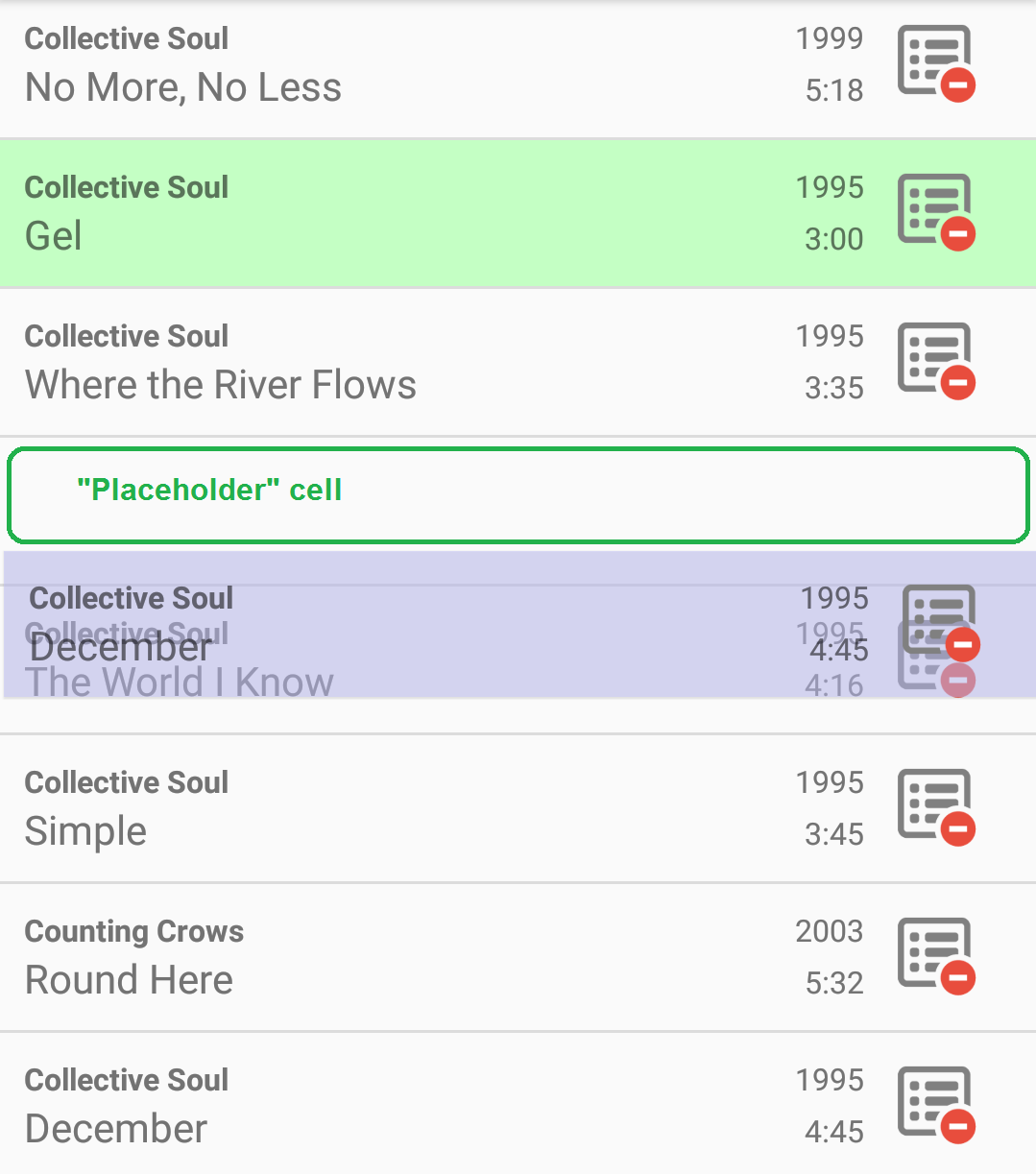

在开始拖动之后

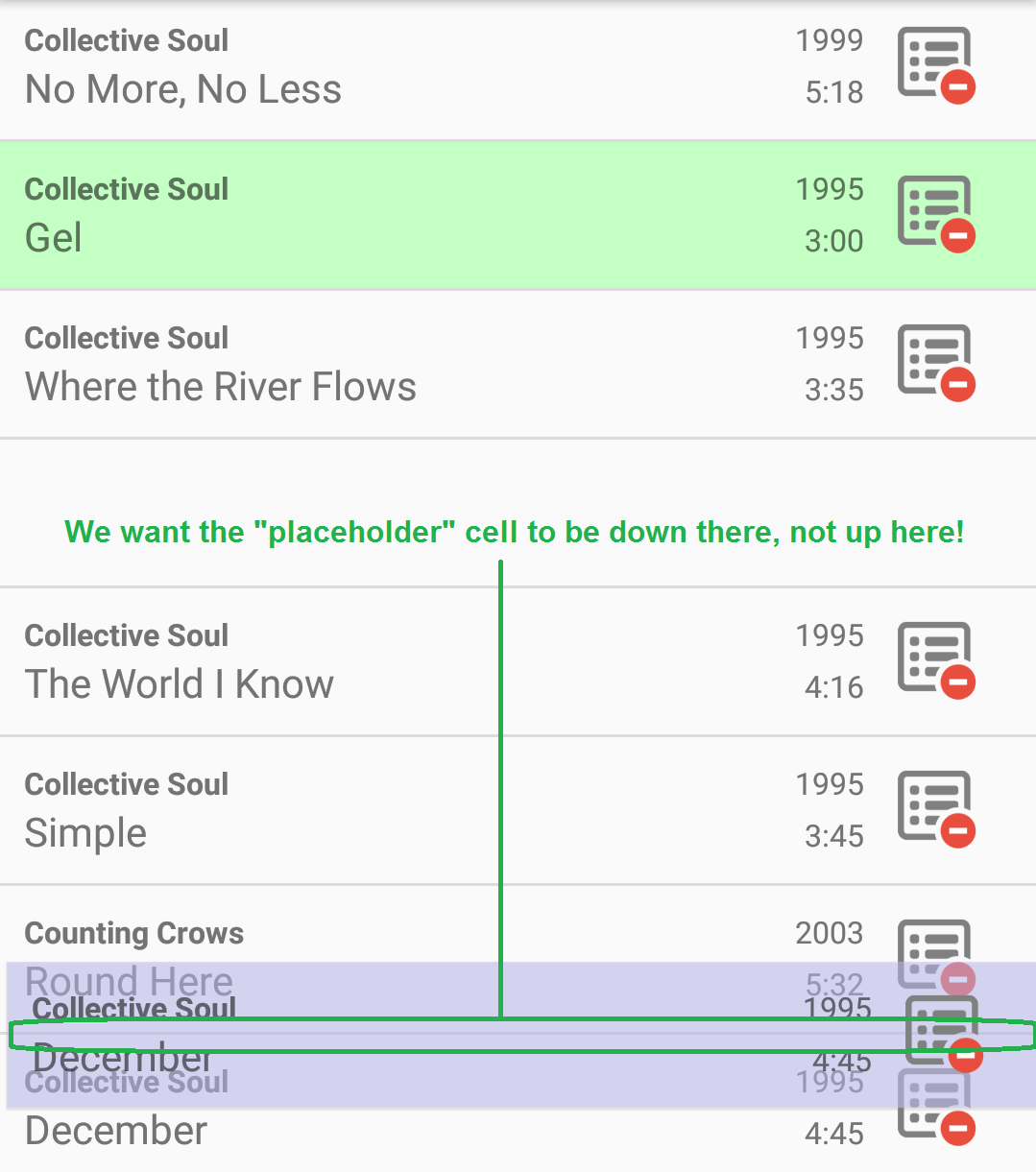

拖动一点后的

因此，目标是让“占位符”单元格跟随浮动的蓝色单元格，用户将其拖过列表。当浮动单元格移动时，我试图通过操作列表的子视图来实现这一点，但是到目前为止，没有任何东西工作。

我当前用于尝试此操作的代码(即“破损部分”)是：

int dragViewIndex = this.indexOfChild(dragView);
if (dragView.getTranslationY() > dragView.getHeight() && dragViewIndex < this.getChildCount() - 1) {
    //move down 1 spot (towards bottom of list), reduce tY by height
    this.detachViewFromParent(dragView);
    this.attachViewToParent(dragView, dragViewIndex + 1, dragView.getLayoutParams());

    dragView.setTranslationY(dragView.getTranslationY() - dragView.getHeight());
}
if (dragView.getTranslationY() < -1 * dragView.getHeight() && dragViewIndex > 0) {
    //move up 1 spot (towards top of list), reduce tY by height
    this.detachViewFromParent(dragView);
    this.attachViewToParent(dragView, dragViewIndex - 1, dragView.getLayoutParams());

    dragView.setTranslationY(dragView.getTranslationY() + dragView.getHeight());
}

但是，这似乎几乎什么也没有完成(除了混淆列表之外；正如您在第三张图片中看到的那样，在UI中拖动的条目实际上出现了两次)。

是否有适当的/优雅的方法使空单元格在列表中跟随内容？或者，我是否需要考虑更激烈的措施，比如可能翻译列表中的其他单元格，以适应空白处的位置？

Answer 1

似乎我对翻译列表中其他单元格的想法是正确的。这个代码实现了我想要的结果：

if (dragView.getTranslationY() - dragView.getHeight() * numShifts > dragView.getHeight() && dragViewIndex < this.getChildCount() - 1) {
    //move down 1 spot (towards bottom of list)
    View displacedView = this.getChildAt(dragViewIndex + 1);
    if (displacedView.getTranslationY() != 0) {
        displacedView = this.getChildAt(dragViewIndex);
        displacedView.animate().translationY(0).setDuration(100).start();
    }
    else {
        displacedView.animate().yBy(-1 * view.getHeight()).setDuration(100).start();
    }
    dragViewIndex++;
    numShifts++;
}
else if (dragView.getTranslationY() - dragView.getHeight() * numShifts < -1 * dragView.getHeight() && dragViewIndex > 0) {
    //move up 1 spot (towards top of list)
    View displacedView = this.getChildAt(dragViewIndex - 1);
    if (displacedView.getTranslationY() != 0) {
        displacedView = this.getChildAt(dragViewIndex);
        displacedView.animate().translationY(0).setDuration(100).start();
    }
    else {
        displacedView.animate().yBy(view.getHeight()).setDuration(100).start();
    }
    dragViewIndex--;
    numShifts--;
}

可能会被清理一下。但是基本上，您可以观察单元格被拖到多远，每次它向上/向下移动一个完整的增量(根据它的高度)，您就会根据情况上下移动它下面的单元格。这将创建在列表中移动的“占位符”单元格的外观。

注意，只有当列表中的每个项目都具有相同的高度()时，此代码才能工作。这对我的用例来说已经足够好了，但并不适合每个用例。
