To make <code>Race</code> an association class as desired, make the horizontal connector dashed and remove the multiplicities. The above currently shows sort of a ternary connector (see discussion).

<a href="https://i.stack.imgur.com/wSEzJ.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/wSEzJ.png" alt="enter image description here"></a>

This is equivalent to

<a href="https://i.stack.imgur.com/C4efr.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/C4efr.png" alt="enter image description here"></a>

The multiplicity <code>0..1</code> tells that there is one or no race per season and circuit.

blocks|key|2130722|text|根据我的理解，以下图表按需要对情况进行了建模：|type|unstyled|depth|inlineStyleRanges|entityRanges|data|2130723|​|2130724|📷|atomic|offset|length|2130725|2130726|每一季都可能与*线路有种族联系，反之亦然。如果一个特定的季节与特定的电路有种族关联，那么该关联正好有一个种族关联类实例。|2130727|一个赛季不一定要和赛道联系在一起，这样的组合就没有比赛可言了。|2130728|现在，每个赛季的赛道组合最多有一场比赛的限制从何而来？这是因为在一个关联端上有一个*(或任何数字>+1)意味着一个实例可能与多个不同的其他实例相关联，而不是与一个和另一个实例关联几次。|style|BOLD|2130729|在本例中，一个季节实例可以与几个不同的电路相关联，但不能与一个和同一个电路相关联几次。(如果您想要对此进行建模，则必须使用多个协会或有资格的协会)|2130730|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/5356d149e5440198a9d3efb05ff5fa8e.png|imageAlt^0|0|0|0|1|0|0|0|0|0|1S|3|0|0^^$0|@$1|2|3|4|5|6|7|12|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|13|8|@]|9|@]|A|$]]|$1|D|3|E|5|F|7|14|8|@]|9|@$G|15|H|16|1|17]]|A|$]]|$1|I|3|C|5|6|7|18|8|@]|9|@]|A|$]]|$1|J|3|K|5|6|7|19|8|@]|9|@]|A|$]]|$1|L|3|M|5|6|7|1A|8|@]|9|@]|A|$]]|$1|N|3|O|5|6|7|1B|8|@$G|1C|H|1D|P|Q]]|9|@]|A|$]]|$1|R|3|S|5|6|7|1E|8|@]|9|@]|A|$]]|$1|T|3|-4|5|6|7|1F|8|@]|9|@]|A|$]]]|U|$V|$5|W|X|Y|A|$Z|10|11|-4]]]]

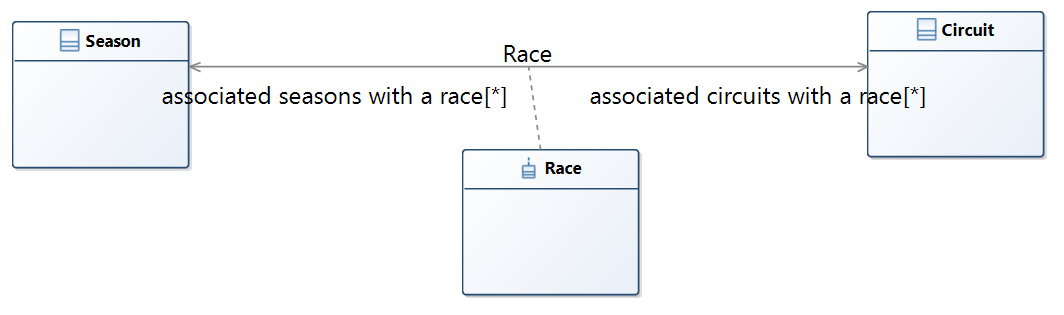

According to my understanding the following diagram models the situation as desired:

<a href="https://i.stack.imgur.com/Q2XH1.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/Q2XH1.png" alt="UML diagram"></a>

Each season may have Race associations with * circuits and vice versa. If a specific season has a Race association with a specific circuit, then the association has exactly one Race association class instance.

A season doesn't have to be associated with a circution, then there's no race for this combination.

Where does the restriction of having at most one race for each season - circuit combination now come from? This is due to the fact that having a * (or any number > 1) on one association end means that an instance may be associated with more than 1 different other instances, but not several times with one and the same other instance.

In this example, a season instance may be associated with several different circuits, but not several times with one and the same circuit. (If you'd like to model this, you'd have to use e.g. multiple associations or a qualified association)

I have a piece of statement that I don't understand how to model it in a class diagram. It is about Formula 1 races. The piece is the following:

<blockquote>
 We can only have one race per circuit in each season
</blockquote>

So there is a relationship between CIRCUIT, SEASON and RACE.

<hr>

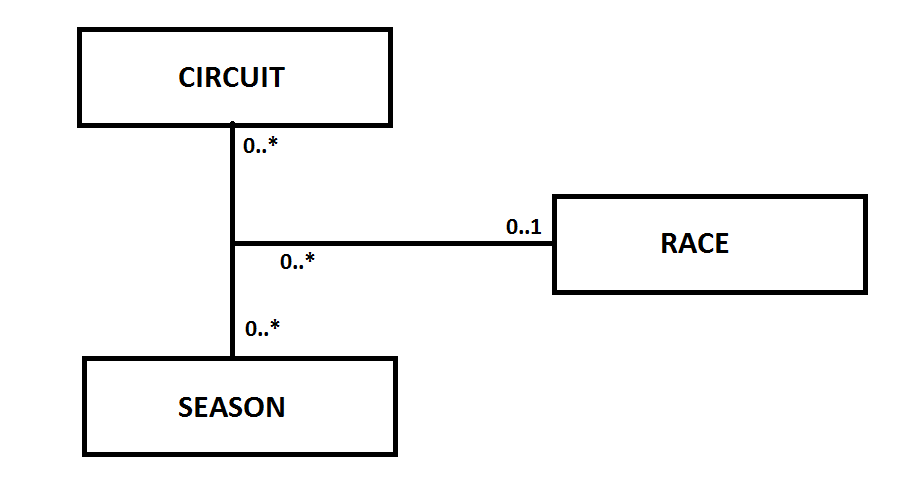

I believe that it is a ternary association, but a mate told me that it could be an association between CIRCUIT - SEASON and then an association between that association and RACE:

<a href="https://i.stack.imgur.com/F0l9r.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/F0l9r.png" alt="Association of an association diagram"></a>

Is that picture wrong? I mean, association should be between 2 classes as far as I know. Not between a class and an association...

Thank's you very much!!!!

EDIT:
The statement was wrong, I restated it and could be translated in: (imagine we have 3 circuits)

<ul>
<li>Circuit A in Season 1 --> Race 1</li>
<li>Circuit B in Season 1 --> Race 2</li>
<li>Circuit C in Season 1 --> Race 3</li>
<li>Circuit A in Season 1 --> Race 4 (This should not be allowed, we can only have one race per circuit in each season)</li>
<li>Circuit A in Season 2 --> Race 5 (This is correct)</li>
</ul>

We can only have 1 race per circuit in each season
