我正在做一些EMV测试,希望有人能对我所看到的有所了解。我正在运行适用于我们的解决方案的Mastercard M-技巧测试,我看到了一些意想不到的结果。当使用M 50测试卡运行M 50测试(1,2,3)时,我在第二个GENERATE_AC命令上得到错误。我们的解决方案在技术上被定义为具有在线功能的脱机,但我们目前正在一个完全脱机的环境中进行测试。
我花了大量的时间阅读EMV书籍和浏览Google,但我仍然不明白为什么它返回6985。在这一点上,我能想到的最好的猜测是它与CDA有关(在这个过程中也应该发生这种情况?)

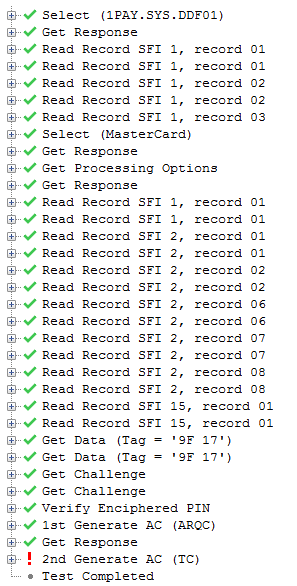

我已经包括了第一和第二GEN_AC的请求和回应,以显示正在发生的事情。如果有人能洞察正在发生的事情或出了什么问题,我会非常感激的。

1st Generate AC (ARQC)
Request : 80 AE 90 00 2F 00 00 00 00 20 00 00 00 00 00 00 00 00 80 00 80 00 08 26 17 01 03 00 B0 32 0F C0 22 00 00 00 00 00 00 00 00 00 00 44 03 02 16 11 12 60 00 80
Class :80
Ins :AE
P1 :90
P2 :00
Lc :2F
Data :00 00 00 00 20 00 00 00 00 00 00 00 00 80 00 80 00 08 26 17 01 03 00 B0 32 0F C0 22 00 00 00 00 00 00 00 00 00 00 44 03 02 16 11 12 60 00 80
Tag 9F 02: Transaction Amount : 00 00 00 00 20 00
Amount value: 20.00
Tag 9F 03: Cashback Amount : 00 00 00 00 00 00
Amount value: 0.00
Tag 95 : Terminal Verification Results (TVR) : 00 80 00 80 00
Byte 1 bit 8 = 0 Offline data authentication was performed
bit 7 = 0 SDA passed or not performed
bit 6 = 0 No ICC data missing
bit 5 = 0 Card does not appear on terminal exception file
bit 4 = 0 DDA passed or not performed
bit 3 = 0 CDA passed or not performed
bit 2 = 0 SDA not selected
bit 1 = 0 RFU
Byte 2 bit 8 = 1 ICC and terminal have different application versions
bit 7 = 0 No Expired application
bit 6 = 0 Application effective
bit 5 = 0 Requested service allowed for card product
bit 4 = 0 No New card
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 3 bit 8 = 0 Cardholder verification was successful or not performed
bit 7 = 0 Recognised CVM
bit 6 = 0 PIN Try Limit not exceeded
bit 5 = 0 No PIN entry required (PIN pad may or may not be present or may or may not be working)
bit 4 = 0 No PIN entry required (PIN pad may or may not be present)
bit 3 = 0 No Online PIN entered
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 4 bit 8 = 1 Transaction exceeds floor limit
bit 7 = 0 Lower consecutive offline limit not exceeded
bit 6 = 0 Upper consecutive offline limit not exceeded
bit 5 = 0 Transaction not selected randomly for online processing
bit 4 = 0 Merchant did not force transaction online
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 5 bit 8 = 0 No Default TDOL used
bit 7 = 0 Issuer authentication passed or not performed
bit 6 = 0 Script processing passed before final GENERATE AC or no script received
bit 5 = 0 Script processing passed after final GENERATE AC or no script received
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Tag 5F 2A: Transaction Currency Code : 08 26
Code (num) = 08 26
Code (an) = GBP
Currency = Pound Sterling
Tag 9A : Transaction Date : 17 01 03
Year : 2017
Month: January
Day : 03
Tag 9C : Transaction Type : 00
Purchase (of goods or services)
Tag 9F 37: Unpredictable Number : B0 32 0F C0
Tag 9F 35: Terminal Type : 22
Terminal Type: 22
Attended
Merchant
Offline with online capability
Tag 9F 45: Data Authentication Code : 00 00
Tag 9F 4C: ICC Dynamic Number : 00 00 00 00 00 00 00 00
Tag 9F 34: Cardholder Verification Method (CVM) Results : 44 03 02
Byte 1 bit 8 = 0 (default value)
bit 7 = 1 (Apply succeeding CVM field if this CVM is unsuccessful)
bit 6-1= 000100 (Enciphered PIN verification performed by ICC)
Byte 2 = '03' (If terminal supports the CVM type)
Byte 3 = '02' (Successful)
Tag 9F 21: Transaction Time : 16 11 12
Time = 16:11:12
Hours (HH) = 16
Minutes (MM) = 11
Seconds (SS) = 12
Tag 9F 40: Additional Terminal Capabilities : 60 00 80
Byte 1 bit 8 = 0 Cash NOT supported
bit 7 = 1 Goods supported
bit 6 = 1 Services supported
bit 5 = 0 CashBack NOT supported
bit 4 = 0 Inquiry NOT supported
bit 3 = 0 Transfer NOT supported
bit 2 = 0 Payment NOT supported
bit 1 = 0 Administrative NOT supported
Byte 2 bit 8 = 0 CashBack Deposit NOT supported
bit 7 = 0 RFU
bit 6 = 0 RFU
bit 5 = 0 RFU
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 3 bit 8 = 1 Numeric keys supported
bit 7 = 0 Alphabetic and special characters keys NOT supported
bit 6 = 0 Command keys NOT supported
bit 5 = 0 Function keys NOT supported
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 4 bit 8 = 0 Print, attendant NOT supported
bit 7 = 0 Print, cardholder NOT supported
bit 6 = 0 Display, attendant NOT supported
bit 5 = 0 Display, cardholder NOT supported
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 Code table 10 NOT supported
bit 1 = 0 Code table 9 NOT supported
Byte 5 bit 8 = 0 Code table 8 NOT supported
bit 7 = 0 Code table 7 NOT supported
bit 6 = 0 Code table 6 NOT supported
bit 5 = 0 Code table 5 NOT supported
bit 4 = 0 Code table 4 NOT supported
bit 3 = 0 Code table 3 NOT supported
bit 2 = 0 Code table 2 NOT supported
bit 1 = 0 Code table 1 NOT supported
masterKeyAC: 9E 15 20 43 13 F7 31 8A CB 79 B9 0B D9 86 AD 29
uniqueKeyAC: 80 32 AD CE E0 B9 40 BA FB E3 5B 5B 15 9E 8F EA
MCHIP SKD Session Key Derivation
ATC: 00 08
UN: B0 32 0F C0
Cryptogram Version No.: 10
ICC Master Key AC: 9E 15 20 43 13 F7 31 8A CB 79 B9 0B D9 86 AD 29
Derived Card Unique Key: 80 32 AD CE E0 B9 40 BA FB E3 5B 5B 15 9E 8F EA
Derived Session Key: A1 00 11 56 78 15 15 85 2B 53 76 A9 18 14 AA F2
AC calculation: 00 00 00 00 20 00 00 00 00 00 00 00 00 80 00 80 00 08 26 17 01 03 00 B0 32 0F C0 79 00 00 08 A7 40 0F 04 00 00 80
Amount Authorised : 00 00 00 00 20 00
Amount Other : 00 00 00 00 00 00
Terminal Verification Results : 00 80 00 80 00
Transaction Currency Code : 08 26
Transaction Date : 17 01 03
Transaction Type : 00
Unpredictable Number : B0 32 0F C0
Application Interchange Profile : 79 00
Application Transaction Counter : 00 08
Card Verification Results : A7 40 0F 04 00 00
AC Session Key : A1 00 11 56 78 15 15 85 2B 53 76 A9 18 14 AA F2
CDA Signature Generation
Input data: E0 B8 C8 03 72 22 60 00 80 30 00 00 00 00 00 20 00 00 00 00 00 00 00 00 80 00 80 00 08 26 17 01 03 00 B0 32 0F C0 22 00 00 00 00 00 00 00 00 00 00 44 03 02 16 11 12 60 00 80 9F 27 01 80 9F 36 02 00 08 9F 10 12 02 10 A7 40 0F 04 00 00 00 00 00 00 00 00 00 00 00 FF
ICC dynamic number: 98 43 55 5A 0A C1 C2 4A
ICC private key: 1A C2 53 A6 2F FC 28 F2 CA 67 EE 9B 2C BE 16 C2 38 FB E3 C8 8B 28 4A 81 18 44 4B 6A BD 6F 68 FD F4 70 23 62 20 D1 4A 1A 11 6F E4 A8 5C 33 FE 1E 35 CD 9A 3F 48 44 13 64 A3 E9 50 58 ED 26 35 82 D3 6E FA 8E A4 EF EE A2 42 21 C5 4C 02 FB 5D C3 AE 17 97 8B D6 CE 6B 68 A2 4B 3B 13 C8 61 3A 2E 1E 0A 53 1B A1 71 AF 7E 1E FF 44 4B FF 72 50 03 89 F6 64 2F 0F 62 E4 9A 43 0C 6D F7 0C 07 EE 0D
ICC public modulus: A0 8D F5 E5 1F E8 F5 B0 BE 6F 97 A3 0C 74 88 8D 55 E7 56 B3 42 F1 BF 06 91 99 C4 80 70 9C 75 F3 BA A0 D4 4C C4 E7 BC 9C 68 9F 5B F2 29 37 F4 B5 42 D1 9D 7B B1 98 74 5B D7 77 E2 15 8E E5 41 12 8A 15 8E 73 6A 88 4B 82 C5 21 61 6E F0 6F 8D 26 7C 07 B1 EF 79 8A B5 77 AA A3 C6 DD 89 37 C9 B2 34 4C EC AD 5A B8 D5 29 BC AC A7 F9 EC EA DE 85 99 0F 1E 04 FE AE 9F A0 33 DF 69 12 68 F9 F2 D5
Terminal unpredictable number: B0 32 0F C0
Signature: 89 A6 C6 A0 AD 68 43 14 03 EE 4E 92 4B A8 CE B0 ED D9 F2 23 9A AB C9 90 D6 67 FD D5 B4 FF FC 98 99 AB 66 A7 10 0D 5B EB EE 36 7C 36 79 2D A2 A2 92 11 A2 0C 00 71 86 4B BE 20 BA 44 57 73 E5 0C 2D FB 17 AA DE 5C 85 8B 19 66 B8 F3 40 E0 00 EB BF 10 8B 1C AE 91 BD D0 DC 0C D3 D5 40 85 42 72 B0 E2 2F 30 D5 B5 EA 61 29 C9 9F 4F 39 F3 EE BC 66 06 F7 60 11 4D D6 DB 57 CF 57 F6 C1 EF 8C 35
Signed Dynamic Authentication Data
Evaluated: 6A 05 01 26 08 98 43 55 5A 0A C1 C2 4A 80 EC 19 0A DB E4 1C 90 B0 AA 00 A2 EC B5 50 A9 54 A9 92 00 1E CA 05 21 B1 DD 13 98 ED BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB 8E 73 0F 77 06 61 76 D4 6A 68 EF 7A 9C 45 23 0C 9A 62 43 C6 BC
RecoveredDataHeader '6A'h
DynamicApplicationData_for_signature '05 01 26 08 98 43 55 5A 0A C1 C2 4A 80 EC 19 0A DB E4 1C 90 B0 AA 00 A2 EC B5 50 A9 54 A9 92 00 1E CA 05 21 B1 DD 13 98 ED BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB'h structure
SignedDataFormat '05'h
HashAlgorithmIndicator '01'h
ICCDynamicDataLength 38
ICCDynamicData '08 98 43 55 5A 0A C1 C2 4A 80 EC 19 0A DB E4 1C 90 B0 AA 00 A2 EC B5 50 A9 54 A9 92 00 1E CA 05 21 B1 DD 13 98 ED'h
PadPattern 'BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB'h
HashResult '8E 73 0F 77 06 61 76 D4 6A 68 EF 7A 9C 45 23 0C 9A 62 43 C6'h
RecoveredDataTrailer 'BC'h
Expected: 6A 05 01 .. .. .. .. BC
RecoveredDataHeader '6A'h
DynamicApplicationData_for_signature 05 01 .. .. .. structure
SignedDataFormat '05'h
HashAlgorithmIndicator '01'h
ICCDynamicDataLength Length(ICCDynamicData)
ICCDynamicData .. concatenation
QS{0-}
''h
PadPattern .. concatenation
QS {..}
''h
HashResult .. concatenation
QS{1-}
''h
RecoveredDataTrailer 'BC'h
Previous Transaction History
Response: 61 A5
SW1 SW2: 61 A5 (SW_OK Response bytes available(Le))
Get Response
Request : 00 C0 00 00 A5
Class :00
Ins :C0
P1 :00
P2 :00
Le :A5
Response: C0 77 81 A2 9F 27 01 80 9F 36 02 00 08 9F 4B 81 80 89 A6 C6 A0 AD 68 43 14 03 EE 4E 92 4B A8 CE B0 ED D9 F2 23 9A AB C9 90 D6 67 FD D5 B4 FF FC 98 99 AB 66 A7 10 0D 5B EB EE 36 7C 36 79 2D A2 A2 92 11 A2 0C 00 71 86 4B BE 20 BA 44 57 73 E5 0C 2D FB 17 AA DE 5C 85 8B 19 66 B8 F3 40 E0 00 EB BF 10 8B 1C AE 91 BD D0 DC 0C D3 D5 40 85 42 72 B0 E2 2F 30 D5 B5 EA 61 29 C9 9F 4F 39 F3 EE BC 66 06 F7 60 11 4D D6 DB 57 CF 57 F6 C1 EF 8C 35 9F 10 12 02 10 A7 40 0F 04 00 00 00 00 00 00 00 00 00 00 00 FF 90 00
Ack Byte : C0
Data : 77 81 A2 9F 27 01 80 9F 36 02 00 08 9F 4B 81 80 89 A6 C6 A0 AD 68 43 14 03 EE 4E 92 4B A8 CE B0 ED D9 F2 23 9A AB C9 90 D6 67 FD D5 B4 FF FC 98 99 AB 66 A7 10 0D 5B EB EE 36 7C 36 79 2D A2 A2 92 11 A2 0C 00 71 86 4B BE 20 BA 44 57 73 E5 0C 2D FB 17 AA DE 5C 85 8B 19 66 B8 F3 40 E0 00 EB BF 10 8B 1C AE 91 BD D0 DC 0C D3 D5 40 85 42 72 B0 E2 2F 30 D5 B5 EA 61 29 C9 9F 4F 39 F3 EE BC 66 06 F7 60 11 4D D6 DB 57 CF 57 F6 C1 EF 8C 35 9F 10 12 02 10 A7 40 0F 04 00 00 00 00 00 00 00 00 00 00 00 FF
Tag 77 : Response Message Template Format 2
Tag 9F 27: Cryptogram Information Data (CID) : 80
Byte 1 bit 8-7 = 10 ARQC
bit 6-5 = 00 Payment System specific cryptogram
bit 4 = 0 No advice required
bit 3-1 = 000 No information given
Tag 9F 36: Application Transaction Counter (ATC) : 00 08
Decimal value = 8
Tag 9F 4B: Signed Dynamic Application Data : 89 A6 C6 A0 AD 68 43 14 03 EE 4E 92 4B A8 CE B0 ED D9 F2 23 9A AB C9 90 D6 67 FD D5 B4 FF FC 98 99 AB 66 A7 10 0D 5B EB EE 36 7C 36 79 2D A2 A2 92 11 A2 0C 00 71 86 4B BE 20 BA 44 57 73 E5 0C 2D FB 17 AA DE 5C 85 8B 19 66 B8 F3 40 E0 00 EB BF 10 8B 1C AE 91 BD D0 DC 0C D3 D5 40 85 42 72 B0 E2 2F 30 D5 B5 EA 61 29 C9 9F 4F 39 F3 EE BC 66 06 F7 60 11 4D D6 DB 57 CF 57 F6 C1 EF 8C 35
Tag 9F 10: Issuer Application Data [M/Chip 4] : 02 10 A7 40 0F 04 00 00 00 00 00 00 00 00 00 00 00 FF
Key Derivation Index = 02
Cryptogram Version Number = 10
Card Verification Results (CVR) = A7 40 0F 04 00 00
Byte 1 bit 8-7 = 10 AC Returned in Second Generate AC: Not requested
bit 6-5 = 10 AC Returned in First Generate AC: ARQC
bit 4 = 0 RFU
bit 3 = 1 Offline PIN Verification Performed
bit 2 = 1 Offline Encrypted PIN Verification Performed
bit 1 = 1 Offline PIN Verification Successful
Byte 2 bit 8 = 0 DDA not returned
bit 7 = 1 M/Chip Select 4: Combined DDA/AC Generation Returned in First Generate AC, M/Chip Lite 4: Value not allowed
bit 6 = 0 Combined DDA/AC Generation Not Returned in Second Generate AC
bit 5 = 0 Issuer Authentication not performed
bit 4 = 0 CIAC-Default not skipped on CAT3 or not required
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 3 bit 8-5 = 0000 Right nibble of Script Counter : '0'
bit 4-1 = 1111 Right nibble of PIN Try Counter: 'F'
Byte 4 bit 8 = 0 RFU
bit 7 = 0 Unable To Go Online Not Indicated
bit 6 = 0 Offline PIN Verification Performed
bit 5 = 0 No Failure OF Offline PIN Verification
bit 4 = 0 PTL Not Exceeded
bit 3 = 1 International Transaction
bit 2 = 0 International Transaction
bit 1 = 0 Terminal Does Not Erroneously Consider Offline PIN OK
Byte 5 bit 8 = 0 Lower Consecutive Offline Limit Not Exceeded
bit 7 = 0 Upper Consecutive Offline Limit Not Exceeded
bit 6 = 0 Lower Cumulative Offline Limit Not Exceeded
bit 5 = 0 Upper Cumulative Offline Limit Not Exceeded
bit 4 = 0 Go Online On Next Transaction Was Not Set (in this transaction or in a previous one)
bit 3 = 0 No Issuer Authentication Failed (in this transaction or in a previous one)
bit 2 = 0 No Script Received (in a previous transaction)
bit 1 = 0 No Script Failed (in a previous transaction)
Byte 6 bit 8 = 0 RFU
bit 7 = 0 RFU
bit 6 = 0 RFU
bit 5 = 0 RFU
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 No Match found in Additional Check Table
bit 1 = 0 Match Found in Additional Check Table
DAC = 00 00
Counters = 00 00 00 00 00 00 00 FF
SW1 SW2 : 90 00 (SW_OK)
2nd Generate AC (TC)
Request : 80 AE 50 00 23 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 59 33 00 80 00 80 00 B0 32 0F C0 98 43 55 5A 0A C1 C2 4A
Class :80
Ins :AE
P1 :50
P2 :00
Lc :23
Data :00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 59 33 00 80 00 80 00 B0 32 0F C0 98 43 55 5A 0A C1 C2 4A
Tag 91 : Issuer Authentication Data [M/Chip] : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Tag 8A : Authorization Response Code : 59 33
Response Code = 59 33
Meaning = Unable to go online, Requesting for offline approval
Tag 95 : Terminal Verification Results (TVR) : 00 80 00 80 00
Byte 1 bit 8 = 0 Offline data authentication was performed
bit 7 = 0 SDA passed or not performed
bit 6 = 0 No ICC data missing
bit 5 = 0 Card does not appear on terminal exception file
bit 4 = 0 DDA passed or not performed
bit 3 = 0 CDA passed or not performed
bit 2 = 0 SDA not selected
bit 1 = 0 RFU
Byte 2 bit 8 = 1 ICC and terminal have different application versions
bit 7 = 0 No Expired application
bit 6 = 0 Application effective
bit 5 = 0 Requested service allowed for card product
bit 4 = 0 No New card
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 3 bit 8 = 0 Cardholder verification was successful or not performed
bit 7 = 0 Recognised CVM
bit 6 = 0 PIN Try Limit not exceeded
bit 5 = 0 No PIN entry required (PIN pad may or may not be present or may or may not be working)
bit 4 = 0 No PIN entry required (PIN pad may or may not be present)
bit 3 = 0 No Online PIN entered
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 4 bit 8 = 1 Transaction exceeds floor limit
bit 7 = 0 Lower consecutive offline limit not exceeded
bit 6 = 0 Upper consecutive offline limit not exceeded
bit 5 = 0 Transaction not selected randomly for online processing
bit 4 = 0 Merchant did not force transaction online
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Byte 5 bit 8 = 0 No Default TDOL used
bit 7 = 0 Issuer authentication passed or not performed
bit 6 = 0 Script processing passed before final GENERATE AC or no script received
bit 5 = 0 Script processing passed after final GENERATE AC or no script received
bit 4 = 0 RFU
bit 3 = 0 RFU
bit 2 = 0 RFU
bit 1 = 0 RFU
Tag 9F 37: Unpredictable Number : B0 32 0F C0
Tag 9F 4C: ICC Dynamic Number : 98 43 55 5A 0A C1 C2 4A
Previous Transaction History
Response: 69 85
SW1 SW2: 69 85 (SW_Error Accesscondition not satisfied)
Test Completed发布于 2017-01-17 13:24:16
我从测试工具的支持系统得到了一些帮助。他们的反应有助于解释这种情况:
响应1:“测试用例M-TIP 50 test1、test2和test 3中的事务量都超过了下限,因此事务应该联机。但是,由于您的测试环境是脱机的,事务无法在线处理。我可以看到第二代AC中的颁发者身份验证数据都是0(它们不是由发行者返回,而是由终端设置的默认值)。该卡验证身份验证数据,以查看发行人是否返回该数据。在您的情况下,验证失败,卡片返回“6985”。
响应2::“MTIP50测试用例有点特殊。MTIP50测试用例的发行者身份验证数据为16字节,与正常值(10字节)不同。因此,BTT对MTIP50的颁发者身份验证数据进行额外检查。因为在您的测试用例中,发行者身份验证数据都是零,模拟卡认为它们无效。”
解决方案:发现这是我使用的测试工具中的一个问题。他们最近发布了一个新版本的软件,这种情况不再发生。
发布于 2017-01-05 10:08:15
似乎你在没有明确计数器的情况下做了很多“离线审批”。
在您的案例中,有几个可能的原因:
1) AC会话密钥计数器限制超过
因为第二次生成AC中的响应代码“无法联机,请求脱机批准”卡脱机,因此CTR累积并且不重置(它只在Generate 2中在线重置)。
尝试个人化增加的限制或做完全在线。
2) 溢出在金额转换期间,if transaction International (transaction currency != CRM货币代码)。
要求全线
3) 溢出期间添加累计金额,如果交易是国内的(交易货币== ==货币代码)。
需要完整的Onlinе
另外,检查为什么Cdol1中没有“国家代码”
https://stackoverflow.com/questions/41447981
复制相似问题
