4. Configure Android Studio build for native functionality

4a. Link C++ Project with Gradle

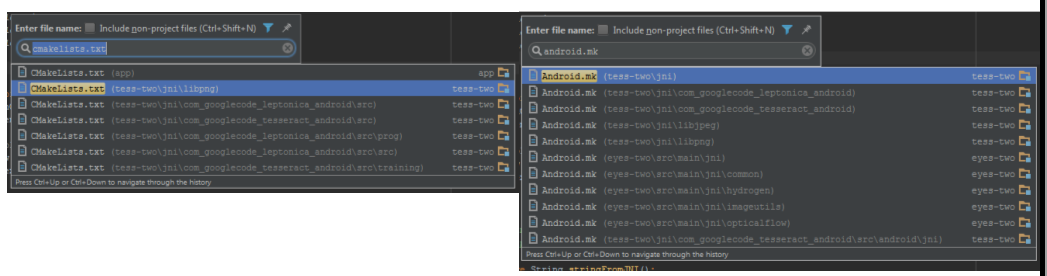

First, check the <code>tess-two</code> project for build files. You may select CMakeLists.txt or Android.mk files. Both are currently supported.

<a href="https://i.stack.imgur.com/2Zjg9.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/2Zjg9.png" alt="checking project build config files"></a>

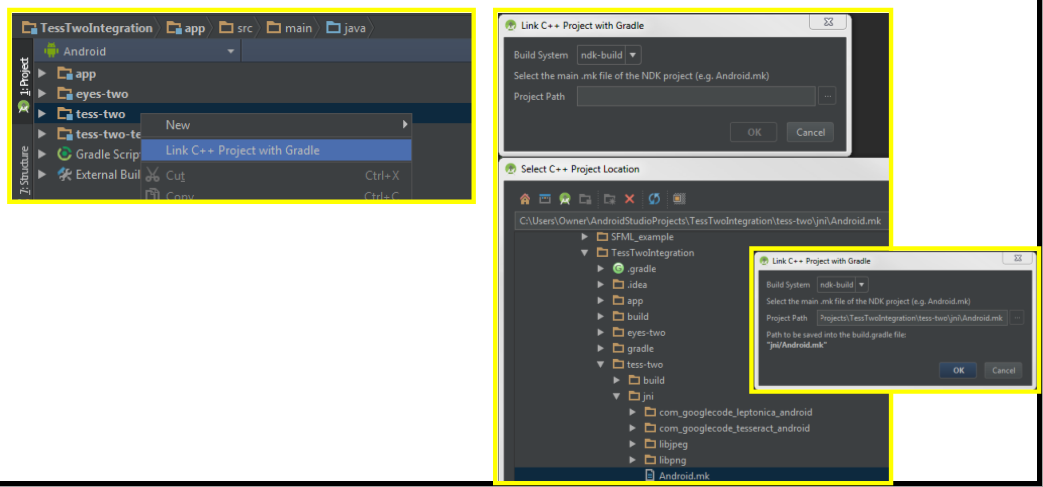

In this case, I used <code>ndk-build</code>, which seemed like a good bet for integrating the native code.

<a href="https://i.stack.imgur.com/aOEAB.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/aOEAB.png" alt="Linking C++ project"></a>

For more information, see <a href="https://developer.android.com/studio/projects/add-native-code.html#link-with-ui" rel="nofollow noreferrer">Android Studio documentation</a>

4b. Manage Long Commands

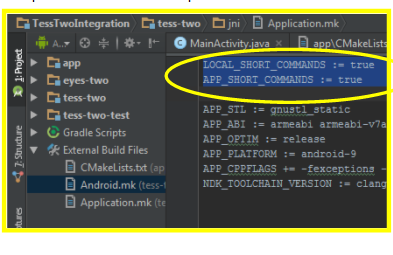

In Windows, errors may be encountered if the command length grows too large. To prevent problems, use <code>LOCAL_SHORT_COMMANDS</code> AND <code>APP_SHORT_COMMANDS</code> in the <code>Android.mk</code> file.

<a href="https://i.stack.imgur.com/XfBQJ.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/XfBQJ.png" alt="Adding attributes that reduce command length"></a>

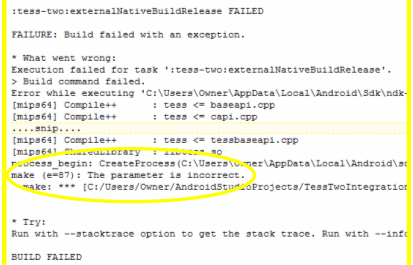

The "e=87" error is what you are avoiding by doing this:

<a href="https://i.stack.imgur.com/skjQV.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/skjQV.png" alt="The parameter is incorrect error 87 message"></a>

For more on that topic, see <a href="https://stackoverflow.com/questions/12598933/ndk-build-createprocess-make-e-87-the-parameter-is-incorrect">stackoverflow question about error 87</a>.

4c. Add Module Dependency for tess-two

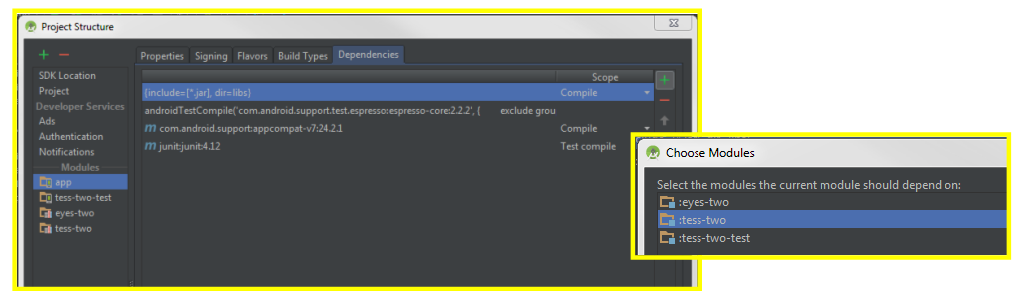

In File > Project Structure > Dependencies use the + to add the <code>tess-two</code> dependency:

<a href="https://i.stack.imgur.com/YVMGK.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/YVMGK.png" alt="add tess-two as a dependency"></a>

4d. Build the Project and check .apk file for .so files

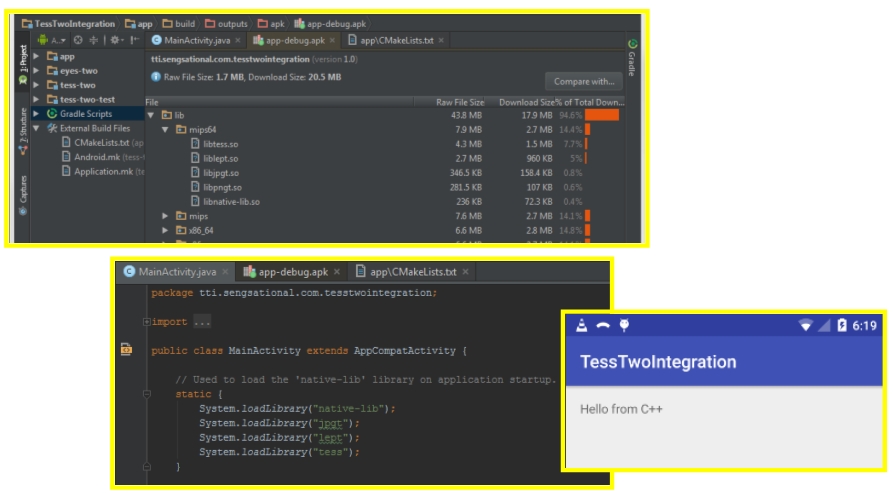

The build, which takes a long time, should complete now. Validate that the <code>.apk</code> file contains the <code>.so</code> files, created during the build. With the <code>tess-two</code> libraries in an static initializer, run the project on your Android device:

<a href="https://i.stack.imgur.com/nEWGH.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/nEWGH.png" alt="apk file with tess-two .so files and running test app"></a>

There are answers about getting the <code>tess-two</code> project integrated into an Android project within Android Studio, but many are out-dated and none used the current capabilities defined here:

<blockquote>
 Using Android Studio 2.2 and higher, you can use the NDK to compile C and C++ code into a native library and package it into your APK using Gradle, the IDE's integrated build system. Your Java code can then call functions in your native library through the Java Native Interface (JNI)
</blockquote>

What specific steps would be required to make <code>tess-two</code> functionality a part of the resulting APK, using functionality within Android Studio, rather than external file placement, manipulation and command line tools? So taking the building, creation of *.so files into the IDE. Specifically using just Android Studio's integrated build system (Gradle) as described <a href="https://developer.android.com/ndk/guides/index.html" rel="nofollow noreferrer">here</a>.

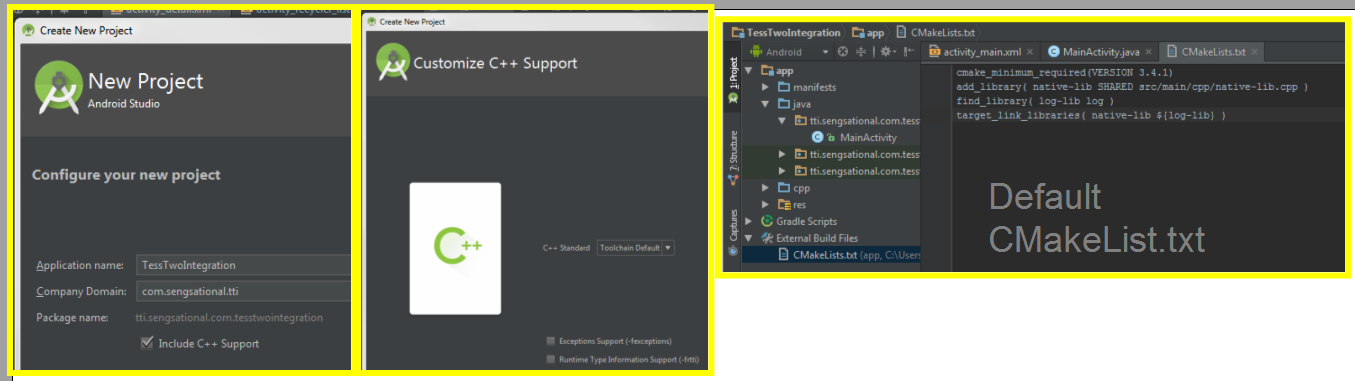

1. Start a new project

<a href="https://i.stack.imgur.com/es3k8.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/es3k8.png" alt="starting a new Android Studio project with C++ support"></a>

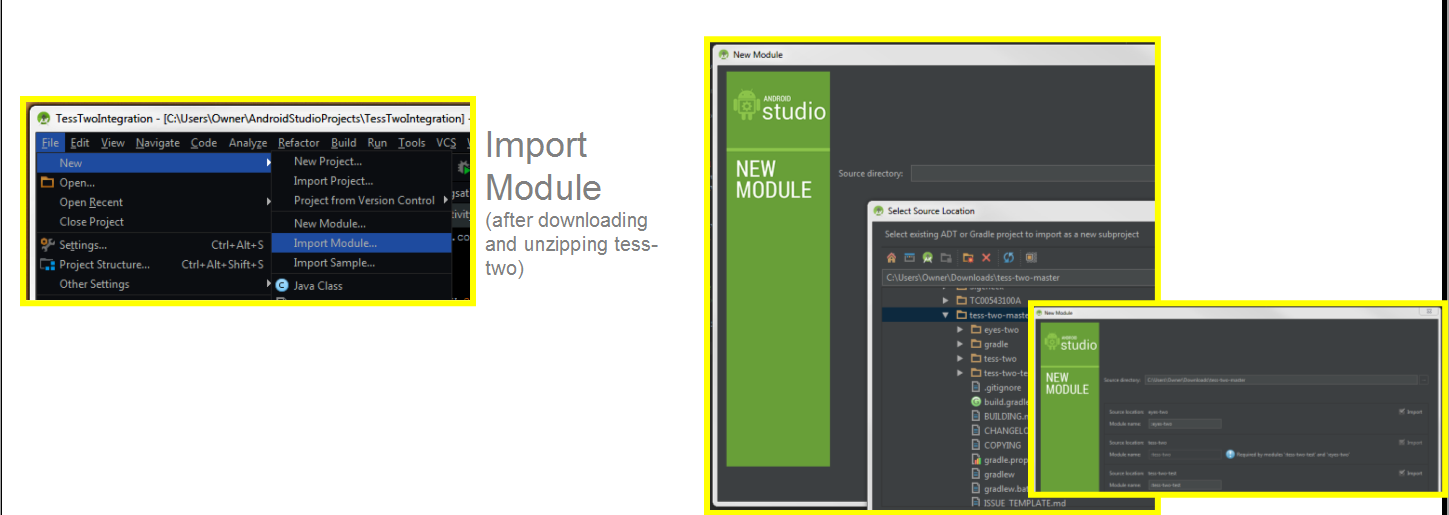

2. Import Tess-Two into the project

<a href="https://i.stack.imgur.com/ZiVHX.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/ZiVHX.png" alt="import tess-two as a module in the new project"></a>

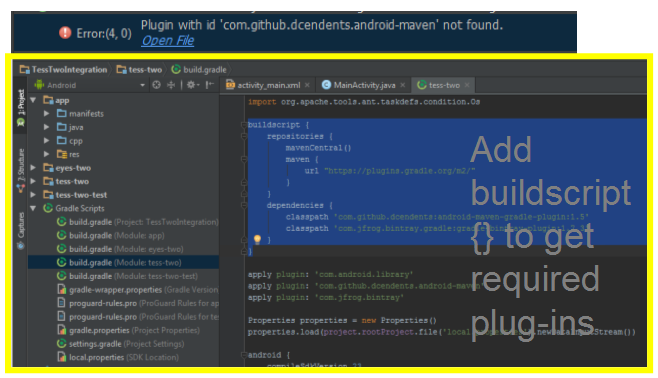

2b. Add any needed plug-ins

<a href="https://i.stack.imgur.com/5FW1Y.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/5FW1Y.png" alt="add to tess-two build.gradle to pull required plug-ins"></a>

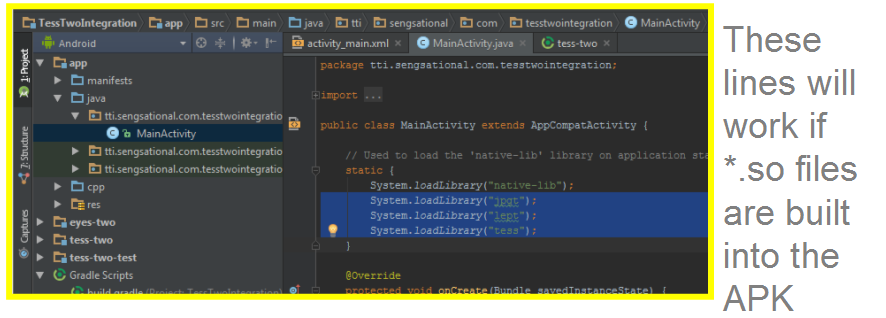

3. Add code in the main activity to get native functionality

<a href="https://i.stack.imgur.com/Dot81.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/Dot81.png" alt="static import of tess-two native files"></a>

4. Configure Android Studio build so that native functionality is available

This is where the specifics are required

Building tess-two into a project using Android Studio's gradle build
