如何设置Swashbuckle对Microsoft.AspNetCore.Mvc.Versioning

Question

我们有asp.net核心网页。我们添加了Microsoft.AspNetCore.Mvc.Versioning和Swashbuckle，使其具有更好的UI。我们指定控制器如下：

[ApiVersion("1.0")]
[Route("api/v{version:apiVersion}/[controller]")]
public class ContactController : Controller
{

当我们运行swagger用户界面时，我们在路由中获得版本作为参数：

​

如何为路由设置默认的"v1“？如果版本2达到了阶段，那么如何支持这两个版本的swagger呢？

Answer 1

目前，斯瓦什巴克尔和Microsoft.AspNetCore.Mvc.Versioning是朋友。效果很好。我刚刚在VS2017中创建了测试项目，并检查了它是如何工作的。

首先，包括这两个nuget包：

<PackageReference Include="Microsoft.AspNetCore.Mvc.Versioning" Version="1.2.1" />
<PackageReference Include="Swashbuckle.AspNetCore" Version="1.0.0" />

在Startup.cs中配置所有内容(请阅读我的注释)：

public void ConfigureServices(IServiceCollection services)
    {
        services.AddMvc();


        // Configure versions
        services.AddApiVersioning(o =>
        {
            o.AssumeDefaultVersionWhenUnspecified = true;
            o.DefaultApiVersion = new ApiVersion(1, 0);
        });

        // Configure swagger
        services.AddSwaggerGen(options =>
        {
            // Specify two versions
            options.SwaggerDoc("v1",
                new Info()
                {
                    Version = "v1",
                    Title = "v1 API",
                    Description = "v1 API Description",
                    TermsOfService = "Terms of usage v1"
                });

            options.SwaggerDoc("v2",
                new Info()
                {
                    Version = "v2",
                    Title = "v2 API",
                    Description = "v2 API Description",
                    TermsOfService = "Terms of usage v2"
                });

            // This call remove version from parameter, without it we will have version as parameter
            // for all endpoints in swagger UI
            options.OperationFilter<RemoveVersionFromParameter>();

            // This make replacement of v{version:apiVersion} to real version of corresponding swagger doc.
            options.DocumentFilter<ReplaceVersionWithExactValueInPath>();

            // This on used to exclude endpoint mapped to not specified in swagger version.
            // In this particular example we exclude 'GET /api/v2/Values/otherget/three' endpoint,
            // because it was mapped to v3 with attribute: MapToApiVersion("3")
            options.DocInclusionPredicate((version, desc) =>
            {
                var versions = desc.ControllerAttributes()
                    .OfType<ApiVersionAttribute>()
                    .SelectMany(attr => attr.Versions);

                var maps = desc.ActionAttributes()
                    .OfType<MapToApiVersionAttribute>()
                    .SelectMany(attr => attr.Versions)
                    .ToArray();

                return versions.Any(v => $"v{v.ToString()}" == version) && (maps.Length == 0 || maps.Any(v => $"v{v.ToString()}" == version));
            });

        });

    }

public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
    {
        loggerFactory.AddConsole(Configuration.GetSection("Logging"));
        loggerFactory.AddDebug();

        app.UseSwagger();
        app.UseSwaggerUI(c =>
        {
            c.SwaggerEndpoint($"/swagger/v2/swagger.json", $"v2");
            c.SwaggerEndpoint($"/swagger/v1/swagger.json", $"v1");
        });
        app.UseMvc();
    }

有两个类可以实现这一目的：

public class RemoveVersionFromParameter : IOperationFilter
{
    public void Apply(Operation operation, OperationFilterContext context)
    {
        var versionParameter = operation.Parameters.Single(p => p.Name == "version");
        operation.Parameters.Remove(versionParameter);
    }
}

public class ReplaceVersionWithExactValueInPath : IDocumentFilter
{
    public void Apply(SwaggerDocument swaggerDoc, DocumentFilterContext context)
    {
        swaggerDoc.Paths = swaggerDoc.Paths
            .ToDictionary(
                path => path.Key.Replace("v{version}", swaggerDoc.Info.Version),
                path => path.Value
            );
    }
}

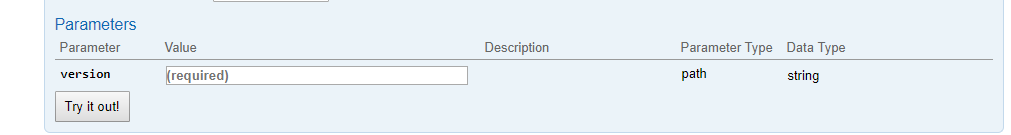

RemoveVersionFromParameter从swagger中删除此文本框：

​

​

ReplaceVersionWithExactValueInPath改变了这一点：

​

​

对此：

​

​

控制器类现在看起来如下：

[Route("api/v{version:apiVersion}/[controller]")]
[ApiVersion("1")]
[ApiVersion("2")]
public class ValuesController : Controller
{
    // GET api/values
    [HttpGet]
    public IEnumerable<string> Get()
    {
        return new string[] { "value1", "value2" };
    }

    // GET api/values/5
    [HttpGet("{id}")]
    public string Get(int id)
    {
        return "value";
    }

    // POST api/values
    [HttpPost]
    public void Post([FromBody]string value)
    {
    }

    // PUT api/values/5
    [HttpPut("{id}")]
    public void Put(int id, [FromBody]string value)
    {
    }

    // DELETE api/values/5
    [HttpDelete("{id}")]
    public void Delete(int id)
    {
    }


    [HttpGet("otherget/one")]
    [MapToApiVersion("2")]
    public IEnumerable<string> Get2()
    {
        return new string[] { "value1", "value2" };
    }

    /// <summary>
    /// THIS ONE WILL BE EXCLUDED FROM SWAGGER Ui, BECAUSE v3 IS NOT SPECIFIED. 'DocInclusionPredicate' MAKES THE
    /// TRICK
    /// </summary>
    /// <returns></returns>
    [HttpGet("otherget/three")]
    [MapToApiVersion("3")]
    public IEnumerable<string> Get3()
    {
        return new string[] { "value1", "value2" };
    }
}

代码：https://gist.github.com/Alezis/bab8b559d0d8800c994d065db03ab53e

Answer 2

如果使用.Net核心3，基本上我采用了@Alezis的解决方案，并将其更新为使用.Net核心3：

public void ConfigureServices(IServiceCollection services)
    {
     ....
        services.AddSwaggerGen(options =>
        {
            options.SwaggerDoc("v1", new OpenApiInfo() { Title = "My API", Version = "v1" });
            options.OperationFilter<RemoveVersionFromParameter>();

            options.DocumentFilter<ReplaceVersionWithExactValueInPath>();

        });
      ...
    }

public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
    ...
    app.UseSwagger();
    app.UseSwaggerUI(c =>
    {
        c.SwaggerEndpoint("/swagger/v1/swagger.json", "My API V1");
    });
   ...
}

public class RemoveVersionFromParameter : IOperationFilter
{
    public void Apply(OpenApiOperation operation, OperationFilterContext context)
    {
        var versionParameter = operation.Parameters.Single(p => p.Name == "version");
        operation.Parameters.Remove(versionParameter);
    }
}

public class ReplaceVersionWithExactValueInPath : IDocumentFilter
{
    public void Apply(OpenApiDocument swaggerDoc, DocumentFilterContext context)
    {
        var paths = new OpenApiPaths();
        foreach (var path in swaggerDoc.Paths)
        {
            paths.Add(path.Key.Replace("v{version}", swaggerDoc.Info.Version), path.Value);
        }
        swaggerDoc.Paths = paths;
    }
}

Answer 3

不需要调整OpenAPI文档，您可以使用微软提供的库将版本添加到API资源管理器中。这样，在Swashbuckle (或其他工具链)需要它之前就提供了版本，并允许您避免使用自定义代码。

Microsoft.AspNetCore.Mvc.Versioning.ApiExplorer

在添加包和这段代码之后，我能够正确地配置版本。

services.AddVersionedApiExplorer(
    options =>
    {
    // add the versioned api explorer, which also adds IApiVersionDescriptionProvider service
    // note: the specified format code will format the version as "'v'major[.minor][-status]"
    options.GroupNameFormat = "'v'VVV";

    // note: this option is only necessary when versioning by url segment. the SubstitutionFormat
    // can also be used to control the format of the API version in route templates
    options.SubstituteApiVersionInUrl = true;
    }
);
