C3条形图x轴标签太拥挤了

Question

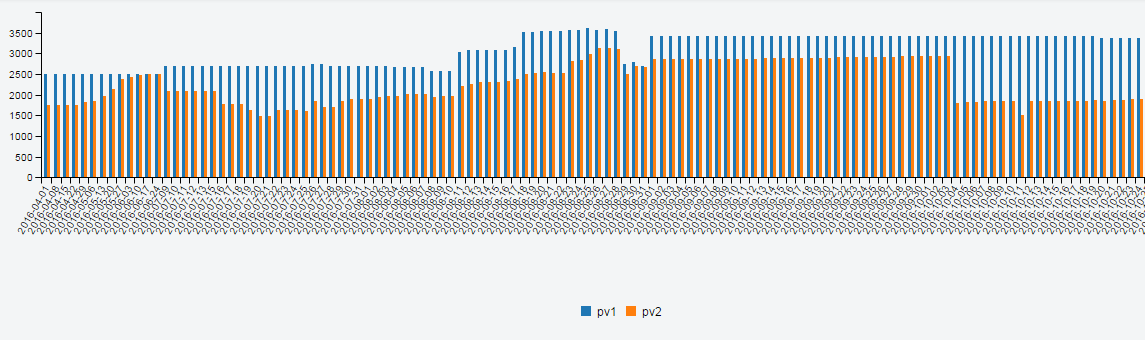

我使用C3 JS插件创建了一个条形图，这个图形运行良好，但问题是x轴标签看起来太拥挤了，如下所示

​

​

工作JSFiddle

我的代码如下所示

var chart = c3.generate({
        bindto: "#chart",
    data: {
        x : 'x',
        columns: [

['x', "2016-04-01","2016-04-08","2016-04-15","2016-04-22","2016-04-29","2016-05-06","2016-05-13","2016-05-20","2016-05-27","2016-06-03","2016-06-10","2016-06-17","2016-06-24","2016-07-09","2016-07-10","2016-07-11","2016-07-12","2016-07-13","2016-07-15","2016-07-16","2016-07-17","2016-07-18","2016-07-19","2016-07-20","2016-07-21","2016-07-22","2016-07-23","2016-07-24","2016-07-25","2016-07-26","2016-07-27","2016-07-28","2016-07-29","2016-07-30","2016-07-31","2016-08-01","2016-08-02","2016-08-03","2016-08-04","2016-08-05","2016-08-06","2016-08-07","2016-08-08","2016-08-09","2016-08-10","2016-08-11","2016-08-12","2016-08-13","2016-08-14","2016-08-15","2016-08-16","2016-08-17","2016-08-18","2016-08-19","2016-08-20","2016-08-21","2016-08-22","2016-08-23","2016-08-24","2016-08-25","2016-08-26","2016-08-27","2016-08-28","2016-08-29","2016-08-30","2016-08-31","2016-09-01","2016-09-02","2016-09-03","2016-09-04","2016-09-05","2016-09-06","2016-09-07","2016-09-08","2016-09-09","2016-09-10","2016-09-11","2016-09-12","2016-09-13","2016-09-14","2016-09-15","2016-09-16","2016-09-17","2016-09-18","2016-09-19","2016-09-20","2016-09-21","2016-09-22","2016-09-23","2016-09-24","2016-09-25","2016-09-26","2016-09-27","2016-09-28","2016-09-29","2016-09-30","2016-10-01","2016-10-02","2016-10-03","2016-10-04","2016-10-05","2016-10-06","2016-10-07","2016-10-08","2016-10-09","2016-10-10","2016-10-11","2016-10-12","2016-10-13","2016-10-14","2016-10-15","2016-10-16","2016-10-17","2016-10-18","2016-10-19","2016-10-20","2016-10-21","2016-10-22","2016-10-23","2016-10-24","2016-10-25","2016-10-26","2016-10-27","2016-10-28","2016-10-29","2016-10-30","2016-10-31","2016-11-01","2016-11-02","2016-11-03","2016-11-04","2016-11-09"],
['pv1', 2500,2500,2500,2500,2500,2500,2500,2500,2500,2500,2500,2500,2500,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2696,2748,2748,2694,2694,2694,2694,2694,2694,2694,2668,2668,2668,2668,2576,2572,2572,3043,3084,3084,3084,3084,3084,3156,3521,3521,3550,3542,3542,3573,3580,3629,3579,3584,3542,2757,2791,2696,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3415,3414,3414,3414,3414,3414,3414,3414,3414,3414,3414,3414,3414,3414,3369,3376,3371,3373,3371,3379,3363,3373,3347,3348,3382,3402,3410,3434,2579,2579,2369],
['pv2', 1750,1750,1750,1750,1825,1850,1975,2150,2375,2425,2475,2500,2500,2087,2087,2087,2087,2091,2087,1767,1767,1767,1633,1498,1498,1642,1637,1633,1609,1841,1713,1702,1862,1888,1888,1888,1949,1976,1977,2014,2014,2014,1946,1966,1973,2224,2252,2318,2318,2318,2327,2373,2513,2535,2543,2534,2539,2823,2849,2990,3142,3142,3108,2513,2687,2678,2856,2860,2861,2862,2866,2869,2870,2875,2874,2874,2874,2879,2885,2886,2883,2889,2896,2895,2899,2903,2909,2911,2913,2913,2913,2916,2922,2933,2937,2943,2942,2943,2947,1811,1826,1837,1840,1840,1841,1843,1511,1854,1853,1851,1852,1853,1849,1852,1874,1857,1883,1886,1888,1904,1903,1924,1947,2060,2068,2068,2082,1582,1344,836,839,788]
],
        type: 'bar'
    },
    axis: {
        x: {
            type: 'category',
            tick: {
                rotate: -60,
                multiline: false
            },
            height: 130
        }

    }
});

有谁能告诉我这个问题的解决方案吗？

我为解决这个问题做了什么

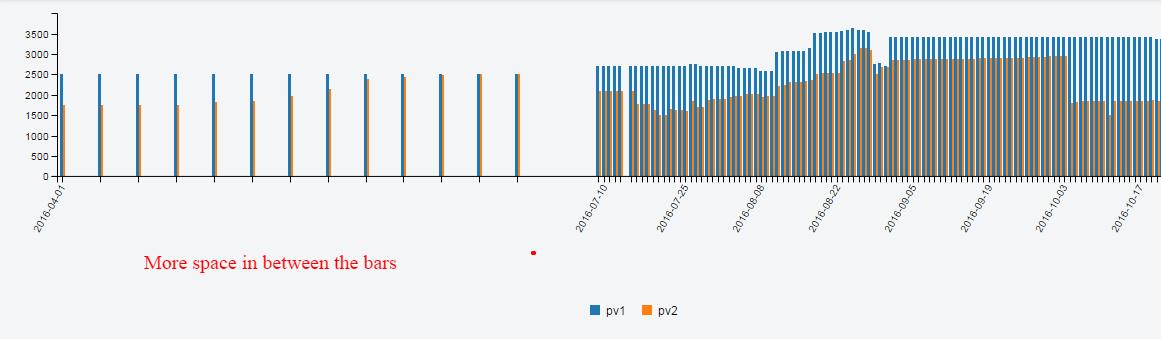

我使用了timeseries类型，而不是类别类型，之后标签问题得到了解决，但是图在3月份被绘制了更多的空白，如下所示

​

​

工作JSFiddle

Answer 1

您可以使用c3的滴答计数设置，所以这里我们说20个标签。

但是，还有一个额外的缺点，即现在解析成分数类别值的滴答不会显示--即，20中的第二个等距的勾号可能是x类别轴中的2.6667元素--所以您需要有一个小的格式函数来调整这个值，否则您只需要得到结束和开始标签。(或者您可以计算出一个滴答计数，它将数据计数+1作为一个整数。)

tick: {
   format: function (x) {
      var cats = this.api.categories();
      return cats[Math.round(x)];
   },
   count: 20,
   rotate: -60,
   multiline: false
},

http://jsfiddle.net/fz0t10yb/7/

Answer 2

可能的解决方案之一是只在所需的索引上使用x轴标签&让其他索引保持空白。

['x', "2016-04-01","","","","2016-04-29","","","",...]
['pv1', 2500,2500,2500,2500,2500,2500,2500,2500,...]
['pv2', 1750,1750,1750,1750,1825,1850,1975,2150,...]

您可以定位标签，以便它能够捕获日期，同时它看起来也不错。
