Xceed数据显示组合框

Question

我想使用"Xceed DataGrid for WPF“社区版本来显示WPF应用程序中已经对Propertygrid正确的项。

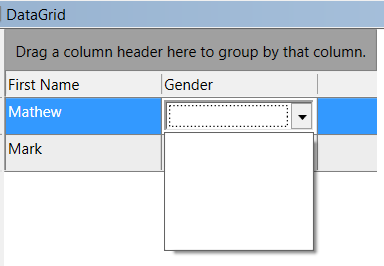

文本框(名称)工作正常，但组合框不工作。问题是组合框没有填充任何东西，也没有正确地设置性别。下面给出了我的简单代码。

XAML：

    <Window.Resources>
            <xcdg:DataGridCollectionViewSource x:Key="mySource" Source="{Binding Path=SelectedEntity}" />
</Window.Resources>
<Grid>
    <xcdg:DataGridControl ItemsSource="{Binding Source={StaticResource mySource}}" AutoCreateColumns="True">
        <xcdg:DataGridControl.Columns>
            <xcdg:Column FieldName="FirstName" Title="First Name" />
            <xcdg:Column  FieldName="Gender" Title="Gender" >
                <xcdg:Column.CellContentTemplate>
                    <DataTemplate x:Name="clmGenderTmp">
                        <ComboBox SelectedValuePath="GenderID"
                            DisplayMemberPath="Name"
                            ItemsSource="{Binding Path=SelectedEntity.Gender, RelativeSource={RelativeSource AncestorType={x:Type Window}}}"
                            SelectedValue="{xcdg:CellEditorBinding}"/>
                    </DataTemplate>
                </xcdg:Column.CellContentTemplate>
            </xcdg:Column>
        </xcdg:DataGridControl.Columns>
    </xcdg:DataGridControl>
</Grid>

Xaml.cs是：

InitializeComponent();
this.DataContext = new MainWindowViewModel();

数据类是：

using System.ComponentModel;
using Xceed.Wpf.DataGrid;
public enum Genders { Male, Female  }
public class Person
{
    public Person(string firstName, Genders gender)
    {
        FirstName = firstName;
        Gender = gender;
    }

    [DisplayName("Given name")]
    public string FirstName { get; set; }

    [Browsable(true)]
    public Genders Gender {  get;  set; }
}

视图模型是：

public class MainWindowViewModel
{
    public List<object> SelectedEntity { get; set; }
    public MainWindowViewModel()
    {
        SelectedEntity = new List<object>();
        this.SelectedEntity.Add(new Person("Mathew", Genders.Male));
        this.SelectedEntity.Add(new Person("Mark", Genders.Female));
    }
}

​

​

Answer 1

Window似乎没有属性SelectedEntity。)您想绑定到的是DataContext.SelectedEntity.Gender。无论如何，这根本不起作用，因为您试图将单个值(性别)绑定为ItemsSource。

您需要向组合框提供(enum)值的列表。How to bind an enum to a combobox control in WPF?

编辑

由于我的答案显然不够具体，我提供了一个充分的例子：

XAML：

<ItemsControl ItemsSource="{Binding}">
    <ItemsControl.ItemTemplate>
        <DataTemplate>
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition />
                    <ColumnDefinition />
                </Grid.ColumnDefinitions>
                <TextBlock Text="{Binding Firstname}"
                            Margin="10" />
                <ComboBox ItemsSource="{Binding Path=AvailableGenders}"
                            SelectedValue="{Binding Path=Gender}"
                            Grid.Column="1" />
            </Grid>
        </DataTemplate>
    </ItemsControl.ItemTemplate>
</ItemsControl>

PersonViewModel：

public class PersonViewModel : ViewModelBase
{
    private Genders _gender;
    private string _firstname;
    public string Firstname
    {
        get
        {
            return _firstname;
        }
        set
        {
            _firstname = value;
            OnPropertyChanged();
        }
    }

    public Genders Gender
    {
        get
        {
            return _gender;
        }
        set
        {
            _gender = value;
            OnPropertyChanged();
        }
    }

    public List<Genders> AvailableGenders

    {
        get
        {
            return Enum.GetValues(typeof(Genders)).Cast<Genders>().ToList();
        }
    }

}

MainWindow Ctor：

public MainWindow()
    {
    InitializeComponent();

    List<PersonViewModel> persons = new List<PersonViewModel>();


    persons.Add(new PersonViewModel() { Firstname = "John", Gender = Genders.female });
    persons.Add(new PersonViewModel() { Firstname = "Partyboy", Gender = Genders.male });
    persons.Add(new PersonViewModel() { Firstname = "r2d2", Gender = Genders.robot });
    persons.Add(new PersonViewModel() { Firstname = "KlausMaria", Gender = Genders.shemale });

    DataContext = persons;


}

Answer 2

我从How to add ComboBox column in XCeed DataGridControl (WPF)得到了一个类似的例子

只要发布我的代码，如果有人面临同样的问题。

ViewModel:

public class ViewModel
{
    public DataTable Persons { get; set; }
    public DataTable Gender { get; set; }
    public ViewModel()
    {
        Persons = new DataTable();
        Persons.Columns.Add("FirstName", typeof(string));
        Persons.Columns.Add("GenderID", typeof(int));

        Persons.Rows.Add("Mathew",1);
        Persons.Rows.Add("Gil", 2);

        Gender = new DataTable();
        Gender.Columns.Add("Name", typeof(string));
        Gender.Columns.Add("GenderID", typeof(int));

        Gender.Rows.Add("Male", 1);
        Gender.Rows.Add("Female", 2);
    }
}

代码背后：

InitializeComponent();
viewModel = new ViewModel();
this.DataContext = viewModel;

XMAL:

<Grid>
    <Grid.Resources>
        <Style TargetType="{x:Type xcdg:GroupByControl}">
            <Setter Property="Visibility" Value="Collapsed"/>
        </Style>
    </Grid.Resources>

    <xcdg:DataGridControl ItemsSource="{Binding Persons}" >
        <xcdg:DataGridControl.Columns>
            <xcdg:Column x:Name="clmFN" FieldName="FirstName"/>
            <xcdg:Column x:Name="clmGender" FieldName="GenderID">
                <xcdg:Column.CellContentTemplate>
                    <DataTemplate x:Name="clmGenderTmp">
                        <ComboBox SelectedValuePath="GenderID"
                            DisplayMemberPath="Name"
                            ItemsSource="{Binding Path=DataContext.Gender, RelativeSource={RelativeSource AncestorType={x:Type Window}}}"
                            SelectedValue="{xcdg:CellEditorBinding}"/>
                    </DataTemplate>
                </xcdg:Column.CellContentTemplate>
            </xcdg:Column>
        </xcdg:DataGridControl.Columns>
    </xcdg:DataGridControl>
</Grid>
