在UIBlurEffect上画孔

Question

Xcode 8.0 -SWIFT2.3

我有一个内部扩展来创建工作非常好的模糊层：

internal extension UIView {

    /**
     Add and display on current view a blur effect.
     */
    internal func addBlurEffect(style style: UIBlurEffectStyle = .ExtraLight, atPosition position: Int = -1) -> UIView {
        // Blur Effect
        let blurEffectView = self.createBlurEffect(style: style)
        if position >= 0 {
            self.insertSubview(blurEffectView, atIndex: position)
        } else {
            self.addSubview(blurEffectView)
        }
        return blurEffectView
    }

    internal func createBlurEffect(style style: UIBlurEffectStyle = .ExtraLight) -> UIView {
        let blurEffect = UIBlurEffect(style: style)
        let blurEffectView = UIVisualEffectView(effect: blurEffect)
        blurEffectView.frame = self.bounds
        blurEffectView.autoresizingMask = [.FlexibleWidth, .FlexibleHeight]
        return blurEffectView
    }

}

问题是:我如何在模糊的覆盖层中添加一个形状的洞？我已经做了很多尝试：

let p = UIBezierPath(roundedRect: CGRectMake(0.0, 0.0, self.viewBlur!.frame.width, self.viewBlur!.frame.height), cornerRadius: 0.0)
p.usesEvenOddFillRule = true
let f = CAShapeLayer()
f.fillColor = UIColor.redColor().CGColor
f.opacity = 0.5
f.fillRule = kCAFillRuleEvenOdd
p.appendPath(self.holePath)
f.path = p.CGPath
self.viewBlur!.layer.addSublayer(f)

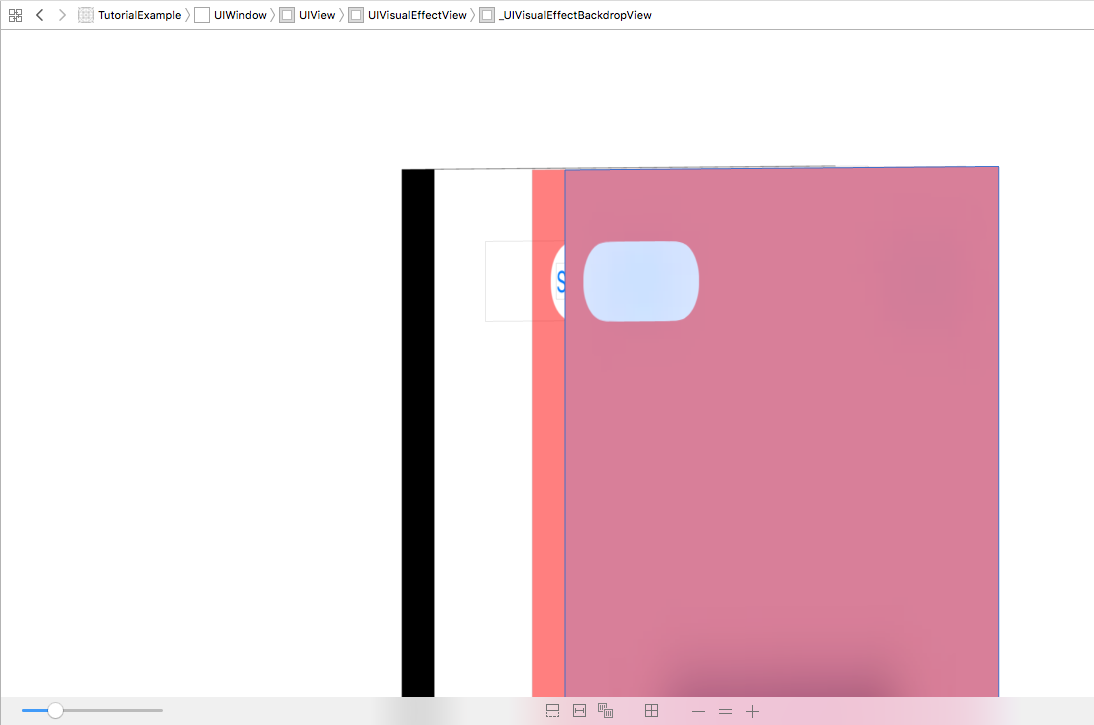

但结果是：

​

​

我不明白为什么洞在UIVisualEffectView上没问题，但在_UIVisualEffectBackdropView里不行

更新

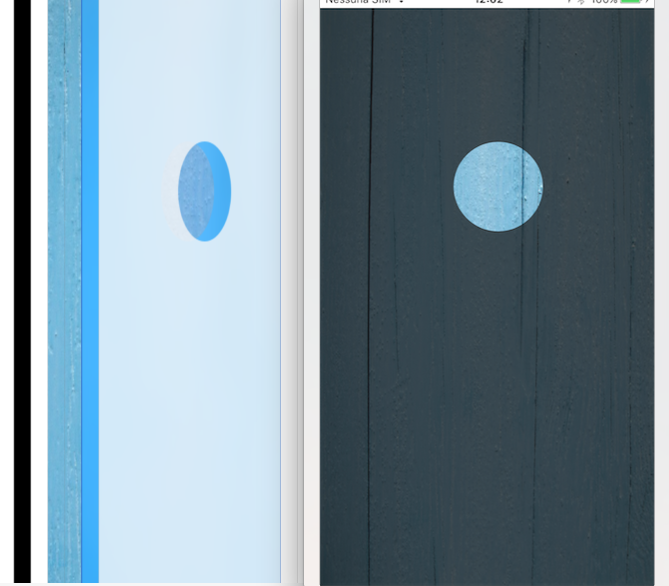

我尝试过@Arun解决方案(使用UIBlurEffectStyle.Dark)，但结果并不相同：

​

​

更新2

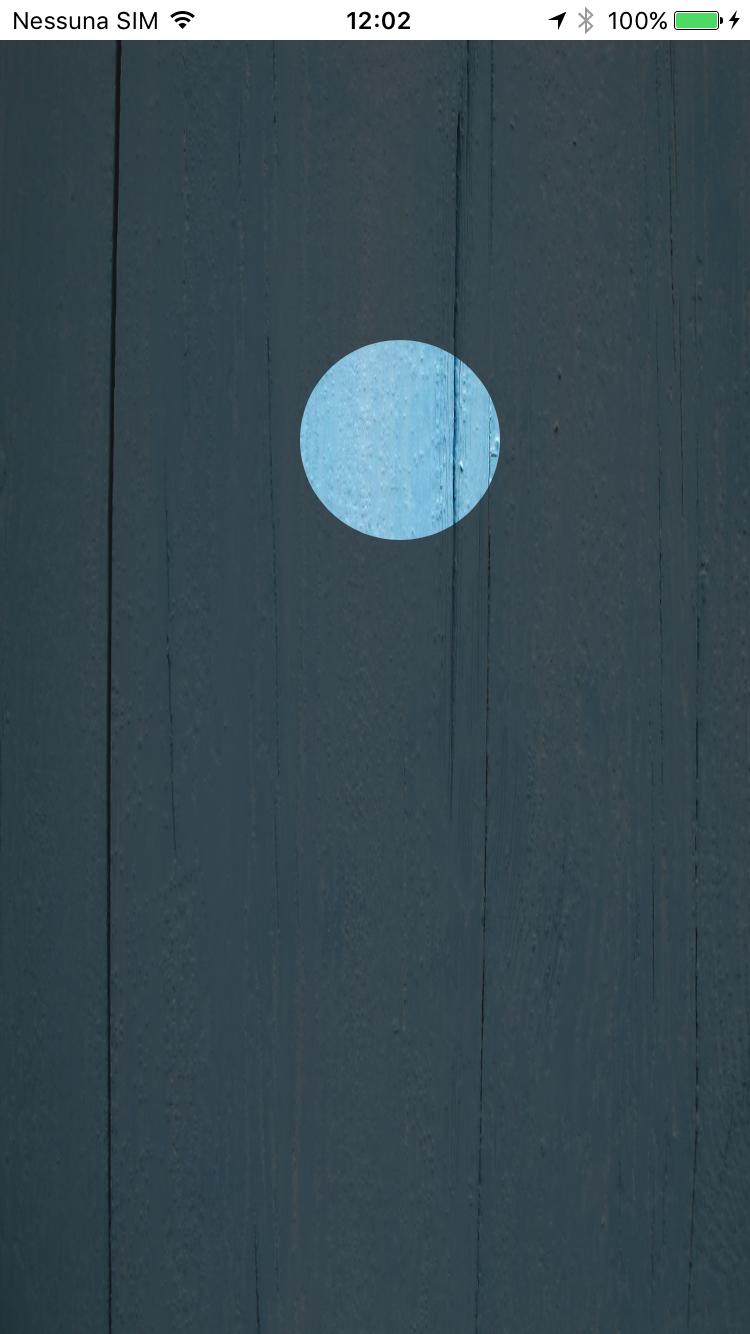

关于@Dim_ov的解决方案，我有：

​

为了完成这项工作，我需要以这样的方式隐藏_UIVisualEffectBackdropView：

    for v in effect.subviews {
        if let filterView = NSClassFromString("_UIVisualEffectBackdropView") {
            if v.isKindOfClass(filterView) {
                v.hidden = true
            }
        }
    }

Answer 1

在iOS 10中，您必须使用UIVisualEffectView的mask属性，而不是CALayer的mask。

我在iOS 10或Xcode 8的一些早期测试版的发行说明中看到了这一点，但我现在找不到这些注释:)。一旦我找到答案，我就会用适当的链接更新我的答案。

下面是在iOS 10/Xcode 8中工作的代码：

class ViewController: UIViewController {
    @IBOutlet var blurView: UIVisualEffectView!

    override func viewDidAppear(_ animated: Bool) {
        super.viewDidAppear(animated)

        updateBlurViewHole()
    }

    override func viewDidLayoutSubviews() {
        super.viewDidLayoutSubviews()

        updateBlurViewHole()
    }

    func updateBlurViewHole() {
        let maskView = UIView(frame: blurView.bounds)
        maskView.clipsToBounds = true;
        maskView.backgroundColor = UIColor.clear

        let outerbezierPath = UIBezierPath.init(roundedRect: blurView.bounds, cornerRadius: 0)
        let rect = CGRect(x: 150, y: 150, width: 100, height: 100)
        let innerCirclepath = UIBezierPath.init(roundedRect:rect, cornerRadius:rect.height * 0.5)
        outerbezierPath.append(innerCirclepath)
        outerbezierPath.usesEvenOddFillRule = true

        let fillLayer = CAShapeLayer()
        fillLayer.fillRule = kCAFillRuleEvenOdd
        fillLayer.fillColor = UIColor.green.cgColor // any opaque color would work
        fillLayer.path = outerbezierPath.cgPath
        maskView.layer.addSublayer(fillLayer)

        blurView.mask = maskView;
    }
}

Swift 2.3版本：

class ViewController: UIViewController {
    @IBOutlet var blurView: UIVisualEffectView!

    override func viewDidAppear(animated: Bool) {
        super.viewDidAppear(animated)

        updateBlurViewHole()
    }

    override func viewDidLayoutSubviews() {
        super.viewDidLayoutSubviews()

        updateBlurViewHole()
    }

    func updateBlurViewHole() {
        let maskView = UIView(frame: blurView.bounds)
        maskView.clipsToBounds = true;
        maskView.backgroundColor = UIColor.clearColor()

        let outerbezierPath = UIBezierPath.init(roundedRect: blurView.bounds, cornerRadius: 0)
        let rect = CGRect(x: 150, y: 150, width: 100, height: 100)
        let innerCirclepath = UIBezierPath.init(roundedRect:rect, cornerRadius:rect.height * 0.5)
        outerbezierPath.appendPath(innerCirclepath)
        outerbezierPath.usesEvenOddFillRule = true

        let fillLayer = CAShapeLayer()
        fillLayer.fillRule = kCAFillRuleEvenOdd
        fillLayer.fillColor = UIColor.greenColor().CGColor
        fillLayer.path = outerbezierPath.CGPath
        maskView.layer.addSublayer(fillLayer)

        blurView.maskView = maskView
    }
}

更新

好吧，这是苹果开发者论坛的讨论，而不是iOS发布说明。但是苹果公司的代表也给出了答案，所以我认为，这些信息可能被认为是“官方的”。

讨论链接：https://forums.developer.apple.com/thread/50854#157782

掩盖视觉效果视图的图层并不一定会产生正确的结果--在某些情况下，在iOS 9上，它会产生一个看起来正确的效果，但可能会产生错误的内容。视觉效果视图将不再来源于不正确的内容，但是唯一支持的掩盖视图的方法是直接在视觉效果视图的层上使用cornerRadius (这应该会产生与您在这里尝试的结果相同的结果)，或者使用视觉效果视图的maskView属性。

​

​

Answer 2

请在这里检查我的代码

内扩展UIView {

/**
 Add and display on current view a blur effect.
 */
internal func addBlurEffect(style style: UIBlurEffectStyle = .ExtraLight, atPosition position: Int = -1) -> UIView {
    // Blur Effect
    let blurEffectView = self.createBlurEffect(style: style)
    if position >= 0 {
        self.insertSubview(blurEffectView, atIndex: position)
    } else {
        self.addSubview(blurEffectView)
    }
    return blurEffectView
}

internal func createBlurEffect(style style: UIBlurEffectStyle = .ExtraLight) -> UIView {
    let blurEffect = UIBlurEffect(style: style)
    let blurEffectView = UIVisualEffectView(effect: blurEffect)
    blurEffectView.frame = self.bounds
    blurEffectView.autoresizingMask = [.FlexibleWidth, .FlexibleHeight]
    return blurEffectView
}

}

类ViewController: UIViewController {

@IBOutlet weak var blurView: UIImageView!

var blurEffectView: UIView!

override func viewDidLoad() {
    super.viewDidLoad()
    // Do any additional setup after loading the view, typically from a nib.

    blurEffectView = blurView.addBlurEffect(style: UIBlurEffectStyle.Light, atPosition: 0)


}

override func viewDidLayoutSubviews() {
    super.viewDidLayoutSubviews()

    let outerbezierPath = UIBezierPath.init(roundedRect: self.blurEffectView.frame, cornerRadius: 0)
    let rect = CGRectMake(150, 150, 100, 100)
    let innerCirclepath = UIBezierPath.init(roundedRect:rect, cornerRadius:rect.height * 0.5)
    outerbezierPath.appendPath(innerCirclepath)
    outerbezierPath.usesEvenOddFillRule = false
    let fillLayer = CAShapeLayer()
    fillLayer.fillRule = kCAFillRuleEvenOdd
    fillLayer.fillColor = UIColor.blackColor().CGColor
    fillLayer.path = outerbezierPath.CGPath
    self.blurEffectView.layer.mask = fillLayer
}

override func didReceiveMemoryWarning() {
    super.didReceiveMemoryWarning()
    // Dispose of any resources that can be recreated.
}

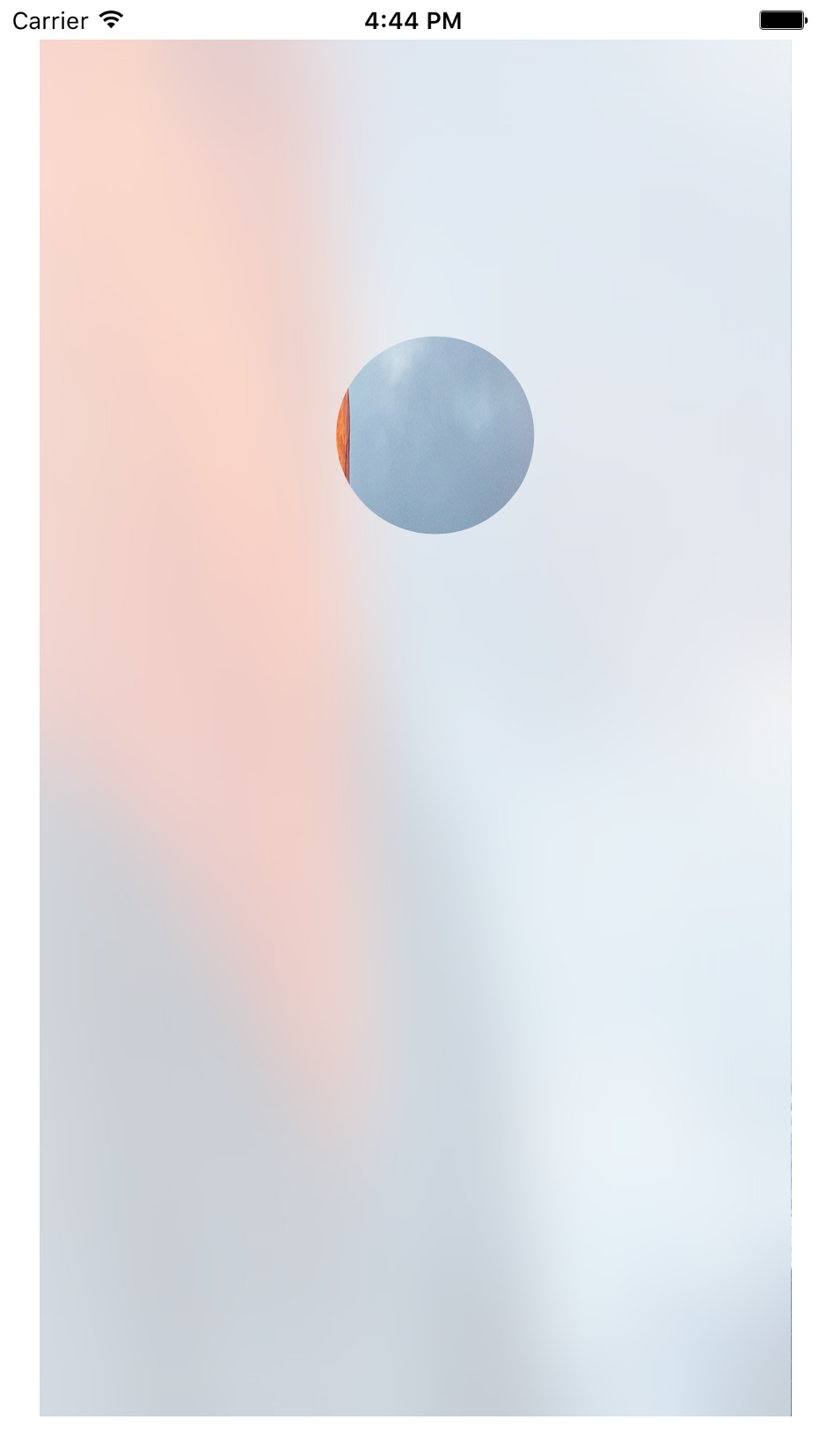

}与UIBlurEffectStyle.Light

​

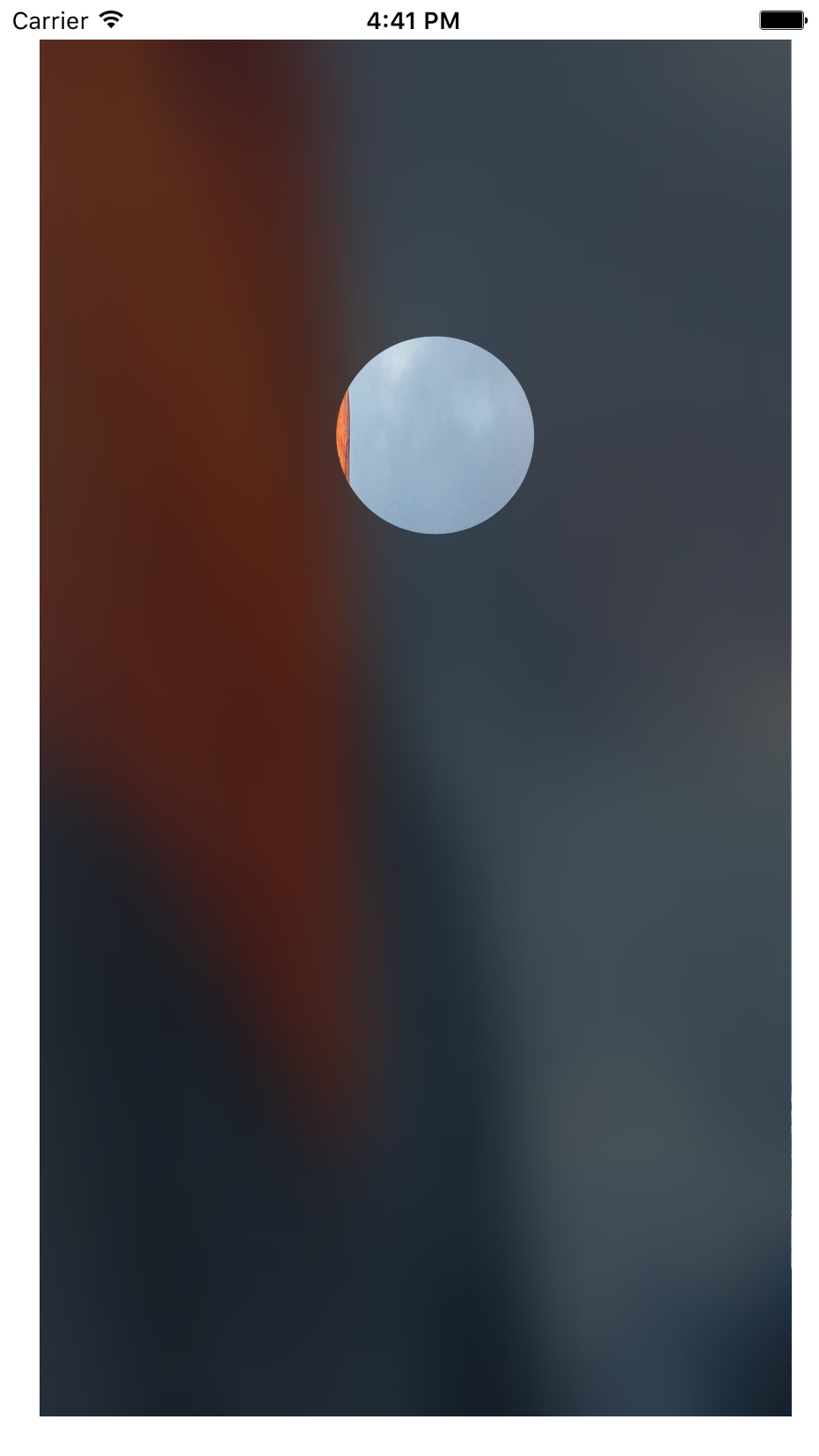

用UIBlurEffectStyle.Dark

​

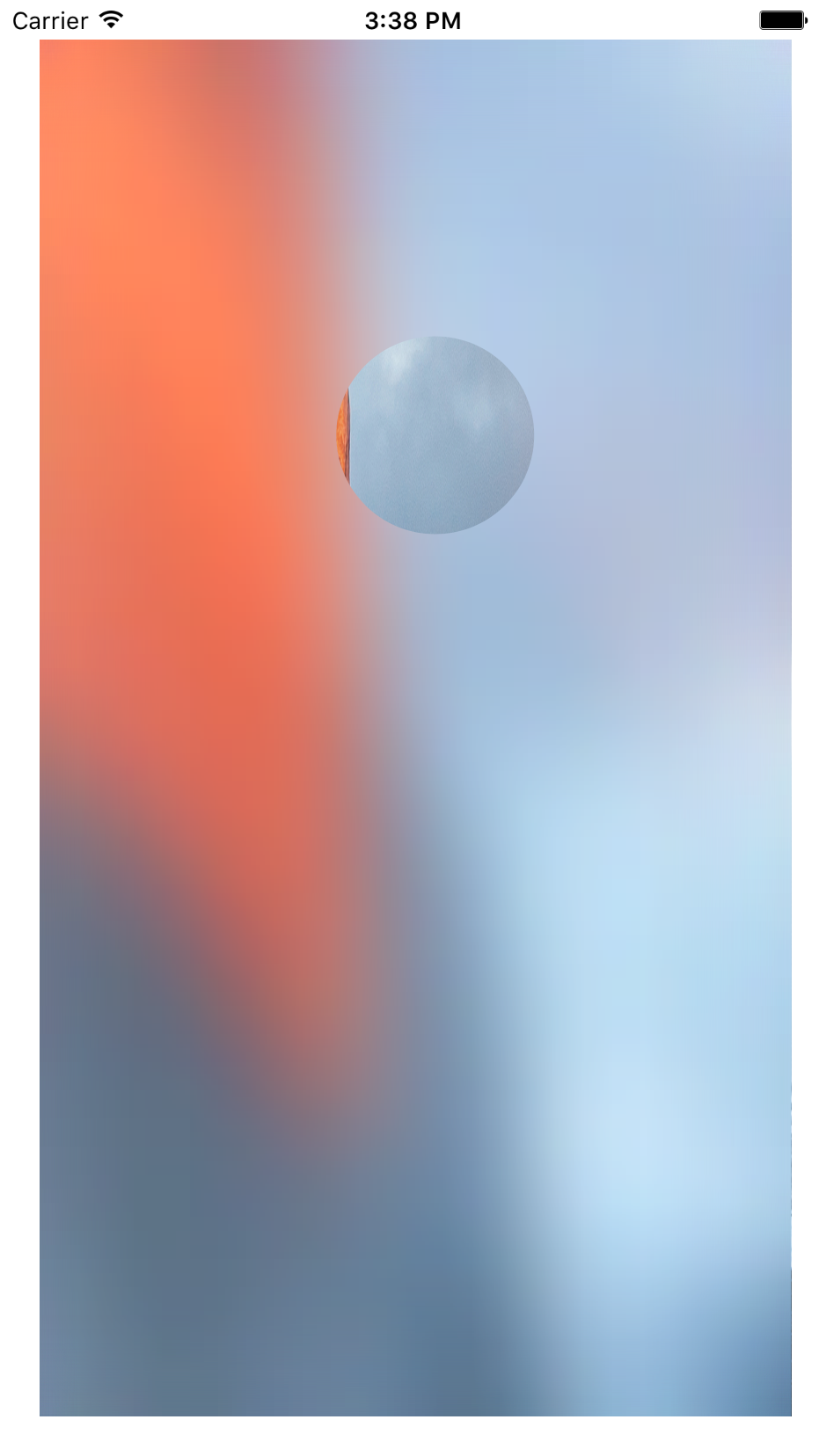

用UIBlurEffectStyle.ExtraLight

​

Answer 3

我的代码中也有同样的问题。当我在包含UIView的UIVisualEffectView上涂上面具后，模糊消失了。但是，我可以通过重写父服务器上的draw方法来返回它：

override func draw(_ rect: CGRect) {
    super.draw(rect)
}

我不知道它为什么会起作用，但希望它能帮助到别人。我用来挖洞的代码是：

private func makeViewFinderMask() -> CAShapeLayer {

    let path = UIBezierPath(rect: bounds)
    let croppedPath = UIBezierPath(roundedRect: viewFinderBounds(), cornerRadius: viewFinderRadius)
    path.append(croppedPath)
    path.usesEvenOddFillRule = true

    let mask = CAShapeLayer()
    mask.path = path.cgPath
    mask.fillRule = kCAFillRuleEvenOdd
    return mask
}
