ezPlot重叠错误条和数据

Question

我正在使用ezPlot从ez包在R绘制结果的混合内部和之间的-ss设计。来自两个组的数据点有重叠，因此我想同时抖动数据点和相关的错误栏。

data<-structure(list(Sub = structure(c(2L, 2L, 2L, 2L, 2L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L,
4L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 1L, 1L, 1L,
1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L), .Label = c("WW", "XX", "YY",
"ZZ"), class = "factor"), DepVar = c(0.67, 0.35, 0.09, 0.2, 0.19,
0.13, 0.45, 0.23, 0.08, 0.32, 0.17, 0.18, 0.67, 0.36, 0.55, 0.4,
0.37, 0.05, 0.26, 0.11, 0.08, 0.46, 0.29, 0.18, 0.16, 0, 0.38,
0.22, 0.08, 0.1, 0.54, 0.17, 0.07, 0.38, 0.75, 0.87, 0.27, 0.57,
0.31, 0.28, 0.07, 0.12, 0.75, 0.33, 0.23, 0.33, 0.26, 0.18),
Group = structure(c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L,
1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L), .Label = c("A", "B"), class = "factor"),
Con = structure(c(1L, 3L, 3L, 3L, 4L, 5L, 2L, 3L, 4L, 1L,
2L, 3L, 1L, 3L, 3L, 3L, 4L, 5L, 2L, 3L, 4L, 1L, 2L, 3L, 1L,
3L, 3L, 3L, 4L, 5L, 2L, 3L, 4L, 1L, 2L, 3L, 1L, 3L, 3L, 3L,
4L, 5L, 2L, 3L, 4L, 1L, 2L, 3L), .Label = c("C", "D", "E",
"F", "G"), class = "factor")), .Names = c("Sub", "DepVar",
"Group", "Con"), class = "data.frame", row.names = c(NA, -48L))

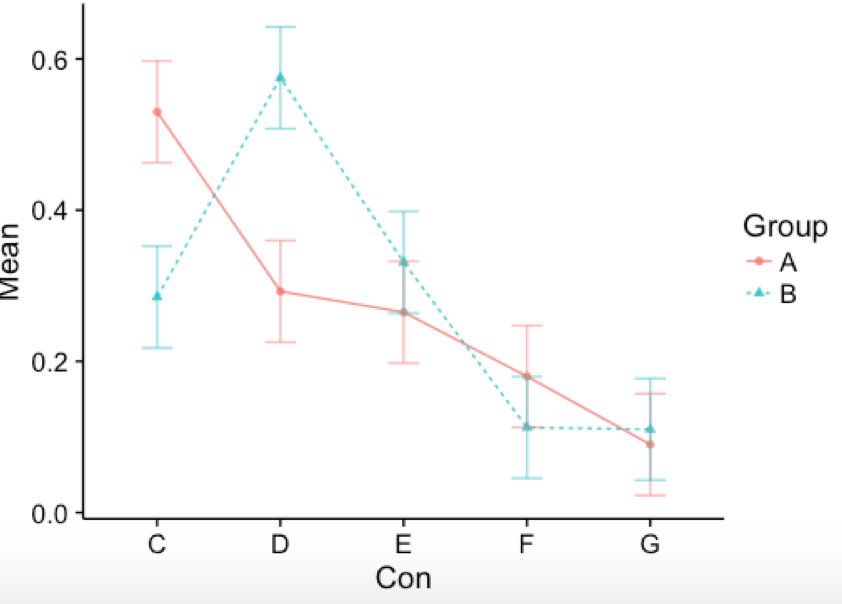

ezPlot( data,
    dv = .(DepVar),
    wid = .(Sub),  # subject
    within = .(Con),
    between=.(Group),
    split=.(Group),
    do_bars=TRUE,
    type = 2,
    x = .(Con))

​

​

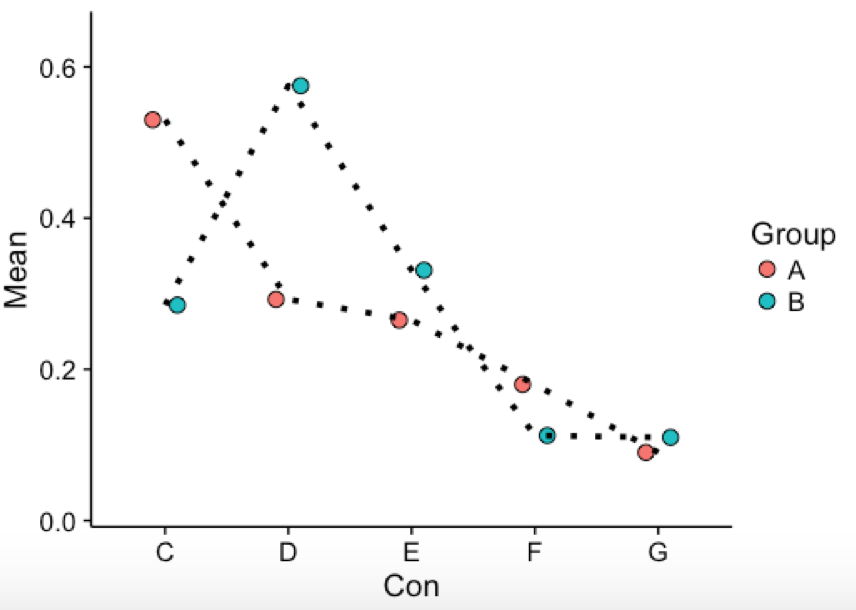

一个非典雅的技巧是如此设置比例颜色手册白色，使底层数据点消失，然后使用geom-point位置道奇(0.4)。

ezPlot( data,
    dv = .(DepVar),
    wid = .(Sub),  # subject
    within = .(Con),
    between=.(Group),
    split=.(Group),
    do_bars=TRUE,
    type = 2,
    x = .(Con))+
      scale_color_manual(values=c("white", "white"))+
      geom_point(aes(fill=Group), color="black", pch= 21, size= 3, position=position_dodge(0.4))+
      geom_line(aes(group = Group),  lty = 3, lwd = 1.3, color='black')

​

​

但是，我希望绘制错误栏，我不知道如何实现这一点，也不知道其他解决方法是否可行。我想坚持爱兹图。谢谢!

Answer 1

一种方法是使用set print_code = TRUE，生成要绘制的数据，以及ggplot代码：

library(ggplot2)
stats <- ezPlot( data,
    dv = .(DepVar),
    wid = .(Sub),  # subject
    within = .(Con),
    between=.(Group),
    split=.(Group),
    do_bars=TRUE,
    type = 2,
    x = .(Con),
    print_code = TRUE)

然后，手动修改代码以将position = position_dodge(0.4)添加到每个geom，然后运行ggplot代码。

做同样事情的一个更有效的方法是将代码作为字符向量进行capture.output，使用gsub添加position = position_dodge(0.4)，然后对修改后的代码进行eval(parse(text = ...))：

gg_code <- capture.output(stats <- ezPlot( data,
    dv = .(DepVar),
    wid = .(Sub),  # subject
    within = .(Con),
    between=.(Group),
    split=.(Group),
    do_bars=TRUE,
    type = 2,
    x = .(Con),
    print_code = TRUE))
gg_code <- gsub("alpha", "position = position_dodge(0.4), alpha", gg_code)
eval(parse(text = paste(gg_code, collapse = "")))

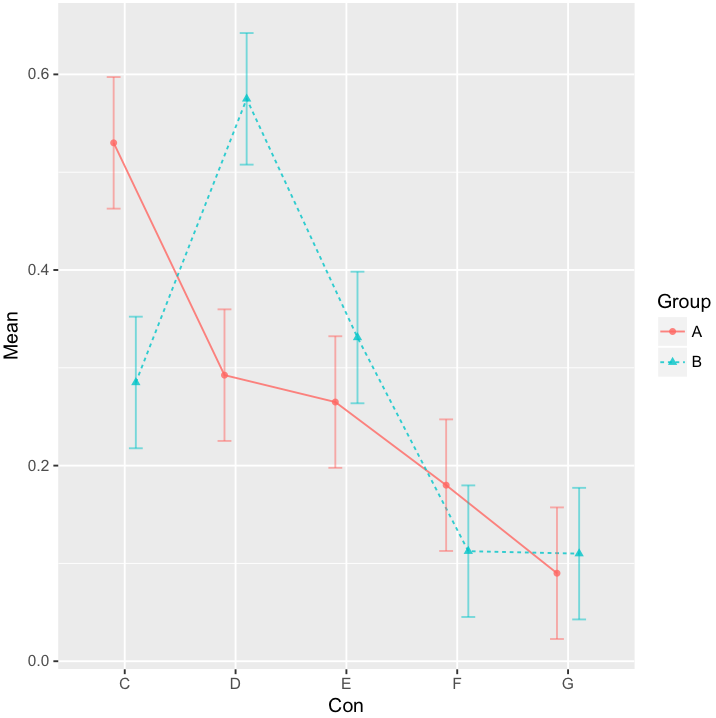

输出：

​

​
