WPF ListView下拉列表获取单元格

Question

我正在尝试创建一个WPF对话来配置车间时间表。在左边有一个列表视图，其中有一个列作为教师的名字。右边是一个列表视图，有六列，一列用于研讨会，其余五列用于周一至周五的日子。

=

A             WS-1           A   B
B             WS-2       C
C             WS-3                          B

用户应该通过拖放来配置时间表，例如C老师在周一讲授WS-2工作坊。

在WinForms中，获得drop单元是一项简单的工作，但我在WPF中找不到这种方法。

以下是xaml代码的一部分。

<ListView Name="_LV_Teacher"
                SelectionMode="Single"
                ItemsSource="{Binding}">
    <ListView.View>
        <GridView>
          <GridViewColumn
              DisplayMemberBinding="{Binding Path=Id}"
              Width="0"/>
          <GridViewColumn
              DisplayMemberBinding="{Binding Path=TeachersName}"    Header="Teacher"/>
        </GridView>
    </ListView.View>
</ListView>

<ListView Name="_LV_Schedule"
          ItemsSource="{Binding}"
          AlowDrop="True"
          Drop="_LV_Teacher_Drop" >
    <ListView.View>
        <GridView>
          <GridViewColumn
             DisplayMemberBinding="{Binding Path=WorkshopId}" Width="0"/>
          <GridViewColumn  Header="Monday"/>
          <GridViewColumn  Header="Tuesday"/>
          <GridViewColumn  Header="Wednesday"/>
          <GridViewColumn  Header="Thursday"/>
          <GridViewColumn  Header="Friday"/>
        </GridView>
    </ListView.View>
</ListView>

Answer 1

DragDrop HowTo

“挑战者”计划确定在DragDrop.DoDragDrop()中应该使用哪种属性。由于我们有不同的ListView，所以使用Teacher实体本身将是有意义的。我使用Teacher从左侧ListView获得源TextBlock.DataContext。并将其设置为DataContext of Drop target TextBlock。

问题是，DataContext要使用哪个DataFormats值，所以我使用了IDataObject.GetFormats()。

输出:

​

​

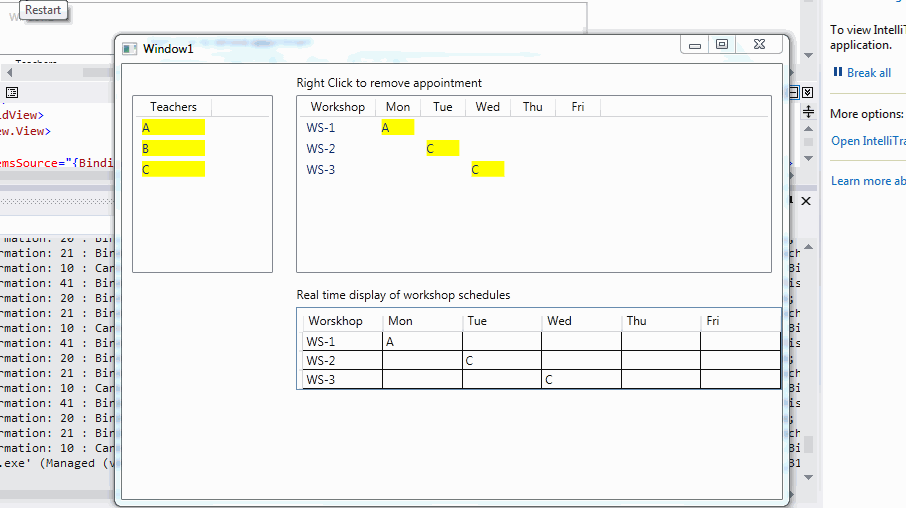

请参阅下面的示例应用程序。你可以简单地复制/粘贴。

Window1.xaml

<Window x:Class="WpfStackOverflow.MyDragDrop.Window1"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:WpfStackOverflow.MyDragDrop"
        Title="Window1" Height="472.557" Width="675.564">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="123*"/>
            <ColumnDefinition Width="380*"/>
        </Grid.ColumnDefinitions>

        <ListView Margin="10,31,10,226" ItemsSource="{Binding TeacherData}">
            <ListView.Resources>
                <Style x:Key="TbKey" TargetType="TextBlock">
                    <EventSetter Event="MouseLeftButtonDown" Handler="Teacher_LeftButtonDown"/>
                    <EventSetter Event="DragEnter" Handler="Teacher_DragEnter"/>

                    <Setter Property="Background" Value="Yellow"/>
                    <Setter Property="AllowDrop" Value="True"/>
                </Style>
            </ListView.Resources>
            <ListView.View>
                <GridView>
                    <GridView.Columns>
                        <GridViewColumn Header="Teachers" Width="75">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock Text="{Binding Name}" Width="{Binding View.Columns[0].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                    </GridView.Columns>
                </GridView>
            </ListView.View>
        </ListView>
        <ListView ItemsSource="{Binding AppointmentData}" Margin="13,31,10,226" Grid.Column="1" ScrollViewer.CanContentScroll="False">
            <ListView.Resources>
                <Style x:Key="TbKey" TargetType="TextBlock">
                    <EventSetter Event="MouseLeftButtonDown" Handler="WeekDay_LeftButtonDown"/>
                    <EventSetter Event="DragEnter" Handler="WeekDay_DragEnter"/>
                    <EventSetter Event="Drop" Handler="WeekDay_Drop"/>
                    <EventSetter Event="MouseRightButtonDown" Handler="WeekDay_MouseRightButtonDown"/>

                    <Setter Property="Background" Value="Yellow"/>
                    <Setter Property="AllowDrop" Value="True"/>
                    <Setter Property="DataContext" Value="{x:Null}"/>
                    <Style.Triggers>
                        <DataTrigger Binding="{Binding DataContext, RelativeSource={RelativeSource Self}}" Value="{x:Null}">
                            <Setter Property="Background" Value="{x:Null}"/>
                        </DataTrigger>
                    </Style.Triggers>
                </Style>
            </ListView.Resources>
            <ListView.View>
                <GridView>
                    <GridView.Columns>
                        <GridViewColumn Header="Workshop" Width="75">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock Text="{Binding Workshop}"/>
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                        <GridViewColumn x:Name="ColMon" Header="Mon" Width="45">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock DataContext="{Binding Mon, Mode=TwoWay}" Text="{Binding Name}" Width="{Binding View.Columns[1].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                        <GridViewColumn  Header="Tue" Width="45">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock DataContext="{Binding Tue, Mode=TwoWay}" Text="{Binding Name}" Width="{Binding View.Columns[1].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                        <GridViewColumn  Header="Wed" Width="45">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock DataContext="{Binding Wed, Mode=TwoWay}" Text="{Binding Name}" Width="{Binding View.Columns[1].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                        <GridViewColumn  Header="Thu" Width="45">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock DataContext="{Binding Thu, Mode=TwoWay}" Text="{Binding Name}" Width="{Binding View.Columns[1].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                        <GridViewColumn  Header="Fri" Width="45">
                            <GridViewColumn.CellTemplate>
                                <DataTemplate>
                                    <TextBlock DataContext="{Binding Fri, Mode=TwoWay}" Text="{Binding Name}" Width="{Binding View.Columns[1].Width, RelativeSource={RelativeSource AncestorType=ListView, Mode=FindAncestor}}"
                                               Style="{StaticResource TbKey}" />
                                </DataTemplate>
                            </GridViewColumn.CellTemplate>
                        </GridViewColumn>
                    </GridView.Columns>
                </GridView>
            </ListView.View>
        </ListView>
        <DataGrid IsReadOnly="True" AutoGenerateColumns="False" ItemsSource="{Binding AppointmentData}" Grid.Column="1" HorizontalAlignment="Stretch" Margin="13,243,0,0" VerticalAlignment="Top" >
            <DataGrid.Columns>
                <DataGridTextColumn Header="Worskhop" Binding="{Binding Workshop}" Width="*"/>
                <DataGridTextColumn Header="Mon" Binding="{Binding Mon.Name}" Width="*"/>
                <DataGridTextColumn Header="Tue" Binding="{Binding Tue.Name}" Width="*"/>
                <DataGridTextColumn Header="Wed" Binding="{Binding Wed.Name}" Width="*"/>
                <DataGridTextColumn Header="Thu" Binding="{Binding Thu.Name}" Width="*"/>
                <DataGridTextColumn Header="Fri" Binding="{Binding Fri.Name}" Width="*"/>
            </DataGrid.Columns>
        </DataGrid>
        <TextBlock Grid.Column="1" HorizontalAlignment="Left" Margin="13,222,0,0" TextWrapping="Wrap" Text="Real time display of workshop schedules" VerticalAlignment="Top" Width="325"/>
        <TextBlock Grid.Column="1" HorizontalAlignment="Left" Margin="13,10,0,0" TextWrapping="Wrap" Text="Right Click to remove appointment" VerticalAlignment="Top" Width="325"/>
    </Grid>
</Window>

Window1.xaml.cs

using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;

namespace WpfStackOverflow.MyDragDrop
{
    /// <summary>
    /// Interaction logic for Window1.xaml
    /// </summary>
    public partial class Window1 : Window
    {
        ViewModel vm = new ViewModel();
        public Window1()
        {
            InitializeComponent();
            this.DataContext = vm;
        }

        #region WeekDay
            private void WeekDay_DragEnter(object sender, DragEventArgs e)
            {
                if (e.Data.GetDataPresent(DataFormats.Text))
                    e.Effects = DragDropEffects.Copy;
            }
            private void WeekDay_Drop(object sender, DragEventArgs e)
            {
                ((TextBlock)sender).DataContext = e.Data.GetData(e.Data.GetFormats()[0]);
            }
            private void WeekDay_MouseRightButtonDown(object sender, MouseButtonEventArgs e)
            {
                (sender as TextBlock).DataContext = null;
            }
        #endregion

        #region Teacher
            private void Teacher_LeftButtonDown(object sender, MouseButtonEventArgs e)
            {
                TextBlock tb = (TextBlock)sender;
                DragDrop.DoDragDrop(tb, tb.DataContext, DragDropEffects.Copy | DragDropEffects.Move);
            }
            private void Teacher_DragEnter(object sender, DragEventArgs e)
            {
                if (e.Data.GetDataPresent(DataFormats.Serializable))
                    e.Effects = DragDropEffects.Copy;
            }
        #endregion
    }

    public class ViewModel : INotifyPropertyChanged
    {
        ObservableCollection<AppointmentRecord> _records = new ObservableCollection<AppointmentRecord>();
        public ObservableCollection<AppointmentRecord> AppointmentData { get { return _records; } }

        ObservableCollection<TeacherRecord> _teacherRecords = new ObservableCollection<TeacherRecord>();
        public ObservableCollection<TeacherRecord> TeacherData { get { return _teacherRecords; } }

        public ViewModel()
        {
            TeacherRecord trecord1 = new TeacherRecord() { Name = "A" };
            TeacherRecord trecord2 = new TeacherRecord() { Name = "B" };
            TeacherRecord trecord3 = new TeacherRecord() { Name = "C" };
            TeacherData.Add(trecord1);
            TeacherData.Add(trecord2);
            TeacherData.Add(trecord3);

            AppointmentRecord record1 = new AppointmentRecord() { Workshop = "WS-1", Mon = TeacherData.FirstOrDefault((t) => { return t.Name == "A"; }), Tue = null };
            AppointmentRecord record2 = new AppointmentRecord() { Workshop = "WS-2", Mon = null, Tue = TeacherData.FirstOrDefault((t) => { return t.Name == "C"; }) };
            AppointmentRecord record3 = new AppointmentRecord() { Workshop = "WS-3", Mon = null, Tue = null, Wed = TeacherData.FirstOrDefault((t) => { return t.Name == "C"; }) };
            AppointmentData.Add(record1);
            AppointmentData.Add(record2);
            AppointmentData.Add(record3);
        }

        public event PropertyChangedEventHandler PropertyChanged = delegate { };
        public void OnPropertyChanged(string prop)
        {
            PropertyChanged(this, new PropertyChangedEventArgs(prop));
        }
    }

    public class TeacherRecord
    {
        public string Name { get; set; }
    }

    public class AppointmentRecord : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged = delegate { };
        public void OnPropertyChanged(string prop)
        {
            PropertyChanged(this, new PropertyChangedEventArgs(prop));
        }

        string _workshop;
        public string Workshop
        {
            get { return _workshop; }
            set
            {
                if (_workshop != value)
                {
                    _workshop = value;
                    OnPropertyChanged("Workshop");
                }
            }
        }

        TeacherRecord _mon;
        public TeacherRecord Mon
        {
            get { return _mon; }
            set
            {
                if (_mon != value)
                {
                    _mon = value;
                    OnPropertyChanged("Mon");
                }
            }
        }

        TeacherRecord _tue;
        public TeacherRecord Tue
        {
            get { return _tue; }
            set
            {
                if (_tue != value)
                {
                    _tue = value;
                    OnPropertyChanged("Tue");
                }
            }
        }

        TeacherRecord _wed;
        public TeacherRecord Wed
        {
            get { return _wed; }
            set
            {
                if (_wed != value)
                {
                    _wed = value;
                    OnPropertyChanged("Wed");
                }
            }
        }

        TeacherRecord _thu;
        public TeacherRecord Thu
        {
            get { return _thu; }
            set
            {
                if (_thu != value)
                {
                    _thu = value;
                    OnPropertyChanged("Thu");
                }
            }
        }

        TeacherRecord _fri;
        public TeacherRecord Fri
        {
            get { return _fri; }
            set
            {
                if (_fri != value)
                {
                    _fri = value;
                    OnPropertyChanged("Fri");
                }
            }
        }
    }
}

Answer 2

感谢AnjumSKhan给出的好答案！我已经在我的应用程序中实现了它，它运行得很好。不幸的是，我又遇到了一个问题。

因为我的数据被检索并存储在数据库中，所以我添加了两个变量：

• int iTeacherId到类TeacherRecord (教师列表视图中宽度为0的第一列)，以及
• int iWorkShopId到类AppointmentRecord (AppointmentData-Listview中宽度为0的第一列) 因此，除了老师的名字，e.Data in WeekDay_Drop现在也包含他的Id。但是，如何获得相应的车间Id，以便将约会保存在数据库中的Tab_Workshop中。(教师的姓名和Id在Tab_Teacher中，这是一个不同的数据库表。)
