TreeTableView:显示不同的数据类型

Question

我有一个Factory类，它包含一个员工列表。我想使用TreeTableView来显示Factory数据。显示Factory的名称和大小是非常好的，但是我不知道如何显示员工的名字！

public class Factory {
       private String name;
       private double size;
       private List<Employee> employees;

       public Factory(name, size){this.name=name; this.size=size}

       // Getters & setters

    }

我希望有以下输出：

​

​

有可能关闭工厂。

Answer 1

在TreeView或TreeTableView中，树中的所有节点都必须是相同类型的。这使得你想要的那种设计(这是非常自然的)有点痛苦。基本上，您必须使TreeView或TreeTableView的类型成为树中所有类型行中最具体的超类:也就是说，在这种情况下，TreeTableView的类型需要是Employee和Factory的超类。然后，列上的单元格值工厂必须键入测试行对象，以确定返回的值。

不寻常的是，有一个对象模型，其中这些继承与继承相关，而不是作为Object的子类，所以这里可能需要一个TreeTableView<Object>。

因此，粗略地说(如果您使用的是普通的旧JavaBean样式，而不是推荐的JavaFX性质)，您可以定义如下

TreeTableView<Object> treeTable = new TreeTableView<>();
treeTable.setShowRoot(false);

TreeTableColumn<Object, String> nameColumn = new TreeTableColumn<>("Name");
nameColumn.setCellValueFactory(cellData -> {
    TreeItem<Object> rowItem = cellData.getValue();
    if (rowItem != null && (rowItem.getValue() instanceof Factory)) {
        Factory f = (Factory) rowItem.getValue() ;
        return new SimpleStringProperty(f.getName());
    } else {
        return new SimpleStringProperty("");
    }
});

TreeTableColumn<Object, Number> sizeColumn = new TreeTableColumn<>("Size");
sizeColumn.setCellValueFactory(cellData -> {
    TreeItem<Object> rowItem = cellData.getValue();
    if (rowItem != null && (rowItem.getValue() instanceof Factory)) {
        Factory f = (Factory) rowItem.getValue() ;
        return new SimpleObjectProperty<Number>(Double.valueOf(f.getSize()));
    } else {
        return new SimpleObjectProperty<Number>(null);
    }
});

TreeTableColumn<Object, String> employeeColumn = new TreeTableColumn<>("Employee");
employeeColumn.setCellValueFactory(cellData -> {
    TreeItem<Object> rowItem = cellData.getValue();
    if (rowItem != null && (rowItem.getValue() instanceof Employee)) {
        Employee emp = (Employee) rowItem.getValue() ;
        return new SimpleStringProperty(emp.getName());
    } else {
        return new SimpleStringProperty("");
    }
});

treeTable.getColumns().addAll(nameColumn, sizeColumn, employeeColumn);

当然，你用

// fully initialized list of factories, with employee lists initialized:
List<Factory> factories = ... ;

TreeItem<Object> root = new TreeItem<>(null);
for (Factory factory : factories) {
    TreeItem<Object> factoryItem = new TreeItem<>(factory);
    root.getChildren().add(factoryItem);
    for (Employee emp : factory.getEmployees()) {
        TreeItem<Object> employeeItem = new TreeItem<>(emp);
        factoryItem.getChildren().add(employeeItem);
    }
}
treeTable.setRoot(root);

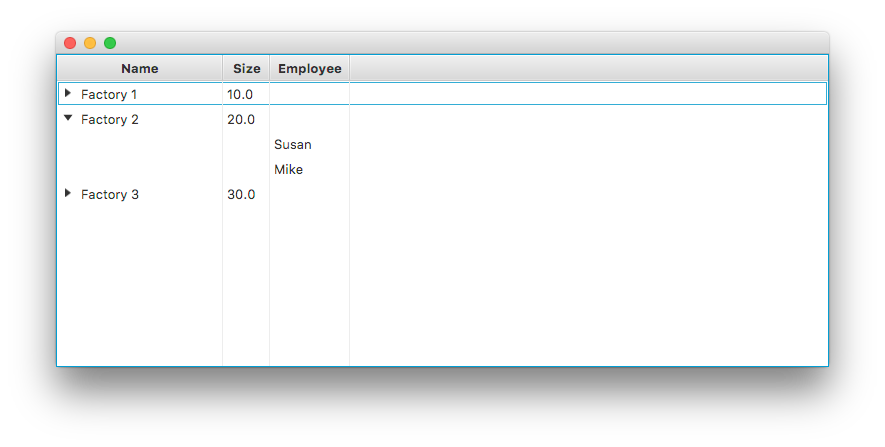

下面是一个使用以下内容的简单SSCCE：

import java.util.ArrayList;
import java.util.List;

import javafx.application.Application;
import javafx.beans.property.SimpleObjectProperty;
import javafx.beans.property.SimpleStringProperty;
import javafx.scene.Scene;
import javafx.scene.control.TreeItem;
import javafx.scene.control.TreeTableColumn;
import javafx.scene.control.TreeTableView;
import javafx.stage.Stage;

public class TreeTableExample extends Application {

    @Override
    public void start(Stage primaryStage) {
        TreeTableView<Object> treeTable = new TreeTableView<>();
        treeTable.setShowRoot(false);

        TreeTableColumn<Object, String> nameColumn = new TreeTableColumn<>("Name");
        nameColumn.setCellValueFactory(cellData -> {
            TreeItem<Object> rowItem = cellData.getValue();
            if (rowItem != null && (rowItem.getValue() instanceof Factory)) {
                Factory f = (Factory) rowItem.getValue() ;
                return new SimpleStringProperty(f.getName());
            } else {
                return new SimpleStringProperty("");
            }
        });

        TreeTableColumn<Object, Number> sizeColumn = new TreeTableColumn<>("Size");
        sizeColumn.setCellValueFactory(cellData -> {
            TreeItem<Object> rowItem = cellData.getValue();
            if (rowItem != null && (rowItem.getValue() instanceof Factory)) {
                Factory f = (Factory) rowItem.getValue() ;
                return new SimpleObjectProperty<Number>(Double.valueOf(f.getSize()));
            } else {
                return new SimpleObjectProperty<Number>(null);
            }
        });

        TreeTableColumn<Object, String> employeeColumn = new TreeTableColumn<>("Employee");
        employeeColumn.setCellValueFactory(cellData -> {
            TreeItem<Object> rowItem = cellData.getValue();
            if (rowItem != null && (rowItem.getValue() instanceof Employee)) {
                Employee emp = (Employee) rowItem.getValue() ;
                return new SimpleStringProperty(emp.getName());
            } else {
                return new SimpleStringProperty("");
            }
        });

        treeTable.getColumns().addAll(nameColumn, sizeColumn, employeeColumn);

        List<Factory> factories = createData();
        TreeItem<Object> root = new TreeItem<>(null);
        for (Factory factory : factories) {
            TreeItem<Object> factoryItem = new TreeItem<>(factory);
            root.getChildren().add(factoryItem);
            for (Employee emp : factory.getEmployees()) {
                TreeItem<Object> employeeItem = new TreeItem<>(emp);
                factoryItem.getChildren().add(employeeItem);
            }
        }
        treeTable.setRoot(root);

        Scene scene = new Scene(treeTable, 800, 800);
        primaryStage.setScene(scene);
        primaryStage.show();
    }

    private List<Factory> createData() {
        String[][] empNames = {
                {"John", "Jane", "Mary"},
                {"Susan", "Mike"},
                {"Alex", "Francois", "Joanne"}
        };
        List<Factory> factories = new ArrayList<>();
        for (String[] emps : empNames) {
            int count = factories.size()+1 ;
            Factory f = new Factory("Factory "+ count, count*10);
            for (String empName : emps) {
                f.getEmployees().add(new Employee(empName));
            }
            factories.add(f);
        }
        return factories ;
    }

    public static class Employee {
        private String name ;

        public Employee(String name) {
            this.name = name ;
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }


    }

    public class Factory {
        private String name ;
        private double size ;
        private List<Employee> employees ;

        public Factory(String name, double size) {
            this.name = name ;
            this.size = size ;
            this.employees = new ArrayList<>();
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }

        public double getSize() {
            return size;
        }

        public void setSize(double size) {
            this.size = size;
        }

        public List<Employee> getEmployees() {
            return employees;
        }


    }

    public static void main(String[] args) {
        launch(args);
    }
}

​

​

另一种方法(我认为这有点人为)是创建一个类，表示表视图中的行，然后生成它的Factory和Employee子类：

public abstract class EmploymentEntity {

    public String getName() {
        return null ;
    }

    public Double getSize() {
        return null ;
    }

    public String getEmployeeName {
        return null ;
    }
}

然后

public class Employee extends EmploymentEntity {
    private String name ;

    public Employee(String name) {
        this.name = name ;
    }

    @Override
    public String getEmployeeName() {
        return name ;
    }

    public void setEmployeeName(String name) {
        this.name = name ;
    }
}

和

public class Factory extends EmploymentEntity {

    private String name ;
    private double size ;
    private List<Employee> employees ;

    public Factory(String name, double size) {
        this.name = name ;
        this.size = size ;
        this.employees = new ArrayList<>();
    }

    @Override
    public String getName() {
        return name ;
    }

    public void setName(String name) {
        this.name = name ;
    }

    @Override
    public Double getSize() {
        return size ;
    }

    public void setSize(double size) {
        this.size = size ;
    }

    public List<Employee> getEmployees() {
        return employees ;
    }
}

这个对象模型是非常不自然的(无论如何，对我来说)，但是它确实使表变得更容易了：

TreeTableView<EmploymentEntity> treeTable = new TreeTableView<>();
TreeTableColumn<EmploymentEntity, String> nameColumn = new TreeTableColumn<>("Name");
nameColumn.setCellValueFactory(cellData -> new SimpleStringProperty(cellData.getValue().getValue().getName()));
TreeTableColumn<EmploymentEntity, Number> sizeColumn = new TreeTableColumn<>("Size");
sizeColumn.setCellValueFactory(cellData -> new SimpleObjectProperty<Number>(cellData.getValue().getValue().getSize()));
TreeTableColumn<EmploymentEntity, String> employeeColumn = new TreeTableColumn<>("Employee");
employeeColumn.setCellValueFactory(cellData -> new SimpleStringProperty(cellData.getValue().getValue().getEmployeeName()));
// etc...
