林图包元中置信区间格式的改变？

Question

假设以下代码(如Viechtbauer，2010年所示)：

library(metafor)
data("dat.bcg", package = "metafor")
dat <- escalc(measure = "RR", ai = tpos, bi = tneg, ci = cpos, di = cneg, data = dat.bcg, append = TRUE)
res <- rma(ai = tpos, bi = tneg, ci = cpos, di = cneg, data = dat, measure = "RR")
forest(res, slab = paste(dat$author, dat$year, sep = ", "), xlim = c(-16, 6), at = log(c(0.05, 0.25, 1, 4)), atransf = exp, ilab = cbind(dat$tpos, dat$tneg, dat$cpos, dat$cneg), ilab.xpos = c(-9.5, -8, -6, -4.5), cex = 0.75)
op <- par(cex = 0.75, font = 2)
text(c(-9.5, -8, -6, -4.5), 15, c("TB+", "TB-", "TB+", "TB-"))
text(c(-8.75, -5.25), 16, c("Vaccinated", "Control"))
text(-16, 15, "Author(s) and Year", pos = 4)
text(6, 15, "Relative Risk [95% CI]", pos = 2)
par(op)

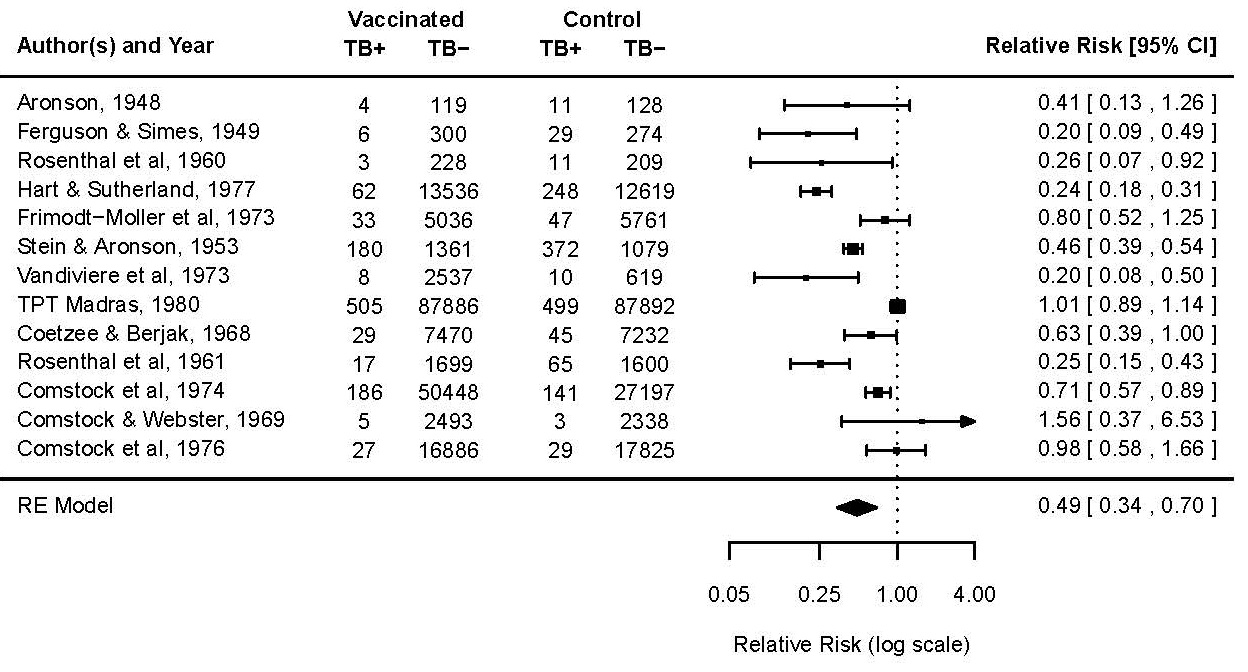

这给出了如下森林图：

​

​

那么，如何改变图中置信区间的格式呢？是否可以用括号代替括号并使用" to“而不是"，"？不如用"-“或”长“代替"，"？这应改变，即0.13，1.26至(0.13至1.26)或(0.13-1.26)

Answer 1

以下是不需要更改forest.rma()函数代码的解决方案。我使用annotate=FALSE，这样函数就不会注释林图，而是自己添加那些注释。

library(metafor)
data("dat.bcg", package = "metafor")
dat <- escalc(measure = "RR", ai = tpos, bi = tneg, ci = cpos, di = cneg, data = dat.bcg, append = TRUE)

res <- rma(ai = tpos, bi = tneg, ci = cpos, di = cneg, data = dat, measure = "RR")

### note the use of annotate=FALSE in forest()
forest(res, slab = paste(dat$author, dat$year, sep = ", "), xlim = c(-16, 6),
       at = log(c(0.05, 0.25, 1, 4)), atransf = exp,
       ilab = cbind(dat$tpos, dat$tneg, dat$cpos, dat$cneg), ilab.xpos = c(-9.5, -8, -6, -4.5),
       cex = 0.75, annotate=FALSE)

op <- par(cex = 0.75, font = 2)
text(c(-9.5, -8, -6, -4.5), 15, c("TB+", "TB-", "TB+", "TB-"))
text(c(-8.75, -5.25), 16, c("Vaccinated", "Control"))
text(-16, 15, "Author(s) and Year", pos = 4)
text(6, 15, "Relative Risk [95% CI]", pos = 2)

### add annotations manually
tmp <- summary(dat, transf=exp)[,c("yi","ci.lb","ci.ub")] ### for the individual studies
tmp <- rbind(tmp, with(predict(res, transf=exp), c(pred, ci.lb, ci.ub))) ### add model estimate and CI bounds
sav <- apply(tmp, 2, formatC, format="f", digits=2)
annotext <- apply(sav, 1, function(x) {paste0(x[1], " (", x[2], " to ", x[3], ")")})
text(6, c(res$k:1, -1), annotext, pos=2, font=1)

par(op)

Answer 2

您需要对forest.rma的代码进行一些黑客攻击。几个步骤：

通过键入函数名显示当前版本的代码后：

 forest.rma   # Copy the name and the code and paste into the console
              #  Add an assignment operator `<-`
              # leave off the bytecode and environment notations at the bottom

也可以在编辑器中这样做，这可能是首选的方法，因为您可能希望将此代码保存到.Rprofile文件中。

1)向参数列表中添加参数：

forest.rma <-
function (x, annotate = TRUE, addfit = TRUE, addcred = FALSE,
    showweights = FALSE, xlim, alim, clim, ylim, at, steps = 5,
    level = x$level, digits = 2, refline = 0, xlab, slab, mlab,
    ilab, ilab.xpos, ilab.pos, order, transf, atransf, targs,
    rows, efac = 1, pch = 15, psize, col, border, lty, cex, cex.lab,
    cex.axis, annosep = " , ", bkt=c("[", "]"), ...)
{  #  ....not showing all the _long_ function body
   # Scroll down to almost the bottom of the function body

2)查找并更改annotext cbind-assignment的参数。有几个地方可以构建annotext，但其中只有一个与您的“格式目标”相匹配。找到一个看起来像这样的：

# annotext <- cbind(annotext[, 1], " [ ", annotext[,
#                2], " , ", annotext[, 3], " ]")

改为：

annotext <- cbind(annotext[, 1], bkt[1], annotext[,
                 2], annosep, annotext[, 3], bkt[2] )
# hit enter to get the modification to hold in your workspace

3)现在将正确的环境分配给函数，这样它就可以很好地与兄弟姐妹一起玩了：

environment(forest.rma) <- environment(forest.default)
# if you forget this step you see this error:

Forest.rma中的错误(res，板条=粘贴(dat$author，dat$放年，sep = "，")，：未能找到函数".setlab“

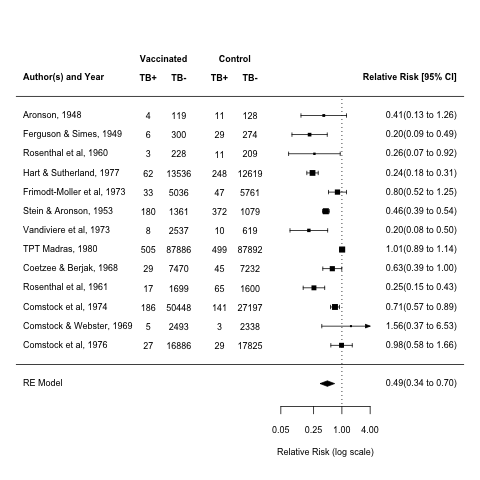

用你所选择的新论据来称呼它：

png(); forest(res, slab = paste(dat$author, dat$year, sep = ", "), xlim = c(-16, 6), at = log(c(0.05, 0.25, 1, 4)), atransf = exp, ilab = cbind(dat$tpos, dat$tneg, dat$cpos, dat$cneg), ilab.xpos = c(-9.5, -8, -6, -4.5), cex = 0.75, annosep=" to ", bkt = c( "(", ")" ) )
op <- par(cex = 0.75, font = 2)
text(c(-9.5, -8, -6, -4.5), 15, c("TB+", "TB-", "TB+", "TB-"))
text(c(-8.75, -5.25), 16, c("Vaccinated", "Control"))
text(-16, 15, "Author(s) and Year", pos = 4)
text(6, 15, "Relative Risk [95% CI]", pos = 2)
dev.off()

​

​
