iOS CGPath绘制弧形/圆角多边形

Question

我正在尝试创建一个类，该类在自定义UIView子类中绘制多边形。我让它起作用了，但是现在我想通过把它们四舍五入来平滑边角，我不知道该怎么做。以下是我到目前为止所拥有的：

public class MyView : UIView
{
    private List<CGPoint> points;

    public MyView(CGRect frame, List<CGPoint> points) : base (frame)
    {
        this.points = points;
    }

    public override Draw (CGRect rect)
    {
        CGContext context = UIGraphics.GetCurrentContext();

        context.SetLineWidth(2);
        UIColor.Black.SetStroke();
        UIColor.Green.SetFill();

        CGPath path = new CGPath();
        path.AddLines(points.ToArray());
        path.CloseSubpath();

        context.AddPath(path);
        context.Clip();

        using (CGColorSpace rgb = CGColorSpace.CreateDeviceRGB())
        {
            CGGradient gradient = new CGGradient (rgb, new CGColor[]
            {
                new CGColor(0, 1, 0),
                new CGColor(0, 0.5f, 0),
                new CGColor(0, 1, 0),
                new CGColor(0, 0.5f, 0)
            });

            context.DrawLinearGradient(gradient,
                new CGPoint (path.BoundingBox.Left, path.BoundingBox.Top),
                new CGPoint (path.BoundingBox.Right, path.BoundingBox.Bottom),
                CGGradientDrawingOptions.DrawsBeforeStartLocation);
        }
    }
}

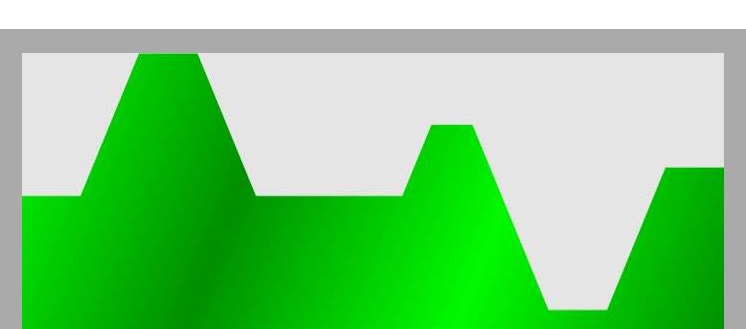

加上我的分数，我明白了：

​

​

我尝试过使用path.AddCurveToPoint和path.AddArc，但我似乎无法让它们按照我想要的方式工作。任何帮助都将不胜感激。

编辑

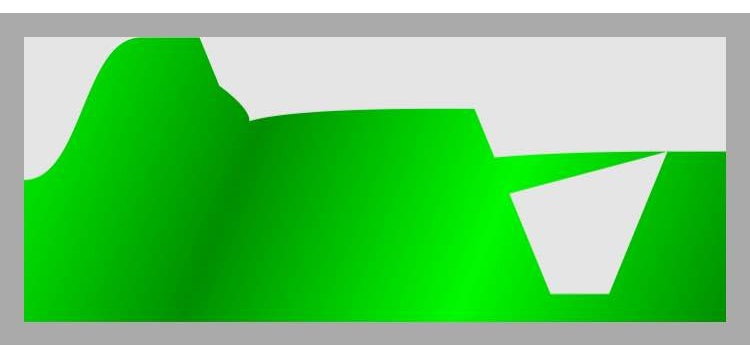

我和path.AddCurveToPoint玩过，现在看起来是这样的：

​

​

一开始是正确的，但后来就完全疯了。不知道我做错了什么。下面是我更新的Draw覆盖：

public override Draw (CGRect rect)
{
    CGContext context = UIGraphics.GetCurrentContext();

    context.SetLineWidth(2);
    UIColor.Black.SetStroke();
    UIColor.Green.SetFill();

    CGPath path = new CGPath();
    path.AddLines(points.ToArray());
    path.CloseSubpath();
    // updated section
    int count = points.Count;

    for (int x = 1; x < count; x++)
    {
        var p = points[x];
        if (x != 0)
        {
            var prev = points[x - 1];
            if (prev.Y != p.Y)
            {
                if (prev.Y > p.Y)
                {
                    path.AddCurveToPoint(prev, new CGPoint(p.X - prev.X, p.Y), p);
                }
                else
                {
                    //???
                }
            }
        }
    }
    // end updated section
    context.AddPath(path);
    context.Clip();

    using (CGColorSpace rgb = CGColorSpace.CreateDeviceRGB())
    {
        CGGradient gradient = new CGGradient (rgb, new CGColor[]
        {
            new CGColor(0, 1, 0),
            new CGColor(0, 0.5f, 0),
            new CGColor(0, 1, 0),
            new CGColor(0, 0.5f, 0)
        });

        context.DrawLinearGradient(gradient,
            new CGPoint (path.BoundingBox.Left, path.BoundingBox.Top),
            new CGPoint (path.BoundingBox.Right, path.BoundingBox.Bottom),
            CGGradientDrawingOptions.DrawsBeforeStartLocation);
    }
}

Answer 1

更新：

随着你的更新，我现在看到你的问题了。您正在尝试使用您的点列表作为Bézier控制点和多边形角的绘图点，这将无法工作。

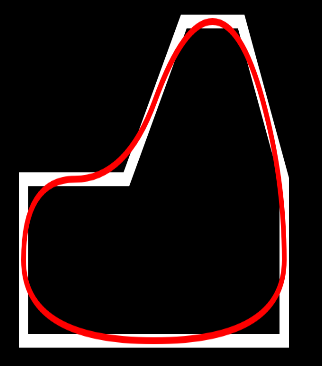

“最简单”的方式，它使用您现有的点列表作为控制点，并在每个控制点之间创建中间节点，并向每个段添加一个四条曲线。

注意：harder的方法是使用点列表作为节点，然后为每个bezier曲线段创建控制点。我将在这里不讨论它，但是许多图表系统使用这个文章作为它们的引用，来自getControlPoints的返回值将用作方法AddCurveToPoint的控制点。

简单的例子：

​

​

var color = UIColor.Red;
var color2 = UIColor.White;

var points = new List<CGPoint>() {
    new CGPoint(136.49f, 134.6f),
    new CGPoint(197.04f, 20.0f),
    new CGPoint(257.59f, 20.0f),
    new CGPoint(303.0f, 134.6f),
    new CGPoint(303.0f, 252.0f),
    new CGPoint(28.0f, 252.0f),
    new CGPoint(28.0f, 134.6f),
    new CGPoint(136.49f, 134.6f)
};

UIBezierPath polygonPath = new UIBezierPath();
polygonPath.MoveTo(points[0]);
polygonPath.AddLineTo(points[1]);
polygonPath.AddLineTo(points[2]);
polygonPath.AddLineTo(points[3]);
polygonPath.AddLineTo(points[4]);
polygonPath.AddLineTo(points[5]);
polygonPath.AddLineTo(points[6]);
polygonPath.ClosePath();
polygonPath.Fill();
color2.SetStroke();
polygonPath.LineWidth = 10.0f;
polygonPath.Stroke();

UIBezierPath smoothedPath = new UIBezierPath();
var m0 = MidPoint(points[0], points[1]);
smoothedPath.MoveTo(m0);
smoothedPath.AddQuadCurveToPoint(m0, points[0]);
var m1 = MidPoint(points[1], points[2]);
smoothedPath.AddQuadCurveToPoint(m1, points[1]);
var m2 = MidPoint(points[2], points[3]);
smoothedPath.AddQuadCurveToPoint(m2, points[2]);
var m3 = MidPoint(points[3], points[4]);
smoothedPath.AddQuadCurveToPoint(m3, points[3]);
var m4 = MidPoint(points[4], points[5]);
smoothedPath.AddQuadCurveToPoint(m4, points[4]);
var m5 = MidPoint(points[5], points[6]);
smoothedPath.AddQuadCurveToPoint(m5, points[5]);
var m6 = MidPoint(points[6], points[0]);
smoothedPath.AddQuadCurveToPoint(m6, points[6]);

smoothedPath.AddQuadCurveToPoint(m0, points[0]);
smoothedPath.ClosePath();

color.SetStroke();
smoothedPath.LineWidth = 5.0f;
smoothedPath.Stroke();

原件：

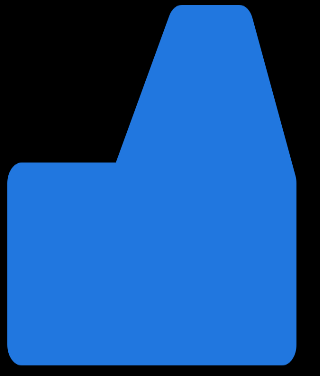

1)我不确定你在看多大的关节平滑度，但CGLineJoin.Round表示LineJoinStyle on a UIBezierPath将创建一个微妙的外观。

2)如果需要重角平滑，可以手动计算每一行的开始/结束，并添加一个ArcWithCenter来连接每个线段。

3)或者没有手工的角弧计算，您可以在使用CGLineJoin.Round时设置一个非常重的线宽，并缩小绘图的大小，以弥补增加的线宽。

示例：

var color = UIColor.FromRGBA(0.129f, 0.467f, 0.874f, 1.000f);

UIBezierPath polygonPath = new UIBezierPath();
polygonPath.MoveTo(new CGPoint(136.49f, 134.6f));
polygonPath.AddLineTo(new CGPoint(197.04f, 20.0f));
polygonPath.AddLineTo(new CGPoint(257.59f, 20.0f));
polygonPath.AddLineTo(new CGPoint(303.0f, 134.6f));
polygonPath.AddLineTo(new CGPoint(303.0f, 252.0f));
polygonPath.AddLineTo(new CGPoint(28.0f, 252.0f));
polygonPath.AddLineTo(new CGPoint(28.0f, 134.6f));
polygonPath.AddLineTo(new CGPoint(136.49f, 134.6f));
polygonPath.ClosePath();
polygonPath.LineJoinStyle = CGLineJoin.Round;

color.SetFill();
polygonPath.Fill();
color.SetStroke();
polygonPath.LineWidth = 30.0f;
polygonPath.Stroke();

​

​

：MidPoint方法

protected CGPoint MidPoint(CGPoint first, CGPoint second)
{
    var x = (first.X + second.X) / 2;
    var y = (first.Y + second.Y) / 2;
    return new CGPoint(x: x, y: y);
}
