neo4j密码深度第一次搜索

Question

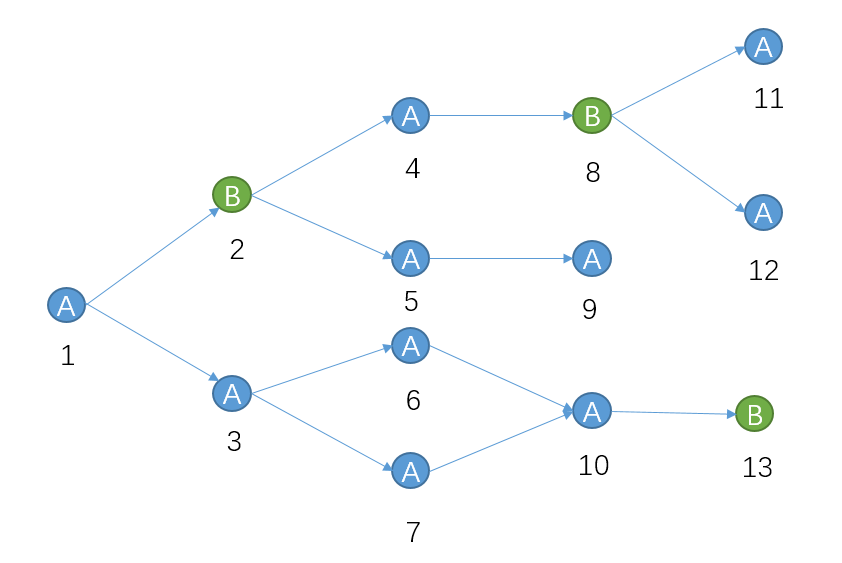

我有一个树状的图表，如下所示

​

现在假设我从根节点R开始，并希望找到从1到最近类型的B节点的所有路径。在示例图中，结果应该是

path-1: 1,2
path-2: 1,3,6,10,13
path-3: 1,3,7,10,13

我该怎么做？

Answer 1

将节点类型保留在标签中-- (:A)和(:B)，节点之间的关系是“connect”类型。

// Find all paths from Root to all B-nodes
MATCH (A:A {name:1}), p = (A)-[:connect*]->(B:B)

  // Get all node labels for each path
  WITH A, p, extract( n in nodes(p) | labels(n) ) as pathLabels

  // We find the number of occurrences of B-node in each path
  WITH A, p, reduce( bCount = 0, Labels in pathLabels |
                     CASE WHEN 'B' IN Labels THEN 1 ELSE 0 END + bCount
             ) as bCount

  // Return only the path in which the B-node is in the end of the path
  WHERE bCount = 1
RETURN p

示例数据查询：

MERGE (A1:A {name:1})-[:connect]-(B2:B {name:2}) MERGE (A1)-[:connect]-(A3:A {name:3}) MERGE (B2)-[:connect]-(A4:A {name:4}) MERGE (B2)-[:connect]-(A5:A {name:5}) MERGE (A4)-[:connect]-(B8:B {name:8}) MERGE (B8)-[:connect]-(A11:A {name:11}) MERGE (B8)-[:connect]-(A12:A {name:12}) MERGE (A5)-[:connect]-(A9:A {name:9}) MERGE (A3)-[:connect]-(A6:A {name:6}) MERGE (A3)-[:connect]-(A7:A {name:7}) MERGE (A6)-[:connect]-(A10:A {name:10}) MERGE (A7)-[:connect]-(A10) MERGE (A10)-[:connect]-(B13:B {name:13}) RETURN *

更新(搜索非A-type节点)：

// Find all paths from Root to all not A-nodes
MATCH (A:A {name:1}), p = (A)-[:connect*]->(B) WHERE NOT 'A' IN labels(B)

  // Get all node labels for each path
  WITH A, p, extract( n in nodes(p) | labels(n) ) as pathLabels

  // We find the number of occurrences of A-node in each path
  WITH A, p, reduce( aCount = 0, Labels in pathLabels |
                     CASE WHEN 'A' IN Labels THEN 1 ELSE 0 END + aCount
             ) as aCount

  // Return only the path in which the count of A-node
  // is 1 less the total number of nodes in the path.
  WHERE aCount = length(p)
RETURN p
