设置日志标度时的版权图例和面书问题

Question

我有以下绘制图片的代码：

%scamp data
[flipedBV, flipeddepth] = flipit(depthi, BVsurf_int_ens);

i=linspace(0,5,100);
edges_eps=10.^(-i);
logedg_BV= log10(fliplr(edges_eps));

[n_BV,xout_BV] = histc(histazza(log10(flipedBV)), logedg_BV);

x = logedg_BV;

%model data
[n_BVn,xout_BVn] = histc(histazza(log10(sqrt(-BVsurf_Num_ens))), logedg_BV);

BVsurfF = figure;hold on
h=area(x,n_BV/sum(n_BV),'facecolor',[1 0 0]);  %%red area where the problem gonna be

legend('SCAMP')
xlabel('$$ N~[1/s]$$','Interpreter','latex','fontsize',18)
set(gca,'fontsize',14,'ygrid','on')
alpha(.5)  %%translucency of the red area

%%add new data
addLineToFig('KEPflu', [0 0 1], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('KEPflu2', [0 1 1], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('GASflu', [0 0 0], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('GASflu2', [1 0 1 ], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('EPSmin', [1 1 0], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('GASmin', [.5 .5 0], BVsurfF, 'BVsurf_Num_ens', logedg_BV);

addLineToFig('canuto', [.5 .5 .5]', BVsurfF, 'BVsurf_Num_ens', logedg_BV);

子例程addLineToFig包括：

function addLineToFig(name, ccol, fighandle, variab, x)%, flippo, depthi)

cd(['E:\SIMULATIONS\',name,'\COMPARED\ensamble']);
load([name,'_ensamble'], variab);


[n_BVn, xout_BVn] = histc(histazza(log10(sqrt(-BVsurf_Num_ens))), x); %%new data

figure(fighandle)

[LEGHbv,OBJHbv,OUTHbv,OUTMbv] = legend;
P=plot(x,n_BVn/sum(n_BVn),'color',ccol,'linewidth',2); %%plot new data
legend([OUTHbv;P],OUTMbv{:},name) %%update legend

end

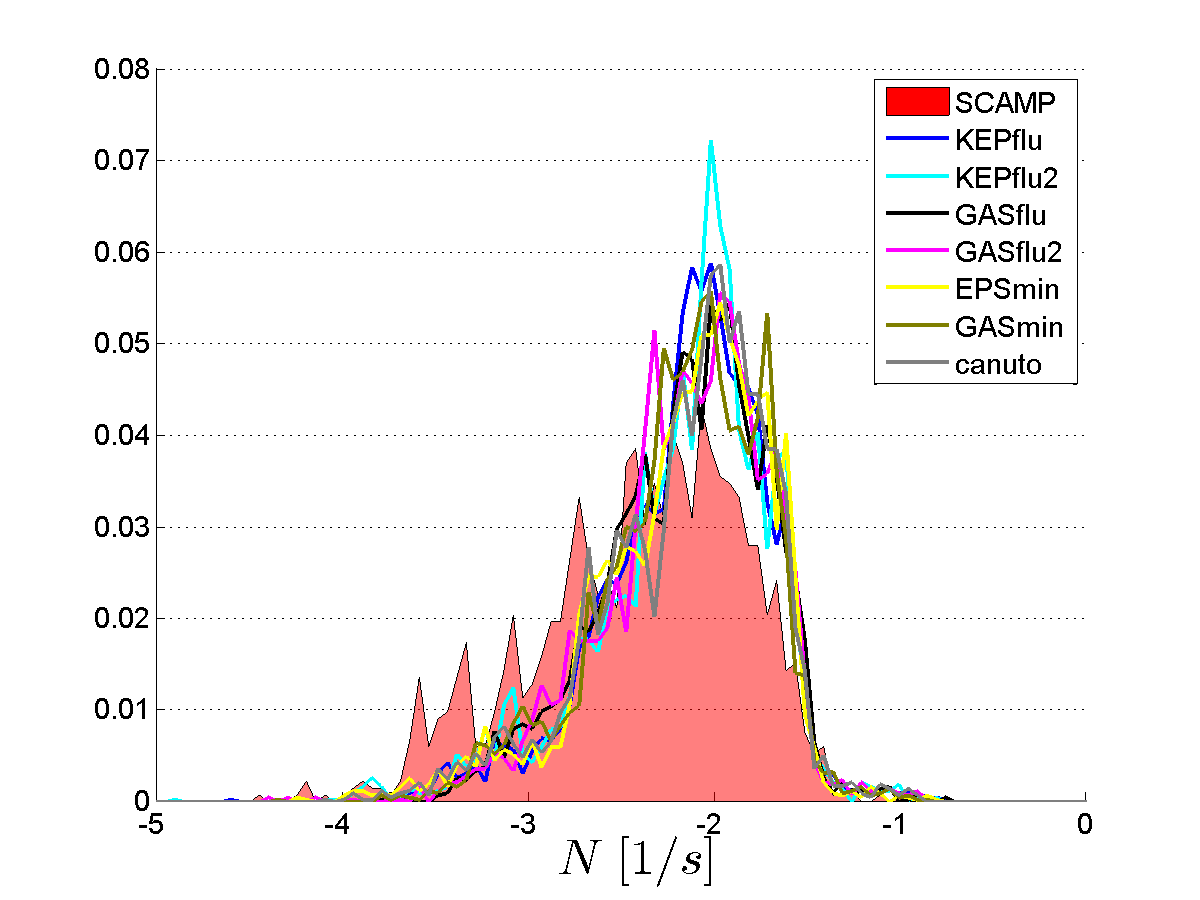

基本上，我创建一个红色区域的地块，然后用addLineToFig添加数据，并正确地获得：

​

​

当我试图复制这个数字时，问题就出现了：

h1=gcf;
h2=figure;
objects=allchild(h1);
copyobj(get(h1,'children'),h2);
set(gca,'yscale','log')

​

​

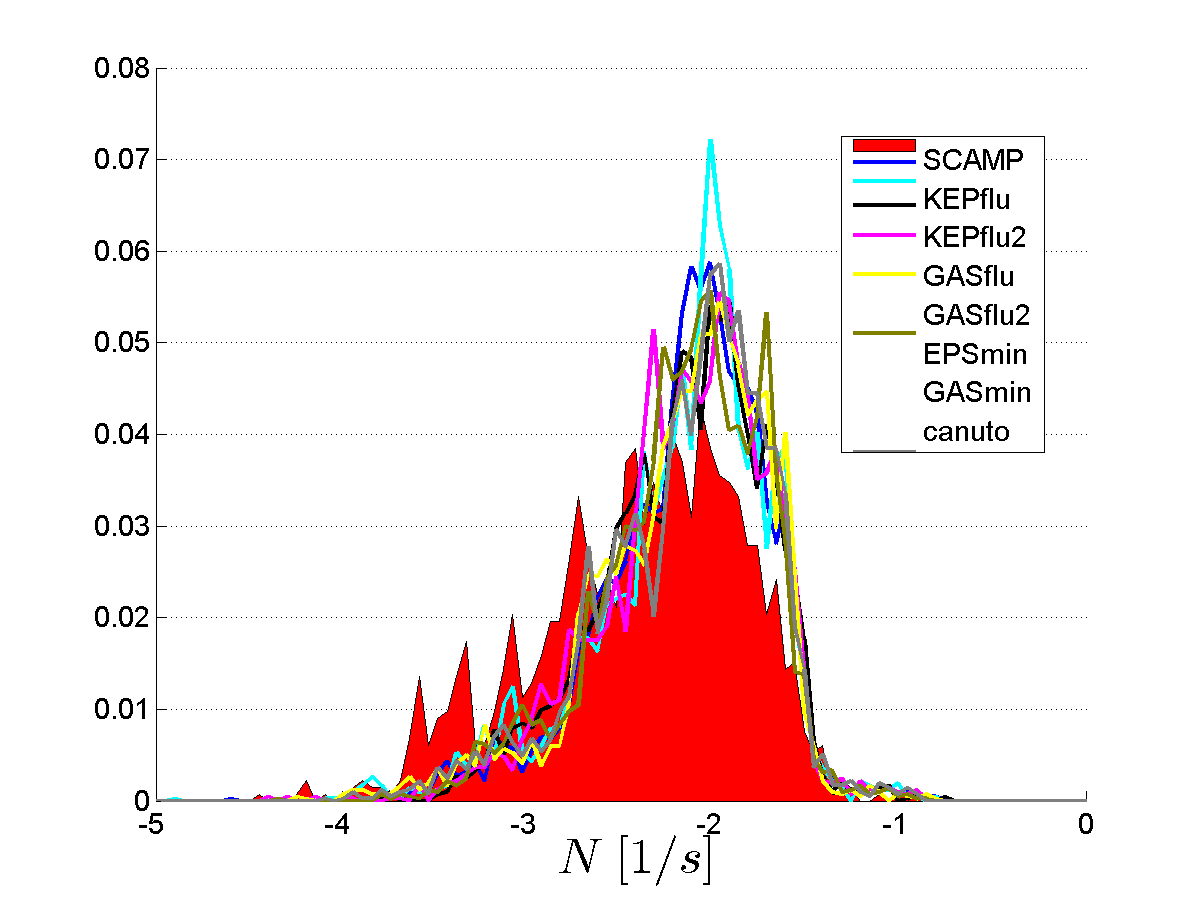

正如你所看到的，红色分布的半透明是不重复的，图例也有一些问题。

问题似乎是我将yscale设置为日志的最后一行。如果我评论它的话，代码可以正常工作。有人知道解决办法吗？

最小码

i=linspace(0,5,100);
edges_eps=10.^(-i);
logedg_BV= log10(fliplr(edges_eps));

a = 1e-5;
b = 1e-2;
r = (b-a).*rand(1000,1) + a;


[n_BV,xout_BV] = histc(histazza(log10(r)), logedg_BV);

x = logedg_BV;

%model data
r2 = (b-a).*rand(1000,1) + a;
[n_BVn,xout_BVn] = histc(histazza(log10(r2)), logedg_BV);

BVsurfF = figure;hold on
h=area(x,n_BV/sum(n_BV),'facecolor',[1 0 0]);  %%red area where the problem gonna be

legend('SCAMP')
xlabel('$$ N~[1/s]$$','Interpreter','latex','fontsize',18)
set(gca,'fontsize',14,'ygrid','on')
alpha(.5)  %%translucency of the red area

%%add new data
r3 = (b-a).*randn(1000,1) + a;
[n_BVn,xout_BVn] = histc(histazza(log10(r3)), logedg_BV);

figure(BVsurfF)
[LEGHbv,OBJHbv,OUTHbv,OUTMbv] = legend;
P=plot(x,n_BVn/sum(n_BVn),'color','k','linewidth',2);
legend([OUTHbv;P],OUTMbv{:},'data2')

%%add new data
r4 = (b-a).*rand(1000,1) + a;
[n_BVn,xout_BVn] = histc(histazza(log10(r4)), logedg_BV);

figure(BVsurfF)
[LEGHbv,OBJHbv,OUTHbv,OUTMbv] = legend;
P=plot(x,n_BVn/sum(n_BVn),'color','y','linewidth',2);
legend([OUTHbv;P],OUTMbv{:},'data3')




h1=gcf;
h2=figure;
objects=allchild(h1);
copyobj(get(h1,'children'),h2);

Answer 1

我通过将原始图形的渲染器设置为“OpenGL”来解决这个问题：

set(BVsurfF,'renderer','OpenGL')
