如何将三维曲面添加到AnchorPane中

Question

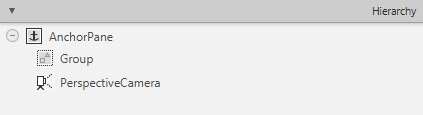

如何将3D曲面添加到view.fxml中，在场景生成器面板上没有像图面这样的“东西”。我的场景构建器层次结构如下：

​

​

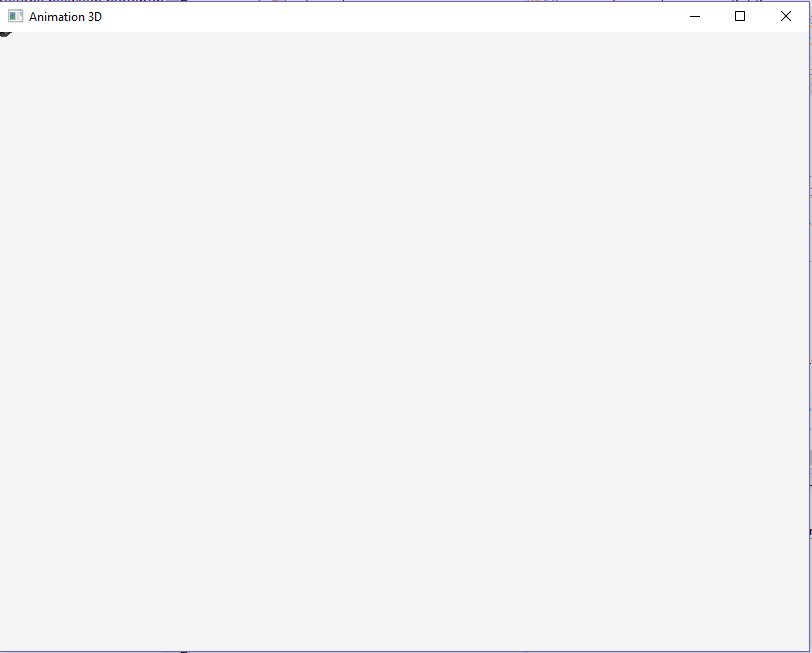

我们可以看到，在左上角有一些东西，表面应该在中间。

​

首先，我想添加一些3D表面的示例:我的控制器代码：

    package sample.packet3D;

import org.fxyz.cameras.CameraTransformer;

import javafx.beans.InvalidationListener;
import javafx.beans.Observable;
import javafx.fxml.FXML;
import javafx.scene.Group;
import javafx.scene.PerspectiveCamera;
import javafx.scene.PointLight;
import javafx.scene.layout.AnchorPane;


public class Window3DController {

    @FXML
    private AnchorPane anchorPane;
    @FXML
    private Group group;

    private Window3DBuilder window3dBuilder;
    private PerspectiveCamera perspectiveCamera;



    @FXML
    public void initialize() {
        perspectiveCamera = new PerspectiveCamera(true);

        window3dBuilder = new Window3DBuilder( group, perspectiveCamera );
        window3dBuilder.createScene();



        group.sceneProperty().addListener(new InvalidationListener() {

            @Override
            public void invalidated(Observable observable) {
                group.getScene().setCamera(perspectiveCamera);
                group.sceneProperty().removeListener(this);
            }
        });
    }
}

逻辑类：

   package sample.packet3D;


import org.fxyz.cameras.CameraTransformer;
import org.fxyz.shapes.primitives.SurfacePlotMesh;

import javafx.geometry.Point3D;
import javafx.scene.Group;
import javafx.scene.PerspectiveCamera;
import javafx.scene.PointLight;
import javafx.scene.SceneAntialiasing;
import javafx.scene.SubScene;
import javafx.scene.layout.AnchorPane;
import javafx.scene.paint.Color;
import javafx.scene.shape.CullFace;
import javafx.scene.shape.TriangleMesh;
import javafx.scene.transform.Rotate;

public class Window3DBuilder {

    private Group group;
    private SurfacePlotMesh surface;
    private PerspectiveCamera perspectiveCamera;
    private CameraTransformer cameraTransformer;
    private PointLight light;

    public Window3DBuilder( Group group, PerspectiveCamera perspectiveCamera ) {
        this.group = group;
        this.perspectiveCamera = perspectiveCamera;
        cameraTransformer = new CameraTransformer();
    }

    public void createScene() {

        createSurface();
        createLight();
        group.getChildren().addAll(surface);

        cameraTransformer.setTranslate(0, 0, 0);
        cameraTransformer.getChildren().addAll(perspectiveCamera);

        perspectiveCamera.setNearClip(0.1);
        perspectiveCamera.setFarClip(100000.0);
        perspectiveCamera.setTranslateX((group.getBoundsInLocal().getMaxX() + group.getBoundsInLocal().getMinX()) / 2d);
        perspectiveCamera.setTranslateY((group.getBoundsInLocal().getMaxY() + group.getBoundsInLocal().getMinY()) / 2d);
        double max = Math.max(group.getBoundsInLocal().getWidth(), group.getBoundsInLocal().getHeight());
        perspectiveCamera.setTranslateZ(-2 * max);

    }

    public void createLight() {
        light = new PointLight(Color.WHITE);
        cameraTransformer.getChildren().add(light);
        light.setTranslateX(perspectiveCamera.getTranslateX());
        light.setTranslateY(perspectiveCamera.getTranslateY());
        light.setTranslateZ(perspectiveCamera.getTranslateZ());
    }

    private void createSurface() {
        surface = new SurfacePlotMesh(
                p-> Math.sin(p.magnitude() + 1e-10) / (p.magnitude() + 1e-10),
                20, 20, 100, 100, 4);
        surface.setCullFace(CullFace.NONE);
        surface.setTextureModeVertices3D(1530, p -> p.magnitude());
        surface.getTransforms().addAll(new Rotate(200, Rotate.X_AXIS), new Rotate(-20, Rotate.Y_AXIS));
    }



}

和看法：

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.effect.*?>
<?import javafx.scene.canvas.*?>
<?import javafx.scene.*?>
<?import javafx.scene.shape.*?>
<?import javafx.scene.control.*?>
<?import java.lang.*?>
<?import javafx.scene.layout.*?>

<AnchorPane maxHeight="-Infinity" maxWidth="-Infinity" minHeight="-Infinity" minWidth="-Infinity" prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/8" xmlns:fx="http://javafx.com/fxml/1" fx:controller="sample.packet3D.Window3DController">
   <children>
      <Group fx:id="group">
         <effect>
            <Lighting>
               <bumpInput>
                  <Shadow />
               </bumpInput>
               <light>
                  <Light.Distant />
               </light>
            </Lighting>
         </effect>
      </Group>
      <PerspectiveCamera fx:id="perspectiveCamera" visible="false" />
   </children>
</AnchorPane>

我做错什么了？有人能帮我吗？这也是其中一个窗口，我是通过按下按钮进入的。

@FXML
    public void moveTo3DScene(ActionEvent event) throws IOException {
        Stage stage3D = (Stage) ((Node) event.getSource()).getScene().getWindow();
        Parent parent3D = FXMLLoader.load(getClass().getResource("packet3D/Window3DSceneView.fxml"));
        stage3D.setTitle("Animation 3D");
        stage3D.setScene(new Scene(parent3D, 1200, 800));
        stage3D.show();

    }

​

​

Answer 1

您对PerspectiveCamera有问题。它有一个名为fixedEyeAtCameraZero的布尔参数，默认为false，并且在场景的左上角显示一个非常小的曲面。

我们需要把它设为真，所以：

如果fixedEyeAtCameraZero为真，则在摄像机的局部坐标中，眼睛位置固定在(0，0，0)。

但不幸的是，您不能设置参数，没有setFixedEyeAtCameraZero()方法。改变它的唯一方法是使用照相机构造函数。

这意味着您必须从FXML文件中删除PerspectiveCamera，并通过控制器上的代码添加它。

public class Window3DController {

    @FXML
    private AnchorPane anchorPane;
    @FXML
    private Group group;

    private Window3DBuilder window3dBuilder;
    private PerspectiveCamera perspectiveCamera;

    @FXML
    public void initialize() {
        perspectiveCamera = new PerspectiveCamera(true);

        window3dBuilder = new Window3DBuilder(group, perspectiveCamera);
        window3dBuilder.createScene();

        group.sceneProperty().addListener(new InvalidationListener() {
            @Override
            public void invalidated(Observable observable) {
                group.getScene().setCamera(perspectiveCamera);
                group.sceneProperty().removeListener(this);
            }
        });
    }

}

最后一步:您需要为摄像机设置一些参数，基本上它的z坐标基于网格的大小：

public void createScene() {
    createSurface();
    group.getChildren().addAll(surface);

    perspectiveCamera.setNearClip(0.1);
    perspectiveCamera.setFarClip(100000.0);
    perspectiveCamera.setTranslateX((group.getBoundsInLocal().getMaxX() + group.getBoundsInLocal().getMinX()) / 2d);
    perspectiveCamera.setTranslateY((group.getBoundsInLocal().getMaxY() + group.getBoundsInLocal().getMinY()) / 2d);
    double max = Math.max(group.getBoundsInLocal().getWidth(), group.getBoundsInLocal().getHeight());
    perspectiveCamera.setTranslateZ(-2 * max);
}

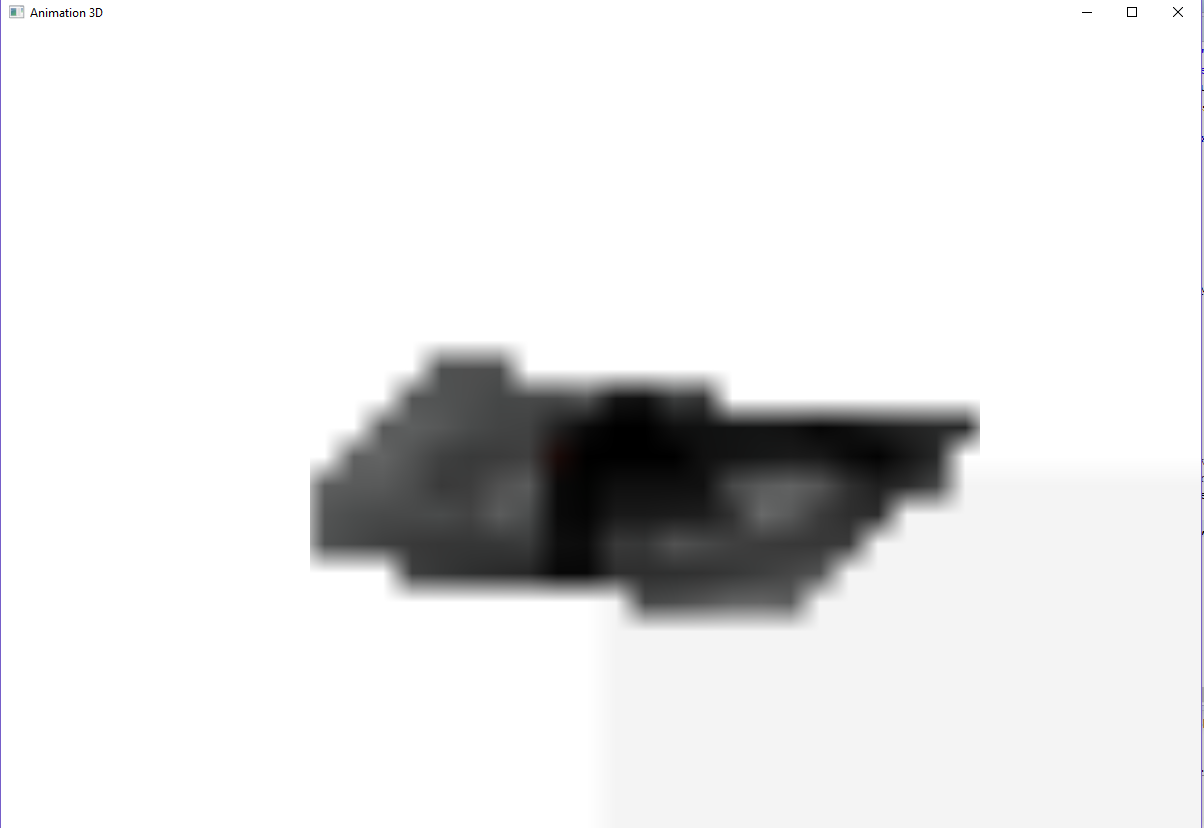

这将显示您的表面，但不像您预期的那样:您正在应用的效果是针对2D的：

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.Group?>
<?import javafx.scene.layout.AnchorPane?>

<AnchorPane maxHeight="-Infinity" maxWidth="-Infinity" minHeight="-Infinity" minWidth="-Infinity" prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/8.0.65" xmlns:fx="http://javafx.com/fxml/1" fx:controller="Window3DController">
   <children>
      <Group fx:id="group" />
   </children>
</AnchorPane>

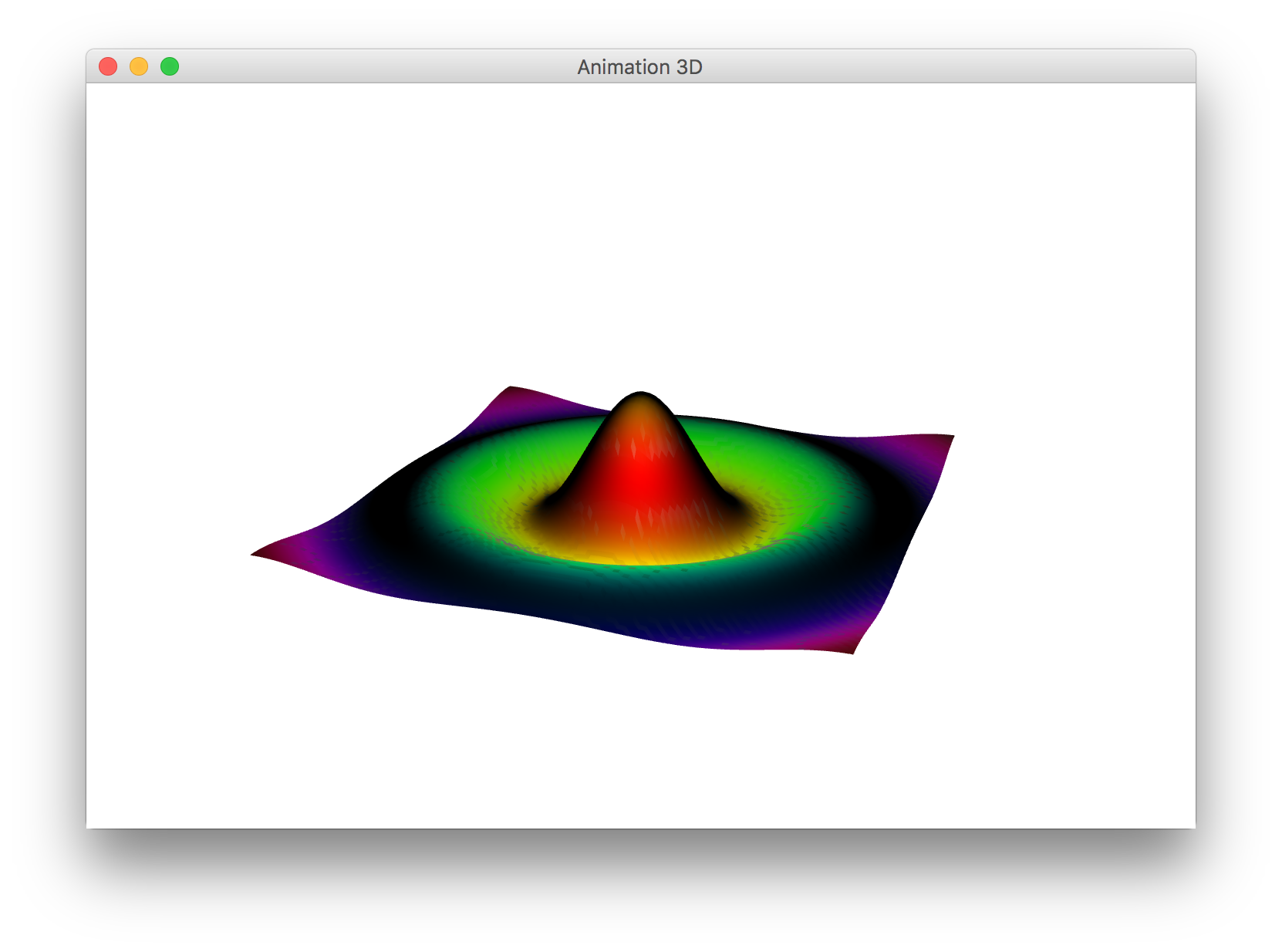

删除这些效果，并使用PointLight代码添加它们

public class Window3DBuilder {

    private final Group group;
    private SurfacePlotMesh surface;
    private final CameraTransformer cameraTransformer;
    private final PerspectiveCamera perspectiveCamera;
    private PointLight light;

    public Window3DBuilder( Group group, PerspectiveCamera perspectiveCamera ) {
        this.group = group;
        this.perspectiveCamera = perspectiveCamera;
        cameraTransformer = new CameraTransformer();
    }

    public void createScene() {
        createSurface();
        group.getChildren().addAll(surface, cameraTransformer);

        cameraTransformer.setTranslate(0, 0, 0);
        cameraTransformer.getChildren().addAll(perspectiveCamera);

        perspectiveCamera.setNearClip(0.1);
        perspectiveCamera.setFarClip(100000.0);
        perspectiveCamera.setTranslateX((group.getBoundsInLocal().getMaxX() + group.getBoundsInLocal().getMinX()) / 2d);
        perspectiveCamera.setTranslateY((group.getBoundsInLocal().getMaxY() + group.getBoundsInLocal().getMinY()) / 2d);
        double max = Math.max(group.getBoundsInLocal().getWidth(), group.getBoundsInLocal().getHeight());
        perspectiveCamera.setTranslateZ(-2 * max);
        createLight();
    }

    public void createLight() {
        light = new PointLight(Color.WHITE);
        cameraTransformer.getChildren().add(light);
        light.setTranslateX(perspectiveCamera.getTranslateX());
        light.setTranslateY(perspectiveCamera.getTranslateY());
        light.setTranslateZ(perspectiveCamera.getTranslateZ() / 10);
    }

    private void createSurface() {
        surface = new SurfacePlotMesh(
                p-> Math.sin(p.magnitude() + 1e-10) / (p.magnitude() + 1e-10),
                20, 20, 100, 100, 4);
        surface.setCullFace(CullFace.NONE);
        surface.setTextureModeVertices3D(1530, p -> p.magnitude());
        surface.getTransforms().addAll(new Rotate(200, Rotate.X_AXIS), new Rotate(-20, Rotate.Y_AXIS));
    }

}

​

​

Answer 2

我想把相机保存在.fxml文件中。我基于PerspectiveCamera创建了一个自定义控件。

从一个非常简单的课程开始。

import javafx.scene.PerspectiveCamera;


public class PerspectiveCamera3D extends PerspectiveCamera {

// force 3D
public PerspectiveCamera3D() {
    super(true);
}

// toss the parameter, force 3D
public PerspectiveCamera3D(final boolean fixedEyeAtCameraZero) {
    this();
}
}

导出到.jar文件。启动场景生成器，并打开.fxml文件，您想要相机在哪里。

打开库标题上的“齿轮”菜单。然后导入FXML/Jar。导入新创建的.jar文件。将弹出一个对话框，并列出您的控件。一旦确认，该控件将出现在自定义菜单中。您的控件现在可以使用了，就像其他控件一样。

“固定眼睛.”复选框仍然是只读的，但将被选中。所有其他属性都可以按需要设置。要设置fx:id，只需在控制器代码中添加以下内容.

@FXML
public PerspectiveCamera3D cambot;

下面是一个更详细的例子. https://rterp.wordpress.com/2014/07/28/adding-custom-javafx-component-to-scene-builder-2-0-part-2/

我唯一这样做的问题是，当通过单击Eclipse中的.fxml文件来启动场景生成器时，会导致异常(我认为这是我的计算机上的一个本地问题，因为我启动东西的方式和它们的工作目录)。如果我打开场景生成器，然后从场景生成器文件菜单中打开.fxml文件，它可以正常工作。
