GTK+/ C++ gtk_label/ gtk_textview文本大小调整

Question

​

​

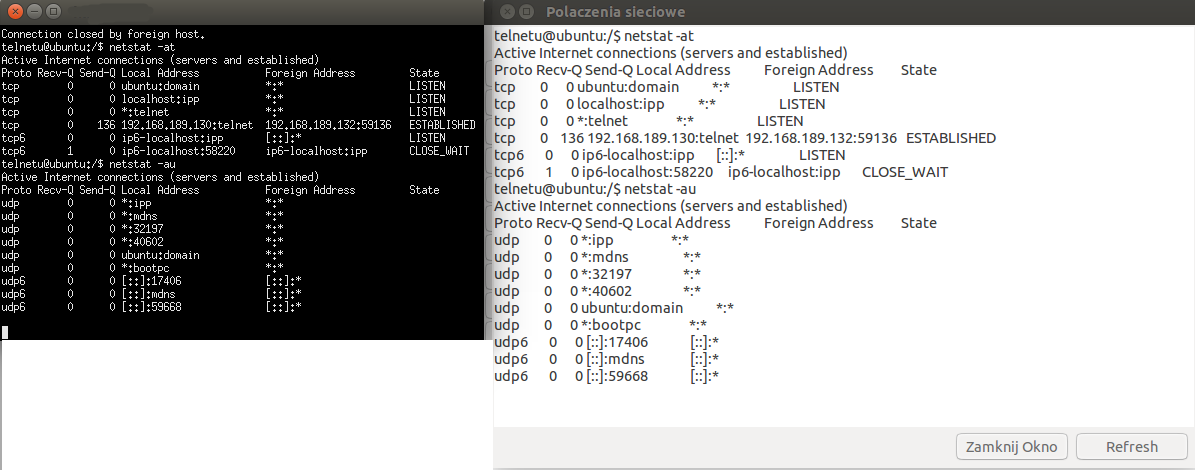

在左边窗口的附加图像中，我有一个Ubuntu控制台，它包含文件的内容，而在右边的窗口，我的GTK+程序中有相同文件的内容。问题是，我希望我的GTK+程序在Ubuntu控制台上准确地显示文件。

我已经尝试通过将单行添加到单个gtk_label并将该标签添加到垂直框中来显示它，但结果是一样的。

问题

有没有办法使我的gtk程序具有与Ubuntu控制台相同的大小/外观？

以下是代码：

void Zarzadzanie::Wykonaj(GtkWidget* widget, GtkWidget* data)
{
  string buffer;
  string n="";
  GtkWidget *dialog, *label, *vbox, *window2,*viewer;



  //Creating my dialog
  dialog=gtk_dialog_new_with_buttons("Polaczenia sieciowe",GTK_WINDOW(gtk_widget_get_toplevel(data)), GTK_DIALOG_MODAL, GTK_STOCK_CLOSE, GTK_RESPONSE_CLOSE,GTK_STOCK_REFRESH,
                                           GTK_RESPONSE_OK, NULL );
  vbox=gtk_vbox_new(0,0); //creating new vbox
  window2=gtk_scrolled_window_new(0,0); //creating new scrolled window
  gtk_button_set_label(GTK_BUTTON(gtk_dialog_get_widget_for_response(GTK_DIALOG(dialog),GTK_RESPONSE_CLOSE)),"Zamknij Okno"); //setting label in dialog
  gtk_scrolled_window_set_min_content_height(GTK_SCROLLED_WINDOW(window2),400); //setting min height in scrollable window
  gtk_scrolled_window_set_min_content_width(GTK_SCROLLED_WINDOW(window2),700); //setting min width in scrollable window


  viewer=gtk_text_view_new(); //creating new textview
  gtk_text_view_set_editable(GTK_TEXT_VIEW (viewer), FALSE); //setting textview to not editable
  gtk_container_add(GTK_CONTAINER(window2), viewer); //adding textview to scrollable window
  gtk_box_pack_start(GTK_BOX(gtk_dialog_get_content_area(GTK_DIALOG(dialog))),window2,0,0,0); //adding scrollable window to dialog


  ifstream plik("Pomniejsze/netstat.txt"); //reading from file
  if(plik==NULL) //checking if file is not empty
  {
      //i will add something later
  }
  else //if file is not empty
  {
      while(std::getline(plik, buffer)) //i read from file line by line
      {
          n+=buffer; //i add to "n" 1 line from file
          n+="\n"; //i add "new line" to "n"
      }
      char* z=new char[n.length()+1]; //i create new temporary char*
      strcpy(z, n.c_str()); //i copy content of "n" to temporary char*
      gtk_text_buffer_set_text(gtk_text_view_get_buffer(GTK_TEXT_VIEW(viewer)),z,-1); //i set text of textview to text from temp char*
      g_print(z); //i print out temporary char* which can be seen on attached image on left window
      delete [] z; //i delete temporary char*

  }

  g_signal_connect(dialog, "delete-event",G_CALLBACK(gtk_widget_destroy), NULL); // i add delete event to "x" button
  gtk_widget_show_all(dialog); //i show my dialog
  gint resp=gtk_dialog_run(GTK_DIALOG(dialog)); //i run my dialog

  if(resp==GTK_RESPONSE_CLOSE) //i check if user clicked button
  {
     gtk_widget_destroy(dialog); //if button is clicked i destroy dialog
  }
  else if(resp==GTK_RESPONSE_OK)
  {
      //something will be added later
  }
}

Answer 1

您正在使用可变宽度的字体。您真正需要的是一个单间距字体，它是一个固定的宽度，因此所有字符都将从一行排列到另一行。

您可以使用gtk_text_view_set_monospace()只使用默认的单间距字体。此函数只有在GTK+版本3.16之后才可用。

下面是一个普通单频字体的列表。您可以使用PangoFontDescription和gtk_widget_override_font()将字体设置为其中之一。但是，由于这是不推荐的，并且已经被set_monospace()函数所取代，所以不需要手动强制使用特定的单空间字体。
