使用Grafika CameraCapture代码扩展安卓摄像头预览

Question

我正在寻找使用格拉菲卡氏CameraCaptureActivity代码时所面临的一个问题的帮助。我想要建立一个应用程序，可以记录相机和显示预览，所以这个样本和代码看起来与我想要的完全一样，到目前为止，这个问题已经很好了。

我的问题是，当相机预览大小与我用来显示预览的GLSurfaceView的大小不匹配时，它会显示一个拉伸的预览。

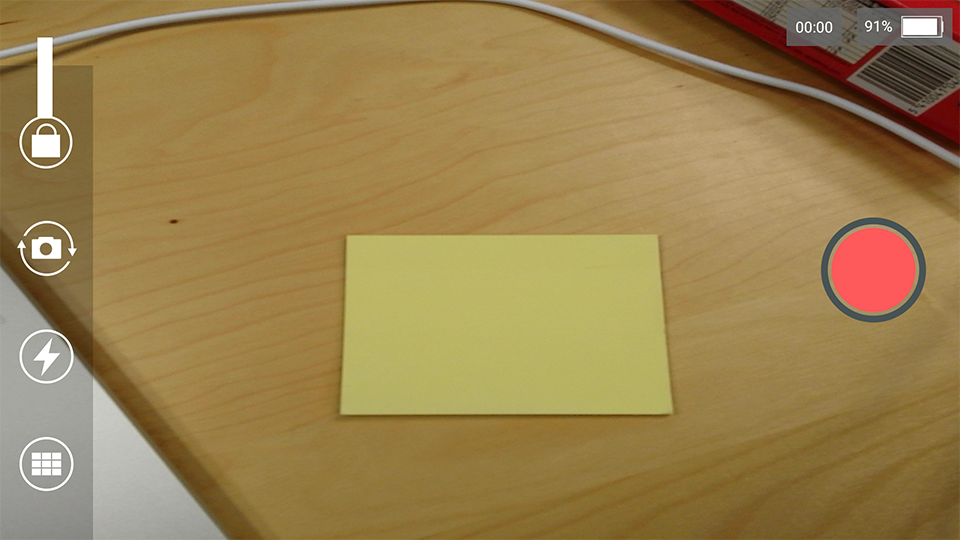

以下是它的外观：

​

​

正如你所看到的，它是水平拉伸的，因为便笺是一个完美的正方形。

对于三星Galaxy上的这个精确示例，相机预览大小是S4 (使用Camera2 API从可用预览大小中提取)，GLSurfaceView是覆盖整个屏幕的1920x1080。

什么时候出现？

当SurfaceView与相机输出相比时，就会出现这个问题，即使我总是确保比率保持正确(1920x1080 = 1,5 * 1280x720)。

你在用什么代码？

我使用Grafika的代码，包括：

• CameraCaptureActivity
• AspectFrameLayout
• FullFrameRect
• Drawable2d
• EglCore
• EglBaseSurface

一些日志？

下面是SurfaceFlinger转储的样子：

Hardware Composer state (version 01030000):
  mDebugForceFakeVSync=0
  Display[0] configurations (* current):
    * 0: 1080x1920, xdpi=442.450989, ydpi=439.351013, secure=1 refresh=16666667
  numHwLayers=3, flags=00000000
    type   |  handle  | hint | flag | tr | blnd |  format     |     source crop(l,t,r,b)       |           frame        |      dirtyRect         |  name
------------+----------+----------+----------+----+-------+----------+-----------------------------------+---------------------------+-------------------
       HWC | b3b12ba0 | 0002 | 0000 | 00 | 0100 | RGB_888     |    0.0,    0.0, 1080.0, 1920.0 |    0,    0, 1080, 1920 | [    0,    0, 1080, 1920] | SurfaceView
       HWC | b3d12740 | 0002 | 0000 | 00 | 0105 | RGBA_8888   |    0.0,    0.0, 1065.0, 1905.0 |    0,    0, 1065, 1905 | [    0,    0, 1065, 1905] | com.mybundle.myapp/com.mybundle.myapp.activity.MyActivity
 FB TARGET | b6a55c40 | 0000 | 0000 | 00 | 0105 | RGBA_8888   |    0.0,    0.0, 1080.0, 1920.0 |    0,    0, 1080, 1920 | [    0,    0,    0,    0] | HWC_FRAMEBUFFER_TARGET

Layer 0xb4094000 (SurfaceView)
  Region transparentRegion (this=0xb4094160, count=1)
    [  0,   0,   0,   0]
  Region visibleRegion (this=0xb4094008, count=1)
    [  0,   0, 1920, 1080]
      layerStack=   0, z=    21015, pos=(0,0), size=(1920,1080), crop=(   0,   0,1920,1080), isOpaque=1, invalidate=0, alpha=0xff, flags=0x00000002, tr=[1.00, 0.00][0.00, 1.00]
      client=0xb66190c0
      format= 4, activeBuffer=[1080x1920:1536,  3], queued-frames=0, mRefreshPending=0
            mTexName=116 mCurrentTexture=0
            mCurrentCrop=[0,0,0,0] mCurrentTransform=0x7
            mAbandoned=0
            -BufferQueue mMaxAcquiredBufferCount=1, mDequeueBufferCannotBlock=0, default-size=[1920x1080], default-format=4, transform-hint=04, FIFO(0)={}
            >[00:0xb1c18500] state=ACQUIRED, 0xb3b12ba0 [1080x1920:1536,  3]

摄像机预览尺寸代码？

StreamConfigurationMap map = characteristics.get(CameraCharacteristics.SCALER_STREAM_CONFIGURATION_MAP);

// Retrieve display size
WindowManager wm = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);
Display display = wm.getDefaultDisplay();
Point displaySize = new Point();
display.getSize(displaySize);

// Choose the sizes for camera preview
mPreviewSize = chooseOptimalSize(map.getOutputSizes(SurfaceTexture.class),
                    displaySize.x, displaySize.y, captureWidth, captureHeight);

private static Size chooseOptimalSize(Size[] choices, int screenWidth, int screenHeight, int captureWidth, int captureHeight)
    {
        // Collect the supported resolutions that are at least as big as the screen && wanted capture size
        List<Size> bigEnough = new ArrayList<>();
        // Collect the supported resolutions that are at least as big as the wanted capture size but < to screensize
        List<Size> smallerButEnough = new ArrayList<>();

        for (Size option : choices) {
            if (option.getHeight() == option.getWidth() * captureHeight / captureWidth) {
                if( option.getWidth() >= screenWidth && option.getHeight() >= screenHeight )
                {
                    bigEnough.add(option);
                }
                else
                {
                    smallerButEnough.add(option);
                }
            }
        }

        // Pick the smallest of those, assuming we found any
        if (bigEnough.size() > 0)
        {
            return Collections.min(bigEnough, new CompareSizesByArea());
        }
        // Pick the biggest of those, assuming we found any
        else if( smallerButEnough.size() > 0 )
        {
            return Collections.max(smallerButEnough, new CompareSizesByArea());
        }
        else
        {
            Log.e(TAG, "Couldn't find any suitable preview size");
            return choices[0];
        }
    }

你试过什么？

我最初认为这是一个Camera2问题，所以我试着只使用旧的Camera，但是结果是一样的。

然后我认为这是一个比率问题，但正如你所看到的，这个比率在水平和垂直上都是可以的。

我敢打赌，当曲面被调整大小时，可以应用OpenGL转换，但是我是OpenGL中的一个纯粹的菜鸟，所以我找不到任何有用的东西。我试着添加了这些行，但没有帮助：

@Override
public void onSurfaceChanged(GL10 gl, int width, int height) {
    Log.d(TAG, "onSurfaceChanged " + width + "x" + height);

    gl.glViewport(0, 0, width, height);
    gl.glClear(GLES10.GL_COLOR_BUFFER_BIT | GLES10.GL_DEPTH_BUFFER_BIT);
}

另一个例子，来自Grafika:

下面是这个问题的另一个例子，来自Grafika应用程序。

手机: Galaxy S3 Neo (GT-I9301L) -Android4.4.2

这款手机有一个1280x720屏幕，摄像头以640x480分辨率打开，显示在573x430中。以下是它的外观：

​

​

SurfaceFlinger日志：

Hardware Composer state (version  1030000):
  mDebugForceFakeVSync=0
  Display[0] : 720x1280, xdpi=304.799011, ydpi=306.716003, refresh=16666667
  numHwLayers=4, flags=00000000
    type    |  handle  |   hints  |   flags  | tr | blend |  format  |          source crop            |           frame           name
------------+----------+----------+----------+----+-------+----------+---------------------------------+--------------------------------
        HWC | b84a3d18 | 00000002 | 00000000 | 00 | 00100 | 00000002 | [    0.0,    0.0,  430.0,  573.0] | [   32,  353,  462,  926] SurfaceView
        HWC | b841b080 | 00000002 | 00000000 | 00 | 00105 | 00000001 | [    0.0,    0.0,  670.0, 1280.0] | [    0,    0,  670, 1280] com.android.grafika/com.android.grafika.CameraCaptureActivity
        HWC | b8423250 | 00000002 | 00000000 | 00 | 00105 | 00000001 | [    0.0,    0.0,   50.0, 1280.0] | [  670,    0,  720, 1280] StatusBar
  FB TARGET | b8412d50 | 00000000 | 00000000 | 00 | 00105 | 00000001 | [    0.0,    0.0,  720.0, 1280.0] | [    0,    0,  720, 1280] HWC_FRAMEBUFFER_TARGET


+ Layer 0xb8416080 (SurfaceView) id=112
  Region transparentRegion (this=0xb84169d0, count=1)
    [  0,   0,   0,   0]
  Region visibleRegion (this=0xb8416088, count=1)
    [353, 258, 926, 688]
      layerStack=   0, z=    21015, pos=(353,258), size=( 573, 430), crop=(   0,   0, 573, 430), isOpaque=1, invalidate=0, alpha=0xff, flags=0x00000000, tr=[1.00, 0.00][0.00, 1.00]
      client=0xb841d7c8
      format= 4, activeBuffer=[ 430x 573: 448,  2], queued-frames=0, mRefreshPending=0
            mTexName=95 mCurrentTexture=1
            mCurrentCrop=[0,0,0,0] mCurrentTransform=0x7
            mAbandoned=0
            -BufferQueue mMaxAcquiredBufferCount=1, mDequeueBufferCannotBlock=0, default-size=[573x430], default-format=4, transform-hint=04, FIFO(0)={}
             [00:0xb84439a8] state=FREE    , 0xb849a528 [ 430x 573: 448,  2]
            >[01:0xb8421128] state=ACQUIRED, 0xb84a3d18 [ 430x 573: 448,  2]
             [02:0xb84238e8] state=FREE    , 0xb84432f8 [ 430x 573: 448,  2]

Grafika的应用程序日志：

04-18 18:06:49.954 14383-14383/com.android.grafika D/Grafika: onCreate complete: com.android.grafika.CameraCaptureActivity@42adc288
04-18 18:06:49.954 14383-14383/com.android.grafika D/Grafika: onResume -- acquiring camera
04-18 18:06:50.064 14383-14383/com.android.grafika D/Grafika: Camera preferred preview size for video is 1920x1080
04-18 18:06:50.064 14383-14383/com.android.grafika D/Grafika-AFL: Setting aspect ratio to 1.3333333333333333 (was -1.0)
04-18 18:06:50.064 14383-14383/com.android.grafika D/Grafika: onResume complete: com.android.grafika.CameraCaptureActivity@42adc288
04-18 18:06:50.064 14383-32312/com.android.grafika D/Grafika: setCameraPreviewSize
04-18 18:06:50.094 14383-14383/com.android.grafika D/Grafika-AFL: onMeasure target=1.3333333333333333 width=[MeasureSpec: EXACTLY 1216] height=[MeasureSpec: EXACTLY 526]
04-18 18:06:50.094 14383-14383/com.android.grafika D/Grafika-AFL: new size=701x526 + padding 0x0
04-18 18:06:50.094 14383-14383/com.android.grafika D/Grafika-AFL: onMeasure target=1.3333333333333333 width=[MeasureSpec: EXACTLY 1216] height=[MeasureSpec: EXACTLY 430]
04-18 18:06:50.094 14383-14383/com.android.grafika D/Grafika-AFL: new size=573x430 + padding 0x0
04-18 18:06:50.124 14383-32312/com.android.grafika D/Grafika: onSurfaceCreated
04-18 18:06:50.134 14383-32312/com.android.grafika D/Grafika: Created program 3 (TEXTURE_EXT)
04-18 18:06:50.144 14383-32312/com.android.grafika D/Grafika: onSurfaceChanged 573x430
04-18 18:06:50.144 14383-32312/com.android.grafika D/Grafika: Updating filter to 0
04-18 18:06:50.154 14383-14383/com.android.grafika D/Grafika: onItemSelected: 0
04-18 18:06:50.154 14383-14383/com.android.grafika D/Grafika: CameraHandler [Handler (com.android.grafika.CameraCaptureActivity$CameraHandler) {42aeec70}]: what=0
04-18 18:06:50.514 14383-14383/com.android.grafika D/Grafika-AFL: onMeasure target=1.3333333333333333 width=[MeasureSpec: EXACTLY 1216] height=[MeasureSpec: EXACTLY 526]
04-18 18:06:50.514 14383-14383/com.android.grafika D/Grafika-AFL: new size=701x526 + padding 0x0
04-18 18:06:50.514 14383-14383/com.android.grafika D/Grafika-AFL: onMeasure target=1.3333333333333333 width=[MeasureSpec: EXACTLY 1216] height=[MeasureSpec: EXACTLY 430]
04-18 18:06:50.514 14383-14383/com.android.grafika D/Grafika-AFL: new size=573x430 + padding 0x0
04-18 18:06:50.544 14383-14383/com.android.grafika D/AbsListView: onVisibilityChanged() is called, visibility : 4
04-18 18:06:50.544 14383-14383/com.android.grafika D/AbsListView: unregisterIRListener() is called

所以.

如果你们中有一个知道怎么做的话，我很想听听他的意见。

谢谢!

Answer 1

我m sorry for my last answer, it was stupid and didn没有解决问题。但我发明了另一种解决方案，并使用不同的相机高宽比在5台设备上进行了测试。据我所知，youre using Grafika code. Try to removeparms.setRecordingHint(true);So now im只使用相同宽宽比的param.setPictureSize() param.setPreviewSize()。另外，我设置了gl视图，s size with that aspect, i made it by myself.In grafika it used fixed size, afaik. Hope it将帮助您。
