etl与多到多关系

Question

在csv的etl使用一个到多个特性的文档中，我想将它扩展到许多特性。所以我做了三次倾诉，一次是为了发帖，一次是为了评论，还有一次是为了关系。张贴和评论是可以的，但当我启动关系时，我有这个错误，我做错了什么？

    commentId,postId
    0,10
    1,10
    21,10
    41,20
    82,20

    {
     "source": { "file": { "path": "/tmp/relation.csv" } },
     "extractor": { "csv": {} },
       "transformers": [
        { "edge":
            { "class": "HasComments", "joinFieldName": "postId", "lookup": "Post.id", "direction": "out"},
            { "class": "HasComments", "joinFieldName": "commentId", "lookup": "Comment.id", "direction": "in"}
        }
      ],
      "loader": {
        "orientdb": {
           "dbURL": "plocal:/tmp/test",
           "dbType": "graph",
           "classes": [
             {"name": "Post", "extends": "V"},
             {"name": "Comment", "extends": "V"},
             {"name": "HasComments", "extends": "E"}
           ],
           "indexes": [
             {"class":"Post", "fields":["id:integer"], "type":"UNIQUE" },
             {"class":"Comment", "fields":["id:integer"], "type":"UNIQUE" }
           ]
        }
      }
    }

    OrientDB etl v.2.1.9-SNAPSHOT (build 2.1.x@r; 2016-01-07 10:51:24+0000) www.orientdb.com
    BEGIN ETL PROCESSOR
    [file] INFO Reading from file /tmp/relation.csv with encoding UTF-8
    Error in Pipeline execution: com.orientechnologies.orient.etl.transformer.OTransformException: edge: input type 'com.orientechnologies.orient.core.record.impl.ODocument$1$1@72ade7e3' is not supported
    ETL process halted: com.orientechnologies.orient.etl.OETLProcessHaltedException: Halt
    Exception in thread "main" com.orientechnologies.orient.etl.OETLProcessHaltedException: Halt
    at com.orientechnologies.orient.etl.OETLPipeline.execute(OETLPipeline.java:149)
    at com.orientechnologies.orient.etl.OETLProcessor.executeSequentially(OETLProcessor.java:448)
    at com.orientechnologies.orient.etl.OETLProcessor.execute(OETLProcessor.java:255)
    at com.orientechnologies.orient.etl.OETLProcessor.main(OETLProcessor.java:109)
    Caused by: com.orientechnologies.orient.etl.transformer.OTransformException: edge: input type 'com.orientechnologies.orient.core.record.impl.ODocument$1$1@72ade7e3' is not supported
    at com.orientechnologies.orient.etl.transformer.OEdgeTransformer.executeTransform(OEdgeTransformer.java:107)
    at com.orientechnologies.orient.etl.transformer.OAbstractTransformer.transform(OAbstractTransformer.java:37)
    at com.orientechnologies.orient.etl.OETLPipeline.execute(OETLPipeline.java:115)
    ... 3 more

Answer 1

一个可能的解决方案可能是，在通过它们的json文件导入Post和注释类之后，您可以使用另一个json文件并导入类关系

{
    "source": { "file": { "path": "/tmp/relation.csv" } },
    "extractor": { "row": {} },
    "transformers": [
        { "csv": { "separator": ","}
        },
        { "vertex": { "class": "Relation" } }
    ],
    "loader": {
        "orientdb": {
           "dbURL": "plocal:/tmp/test",
           "dbType": "graph",
            "classes": [
                {"name": "Post", "extends": "V"},
                {"name": "Comment", "extends": "V"},
                {"name": "Relation", "extends": "V"},
                {"name": "HasComments", "extends": "E"}
            ],
            "indexes": [
                {"class":"Post", "fields":["id:integer"], "type":"UNIQUE" },
                {"class":"Comment", "fields":["id:integer"], "type":"UNIQUE" }
            ]
        }
    }
}

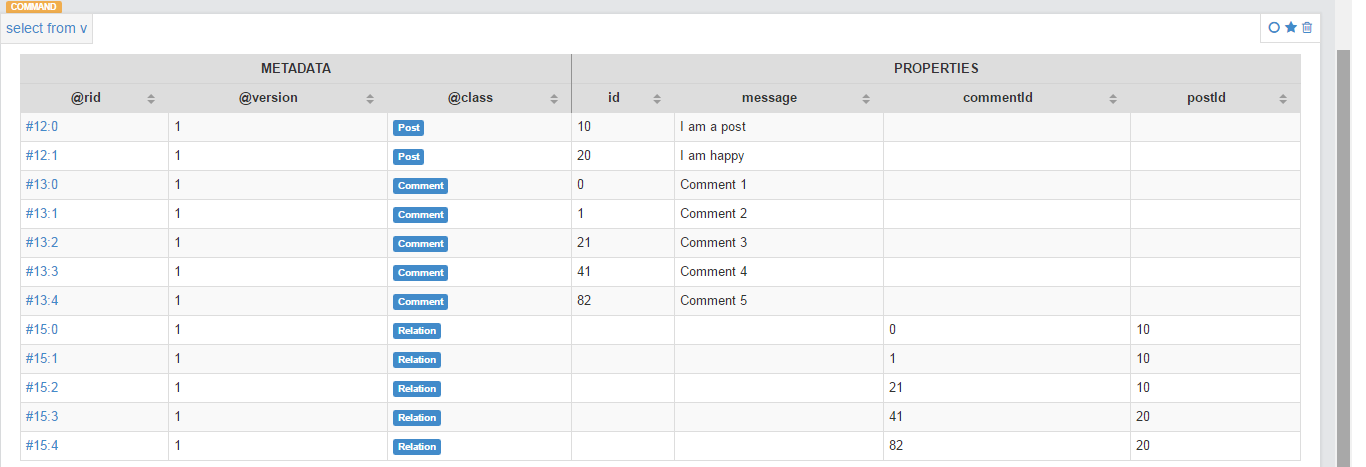

你会得到这些记录的。

​

​

使用以下javascript函数

var g=orient.getGraphNoTx();
var relation = g.command("sql","select from Relation");
for(i=0;i<relation.length;i++){
var relationMM=g.command("sql","select postId , commentId from "+ relation[i].getId());
var idPost=relationMM[0].getProperty("postId");
var idComment=relationMM[0].getProperty("commentId");
var post=g.command("sql","select from Post where id = " + idPost);
var comment=g.command("sql","select from Comment where id = " + idComment);
g.command("sql","create edge HasComments from " + post[0].getId() + " to " + comment[0].getId());
}
g.command("sql","drop class Relation unsafe");

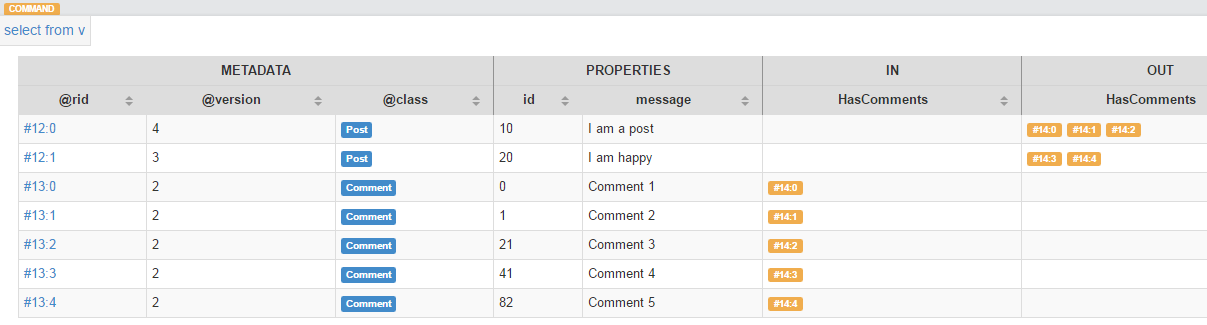

您将得到以下结构。

​

​

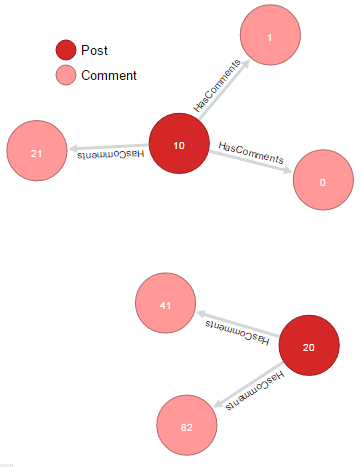

这将是你的图表。

​

​

更新

可以使用此代码检查边缘是否已存在。

var counter=g.command("sql","select count(*) from HasComments where out=" + post[0].getId() + " and in=" + comment[0].getId());
if(counter[0].getProperty("count")==0){
    g.command("sql","create edge HasComments from " + post[0].getId() + " to " + comment[0].getId());
}
