使用udp在java和simulink之间传输双倍

Question

我需要在Java程序和Simulink模型之间传递十进制值，这样我才能使用UDP套接字，它们在java方面是没有问题的。在Simulink中，我可以使用'Stream‘块发送值，但是问题在从java接收时出现了！“流输入”块没有接收任何东西。我使用的是标准设备UDP协议，具有正确的本地UDP端口，地址是'localhost。请告诉我如何在simulink中正确地接收udp，甚至其他方法，传输数据有什么关系。谢谢。下面是一些代码：

localSocket = new DatagramSocket(9010);

..。

 public static void localSend(String msg,int PORT) throws Exception{
    DatagramPacket sendPacket = null,encPacket=null;
    try {
        sendPacket = new DatagramPacket(msg.getBytes(), msg.getBytes().length, InetAddress.getLocalHost(), PORT);
    } catch (Exception e) {
        System.out.printf("Error!");
    }
    localSocket.send(sendPacket);
}

在主要方法方面：

localSend(myMessage, 9005);

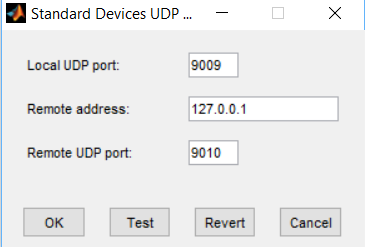

“输入流”块的“板设置”为Simulink，如下所示：

​

下面是我如何从Simulink (该方法)接收数据：

    public static String localReceive() throws Exception{
     DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length);
     int count=0;
       try {
           localSocket.receive(receivePacket);
            return new String(receivePacket.getData(),receivePacket.getOffset(),receivePacket.getLength());
            } catch (SocketTimeoutException socketTimeoutException) {
                return defaultValue;
            }
 }

并在Simulink中设置“输出流”块：

Answer 1

我做了个小把戏。‘包输入’Simulink块，和'ASCII解码‘，

​

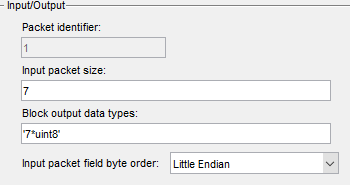

我调整这两个区块的参数如下：

​

​

​

​

在java端，我用以下方法“重新格式化”了double：

public static String reformat(String str){
    double d = 0;
    DecimalFormat df=null;
    try {
        d = Double.parseDouble(str);
    } catch (NumberFormatException numberFormatException) {
        return "0.00000";
    }
    if(d>=0){
    String[] sp=str.split("\\.");
    if(sp[0].length()==0)
    df= new DecimalFormat("0.00000");
    if(sp[0].length()==1)
    df= new DecimalFormat("0.00000");
    if(sp[0].length()==2)
        df= new DecimalFormat("00.0000");
    if(sp[0].length()==3)
        df= new DecimalFormat("000.000");
    if(sp[0].length()==4)
        df= new DecimalFormat("0000.00");
    if(sp[0].length()==5)
        df= new DecimalFormat("00000.0");
    }
    else{
    String[] sp=str.split("\\.");
    if(sp[0].length()==1)
    df= new DecimalFormat("0.0000");
    if(sp[0].length()==2)
    df= new DecimalFormat("0.0000");
    if(sp[0].length()==3)
        df= new DecimalFormat("00.000");
    if(sp[0].length()==4)
        df= new DecimalFormat("000.00");
    if(sp[0].length()==5)
        df= new DecimalFormat("0000.0");
    if(sp[0].length()==6)
        df= new DecimalFormat("000000");
    }

    try {
        return df.format(d);
    } catch (Exception e) {
        return "0.00000";
    }
}

简单地说:数据包输入块每次接收7个ASCII，并在java I中重新格式化由7个字符(包括点和减号)组成的双字符。

希望这能帮到别人。

更新：

some self explanatory extra code:

//somewhere before:
//Global variables
    String defaultValue="0",ip="xxx.xx.xx.xx";
    DatagramSocket remoteSocket,localSocket;
    byte[] receiveArray,receiveKey,receiveSig,sendSig;
    int remoteSendPort=xxx,localSendport=xxx,
        remoteReceivePort=xxx,localReceivePort=xxx;
    String feedback,control_val,ReceivedTimeStamp;
    InetAddress IPAddress;
...
//receive message from the other java program in pc2
    public  void remoteMsgSend(byte[] msg,InetAddress IPAddress, int PORT)  {
        try {
            DatagramPacket sendPacket = null;
            try {
                sendPacket = new DatagramPacket(msg, msg.length, IPAddress, PORT);
            } catch (Exception e) {
                System.out.printf("Error! check ports");
            }
            remoteSocket.send(sendPacket);
        } catch (IOException ex) {
            System.out.println("IOException! remote send");
        }
    }
    //receive message from the other java program in pc2
    public  String remoteMsgReceive() {
         DatagramPacket receivePacket = new DatagramPacket(receiveArray, receiveArray.length);
         byte[] r1;
         int count=0,len,offset;
           try {
               remoteSocket.receive(receivePacket);
               r1=receivePacket.getData();
               len=receivePacket.getLength();
               offset=receivePacket.getOffset();
               r1=Arrays.copyOfRange(r1, offset, len);
               remoteOk=true;
                return new String(r1);
                } catch (Exception ex) {
//                    System.out.println("remote receive time out: " +ex.getMessage());
                    remoteOk=false;
                    return defaultValue;
                }
     }

    //send data to matlab on this pc
    public  void localSend(String msg,int PORT)  {
        DatagramPacket sendPacket = null;
        try {
            sendPacket = new DatagramPacket(msg.getBytes(), msg.getBytes().length, InetAddress.getLocalHost(), PORT);
        } catch (Exception e) {
            System.out.printf("Error! check ports");
        }
        try {
            localSocket.send(sendPacket);
        } catch (IOException ex) {
            System.out.println("localsend error");
        }
    }
    //receive data from Matlab on this pc
    public  String localReceive() {
         DatagramPacket receivePacket = new DatagramPacket(receiveArray, receiveArray.length);

         String rec;
           try {
               localSocket.receive(receivePacket);
               rec=new String(receivePacket.getData(),receivePacket.getOffset(),receivePacket.getLength());
               localOk=true;
                return rec;
                } catch (Exception ex) {
//                          System.out.println("local receive time out " +ex.getMessage());
                          localOk=false;
                          return defaultValue;
                }
     }

Answer 2

另一种解决方案，在Simulink中输入流。只需向来自java的每条消息添加一个终止符"\n“即可。
