xbrl维度链接库解析

Question

我正试图解析SEC的edgar xml数据，并对可链接的定义感到困惑。下面是苹果 10-Q的定义链接库的摘录。注意：roleURI列是从定义链接库中的roleRef元素中添加的。

idx order   role    {http://www.w3.org/1999/xlink}arcrole   {http://www.w3.org/1999/xlink}from  roleURI {http://www.w3.org/1999/xlink}to
16  1   http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/dimension-domain    dei_LegalEntityAxis aapl-20151226.xsd#Role_StatementOfIncome    dei_EntityDomain
33  1   http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/hypercube-dimension us-gaap_StatementTable  aapl-20151226.xsd#Role_StatementOfIncome    dei_LegalEntityAxis
17  1.01    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_ResearchAndDevelopmentExpense
18  1.02    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_SellingGeneralAndAdministrativeExpense
19  1.03    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingExpenses
14  1.04    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_EarningsPerShareAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareBasic
15  1.05    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_EarningsPerShareAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareDiluted
21  1.06    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_SalesRevenueNet
22  1.07    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_CostOfGoodsAndServicesSold
23  1.08    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_GrossProfit
24  1.09    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingExpensesAbstract
25  1.1 http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingIncomeLoss
26  1.11    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_NonoperatingIncomeExpense
27  1.12    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_IncomeLossFromContinuingOperationsBeforeIncomeTaxesExtraordinaryItemsNoncontrollingInterest
28  1.13    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_IncomeTaxExpenseBenefit
29  1.14    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_NetIncomeLoss
30  1.15    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareAbstract
31  1.16    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract
32  1.17    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_CommonStockDividendsPerShareDeclared
34  1.19    http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfSharesOutstandingBasic
35  1.2 http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/domain-member   us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfDilutedSharesOutstanding
20  100 http://www.apple.com/taxonomy/role/StatementOfIncome    http://xbrl.org/int/dim/arcrole/all us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_StatementTable

从这些数据中，我希望能够重新创建Condensed Consolidated Statements of Operations的格式。

我的问题是，我不知道如何解析它。我假设从arcrole/all开始，它有一个from链接= us-gaap_StatementLineItems和to = us-gaap_StatementTable。从这一点出发，可以通过该表跟踪以下链接：

from                                 to
us-gaap_StatementTable               dei_LegalEntityAxis
dei_LegalEntityAxis                  dei_EntityDomain

从这里开始，它就停止了，因为dei_EntityDomain没有链接到任何东西。我知道结构应该是这样的：

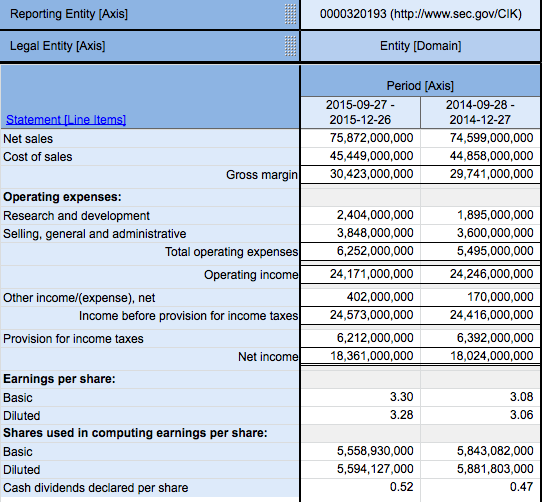

提供的数据：

​

​

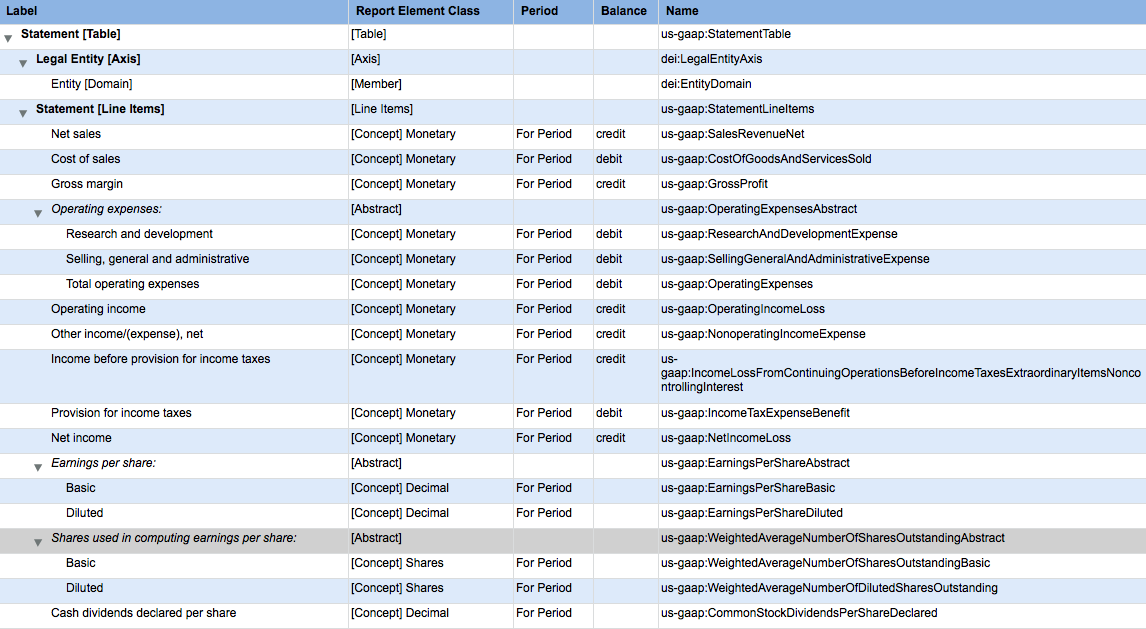

模型结构：

​

​

我希望链接库的结构如下所示：

from                                 to
us-gaap_StatementTable               dei_LegalEntityAxis
us-gaap_StatementTable               us-gaap_StatementLineItems

我可以看到，这将有效地允许从语句表中挂起两个级别，但它显然不是那样工作的。

有人能告诉我如何使用所提供的定义链接库数据来读取它以达到上述图片所示的预期结构吗？一旦我理解了链接库的定义如何工作，我就可以提取事实和概念。

Answer 1

我已经从StatementofIncome角色的表示链接库中创建了表的模型结构。

order   preferredLabel  role    {http://www.w3.org/1999/xlink}arcrole   {http://www.w3.org/1999/xlink}from  roleURI {http://www.w3.org/1999/xlink}to
1   http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_IncomeStatementAbstract aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_StatementTable
1   http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementTable  aapl-20151226.xsd#Role_StatementOfIncome    dei_LegalEntityAxis
1   http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   dei_LegalEntityAxis aapl-20151226.xsd#Role_StatementOfIncome    dei_EntityDomain
100 http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementTable  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_StatementLineItems
1.06    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_SalesRevenueNet
1.07    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_CostOfGoodsAndServicesSold
1.08    http://www.xbrl.org/2003/role/totalLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_GrossProfit
1.09    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingExpensesAbstract
1.01    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_ResearchAndDevelopmentExpense
1.02    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_SellingGeneralAndAdministrativeExpense
1.03    http://www.xbrl.org/2003/role/totalLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_OperatingExpensesAbstract   aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingExpenses
1.04    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_EarningsPerShareAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareBasic
1.05    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_EarningsPerShareAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareDiluted
1.1 http://www.xbrl.org/2003/role/totalLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_OperatingIncomeLoss
1.11    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_NonoperatingIncomeExpense
1.12    http://www.xbrl.org/2003/role/totalLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_IncomeLossFromContinuingOperationsBeforeIncomeTaxesExtraordinaryItemsNoncontrollingInterest
1.13    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_IncomeTaxExpenseBenefit
1.14    http://www.xbrl.org/2003/role/totalLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_NetIncomeLoss
1.15    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_EarningsPerShareAbstract
1.16    http://www.xbrl.org/2003/role/verboseLabel  http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract
1.17    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_StatementLineItems  aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_CommonStockDividendsPerShareDeclared
1.19    http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfSharesOutstandingBasic
1.2 http://www.xbrl.org/2003/role/terseLabel    http://www.apple.com/taxonomy/role/StatementOfIncome    http://www.xbrl.org/2003/arcrole/parent-child   us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract    aapl-20151226.xsd#Role_StatementOfIncome    us-gaap_WeightedAverageNumberOfDilutedSharesOutstanding

首先，我按顺序排序，然后发现第一个‘从’行，其中包含‘抽象’。从这里开始，我遍历了“links } to”链接来创建以下表结构，使用order字段来创建正确的排序：

us-gaap_IncomeStatementAbstract

Statement [Table]                                           us-gaap_StatementTable
    Legal Entity [Axis]                                     dei_LegalEntityAxis
        Entity [Domain]                                     dei_EntityDomain
    Statement [Line Items]                                  us-gaap_StatementLineItems
        Net sales                                           us-gaap_SalesRevenueNet
        Cost of sales                                       us-gaap_CostOfGoodsAndServicesSold
        Gross margin                                        us-gaap_GrossProfit
        Operating expenses:                                 us-gaap_OperatingExpensesAbstract
            Research and development                        us-gaap_ResearchAndDevelopmentExpense
            Selling, general and administrative             us-gaap_SellingGeneralAndAdministrativeExpense
            Total operating expenses                        us-gaap_OperatingExpenses
        Operating income                                    us-gaap_OperatingIncomeLoss
        Other income/(expense), net                         us-gaap_NonoperatingIncomeExpense
        Income before provision for income taxes            us-gaap_IncomeLossFromContinuingOperationsBeforeIn...
        Provision for income taxes                          us-gaap_IncomeTaxExpenseBenefit
        Net income                                          us-gaap_NetIncomeLoss
        Earnings per share:                                 us-gaap_EarningsPerShareAbstract
            Basic                                           us-gaap_EarningsPerShareBasic
            Diluted                                         us-gaap_EarningsPerShareDiluted
        Shares used in computing earnings per share:        us-gaap_WeightedAverageNumberOfSharesOutstandingAb...
            Basic                                           us-gaap_WeightedAverageNumberOfSharesOutstandingBa...
            Diluted                                         us-gaap_WeightedAverageNumberOfDilutedSharesOutsta...
        Cash dividends declared per share                   us-gaap_CommonStockDividendsPerShareDeclared

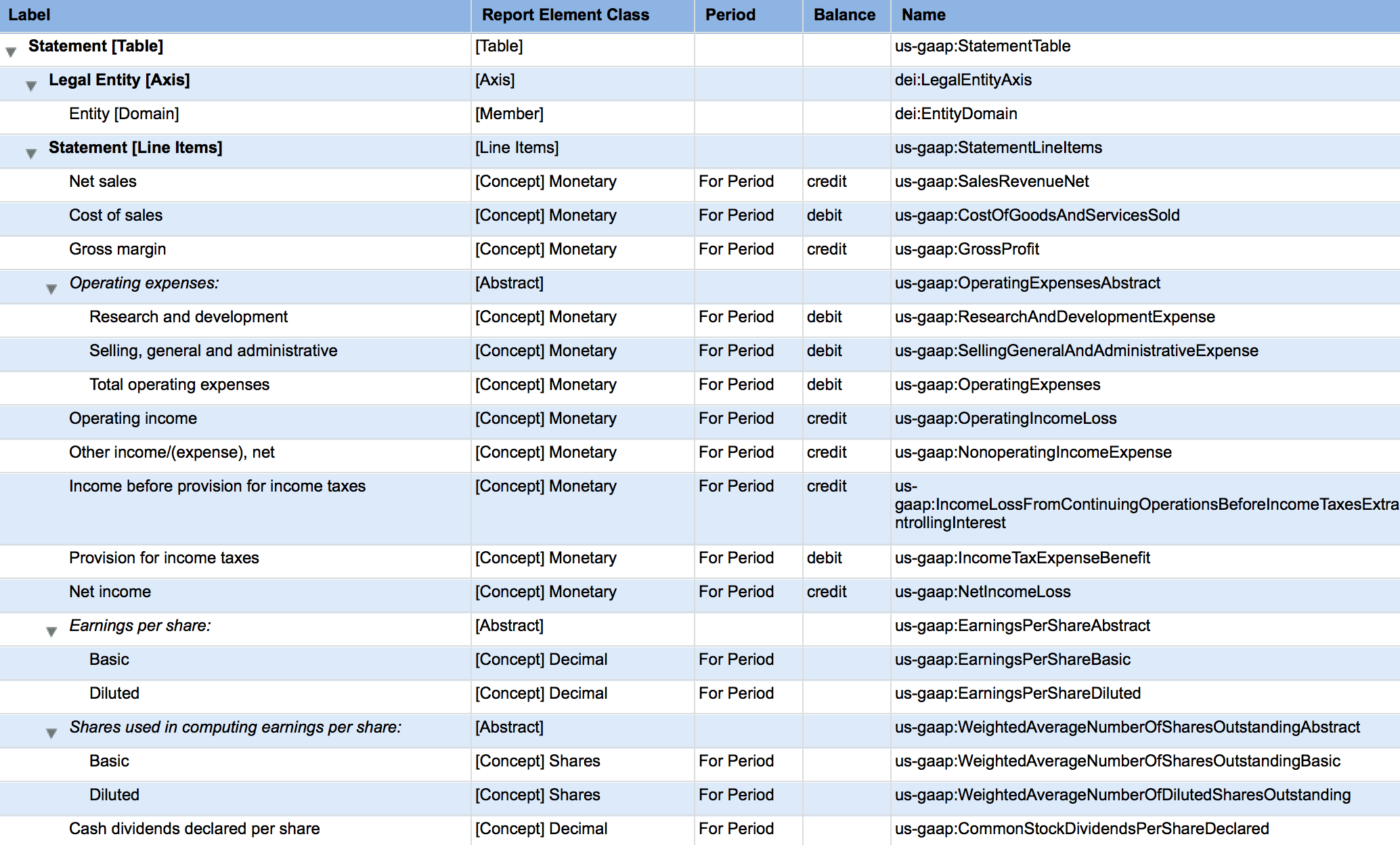

这与从呈现应用程序创建的模型结构非常相似：

​

​

Answer 2

定义链接库用于表示给定维度上下文中的有效概念，而不是用于呈现。然而，我认为你仍然可以用它来实现你的目标。

有一个表连接库，它旨在帮助呈现实例文档，但我无法为您正在使用的分类法找到一个。

这里的诀窍是不要把链接库定义为一个表。严格地说，它是一个无圈有向图，但它可能有助于将它看作一棵以XBRL超立方体为根的树(在您的摘录中称为“us_StatementTable”，在分类法中称为{http://fasb.org/us-gaap/2015-01-31}StatementTable)。

树的一个分支导致概念，或行项。另一个分支通向轴；在本例中，是一个单一维度{http://xbrl.sec.gov/dei/2014-01-31}LegalEntityAxis，其单个可能的域值为{http://xbrl.sec.gov/dei/2014-01-31}EntityDomain。

超多维数据集不会出现在实例文档中，但它链接到的维度和域将出现。

在实例文档中，您将查找具有这些值的{http://www.xbrl.org/2003/instance}上下文元素，该元素分别作为子节点{http://xbrl.org/2006/xbrldi}explicitMember节点的维度属性和值。与此上下文相关的事实将是您所追求的事实(它们将具有与父上下文的id属性相同的contextRef属性)。上下文节点也是从其中获取期间信息的地方。

在我没有帮助的情况下，您已经发现这里有一个使用抽象元素的约定(us_OperatingExpensesAbstract、us-gaap_EarningsPerShare文摘和us-gaap_WeightedAverageNumberOfSharesOutstandingAbstract)作为副标题)。由于抽象，它们不会出现在实例文档中。

请记住，在您所包含的定义链接基提取中，"dei_EntityDomain“没有指向任何东西；概念指向超立方体，超立方体点指向维度，即指向域。用于表示维度和域的XML元素在实例文档中显示为xbrli:context元素的子元素。
