用OpenHAB控制树莓Pi中飞利浦色

Question

我想用OpenHAB控制飞利浦彩灯。所以我想知道我应该做些什么，如果我错过了什么。

在pi@raspberrypi:/opt/openhab/configurations/rules $ sudo vi demo.rules中

rule "Select scene"
    when
        Item scene received command
    then
        switch(receivedCommand) {
            /*alles uit */
            case 0 : {
            sendCommand(Toggle_7, OFF);
            sendCommand(Toggle_3, OFF);
            sendCommand(Toggle_1, OFF);
            sendCommand(Toggle_10, OFF);
            sendCommand(Toggle_11, OFF);
            sendCommand(Toggle_5, OFF);
            sendCommand(Toggle_9, OFF);
            }
            /*sfeer */
            case 1 : {
            sendCommand(LWD_3, 90);
            sendCommand(Color_7, "45.584415,86.033516,70.19608");
            sendCommand(Color_1, "45.584415,86.033516,70.19608");
            sendCommand(Color_10, "45.584415,86.033516,70.19608");
            sendCommand(Color_11, "45.584415,86.033516,70.19608");
            sendCommand(Color_5, "45.584415,86.033516,70.19608");
            sendCommand(LWD_9,10);
            }
            /*Alles aan */
            case 2 : {
            sendCommand(Toggle_7, ON);
            sendCommand(Toggle_3, ON);
            sendCommand(Toggle_1, ON);
            sendCommand(Toggle_10, ON);
            sendCommand(Toggle_11, ON);
            sendCommand(Toggle_5, ON);
            sendCommand(LWD_9,100);
            }
            /*eten */
            case 3 : {
            sendCommand(Toggle_3, OFF);
            sendCommand(Color_7, "42.391304,73.6,100.0");
            sendCommand(Color_1, "42.391304,73.6,100.0");
            sendCommand(Color_10, "42.391304,73.6,100.0");
            sendCommand(Color_11, "60,42,100");
            sendCommand(Color_5, "60,42,100");
            sendCommand(LWD_9,10);
            }
            case 4 : {
            /*nacht */
            sendCommand(LWD_9, 50);
            sendCommand(Color_7, "46.25,37.64706,100.0");
            sendCommand(Color_10, "46.25,37.64706,100.0");
            sendCommand(Toggle_1, OFF);
            sendCommand(Toggle_3, OFF);
            sendCommand(Toggle_11, OFF);
            sendCommand(Toggle_5, OFF);
            }
            case 5 : {
                /* Sunset */
            sendCommand(Color_7, "42.391304,73.6,100.0");
            sendCommand(Color_1, "42.391304,73.6,100.0");
            sendCommand(Color_10, "42.391304,73.6,100.0");
            sendCommand(Color_11, "42.391304,73.6,100.0");
            sendCommand(Color_5, "42.391304,73.6,100.0");
            sendCommand(Toggle_3, OFF);
            sendCommand(LWD_9,10);
            }
            case 6 : {
                /* Aqua */
            sendCommand(Color_7, "230.82353,100.0,100.0");
            sendCommand(Color_1, "230.82353,100.0,100.0");
            sendCommand(Color_10, "230.82353,100.0,100.0");
            sendCommand(Color_11, "230.82353,100.0,100.0");
            sendCommand(Color_5, "230.82353,100.0,100.0");
            sendCommand(Toggle_3, OFF);
            sendCommand(LWD_9,10);
            }
            case 7 : {
            /* Duo */
            sendCommand(Color_7, "272,100.0,100.0");
            sendCommand(Color_5, "272,100.0,100.0");
            sendCommand(Color_1, "330,100.0,100.0");
            sendCommand(Color_10, "330,100.0,100.0");
            sendCommand(Color_11, "330,100.0,100.0");
            sendCommand(Toggle_3, OFF);
            sendCommand(LWD_9,10);
            }

            case 8 : {
            /* Duo ambilight play */
            sendCommand(Color_7, "272,100.0,30.0");
            sendCommand(Color_5, "272,100.0,30.0");
            sendCommand(Color_1, "330,100.0,30.0");
            sendCommand(Color_10, "330,100.0,30.0");
            sendCommand(Color_11, "330,100.0,30.0");
            }
            case 9 : {
            /* Duo ambilight pauze*/
            sendCommand(Color_7, "272,100.0,100.0");
            sendCommand(Color_5, "272,100.0,100.0");
            sendCommand(Color_1, "330,100.0,100.0");
            sendCommand(Color_10, "330,100.0,100.0");
            sendCommand(Color_11, "330,100.0,100.0");
            }
        }
end

在pi@raspberrypi:/opt/openhab/configurations/items $ vi demo.items中

我有过

：

/* Hue */
Switch Toggle_1   "left bulb"   (Switching) {hue="1"}
Switch Toggle_2   "center bulb" (Switching) {hue="2"}
Switch Toggle_3       "right bulb"  (Switching) {hue="3"}

Color Color_1     "left bulb"   (Colorize)  {hue="1"}
Color Color_2         "center bulb" (Colorize)  {hue="2"}
Color Color_3     "right bulb"  (Colorize)  {hue="3"}

Dimmer Dimm_1     "left bulb"   (WhiteDimmer)   {hue="1;brightness;30"}
Dimmer Dimm_2     "center bulb" (WhiteDimmer)   {hue="2;brightness;30"}
Dimmer Dimm_3     "right bulb"  (WhiteDimmer)   {hue="3;brightness;30"}

Dimmer CT_Dimm_1      "left bulb"   (CTDimmer)  {hue="1;colorTemperature;30"}
Dimmer CT_Dimm_2      "center bulb" (CTDimmer)  {hue="2;colorTemperature;30"}
Dimmer CT_Dimm_3      "right bulb"  (CTDimmer)  {hue="3;colorTemperature;30"}

在pi@raspberrypi:/opt/openhab/configurations $ vi openhab.cfg中

我有：

############################### Philips Hue Binding ###################################
#
# IP address of Hue Bridge (optional, default is auto-discovery)
hue:ip=192.168.1.117
hue:secret=openHABRuntime
hue:refresh=10000

我使用sudo ./start.sh运行它，然后将Hue集线器与OpenHAB配对。我不是缺少什么，因为我仍然不能控制色调与OpenHAB。

​

​

​

​

​

​

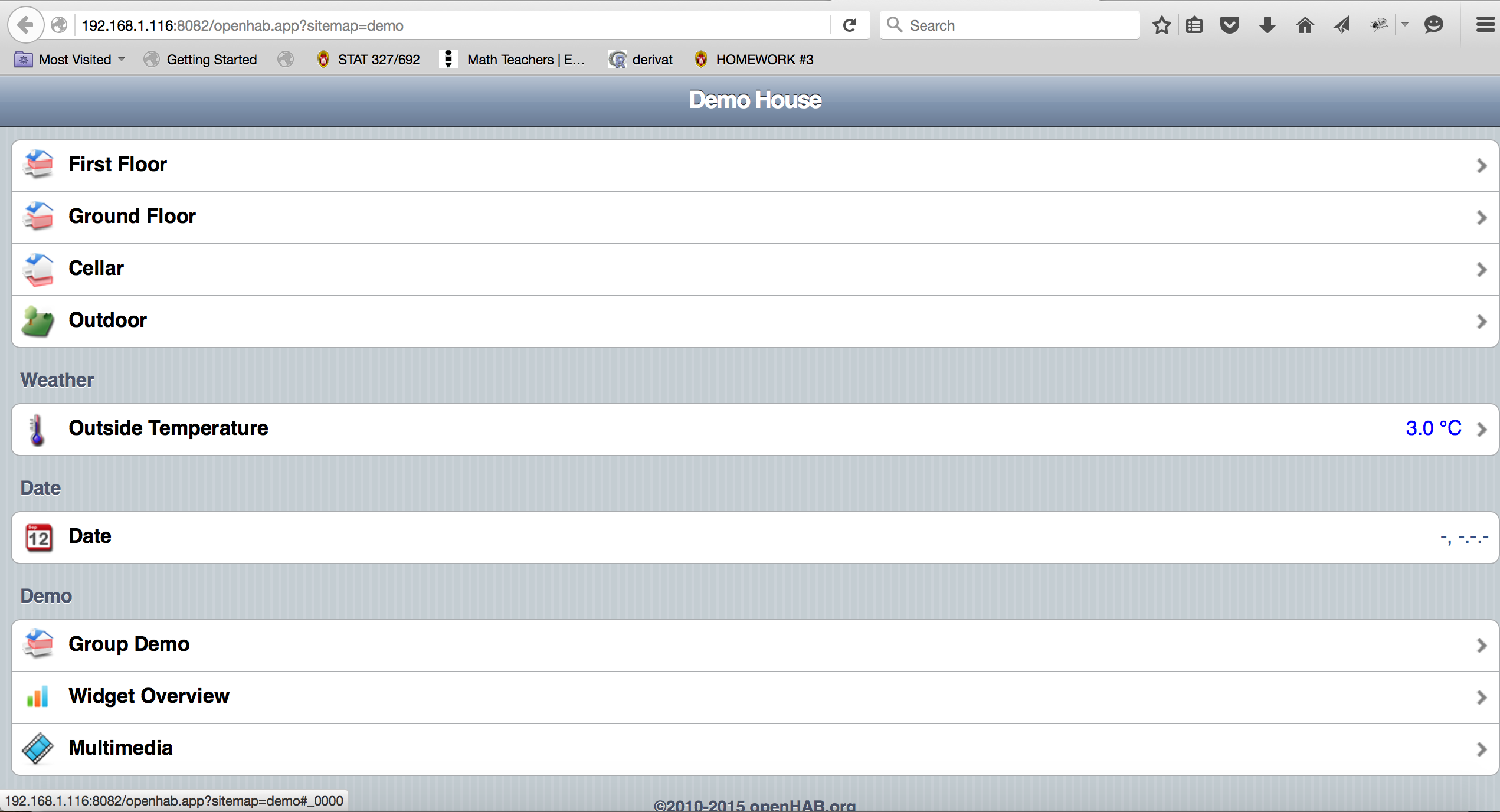

我的主要困难是将web连接到openHAB中的代码。任何指针都是非常感谢的！另外，我已经从不同的教程中缝合了上面的代码，所以它可能完全没有意义！

Answer 1

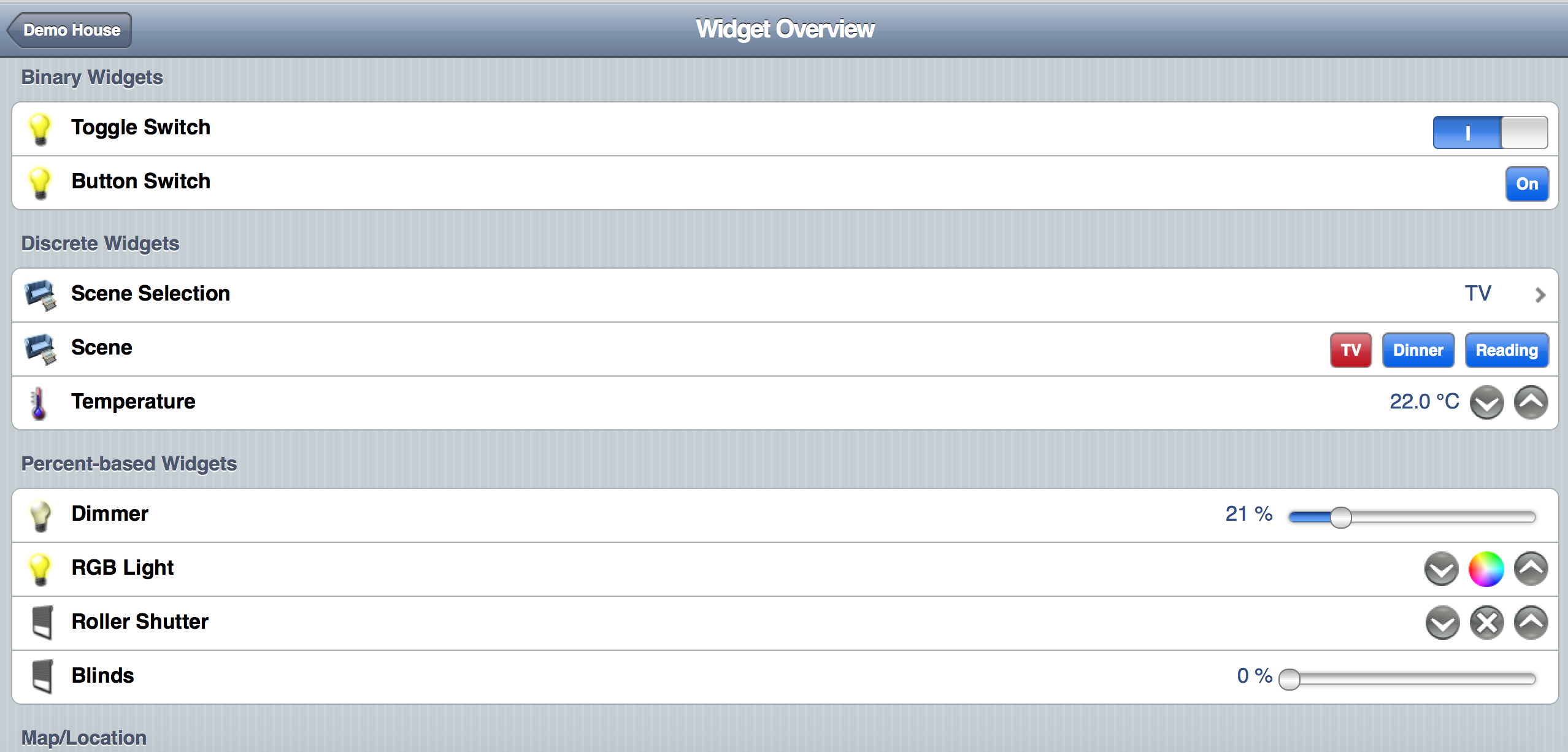

更改UI的外观是用*.sitemap文件完成的。此文件定义了UI：https://github.com/openhab/openhab/wiki/Explanation-of-Sitemaps中显示项目的方式和内容。

至于其余的例子：-你确定的ip和秘密的色调桥？-有多少灯泡连接到桥上？因为在*.items文件中，hue=1意味着连接到桥接器的第一个灯泡。

Answer 2

这是随机的，是的，但你也必须对这座桥。你至少有一个灯泡可以打开和关闭吗？

只是检查一下，但是您的switch和scene项并不称为开关和场景，对吗？

绑定很挑剔，您可能必须为每个变量声明变量类型：

var DecimalType hue = new DecimalType(240) // 0-360; 0=red, 120=green, 240=blue, 360=red(again)
var PercentType sat = new PercentType(100) // 0-100
var PercentType bright = new PercentType(100) // 0-100
var HSBType light = new HSBType(hue,sat,bright)
sendCommand(Light_GF_Lounge_C, light)

尽管坦率地说，绑定有点痛苦，您最好直接使用API，然后设置您在应用程序中设置的场景。

或直接

rule "Set lights"
when
    Item Switch_Lounge received update ON
then
    var String hueApiCall = "curl@@-X@@PUT@@-d@@{\"on\": %s, \"hue\":%d , \"sat\": %d, \"bri\": %d, \"transitiontime\": %d}@@http://192.168.1.147/api/YOURPAIREDHUEUSERID/groups/%d/action"
    executeCommandLine(String::format(hueApiCall, true, 13088, 212, 100, 10, 2 ))
end

executeCommandLine中的每个值都按照顺序匹配%占位符，在本例中: true，hue: 13088，sat: 212，bri，100，转换时间: 10，组2

使用这种语法，您可以设置场景、警报和各种类型。
